Ameer Randolph
The fuel pump in a 2004 Mustang V6 is located inside the fuel tank, which is situated in the rear of the vehicle, typically beneath the rear seat area. Accessing the fuel pump requires removing the rear seat cushion and the fuel pump access panel, followed by lowering the fuel tank slightly or removing it entirely, depending on the specific repair or maintenance task. This setup ensures the fuel pump operates in a submerged environment, helping to maintain a consistent fuel temperature and prolong its lifespan. If you're experiencing fuel-related issues, such as difficulty starting or poor performance, the fuel pump or its components may need inspection or replacement.
Explore related products
What You'll Learn
Fuel pump location in 2004 Mustang V6
The fuel pump in a 2004 Mustang V6 is located inside the fuel tank, a common placement in modern vehicles to reduce fire hazards and maintain fuel pressure. This in-tank design requires accessing the fuel tank to service or replace the pump, which is situated beneath the rear passenger seat area. Understanding this location is crucial for troubleshooting fuel delivery issues or performing maintenance.
To access the fuel pump, start by relieving the fuel system pressure using the Schrader valve on the fuel rail. Next, disconnect the negative battery terminal to prevent electrical accidents. Raise the vehicle securely on jack stands to access the fuel tank from underneath. The tank is held in place by straps and bolts, which must be removed to lower it slightly. Once the tank is accessible, disconnect the electrical connector and fuel lines from the pump assembly. This process requires basic tools and caution to avoid fuel spills or damage to surrounding components.
Comparing the 2004 Mustang V6 to earlier models, the in-tank fuel pump design is an improvement over external pumps, which were more prone to overheating and failure. This change reflects advancements in automotive engineering aimed at enhancing safety and reliability. However, the in-tank location complicates replacement, making it a more labor-intensive task compared to vehicles with external pumps. For DIY enthusiasts, this means allocating more time and ensuring proper safety measures are in place.
Descriptively, the fuel pump module in the 2004 Mustang V6 includes the pump, sender unit, and float, all housed within a single assembly. This module is secured to the top of the fuel tank and is accessible by removing a circular access panel. The sender unit measures fuel levels, while the float moves with the fuel to provide accurate readings to the gauge. When replacing the pump, it’s often more cost-effective to replace the entire module rather than individual components, as disassembly can be challenging and time-consuming.
In conclusion, knowing the fuel pump’s location in the 2004 Mustang V6 is essential for effective maintenance and troubleshooting. Its in-tank placement prioritizes safety but demands careful access and handling. Whether you’re diagnosing a fuel delivery issue or performing a replacement, understanding this layout ensures a smoother process and minimizes the risk of errors. Always follow safety protocols and consult a repair manual for detailed instructions tailored to your vehicle.
Step-by-Step Guide to Testing an Inline Fuel Pump Effectively
You may want to see also
Explore related products
Accessing the fuel pump in a 2004 Mustang
The fuel pump in a 2004 Mustang V6 is located inside the fuel tank, a common placement in modern vehicles to keep the pump cool and reduce the risk of vapor lock. This design, while efficient, complicates access, requiring the removal of the tank for maintenance or replacement. Understanding this layout is crucial for anyone planning to work on the fuel system, as it dictates the tools, time, and safety precautions needed.
To access the fuel pump, start by relieving the fuel system pressure using the Schrader valve on the fuel rail. This step is non-negotiable, as residual pressure can lead to fuel spray or fire hazards. Next, disconnect the negative battery terminal to prevent accidental ignition. With safety measures in place, raise the vehicle securely on jack stands to access the underside. The fuel tank is located beneath the rear seat area, protected by a metal shield. Remove the shield by unbolting it, then disconnect the fuel lines and electrical connectors attached to the tank. These connections often require specific tools, such as a fuel line disconnect tool, to avoid damage.

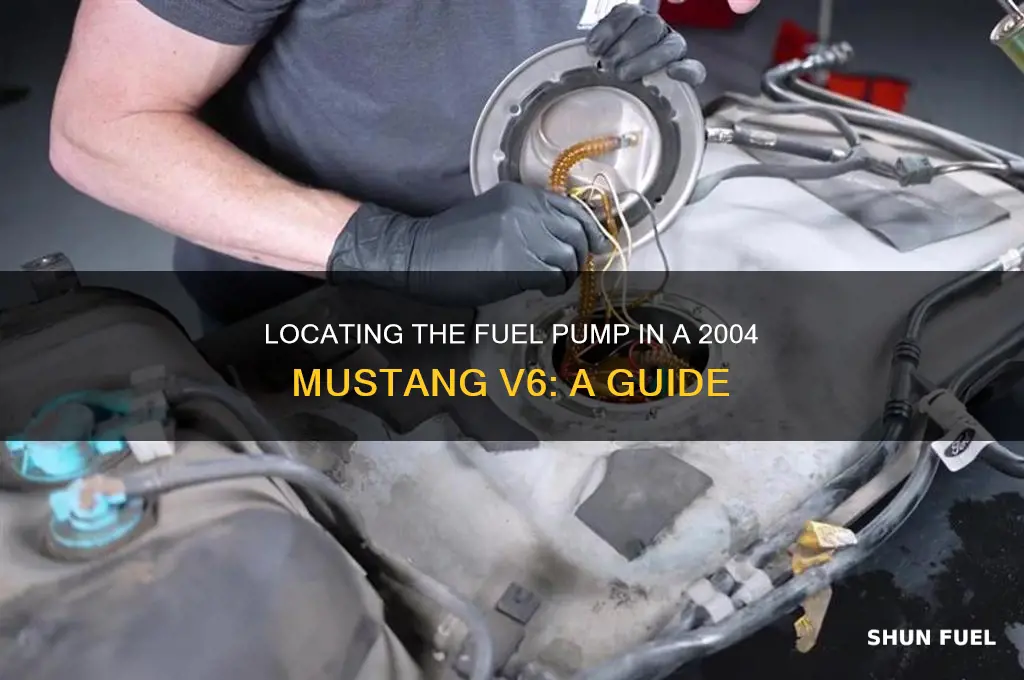

Once the tank is free, lower it carefully to a stable surface. The fuel pump module is secured to the top of the tank with a locking ring. Use a specialized fuel pump removal tool to disengage the ring, as prying with improper tools can damage the tank. After removing the ring, lift the module out, taking care not to spill residual fuel. When installing a new pump, ensure the sealing ring is properly seated to prevent leaks. Reassembly follows the reverse order, with careful attention to torque specifications for bolts and proper reconnection of fuel lines and electrical components.
Comparing this process to older models, the 2004 Mustang’s in-tank fuel pump design offers advantages in reliability and performance but demands more labor-intensive maintenance. Unlike external pumps, which are easier to access but more prone to heat damage, the in-tank setup requires tank removal, a task that can take 2-4 hours depending on experience and tools. For DIY enthusiasts, this process highlights the importance of patience, proper equipment, and adherence to safety protocols. Professional mechanics often complete this task more efficiently, but with basic mechanical skills and a methodical approach, it’s achievable for the determined homeowner.
Understanding the Mechanism: How Injection Pumps Shut Off Fuel Supply
You may want to see also
Explore related products
Identifying fuel pump components in 2004 V6 Mustang
The fuel pump in a 2004 Mustang V6 is located inside the fuel tank, a common placement in modern vehicles to reduce fire hazards and maintain fuel pressure. Identifying its components requires understanding both the pump assembly and its associated parts. The primary component is the electric fuel pump itself, which draws fuel from the tank and delivers it to the engine. Attached to the pump is a sender unit, responsible for monitoring fuel levels and sending data to the fuel gauge. Additionally, the assembly includes a filter sock, which prevents debris from entering the pump and clogging the system. These components are housed within a modular unit, often referred to as the fuel pump module, which is accessible by dropping the fuel tank.
Analyzing the fuel pump module’s design reveals its integration with the vehicle’s fuel system. The module is sealed to prevent fuel leaks and is connected to the fuel lines via quick-disconnect fittings. The electrical connector, typically located at the top of the tank, powers the pump and transmits signals from the sender unit. One critical aspect to note is the check valve, which maintains residual pressure in the fuel lines when the engine is off, ensuring quicker starts. This valve is part of the pump assembly and is not serviceable separately, meaning the entire module must be replaced if the valve fails. Understanding these interconnections is essential for diagnosing issues like fuel delivery problems or inaccurate fuel gauge readings.
When identifying fuel pump components, it’s crucial to follow safety precautions due to the flammable nature of gasoline. Always relieve fuel system pressure before accessing the tank, typically by disconnecting the fuel pump relay and running the engine until it stalls. Work in a well-ventilated area and avoid open flames or sparks. For DIY enthusiasts, locating the fuel tank access point is straightforward: it’s positioned beneath the rear seat. Remove the seat to expose the tank’s service panel, which provides access to the pump module. However, replacing the module requires draining the fuel tank, a task best performed with a siphon pump or by a professional to avoid spills and contamination.
Comparing the 2004 Mustang V6’s fuel pump to earlier models highlights advancements in design and functionality. Older systems often used external pumps mounted along the chassis, which were more susceptible to damage and corrosion. The in-tank design not only improves safety but also reduces noise and vibration. However, this integration means that pump failures require more extensive disassembly. For instance, while an external pump can be replaced without dropping the tank, the 2004 model’s in-tank module necessitates tank removal, a labor-intensive process. This comparison underscores the trade-offs between modern efficiency and maintenance complexity.
In practice, identifying and servicing fuel pump components in a 2004 Mustang V6 requires a blend of technical knowledge and caution. Start by verifying symptoms like engine sputtering or failure to start, which often indicate pump issues. Use a fuel pressure gauge to test pressure at the rail; readings below 30 PSI (the typical operating range for this model) suggest a failing pump. If replacement is necessary, opt for OEM or high-quality aftermarket modules to ensure compatibility and longevity. Finally, always reset the fuel pump relay and inspect connections after installation to prevent electrical faults. With these steps, even novice mechanics can tackle fuel pump issues confidently.
DIY Guide: Replacing the Fuel Pump on a 2002 Toyota Tacoma
You may want to see also
Explore related products
Tools needed to replace 2004 Mustang V6 fuel pump
The fuel pump in a 2004 Mustang V6 is located inside the fuel tank, which means replacing it requires a systematic approach and the right tools. Before diving into the process, it’s essential to gather the necessary equipment to ensure a smooth and safe replacement. Here’s a detailed breakdown of the tools you’ll need, organized to guide you through the task efficiently.
Essential Tools for the Job:
- Floor Jack and Jack Stands: To safely lift the vehicle and access the fuel tank. Ensure the car is securely supported before proceeding.
- Wrench Set or Socket Set: Specifically, a 10mm and 15mm wrench or sockets for removing bolts and fuel lines.
- Screwdrivers (Flathead and Phillips): For any additional screws or clamps holding the fuel tank or pump assembly in place.
- Fuel Line Disconnect Tools: These specialized tools help safely detach the fuel lines without damaging them or causing leaks.
- Safety Wire Cutters or Pliers: To remove any safety clips or wiring harnesses connected to the fuel pump.
- New Fuel Pump Module: Ensure you have the correct replacement part for your 2004 Mustang V6.
Optional but Recommended Tools:
- Fuel Pump Module Removal Tool: This tool simplifies the process of extracting the pump from the tank.
- Work Gloves and Safety Goggles: Protect yourself from fuel spills and debris during the replacement.
- Battery Disconnect Tool: Disconnecting the battery prevents accidental ignition during the process.
Steps to Prepare for Replacement:
- Relieve the fuel system pressure by locating the Schrader valve on the fuel rail and pressing it with a tool.
- Disconnect the battery to eliminate any risk of electrical mishaps.
- Drain the fuel tank if possible, or be prepared to handle residual fuel during removal.
Cautions and Tips:
- Work in a well-ventilated area to avoid inhaling fuel vapors.
- Keep a fire extinguisher nearby as a safety precaution.
- If you’re unsure about any step, consult a professional or a detailed repair manual for your specific model.
By equipping yourself with these tools and following the preparatory steps, you’ll be well-prepared to tackle the fuel pump replacement on your 2004 Mustang V6. This approach ensures efficiency, safety, and confidence throughout the process.
Discover Fuel Pump Locations in Days Gone: A Survival Guide
You may want to see also
Explore related products
Symptoms of a failing fuel pump in 2004 Mustang V6
The fuel pump in a 2004 Mustang V6 is located inside the fuel tank, a common placement for in-tank fuel pumps in modern vehicles. This design helps maintain fuel pressure and reduces the risk of vapor lock. However, this location also means that diagnosing and replacing a failing fuel pump can be more complex. Recognizing the symptoms early can save you from a sudden breakdown or costly repairs.
One of the first signs of a failing fuel pump is difficulty starting the engine, especially after the vehicle has been sitting for a while. This occurs because the pump struggles to build adequate pressure to deliver fuel to the engine. You might notice the engine cranks but doesn’t catch, or it takes several attempts to start. If this happens intermittently, it’s a strong indicator that the fuel pump is on its way out. A quick diagnostic tip: listen for the fuel pump’s hum when you turn the ignition to the "on" position (but don’t start the engine). If the hum is weak or absent, the pump may be failing.
Another symptom is stalling or sputtering at high speeds or under load. A failing fuel pump may not deliver enough fuel to meet the engine’s demands during acceleration or when climbing hills. This can cause the engine to hesitate, lose power, or even stall. If you notice your Mustang’s performance drops significantly during these conditions, it’s time to inspect the fuel pump. A fuel pressure test, which measures the pump’s output, can confirm if it’s operating within the specified range of 30–60 PSI for this model.
Unusual noises from the fuel tank area are also a red flag. A whining or droning sound, especially during acceleration, suggests the pump’s motor is overworking or worn out. While some noise is normal, a sudden increase in volume or a grinding sound indicates imminent failure. Ignoring these noises can lead to a complete pump failure, leaving you stranded.
Finally, poor fuel efficiency can be a subtle but telling symptom. A failing fuel pump may deliver fuel inconsistently, causing the engine to run richer than necessary. If you notice a sudden drop in miles per gallon without changes in driving habits, the fuel pump could be the culprit. Keep a log of your fuel consumption to spot trends and address issues before they worsen.
In summary, a failing fuel pump in a 2004 Mustang V6 manifests through difficulty starting, stalling under load, unusual noises, and poor fuel efficiency. Early diagnosis and replacement can prevent more severe problems. If you suspect an issue, consult a mechanic or perform a fuel pressure test to confirm the pump’s condition.
Bad Fuel Pump: How It Causes Engine Power Loss Explained
You may want to see also
Frequently asked questions
The fuel pump in a 2004 Mustang V6 is located inside the fuel tank, which is situated in the rear of the vehicle, beneath the trunk area.
To access the fuel pump, you’ll need to remove the rear seat cushion, locate the access panel, and then lower the fuel pump module from the fuel tank.
Yes, always relieve the fuel system pressure, disconnect the battery, and work in a well-ventilated area to avoid fire hazards.
Yes, the fuel pump module is designed to be replaced without removing the entire fuel tank, but you’ll need to access it through the trunk or rear seat area.
