The injection pump's fuel shut-off mechanism is a critical component in diesel engines, ensuring safety and control by halting fuel delivery to the cylinders when necessary. This process typically involves a mechanical or electronic system that disengages the pump's plunger or blocks the fuel supply, preventing further injection. In mechanical systems, a lever or linkage connected to the pump is actuated, often by the engine's governor or a manual shut-off switch, to stop the plunger's movement. Electronic systems, on the other hand, use sensors and actuators to signal the pump to cease operation, providing precise control and faster response times. Understanding this mechanism is essential for maintaining engine efficiency, preventing overheating, and ensuring safe operation during emergencies or routine shutdowns.
| Characteristics | Values |
|---|---|
| Mechanism Type | Mechanical or electronic shut-off system |
| Primary Purpose | To stop fuel delivery to the injectors and halt engine operation |
| Mechanical Shut-Off | Governed by a mechanical linkage or lever connected to the pump |
| Electronic Shut-Off | Controlled by an Electronic Control Unit (ECU) via a solenoid valve |
| Shut-Off Location | Typically at the injection pump's fuel metering or delivery stage |
| Response Time | Immediate (mechanical) or near-immediate (electronic) |
| Common Applications | Diesel engines in vehicles, generators, and industrial machinery |
| Safety Feature | Prevents over-speeding and engine damage |
| Maintenance Requirement | Regular inspection of linkages, levers, and solenoids for wear |
| Failure Symptoms | Engine continues running after key-off or erratic fuel delivery |
| Modern Systems | Integrated with ECU for precise control and diagnostics |
| Environmental Impact | Reduces fuel wastage and emissions during shut-off |
| Compatibility | Works with both inline and distributor-type injection pumps |
| Energy Source | Mechanical systems rely on physical force; electronic systems use electricity |
| Diagnostics | Electronic systems allow fault code reading via ECU |
Explore related products
What You'll Learn
- Solenoid Valve Activation: Solenoid valve closes, stopping fuel flow to injectors, ceasing combustion
- Governor Mechanism: Speed governor limits RPM, triggers pump shutdown to prevent over-revving
- Timing Pin Shutdown: Timing pin disengages, halting fuel delivery to injection nozzles
- Pressure Relief Valve: Excess pressure activates relief valve, redirecting fuel, stopping injection
- Manual Shutdown Lever: Lever mechanically disengages pump, cutting fuel supply instantly

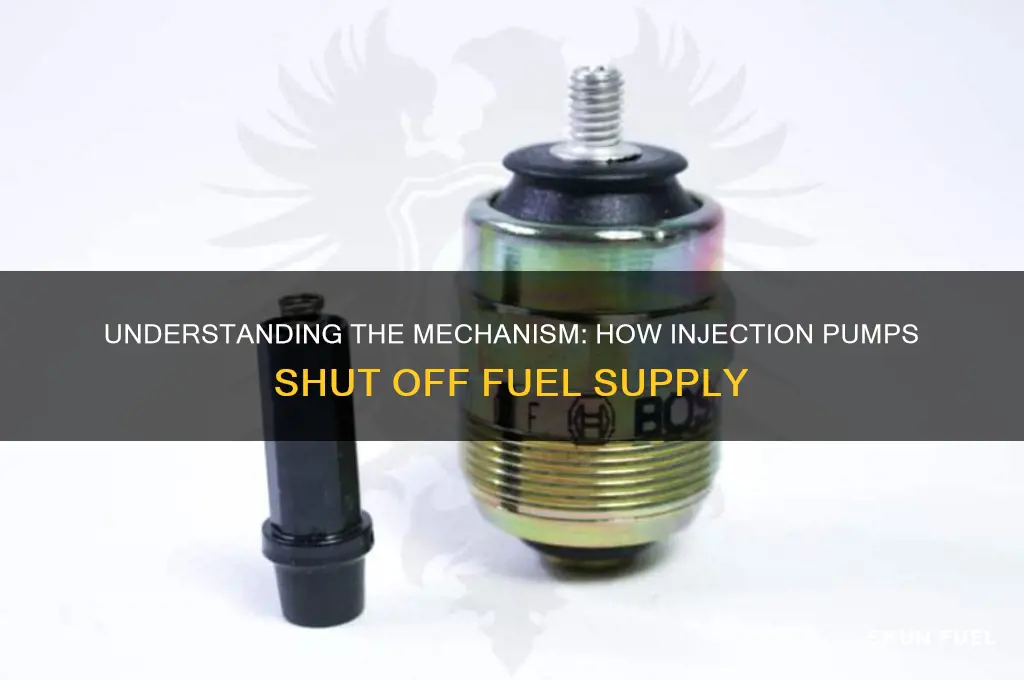

Solenoid Valve Activation: Solenoid valve closes, stopping fuel flow to injectors, ceasing combustion
In the intricate dance of a fuel injection system, the solenoid valve plays a pivotal role as the gatekeeper of fuel flow. When the engine control unit (ECU) sends a signal to shut off fuel, the solenoid valve responds by closing, effectively cutting off the supply to the injectors. This action is instantaneous, ensuring that combustion ceases immediately, which is critical for engine safety and efficiency. For instance, in diesel engines, this mechanism prevents over-revving and potential damage during sudden shutdowns. Understanding this process highlights the precision required in modern fuel systems, where milliseconds can make a significant difference in performance and longevity.
To appreciate the solenoid valve’s function, consider its operation as a binary switch: energized to open, de-energized to close. When the ignition is turned off, the ECU stops sending current to the solenoid, causing its plunger to return to its resting position via a spring. This movement seals the fuel passage, halting flow to the injectors. In practical terms, this ensures that no residual fuel is delivered to the cylinders, preventing post-shutdown combustion events. For mechanics or DIY enthusiasts, testing this valve involves checking for continuity with a multimeter and ensuring the spring’s tension remains adequate, as a weak spring can lead to incomplete closure and fuel leaks.
From a comparative standpoint, solenoid-based fuel shutoff systems offer distinct advantages over mechanical alternatives. Unlike older systems reliant on governor mechanisms or manual levers, solenoids provide faster response times and greater reliability. For example, in high-performance engines, the solenoid’s ability to shut off fuel in under 50 milliseconds is essential for meeting emissions standards and preventing engine runaway. However, this speed comes with a trade-off: solenoids are more susceptible to electrical failures, such as short circuits or corrosion, which can render them inoperative. Regular inspection of wiring and connectors is therefore crucial to maintain system integrity.
A persuasive argument for the solenoid valve’s importance lies in its contribution to fuel efficiency and environmental impact. By ensuring complete fuel cutoff, it minimizes wastage and reduces the risk of unburned hydrocarbons escaping into the atmosphere. This is particularly relevant in modern vehicles, where even small inefficiencies can significantly affect emissions and fuel economy. For fleet managers or eco-conscious drivers, understanding and maintaining this component can lead to tangible cost savings and reduced carbon footprints. A simple tip: keep the valve’s housing clean and free of debris, as contamination can impair its sealing ability.
Finally, a descriptive exploration of the solenoid valve’s role reveals its elegance in simplicity. Housed within the fuel injection pump, this compact device consists of a coil, plunger, and spring, yet its impact on engine operation is profound. When activated, the coil generates a magnetic field that lifts the plunger, allowing fuel to pass. Conversely, deactivation causes the plunger to drop, sealing the passage with a metallic click—a sound familiar to mechanics diagnosing fuel system issues. This tactile feedback, combined with diagnostic tools like pressure gauges, aids in troubleshooting. For those working on older vehicles, upgrading to a more robust solenoid can enhance reliability, though compatibility with the existing system must be verified.
