The fuel pump fuse on a 2003 GMC Yukon is typically located in the underhood fuse block, which is situated near the driver's side fender. To access it, you'll need to open the hood and locate the fuse block cover, often labeled with a diagram indicating the fuse positions. The fuel pump fuse is usually labeled as FUEL PUMP or FP and is commonly a 20-amp fuse. It's essential to consult your vehicle's owner's manual for the exact location and fuse rating, as variations may exist depending on the specific model and trim level. If you're experiencing fuel pump issues, checking the fuse is a straightforward first step in diagnosing the problem.
| Characteristics | Values |
|---|---|
| Location of Fuse Box | Under the hood (engine compartment fuse block) |
| Fuse Panel Name | Engine Compartment Fuse Block |
| Fuse Number | Fuse #46 (2003 GMC Yukon) |
| Fuse Rating | 20 Amps |
| Fuse Color | Typically yellow or as indicated in the fuse box diagram |
| Function | Controls the fuel pump relay and fuel pump circuit |
| Additional Notes | Check the fuse box diagram in the vehicle's manual for exact location |
| Alternative Location | Some models may have an additional fuse in the interior fuse box (rare) |
| Year Applicability | 2003 GMC Yukon (may vary slightly across trims) |
| Verification Method | Refer to the owner's manual or consult a repair guide for confirmation |
Explore related products
What You'll Learn
- Fuse Box Location: Identify the fuse box location in your 2003 Yukon for the fuel pump fuse
- Fuse Panel Diagram: Refer to the fuse panel diagram to locate the specific fuel pump fuse
- Common Fuse Issues: Understand common issues related to the fuel pump fuse in a 2003 Yukon
- Replacement Steps: Learn the steps to replace the fuel pump fuse if it’s blown
- Troubleshooting Tips: Get troubleshooting tips for diagnosing fuel pump fuse problems in your 2003 Yukon
Fuse Box Location: Identify the fuse box location in your 2003 Yukon for the fuel pump fuse

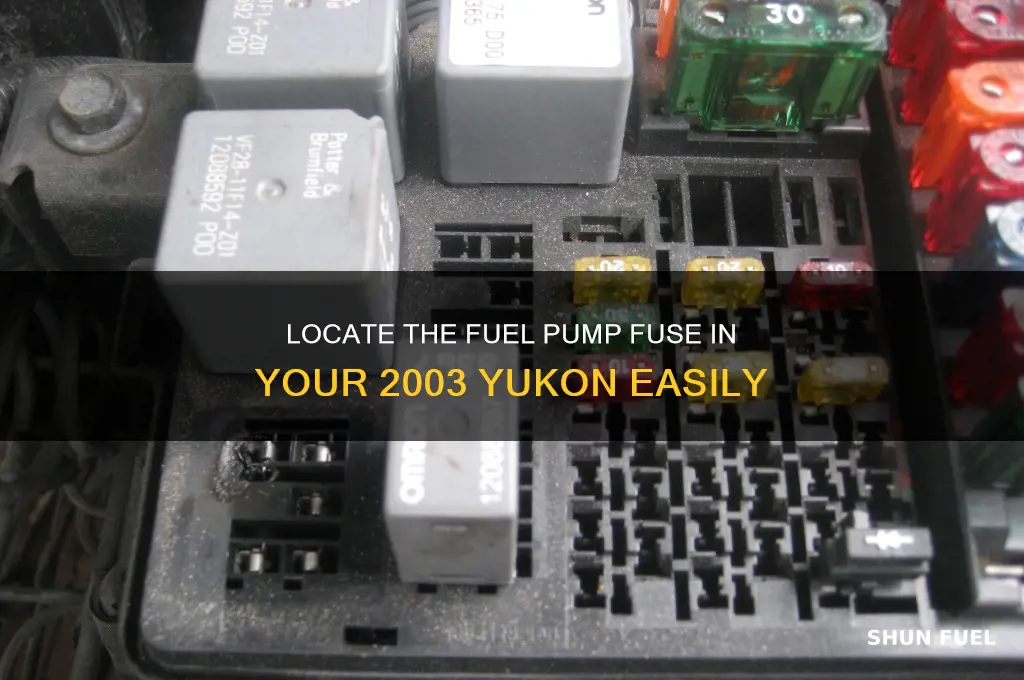

Locating the fuse box in your 2003 Yukon is the first step in troubleshooting any electrical issue, including problems with the fuel pump. The fuse box, also known as the underhood fuse block, is typically found in the engine compartment on the driver's side. It’s a rectangular, black plastic box with a removable lid that houses various fuses and relays essential for your vehicle’s electrical system. Understanding its exact location saves time and frustration when addressing specific issues like a malfunctioning fuel pump.
To access the fuse box, start by opening the hood and securing it in place. Look for a large, rectangular component near the firewall on the driver's side. The fuse box is usually labeled with a diagram on the underside of the lid, which identifies the function of each fuse. For the 2003 Yukon, the fuel pump fuse is often located in this underhood fuse block, though it’s crucial to verify its position using the diagram provided. This ensures you’re inspecting the correct fuse before proceeding with any repairs or replacements.
Once you’ve located the fuse box, carefully remove the lid to expose the fuses. The fuel pump fuse is typically labeled as "FUEL PUMP" or "FP" on the diagram. It’s usually a higher-amp fuse, often rated at 20 or 30 amps, to handle the power demands of the fuel pump. If you’re unsure which fuse corresponds to the fuel pump, consult your vehicle’s owner’s manual or a reliable repair guide for confirmation. Misidentifying the fuse can lead to unnecessary troubleshooting or potential damage to other components.
After identifying the fuel pump fuse, inspect it for signs of damage, such as a broken filament or discoloration. A blown fuse is a common cause of fuel pump failure and can be replaced with a new one of the same amperage rating. Always use the correct amperage to avoid electrical issues. If the fuse appears intact, further diagnosis may be required, such as checking the fuel pump relay or testing the pump itself. Properly locating and inspecting the fuse box is a critical step in maintaining your 2003 Yukon’s reliability.
In summary, the fuse box for the fuel pump in a 2003 Yukon is located in the engine compartment on the driver's side. By referencing the diagram on the fuse box lid and verifying the fuel pump fuse’s position, you can efficiently address potential issues. This straightforward process empowers you to perform basic troubleshooting and ensures your vehicle remains in optimal condition. Always prioritize accuracy and safety when working with electrical components.
