The 2007 Windsport, a popular Class A motorhome built on a Ford chassis, often leaves owners searching for the location of the fuel pump fuse. This fuse is crucial for ensuring the fuel pump operates correctly, delivering fuel to the engine. In most 2007 Windsport models, the fuel pump fuse is located in the Power Distribution Box, which is typically found in the engine compartment. It’s usually labeled as FUEL PUMP or FP and is often a high-amperage fuse, such as a 20-amp fuse. However, it’s always a good idea to consult the vehicle’s owner’s manual or a wiring diagram specific to your model for precise location details, as variations may exist depending on the exact configuration of your Windsport.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2007 Windsport (Class A Motorhome) |
| Fuse Location | Typically located in the Power Distribution Center (PDC) under the hood or near the driver's side firewall. |
| Fuse Box Type | Integrated Power Module (IPM) or PDC fuse box. |
| Fuse Label | Often labeled as FUEL PUMP, FP, or F/P. |
| Fuse Rating | Usually a 20-amp fuse (verify with the fuse box diagram). |
| Fuse Diagram | Refer to the owner's manual or the fuse box cover for the exact diagram. |
| Additional Notes | Some models may have a secondary fuse or relay in the interior fuse panel. |
| Troubleshooting Tip | If the fuel pump fuse is blown, check for issues with the fuel pump relay, wiring, or the pump itself. |
| Year-Specific Variation | Fuse locations may vary slightly between 2007 Windsport models; always confirm with the manual. |
Explore related products
What You'll Learn
- Fuse Box Location: Identify the main fuse box in your 2007 Windsport motorhome
- Fuel Pump Fuse Label: Locate the specific fuse labeled for the fuel pump in the diagram
- Interior Fuse Panel: Check the interior fuse panel near the driver’s area for the fuse
- Under-Hood Fuse Box: Inspect the under-hood fuse box for the fuel pump fuse if not inside
- Owner’s Manual Reference: Use the 2007 Windsport owner’s manual for exact fuse location details
Fuse Box Location: Identify the main fuse box in your 2007 Windsport motorhome
Locating the main fuse box in your 2007 Windsport motorhome is the first step in troubleshooting electrical issues, including those related to the fuel pump fuse. The fuse box is typically housed in a central, accessible area to facilitate quick maintenance. In most Windsport models, the main fuse box is situated beneath the driver’s side dashboard, near the steering column. This placement ensures it’s shielded from moisture and debris while remaining within easy reach for inspections or repairs.
To access the fuse box, start by positioning yourself in the driver’s seat. Look for a removable panel or cover on the lower left side of the dashboard. This panel is often secured with clips or screws, depending on the manufacturer’s design. Gently pry or unscrew the panel to expose the fuse box. Inside, you’ll find a diagram or label indicating which fuse corresponds to the fuel pump. This visual guide is essential for identifying the correct fuse without guesswork.
While the driver’s side dashboard is the most common location, some Windsport models may have an additional fuse box under the hood or in the engine compartment. If you’re unable to locate the fuel pump fuse inside the cabin, check near the battery or along the firewall. These secondary fuse boxes often house high-amperage fuses for critical systems like the fuel pump. Always consult your motorhome’s manual for model-specific details, as configurations can vary.
Once you’ve identified the fuse box, inspect the fuel pump fuse for signs of damage, such as a broken filament or discoloration. If the fuse appears intact, test it with a multimeter to ensure it’s functioning properly. Replacing a faulty fuse is straightforward—simply swap it with a new one of the same amperage rating. Keep spare fuses in your motorhome’s emergency kit to avoid being stranded due to a minor electrical issue.
Understanding the fuse box layout not only helps with fuel pump troubleshooting but also empowers you to address other electrical problems efficiently. Familiarize yourself with the fuse box’s location and organization during routine maintenance checks. This proactive approach can save time and frustration when dealing with unexpected issues on the road. With a little knowledge and preparation, managing your 2007 Windsport’s electrical system becomes a manageable task.
Fuel Pump Replacement Costs: What You Need to Know
You may want to see also
Explore related products
Fuel Pump Fuse Label: Locate the specific fuse labeled for the fuel pump in the diagram

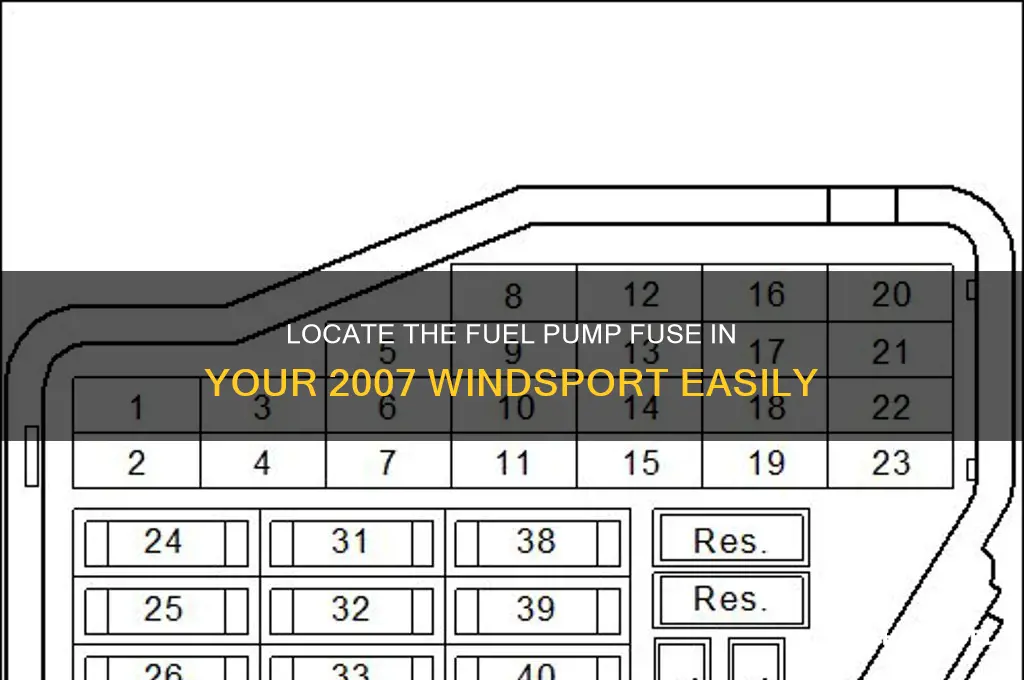

The 2007 Windsport's fuel pump fuse is a critical component, and locating it begins with understanding the fuse box diagram. This diagram, typically found in the vehicle's manual or on a label inside the fuse box cover, is your roadmap to identifying the specific fuse responsible for powering the fuel pump. It's a visual guide that assigns numbers or labels to each fuse, correlating them to their respective circuits.
In the case of the fuel pump fuse, you're looking for a designation like "Fuel Pump," "FP," or a similar variation. This label is your target, as it directly corresponds to the fuse controlling the electrical supply to the fuel pump.
Identifying the correct fuse is crucial for troubleshooting fuel delivery issues. A blown fuse can disrupt the flow of electricity to the pump, leading to engine stalling or difficulty starting. By consulting the diagram and pinpointing the fuel pump fuse, you can efficiently check its condition and replace it if necessary. This simple step can save time and frustration compared to blindly testing multiple fuses or seeking professional assistance for a potentially straightforward fix.
Remember, always refer to the specific diagram for your 2007 Windsport model, as fuse box layouts can vary even within the same year and make.
Diagnosing a Mechanical Fuel Pump: A Step-by-Step Troubleshooting Guide
You may want to see also
Explore related products
Interior Fuse Panel: Check the interior fuse panel near the driver’s area for the fuse
The 2007 Windsport's fuel pump fuse is a critical component, and locating it begins with understanding the vehicle's interior fuse panel. This panel, typically situated near the driver's area, houses various fuses that protect the vehicle's electrical circuits. In the case of the Windsport, the interior fuse panel is often found beneath the steering column or on the driver's side dashboard. To access it, you may need to remove a cover or panel, which can usually be done by gently prying it open or unsnapping it.
Once you've located the interior fuse panel, the next step is to identify the specific fuse responsible for the fuel pump. This can be a daunting task, as fuse panels often contain numerous fuses, each with its own unique function. However, most fuse panels are equipped with a diagram or label that indicates the purpose of each fuse. In the case of the 2007 Windsport, the fuel pump fuse is typically labeled as "Fuel Pump" or "FP." If the diagram is unclear or missing, consult the vehicle's owner manual or a reliable online resource for accurate information.
When checking the interior fuse panel, it's essential to exercise caution to avoid electrical hazards or damage to the vehicle. Before attempting to remove or replace any fuses, ensure that the ignition is turned off and the key is removed. This prevents accidental activation of electrical components and reduces the risk of short circuits. Additionally, use a fuse puller or a pair of needle-nose pliers to extract the fuse gently, taking care not to damage the surrounding components. If you're unsure about the process, consider seeking guidance from a professional mechanic or referring to online tutorials specific to your vehicle.
In some cases, the fuel pump fuse may be located in a separate fuse panel, such as an under-hood fuse box or a dedicated power distribution center. If you're unable to find the fuel pump fuse in the interior panel, consult the vehicle's documentation or online resources to determine the exact location. It's also worth noting that certain Windsport models may have variations in fuse panel layouts, so it's crucial to verify the information for your specific vehicle. By taking a systematic approach and referring to reliable sources, you can confidently locate and address issues related to the fuel pump fuse in your 2007 Windsport.
To summarize, checking the interior fuse panel near the driver's area is a crucial step in locating the fuel pump fuse on a 2007 Windsport. By familiarizing yourself with the fuse panel layout, exercising caution during the inspection process, and referring to reliable resources, you can efficiently identify and address potential issues. Remember to prioritize safety, consult accurate information, and seek professional guidance if needed. With these considerations in mind, you'll be well-equipped to tackle fuse-related concerns and ensure the optimal performance of your Windsport's fuel system.
Mastering Dual Fuel Heat Pump Connections: A Step-by-Step Guide
You may want to see also
Explore related products
Under-Hood Fuse Box: Inspect the under-hood fuse box for the fuel pump fuse if not inside
The 2007 Windsport, like many motorhomes, often houses critical electrical components under the hood, including the fuse box. If you’ve already checked the interior fuse panel and haven’t located the fuel pump fuse, the under-hood fuse box is your next logical stop. This area is designed to protect fuses from the elements while keeping them accessible for maintenance. Pop the hood and locate the fuse box, typically near the battery or along the firewall. It’s usually a rectangular or square-shaped unit with a removable lid, often labeled "Power Distribution Center" or similar.
Once you’ve identified the under-hood fuse box, open it carefully. Inside, you’ll find a diagram on the lid or cover that labels each fuse and relay. Look for the fuse marked "Fuel Pump" or a similar designation. If the diagram isn’t clear, consult your Windsport’s owner’s manual or a repair guide specific to your model. The fuel pump fuse is typically a higher-amp fuse, often in the 15- to 20-amp range, to handle the pump’s power demands. If the fuse is blown, replace it with one of the same amperage to avoid electrical damage.
Inspecting the under-hood fuse box requires a methodical approach. Start by ensuring the vehicle is turned off to prevent electrical hazards. Use a flashlight if the area is dimly lit, as fuses can be small and difficult to see. If the fuse appears intact, test it with a multimeter to confirm continuity. A blown fuse will show no continuity, while a good fuse will complete the circuit. If the fuse is fine, the issue may lie elsewhere, such as a faulty fuel pump relay or wiring problem.
One practical tip is to keep spare fuses in your vehicle, especially for critical components like the fuel pump. High-amp fuses are inexpensive and readily available at auto parts stores. Additionally, if you’re unsure about the process, consider wearing insulated gloves and using insulated tools to minimize the risk of electrical shock. While the under-hood fuse box is generally safe to access, caution is always advisable when working with electrical systems.
In conclusion, the under-hood fuse box is a key location to check when troubleshooting a fuel pump issue on a 2007 Windsport. Its accessibility and clear labeling make it a straightforward step in the diagnostic process. By carefully inspecting the fuse and following safety precautions, you can quickly determine whether the fuel pump fuse is the culprit or if further investigation is needed. This simple yet critical check can save time and prevent unnecessary repairs.
Locating the Fuel Pump on a 1987 Jeep Pioneer: A Guide
You may want to see also
Explore related products
Owner’s Manual Reference: Use the 2007 Windsport owner’s manual for exact fuse location details
Locating the fuel pump fuse on a 2007 Windsport can be straightforward if you consult the vehicle’s owners manual. This document is specifically designed to provide precise, model-specific information, ensuring you don’t waste time guessing or relying on generic advice. The manual typically includes detailed diagrams of the fuse box layout, labeling each fuse by function and amperage, making it an indispensable resource for troubleshooting.
Analyzing the owners manual reveals that it often categorizes fuses by system, such as engine management or interior lighting, with the fuel pump fuse usually grouped with other critical powertrain components. For the 2007 Windsport, the manual may indicate whether the fuse is located in the primary under-hood fuse box or an auxiliary panel inside the cabin. Cross-referencing the fuse chart with the diagram ensures you identify the correct fuse without confusion, saving both time and frustration.
A persuasive argument for using the owners manual is its reliability. Online forums and generic repair guides may offer conflicting or outdated information, but the manual is tailored to your vehicle’s exact make, model, and year. For instance, the 2007 Windsport’s fuel pump fuse might be a 20-amp blade-type fuse, but only the manual confirms this with certainty. Relying on it minimizes the risk of misidentifying a fuse, which could lead to unnecessary replacements or further issues.
Comparatively, while some owners might attempt to locate the fuse through trial and error or by mimicking similar models, the manual provides a direct path to the solution. It also includes additional context, such as safety precautions (e.g., ensuring the ignition is off before accessing the fuse box) and related maintenance tips. This holistic approach not only addresses the immediate concern but also empowers owners to handle future issues confidently.
Instructively, to use the manual effectively, start by locating the "Fuse and Relay" section, typically found in the "Maintenance" or "Electrical System" chapter. Follow the step-by-step instructions to identify the fuel pump fuse, noting any warnings about handling fuses or using the correct amperage. If the manual is unavailable, consider downloading a digital copy from the manufacturer’s website or requesting one from a dealership. This small investment of time ensures accuracy and safety in your repair process.
Testing Bosch Fuel Pump with a Test Light: Step-by-Step Guide
You may want to see also
Frequently asked questions
The fuel pump fuse in a 2007 Windsport is typically located in the under-hood fuse box. Refer to the fuse box diagram in your owner’s manual for the exact location.
The fuse number for the fuel pump varies depending on the model and engine type. Check the fuse box diagram in your owner’s manual or consult a repair manual for the specific fuse number.
No, the fuel pump fuse is usually located in the under-hood fuse box, not inside the cabin. Always refer to the fuse box diagram for confirmation.
The fuel pump fuse is typically labeled as "FUEL PUMP" or "FP" on the fuse box cover or diagram. Use the owner’s manual or a repair guide to confirm the correct fuse.
If the fuel pump fuse is blown, replace it with a fuse of the same amperage rating. If the fuse blows again, inspect the fuel pump wiring and system for faults, as repeated blowing may indicate a larger issue.
