The 2004 Chevrolet Silverado 1500's fuel pump fuse is a critical component located in the underhood fuse box, often referred to as the engine compartment fuse block. This fuse box is typically situated near the driver's side fender or battery, and it houses various fuses and relays essential for the truck's electrical system. To locate the fuel pump fuse specifically, consult the fuse box diagram provided in the owner's manual or on the underside of the fuse box cover, which will identify the exact position of the fuel pump fuse, usually labeled as FUEL PUMP or FP. Identifying and accessing this fuse is important for troubleshooting fuel-related issues or performing maintenance on the vehicle's fuel system.
| Characteristics | Values |
|---|---|
| Location | Under the hood in the engine fuse block (also known as the underhood fuse block) |
| Fuse Block Name | Underhood Fuse Block (or Engine Compartment Fuse Block) |
| Fuse Number | Fuse #30 (20 Amp) |
| Fuse Label | "ECM B" or "Fuel Pump" |
| Fuse Color | Yellow (20 Amp) |
| Function | Powers the fuel pump relay and fuel pump |
| Related Relay | Fuel Pump Relay (located in the same underhood fuse block) |
| Additional Notes | Check the fuse block diagram in the owner's manual for exact location |
| Year Applicability | 2004 Chevrolet Silverado 1500 |
| Engine Types | All engine types (4.3L V6, 4.8L V8, 5.3L V8, 6.0L V8) |
| Replacement Fuse Type | 20 Amp ATC/ATO blade fuse |
Explore related products
What You'll Learn
- Fuse Box Location: Identify the fuse box in a 2004 Silverado 1500
- Fuel Pump Fuse Number: Determine the specific fuse number for the fuel pump
- Fuse Box Diagram: Locate and interpret the fuse box diagram for the truck
- Common Fuse Issues: Understand common problems related to the fuel pump fuse
- Replacement Steps: Learn how to replace a blown fuel pump fuse

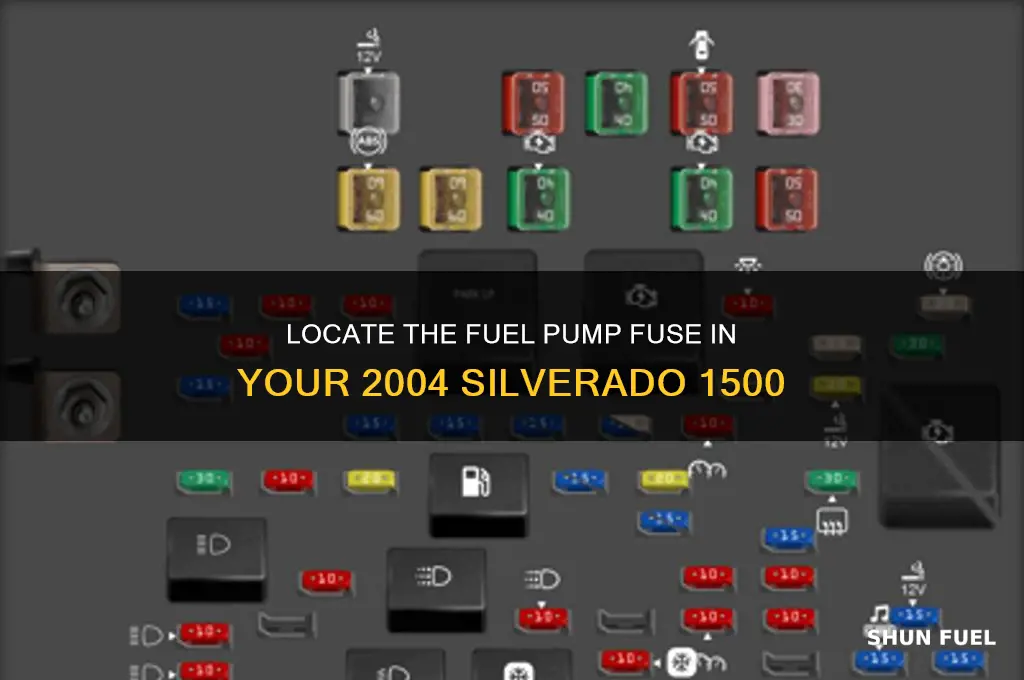

Fuse Box Location: Identify the fuse box in a 2004 Silverado 1500
The 2004 Chevrolet Silverado 1500, like many vehicles of its era, houses its fuse boxes in locations designed for accessibility yet often overlooked by the average driver. The primary fuse box, which contains the fuel pump fuse, is typically located under the hood, near the driver’s side fender. This placement is strategic, as it protects the fuses from moisture and debris while keeping them within reach for maintenance. Identifying this fuse box is the first step in troubleshooting electrical issues, including those related to the fuel pump.
To locate the fuse box, start by opening the hood and looking for a rectangular, black plastic cover with a tab on one side. This cover is usually labeled "Fuse Block" or "Underhood Fuse Block." Once identified, press the tab and lift the cover to reveal the fuse panel. The layout of the fuses is often diagrammed on the underside of the cover or in the vehicle’s owner’s manual, which is essential for pinpointing the fuel pump fuse. Without this diagram, distinguishing the correct fuse can be a challenge, as they are often unmarked.
A comparative analysis of fuse box designs reveals that the 2004 Silverado’s underhood fuse block is similar to those in other GM trucks of the same generation, such as the GMC Sierra. However, the fuel pump fuse’s position can vary slightly depending on the model’s trim level or optional features. For instance, in some configurations, the fuel pump fuse is labeled as "ECM B" or "Fuel Pump Relay," which can confuse those unfamiliar with GM’s nomenclature. Cross-referencing the owner’s manual or a reliable online resource is crucial for accuracy.
For a practical tip, keep a fuse puller tool handy, as it simplifies the process of removing and inspecting fuses without damaging them. Additionally, if the underhood fuse box does not contain the fuel pump fuse, check the interior fuse panel, typically located on the driver’s side dashboard or under the steering column. While less common, some Silverado models route the fuel pump fuse through this secondary panel. Always ensure the vehicle is turned off before handling fuses to avoid electrical hazards.
In conclusion, identifying the fuse box in a 2004 Silverado 1500 is straightforward once you know where to look. The underhood fuse block is the primary location for the fuel pump fuse, but verifying its position through the owner’s manual or a diagram is essential. Armed with this knowledge, drivers can confidently address fuel pump-related issues, saving time and potential repair costs.
Does the 1991 CRX Si Have a Fuel Pump Fuse?
You may want to see also
Explore related products
Fuel Pump Fuse Number: Determine the specific fuse number for the fuel pump
The 2004 Chevrolet Silverado 1500 relies on a specific fuse to protect and power its fuel pump, a critical component for engine operation. Identifying this fuse is essential for troubleshooting fuel delivery issues or performing maintenance. The fuse in question is typically located in the underhood fuse block, a common placement for high-current circuits like the fuel pump. Understanding its exact number and location can save time and prevent unnecessary repairs.
To determine the specific fuse number for the fuel pump, consult the vehicle’s owner’s manual, which provides a detailed diagram of the fuse block layout. For the 2004 Silverado 1500, the fuel pump fuse is often labeled as "FUEL PUMP" or "F/P" and is usually a high-amperage fuse, commonly rated at 20 amps. If the manual is unavailable, online resources such as forums or repair guides often share this information, with many users confirming that the fuel pump fuse is located in the underhood fuse block, typically in position 24 or 25, depending on the model configuration.
When inspecting the fuse, ensure the vehicle is turned off to avoid electrical hazards. Locate the underhood fuse block, which is usually near the battery, and remove the cover to access the fuses. Use the diagram on the cover or in the manual to identify the fuel pump fuse. If the fuse appears discolored, broken, or blown, replace it with a fuse of the same amperage rating. Always use the correct amperage to prevent damage to the electrical system.
Comparing the 2004 Silverado 1500 to other model years reveals consistency in fuse placement, but variations may exist based on engine type or optional equipment. For instance, models with the Vortec 5300 V8 engine may have a slightly different fuse block layout compared to those with the Vortec 4800 V8. Always verify the specific fuse number for your vehicle’s configuration to ensure accuracy.
In summary, determining the fuel pump fuse number for a 2004 Silverado 1500 involves consulting the owner’s manual, verifying the fuse block diagram, and inspecting the fuse for damage. This straightforward process empowers vehicle owners to address fuel pump issues efficiently, ensuring reliable performance and avoiding costly diagnostics. Keep a spare 20-amp fuse in your vehicle for quick replacements on the go.
Choosing the Right PSI Fuel Pump for Your Carburetor Setup
You may want to see also
Explore related products
Fuse Box Diagram: Locate and interpret the fuse box diagram for the truck
The fuse box diagram for a 2004 Silverado 1500 is your roadmap to troubleshooting electrical issues, including locating the fuel pump fuse. This diagram, typically found in the owner’s manual or on the fuse box cover, labels each fuse and relay by function and amperage. For the fuel pump fuse, you’ll likely find it under a designation like “Fuel Pump” or “ECM/PCM” (Engine Control Module/Powertrain Control Module), often rated at 20–30 amps. Understanding this diagram is critical, as misidentifying a fuse can lead to unnecessary replacements or further damage.
Locating the fuse box itself is the first step. In a 2004 Silverado 1500, the primary fuse box is usually under the hood on the driver’s side, near the fender or battery. A secondary fuse box may be inside the cab, often under the dashboard or near the driver’s left footwell. Once you’ve accessed the fuse box, compare the physical layout with the diagram to pinpoint the fuel pump fuse. Note that some models may have multiple fuse boxes, so cross-reference the diagram to ensure accuracy.
Interpreting the fuse box diagram requires attention to detail. Fuses are typically color-coded by amperage, with higher-amp fuses (like the fuel pump fuse) often in red or blue. The diagram will also indicate whether the fuse is a blade-type or a cartridge-type, which affects how you remove and replace it. If the diagram is faded or missing, online resources like forums or repair manuals often provide clear, downloadable versions specific to the 2004 Silverado 1500.
A practical tip for troubleshooting: use a multimeter to test the fuse before assuming it’s blown. A blown fuse will show no continuity, while a functioning one will. If the fuel pump fuse is indeed blown, replace it with one of the same amperage—never use a higher-rated fuse, as this can cause wiring damage. If the new fuse blows immediately, this indicates a deeper electrical issue, such as a short circuit or faulty fuel pump, requiring further diagnosis.
In summary, the fuse box diagram is an essential tool for locating and addressing issues with the fuel pump fuse in a 2004 Silverado 1500. By understanding the diagram’s layout, locating the correct fuse box, and using proper testing methods, you can efficiently troubleshoot and resolve electrical problems. Always prioritize safety and accuracy to avoid compounding issues or causing additional damage.
Diagnosing Jeep Liberty Fuel Pump Issues: A Step-by-Step Guide
You may want to see also
Explore related products
Common Fuse Issues: Understand common problems related to the fuel pump fuse
The fuel pump fuse in a 2004 Silverado 1500 is a critical component, but it’s prone to issues that can leave you stranded. One common problem is fuse blowouts, often caused by electrical overloads or short circuits in the fuel pump system. This can happen if the fuel pump draws excessive current due to a failing motor or a clogged fuel filter, which forces the pump to work harder. Always check the fuse’s amperage rating (typically 15-20 amps for this model) and replace it with the correct type to avoid recurring blowouts.
Another frequent issue is corrosion or poor connections in the fuse box. Moisture, dirt, or age can cause the fuse terminals to oxidize, leading to intermittent power loss to the fuel pump. Symptoms include a sputtering engine or difficulty starting the vehicle. To address this, inspect the fuse box for green or white residue, clean the terminals with a wire brush, and apply dielectric grease to prevent future corrosion. This simple maintenance step can save you from misdiagnosing a more complex issue.
A less obvious but equally problematic scenario is a faulty relay masquerading as a fuse issue. The fuel pump relay, often located near the fuse box, controls power to the pump. If the relay fails, the fuse may appear intact, but the pump won’t receive power. Test the relay by swapping it with a similar one in the fuse box (e.g., the horn relay) to isolate the problem. This diagnostic step is crucial before replacing the fuse unnecessarily.
Lastly, incorrect fuse installation can lead to problems. Using a fuse with the wrong amperage or inserting it improperly can cause it to fail prematurely or not make proper contact. Always refer to the owner’s manual or the fuse box diagram (usually on the lid) to identify the correct fuse. If the fuse blows repeatedly after replacement, investigate the underlying cause rather than simply swapping it out again. Ignoring this can damage the fuel pump or wiring harness.
Understanding these common issues can help you diagnose and resolve fuel pump fuse problems efficiently. Regular inspections, proper maintenance, and accurate troubleshooting will keep your 2004 Silverado 1500 running smoothly and prevent unexpected breakdowns.
Finding the Fuel Pump Fuse in a 1999 F250 Super Duty
You may want to see also
Explore related products
Replacement Steps: Learn how to replace a blown fuel pump fuse
The fuel pump fuse in a 2004 Silverado 1500 is typically located in the underhood fuse box, often labeled as "FUEL PUMP" or "F/P." Identifying the correct fuse is the first step in addressing a potential issue with your vehicle's fuel delivery system. Once you've located the fuse, it's essential to know how to replace it properly to ensure your truck runs smoothly.
Understanding the Replacement Process
Replacing a blown fuel pump fuse is a straightforward task that requires minimal tools. Start by turning off the ignition and locating the fuse box under the hood. Consult your owner’s manual for the exact diagram of the fuse layout if you’re unsure which fuse corresponds to the fuel pump. Use a fuse puller or a pair of needle-nose pliers to carefully remove the fuse. Inspect it for visible signs of damage, such as a broken filament or discoloration, which confirm it’s blown.
Step-by-Step Replacement Guide
- Prepare the Tools: Gather a replacement fuse of the same amperage rating (typically 15-20 amps for a fuel pump fuse). Using the wrong amperage can cause further damage.
- Remove the Old Fuse: Insert the fuse puller or pliers into the fuse slot and gently pull the fuse straight out. Avoid twisting or forcing it, as this can damage the fuse box.
- Install the New Fuse: Align the new fuse with the slot and push it firmly into place until it clicks or sits flush with the other fuses.
- Test the System: Turn the ignition to the "ON" position (without starting the engine) and listen for the fuel pump to prime. If the engine starts normally, the replacement was successful.
Cautions and Troubleshooting
If the new fuse blows immediately, there’s likely an underlying issue, such as a faulty fuel pump, wiring short, or relay problem. Avoid repeatedly replacing the fuse without addressing the root cause, as this can lead to further damage. In such cases, consult a professional mechanic to diagnose and repair the issue.
Practical Tips for Longevity
Regularly inspect your fuses during routine maintenance to catch potential issues early. Keep spare fuses in your vehicle’s emergency kit, especially if you frequently drive in harsh conditions. Understanding the location and function of critical fuses like the fuel pump fuse can save you time and money, ensuring your 2004 Silverado 1500 remains reliable on the road.
Checking Voltage on a 2009 Beetle Fuel Pump: Step-by-Step Guide
You may want to see also
Frequently asked questions
The fuel pump fuse for a 2004 Silverado 1500 is located in the underhood fuse/relay box. It is typically labeled as "FUEL PUMP" or "F/P" and is usually a 20-amp fuse.
To access the fuel pump fuse, open the hood and locate the underhood fuse/relay box, which is usually on the driver’s side near the firewall. Remove the lid, and refer to the diagram on the underside of the lid to identify the fuel pump fuse.
If the fuel pump fuse keeps blowing, it may indicate an electrical issue, such as a short circuit or a faulty fuel pump. Check the wiring harness for damage, test the fuel pump for proper operation, and consult a professional mechanic if the problem persists.
