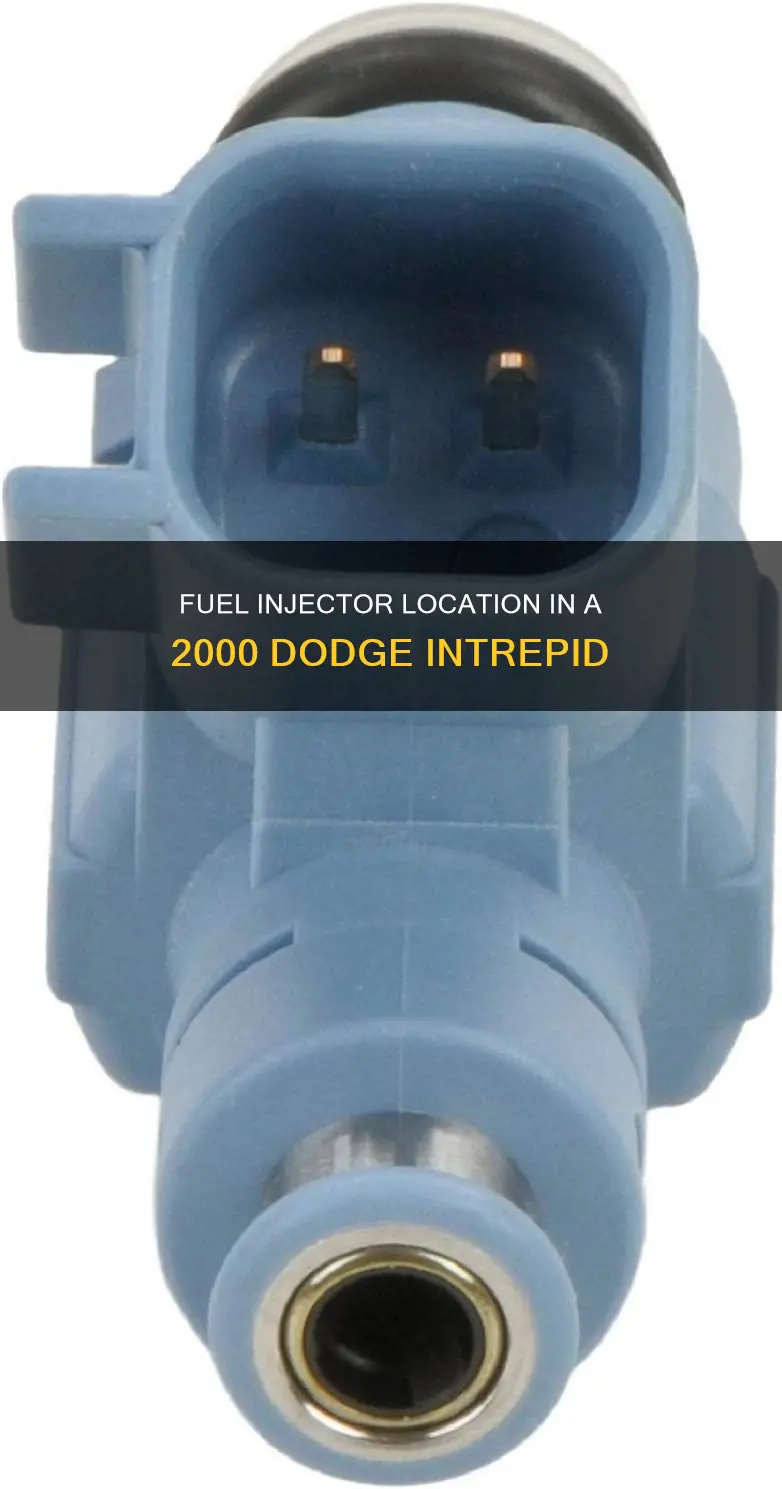

The fuel injector on a 2000 Dodge Intrepid is located on the fuel rail, which is mounted to the intake manifold. The fuel rail supplies the necessary fuel to each individual fuel injector. The fuel pump module, which is located in the fuel tank, contains the fuel filter and fuel pressure regulator.
| Characteristics | Values |
|---|---|
| Fuel injector location | On the fuel rail, which is mounted to the intake manifold |
| Fuel pump module location | On the fuel tank |
| Fuel filter location | On the frame rail in front of the fuel tank |
Explore related products
What You'll Learn
The fuel filter is integral to the fuel pump
The 2000 Dodge Intrepid does not have an external fuel filter. Instead, the fuel filter is integral to the fuel pump, which is located in the gas tank. This means that the fuel tank has to be dropped to change the fuel pump and fuel filter.
The fuel filter is made of cellulose or synthetic-based filter media that traps contaminants such as rust particles and dirt present in the fuel as it flows from the fuel tank to the fuel injectors. The filter media is sealed within a cylindrical housing that resembles a tiny soda can.
The fuel filter should be replaced as part of basic car maintenance, particularly if the car has sat unused with gas in the tank for more than 3 to 6 months. Additionally, if any foreign fluids, bad fuel, or water enters the fuel system, the fuel filter should be replaced. Leaks at the fuel filter connections may also necessitate the installation of a new fuel filter, as well as new O-rings in the push-on connections.
The fuel pump module contains a combination fuel filter and fuel pressure regulator, which is used on all gas-powered engines. It is located on the top of the fuel pump module and contains a diaphragm, calibrated springs, and a fuel return valve.
Fuel Injector Cleaner: Safe for Kia Engines?
You may want to see also
Explore related products
The fuel pump is located in the gas tank
The fuel pump module contains both a check valve and a pressure regulator. The fuel pressure regulator is located on the fuel tank-mounted fuel pump module. The fuel rail supplies the necessary fuel to each individual fuel injector and is mounted to the intake manifold. The fuel pressure regulator is no longer mounted to the fuel rail on any engine.
The fuel pump supplies the fuel to the rail, so you need to check the fuel pressure and volume before moving on to the injectors. The fuel filter is located on the frame rail in front of the fuel tank. The inlet and outlet ends of the filter are marked for correct installation.
The fuel pump is an integral part of the fuel system and ensures that the engine receives the necessary fuel supply. By being located within the fuel tank, the pump can effectively draw fuel and maintain the appropriate pressure for optimal engine performance. This design also contributes to the overall efficiency of the vehicle's fuel delivery system.
Fuel Injector Sizing: Choosing the Right Fit for Your Engine
You may want to see also
Explore related products
The fuel filter is attached to the top of the fuel pump
The fuel filter in a 2000 Dodge Intrepid is not external and is integral to the fuel pump, which is located inside the gas tank. The fuel filter is attached to the top of the fuel pump and also serves as the fuel regulator. The fuel tank must be dropped to access the fuel pump and fuel filter.
The fuel filter and fuel pressure regulator are located on top of the fuel pump module. The fuel filter is part of the fuel pressure regulator, which is situated on top of the fuel pump module and the gas tank. The fuel pressure regulator contains a diaphragm, calibrated springs, and a fuel return valve.
The fuel rail, which is not repairable, delivers fuel to each individual fuel injector and is mounted to the intake manifold. The fuel pressure regulator is no longer mounted to the fuel rail on any engine. It is now located on the fuel tank-mounted fuel pump module.
The fuel filter cannot be replaced as part of regular maintenance. The fuel pump assembly must be replaced if a fuel pressure or volume issue is discovered using a pressure gauge.
To access the fuel filter and fuel pump, the fuel tank must be lowered, and the purge and vent lines must be disconnected. The fuel line must then be disconnected from the pressure regulator, which can be done by pushing the locking tab in from the locking slot and turning the pressure regulator to unlock it. After that, pull the regulator straight up.
Removing Fuel Injector Harness from '98 Chevy S10
You may want to see also
Explore related products
The fuel rail supplies fuel to the fuel injectors
The fuel rail is an essential component of the fuel delivery system in a car. It is responsible for supplying the necessary fuel to each individual fuel injector, ensuring that the fuel is available at the required injection pressure. In the context of a 2000 Dodge Intrepid, the fuel rail plays a crucial role in delivering fuel to the injectors, enabling the engine to run efficiently.
The fuel rail in a 2000 Dodge Intrepid is located on the fuel pump module, which is situated in the fuel tank. It is worth noting that the fuel filter and fuel pressure regulator are also integrated into the fuel pump assembly. This design ensures that the fuel is properly filtered and regulated before it reaches the fuel rail and subsequently the fuel injectors.
The fuel supply module, including the fuel pump, plays a critical role in pumping the fuel volume from the tank to the fuel rail. This process involves using a specific pressure to ensure the fuel reaches the fuel rail at the required injection pressure. The pressure in the fuel rail is carefully regulated to maintain optimal performance.
The fuel injectors themselves are mounted directly on the fuel rail. This design allows for the precise injection of fuel into the intake manifold, where it mixes with fresh intake air to create a homogeneous ignition-capable mixture. This mixture is then combusted in the engine's combustion chamber, generating the power necessary to propel the vehicle.
It is important to note that the fuel rail is not repairable. Therefore, regular maintenance and proper care are crucial to ensure its longevity and optimal performance. By understanding the role of the fuel rail in supplying fuel to the fuel injectors, individuals can better appreciate the complexity of the fuel delivery system in their 2000 Dodge Intrepid.
Cleaning Fuel Injectors: Is Methanol a Good Choice?
You may want to see also
Explore related products
The fuel pressure regulator is located on the fuel pump module
The fuel pressure regulator is part of the fuel pump assembly and is integral to the fuel pump. It is a combination fuel filter and fuel pressure regulator and is used on all gas-powered engines. It contains a diaphragm, calibrated springs, and a fuel return valve. The internal fuel filter is also part of the assembly.
The fuel rail supplies the necessary fuel to each individual fuel injector and is mounted to the intake manifold. The fuel pressure regulator is no longer mounted to the fuel rail on any engine. Instead, it is now located on the fuel tank-mounted fuel pump module.
To remove the fuel pressure regulator, first, release the fuel pressure and remove the fuel tank. Then, lower the fuel tank and remove the purge line and vent line. Next, disconnect the fuel line from the pressure regulator and push the locking tab in from the locking slot. Finally, turn the pressure regulator to unlock it and pull it straight up.
To install the fuel pressure regulator, first, push the regulator down and into place. Then, turn the fuel pressure regulator to lock it in place, ensuring that the locking tab is in the locking slot. Next, connect the fuel line to the regulator and raise the fuel tank on the transmission stand. Then, install the fuel pump electrical connector into the hole in the body and connect the purge and vent lines. Finally, raise the tank into position, install the tank straps, and install the fuel filler tube, tightening the clamp.
The Evolution of Fuel Injection: Electronic Fuel Injectors Explained
You may want to see also
Frequently asked questions
The fuel injector is located on the fuel rail, which is mounted to the intake manifold.
The fuel rail is located on the fuel tank-mounted fuel pump module.
The fuel pump module is located inside the fuel tank.
The fuel tank must be dropped to access the fuel pump.
You can find instructions in the factory service manual.
