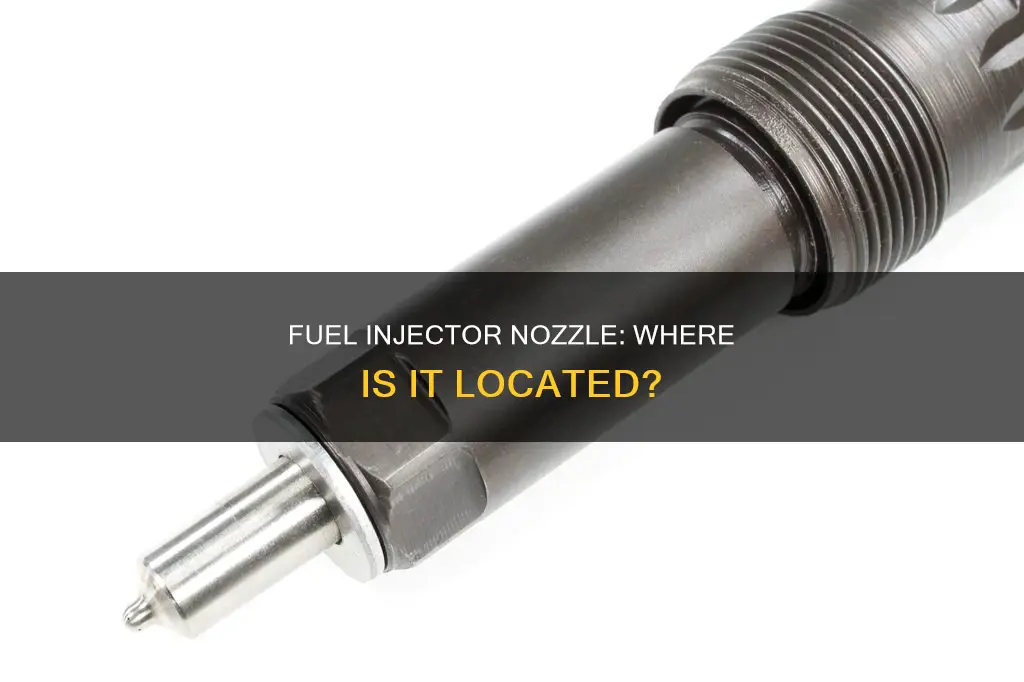

The fuel injector nozzle is a critical component of an engine's fuel injection system, which can be divided into low-pressure and high-pressure sides. The fuel injector, located on the high-pressure side, is responsible for delivering a fine aerosol of diesel fuel into the engine cylinder. Its placement can vary, with some located closer to the valve (downstream) and others positioned nearer to the air meter (upstream). The nozzle's design and location are influenced by the engine's specifications and performance requirements, particularly the need to optimize fuel atomization and meet emission standards.
| Characteristics | Values |
|---|---|
| Purpose | To inject the fuel quantity calculated by the control unit in all engine operating states |
| Function | Injector nozzles spray a fuel and air mixture into the combustion chamber |
| Components | Fuel tank, fuel supply pump, fuel filter, high-pressure pump, accumulator, fuel injector, and fuel injector nozzle |
| Fuel System Types | Common rail, unit injector, unit pump, or pump-line-nozzle type |
| Testing and Maintenance | Fuel pressure measurement, intake and exhaust systems leak checks, cylinder comparison measurement, and simultaneous exhaust measurement |
| Faults and Repairs | Faulty electromagnetic coil, fuel injector O-ring failure, clogged fuel injectors, faulty injection valve, and faulty sensors |
Explore related products
What You'll Learn
Injector placement
In a fuel injection system, the low-pressure side includes the fuel tank, fuel supply pump, and fuel filter. The high-pressure side, on the other hand, comprises the high-pressure pump, accumulator, fuel injector, and fuel injector nozzle. The fuel injector is typically located on the intake manifold of the engine and is sealed between the manifold and the fuel supply rail.
The placement of the injector nozzle is crucial for optimal fuel-air mixing. The nozzle must be positioned to ensure the fuel spray meets the performance and emissions goals of the engine. This includes achieving the right injection angle and distance from the piston. In diesel engines, the injector nozzle interacts with the piston in the combustion chamber. When the piston moves away from the spark plug, the injector nozzle sprays the fuel-air mixture, which is then ignited by the spark plug in natural gas engines.
Additionally, the injector nozzle placement is designed to prevent leakage and ensure durability. The injector nozzle operates under demanding conditions and must be well-sealed to avoid fuel leaks, which can pose a fire hazard. Regular maintenance and cleaning of the injector nozzles are essential to prevent clogging and maintain engine efficiency.
Cutting Swage Off Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
Injector angle
The injector angle, or the "intercept angle", is the angle of the nozzle in relation to the airflow stream. According to Strader, the intercept angle should be maintained at "not more than 45 degrees, although it can be less". This angle generally helps with low-speed driveability and may improve performance throughout the engine's operating band. The lower the inlet airspeed at idle, the more important it is to maintain the ideal angle.
The injector angle is set in true crankshaft degrees (not advance), so a higher value will delay the start of the injection event. The injection angle can make the difference between a smooth and rough idle and low-load operation. Most tuners aim to spray the fuel while the intake valve is open. However, at higher loads and RPM, spraying fuel onto closed intake valves will aid atomization and cool them.
There is no 'right' injector angle and it will depend on factors such as injector location and spray pattern. The best way to find out what angle an engine needs is to test the injector timing on a dyno, paying attention to both torque and AFR. Making coarse changes first is a good way to see if there is an impact on torque output.
For example, one engine configuration has angles of 420 to 460 degrees, raising with RPM from 0 to 5000. At 950 rpm, the idle is most stable at 290 degrees.
Fuel Injector Issues: Rough Idle Post-Warm Up?
You may want to see also
Explore related products
$27.89 $30.99
Intercept angle
A fuel injector nozzle is a component of a fuel injection system, which can be divided into low-pressure and high-pressure sides. The high-pressure side components include a high-pressure pump, accumulator, fuel injector, and fuel injector nozzle. The fuel injector nozzles are considered the "heart" of the engine, as they pump the fuel/air mixture required for the engine to run.
The fuel injector location and angle are important factors in the performance of the engine. The angle of the fuel injector nozzle can affect the combustion characteristics of the engine and the stability of emissions. The intercept angle is the angle at which the injector is positioned in relation to the runner. This angle is important to maintain the proper vacuum and driveability of the engine.
For example, if the idle vacuum is 14-18 inches Hg, the intercept angle is not as critical for driveability, although emissions may still be affected. The injector angle can also vary depending on whether the injector is placed closer to the valve or the air meter. The placement of the injector nozzle is dictated by the packaging architecture, including fuel rail mounting and clearance.
On modern V-8 engines, the valve angle is nearly straight up and down in relation to the bore, which allows for more vertical mounting of the injectors, providing room for the fuel rails and wiring harness while maintaining a good intercept angle. The angle of the fuel injection nozzle can be measured using specialised microscopes, such as the Olympus STM7, which offer high-precision, three-axis measurements.
BMW 325i Fuel Injectors: The 1990 Edition
You may want to see also
Explore related products
Injector spray pattern
Injector nozzles are a critical component of an engine's fuel injection system. They are responsible for spraying a fuel-air mixture into the combustion chamber, which is essential for the engine to function. The spray pattern of an injector nozzle refers to the shape and direction of the fuel spray as it exits the nozzle.
There are several types of injector spray patterns, each designed for a specific type of engine system. The most common type is the tapered pintle design, which was prevalent in the 1970s and 1980s. This design features a tapered pintle with a mushroom-shaped tip, causing the spray to diverge as it leaves the injector tip. The pintle cap can be removed to reveal a plate with a single hole, resulting in a very narrow spray.
Another type of injector spray pattern is the two-hole design, which can be used to direct the spray towards the back of a single or double intake valve system. These spray patterns can take the form of a narrow or wide "V" and can be clocked at various angles to ensure the fuel spray reaches the intended components.
A newer style injector features an extended tip with a "V"-shaped spray pattern bent at a 25-degree angle off-axis. This design is often found in throttle body injectors (TBIs), which are located where the carburettor used to be. Unlike multi-port injector systems, the fuel does not hit the hot intake valve, so it must be sprayed in a wider pattern to facilitate better mixing with the air.
The spray pattern of an injector nozzle is crucial for achieving optimal engine performance and meeting emissions goals. To test if the injectors are functioning correctly, they must be removed from the engine and bench-tested for release pressure, spray pattern, and leakage. A consistent spray pattern and equal release pressures between injectors are indicators of proper functioning.
Identifying Leaky Fuel Injectors: DIY Checks and Solutions
You may want to see also
Explore related products
Injector nozzle design
Injector nozzles are critical to the performance and emissions of diesel engines. They are considered the "heart" of the engine, pumping the fuel/air mixture necessary for the engine to continue running.
The injector nozzle must produce atomised fuel at a set pressure and a specific time in the power cycle. The nozzle hole size and geometry, the injector seat, and the injector sac are all important design parameters that influence the combustion characteristics of the engine. The nozzle must also be kept in excellent condition to ensure the engine runs at maximum efficiency.
There are several types of injector nozzles, including pintle nozzles, single-hole nozzles, multi-hole nozzles, and Pintaux nozzles. The specific requirements for injection nozzles depend on the fuel system type, such as common rail, unit injector, unit pump, or pump-line-nozzle.
Fuel Injectors: Are Remanufactured Ones Reliable?
You may want to see also
Frequently asked questions
A fuel injector nozzle is a component of a high-pressure fuel injection system. It is an electronically controlled valve that meters the flow of fuel and atomizes it, turning it into a fine aerosol that fills the engine cylinder uniformly.
The fuel injector nozzle is located on the intake manifold of the engine. The placement of the nozzle depends on the engine and application. On a stocker, the nozzle is located downstream, closer to the valve. On a converted classic V-8 carburetor-style intake, if the injector is aimed towards the valve, the fuel rail will hit the plenum.
The function of a fuel injector nozzle is to produce a fuel spray that meets the performance and emissions requirements of the market for which the engine is produced.
