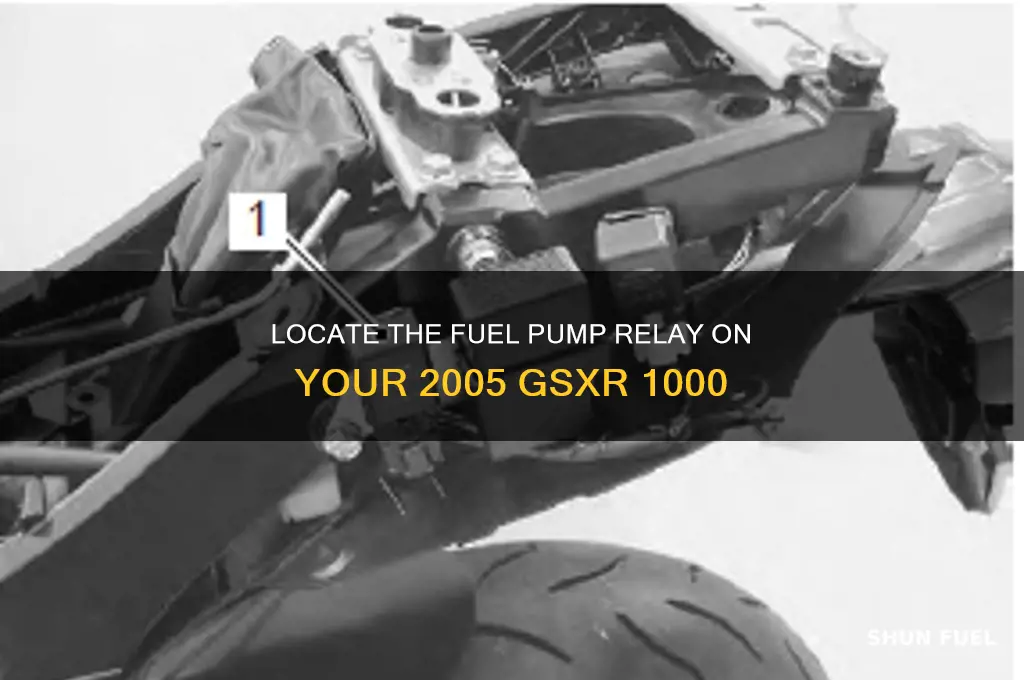

The fuel pump relay on a 2005 Suzuki GSXR 1000 is typically located in the main fuse/relay box, which is situated under the rider's seat or near the battery compartment, depending on the specific model configuration. To access it, you’ll need to remove the seat by unscrewing the retaining bolt or lifting the seat latch. Once the seat is off, locate the fuse/relay box, which is usually a black plastic unit with a removable cover. Inside, the fuel pump relay is often labeled or can be identified by its shape and pin configuration. Consulting the bike’s service manual can provide precise details for your specific GSXR 1000 variant.
| Characteristics | Values |
|---|---|
| Location | Under the rider's seat, inside the main wiring harness junction box. |
| Access Method | Remove the seat by unscrewing the seat bolt and lifting the seat upward. |
| Junction Box Identification | A black plastic box with multiple wires and relays inside. |
| Relay Identification | Typically labeled as "FUEL PUMP RELAY" or identified by part number. |
| Part Number | Varies by manufacturer, but commonly found as 34800-01G00 (Suzuki OEM). |
| Function | Controls power supply to the fuel pump, ensuring proper fuel delivery. |
| Common Issues | Relay failure can cause the fuel pump to stop working, leading to no-start conditions. |
| Replacement Difficulty | Moderate; requires basic tools and access to the junction box. |
| Year Applicability | Specific to 2005 Suzuki GSXR 1000 models. |
Explore related products
What You'll Learn
- Under Seat Area: Check beneath the seat for the relay near the ECU
- Battery Compartment: Inspect the battery area for the relay box
- Left Fairing Panel: Remove the left fairing to access the relay
- Wiring Harness: Trace the fuel pump wires to locate the relay
- Service Manual Diagram: Refer to the GSXR 1000 manual for exact relay location
Under Seat Area: Check beneath the seat for the relay near the ECU
The under-seat area of a 2005 GSXR 1000 is a logical starting point for locating the fuel pump relay, given its proximity to the bike’s central electronics. This area houses critical components like the ECU (Engine Control Unit), which often shares space with relays due to wiring efficiency. Lift the seat by turning the ignition key clockwise and pulling upward to expose the compartment. The relay is typically a small, rectangular module with a plug-in connector, often labeled or identifiable by its wiring harness leading toward the fuel pump.
Analyzing the layout, the relay’s placement near the ECU minimizes voltage drop and simplifies diagnostics. It’s secured with a bracket or clip to withstand vibration, ensuring reliability during high-speed rides. If the relay isn’t immediately visible, trace the wiring from the fuel pump connector; it often leads directly to the relay. This methodical approach saves time compared to disassembling other areas unnecessarily.
For a practical tip, use a flashlight to inspect the under-seat area thoroughly, as shadows can obscure small components. If the relay appears damaged or corroded, test it with a multimeter before replacing it. Ensure the bike is on a stable surface and the ignition is off to avoid accidental starts or electrical hazards.
Comparatively, while some motorcycles place relays in the fuse box or near the battery, the GSXR 1000’s design prioritizes centralized electronics. This makes the under-seat area a high-probability zone for the fuel pump relay, streamlining troubleshooting. Knowing this saves riders from unnecessary panel removals or guesswork, especially when addressing fuel delivery issues.
In conclusion, the under-seat area is a strategic location for the fuel pump relay on a 2005 GSXR 1000, offering accessibility and logical placement near the ECU. By focusing here first, riders can efficiently diagnose and resolve fuel system issues, ensuring their bike remains road-ready. Always cross-reference with the bike’s manual for specific diagrams if needed.
Step-by-Step Guide to Disassembling a Fuel Pump Safely and Efficiently
You may want to see also
Explore related products
Battery Compartment: Inspect the battery area for the relay box
The battery compartment of a 2005 GSXR 1000 is a logical starting point in the search for the fuel pump relay. This area often houses critical electrical components due to the battery’s central role in powering the motorcycle’s systems. On the GSXR 1000, the relay box is typically located adjacent to or directly above the battery, secured by a protective cover to shield it from debris and moisture. This placement ensures efficient power distribution and easy access for maintenance.
To inspect the battery area for the relay box, begin by locating the battery compartment, usually positioned beneath the seat or in a side panel, depending on the model. Remove the seat by unsnapping or unscrewing the retaining clips, then lift it away to expose the battery. Next, disconnect the battery terminals, starting with the negative terminal to prevent short circuits. With the battery safely disconnected, examine the surrounding area for a rectangular or square-shaped relay box, often marked with a label or diagram indicating its contents.
A key detail to note is the relay box’s construction and labeling. It typically contains multiple relays, including the fuel pump relay, which is essential for activating the fuel pump during engine operation. The fuel pump relay is usually identifiable by its wiring harness, which connects to the fuel pump and the motorcycle’s ECU. If the relay box is not immediately visible, trace the wiring from the battery to locate it, as it is often tucked away for protection.
Practical tip: Use a flashlight to illuminate the battery compartment, as shadows can obscure small components. If the relay box is difficult to access, consider consulting the GSXR 1000 service manual for a diagram of the electrical layout. This step-by-step approach ensures you accurately identify the fuel pump relay without damaging surrounding components.
In summary, the battery compartment is a prime location for the relay box on a 2005 GSXR 1000. By systematically inspecting this area, disconnecting the battery, and tracing wiring if necessary, you can confidently locate the fuel pump relay. This methodical approach not only aids in troubleshooting but also enhances your understanding of the motorcycle’s electrical system.
Kawasaki ZX7 Fuel Pump Installation: Correct Orientation Guide
You may want to see also
Explore related products
Left Fairing Panel: Remove the left fairing to access the relay
The left fairing panel of the 2005 GSXR 1000 is a critical access point for locating and servicing the fuel pump relay. This panel, designed for both aesthetics and functionality, houses several electrical components, including the relay in question. Removing it requires a methodical approach to avoid damaging the motorcycle’s exterior or internal wiring. Start by gathering the necessary tools: a Phillips screwdriver, a hex key set, and possibly a trim removal tool for delicate parts. Ensure the motorcycle is on a stable surface, and the ignition is turned off to prevent accidental starts.
To begin the removal process, locate the fasteners securing the left fairing panel. These are typically found along the edges and near the headlight assembly. Start by unscrewing the visible Phillips screws, taking care to place them in a secure container to avoid loss. Next, inspect the panel for hidden clips or tabs that may require a trim removal tool. Gently pry these clips open, applying even pressure to avoid cracking the fairing. Once all fasteners are removed, carefully pull the panel away from the motorcycle, starting from the top and working downward. Be mindful of any wiring harnesses connected to the panel; disconnect these carefully by releasing their clips or connectors.
With the left fairing panel removed, the fuel pump relay becomes accessible, typically located near the fuse box or under a protective cover. This relay is a small, rectangular component with a series of terminals and a wiring harness. Before proceeding with any work on the relay, it’s essential to verify the issue at hand—whether it’s a faulty relay causing fuel delivery problems or a diagnostic check. Always refer to the motorcycle’s service manual for specific relay identification and testing procedures.
Reinstalling the left fairing panel requires reversing the removal steps with precision. Ensure all wiring harnesses are securely reconnected and routed correctly to avoid pinching or damage. Align the panel carefully before reattaching the fasteners, tightening them evenly to maintain a flush fit. A poorly reinstalled fairing can lead to wind noise, water intrusion, or even detachment at high speeds. Taking the time to double-check alignment and connections ensures both functionality and the motorcycle’s aesthetic integrity.
In summary, accessing the fuel pump relay on a 2005 GSXR 1000 via the left fairing panel is a straightforward task when approached with care and preparation. By following a systematic process for removal and reinstallation, riders can address relay-related issues without compromising the motorcycle’s performance or appearance. Always prioritize safety and precision, and consult the service manual for model-specific details.
Are Most Aftermarket Fuel Pumps Reliable for Your Vehicle?
You may want to see also
Explore related products
Wiring Harness: Trace the fuel pump wires to locate the relay
The fuel pump relay on a 2005 GSXR 1000 is a critical component, but its location isn’t always obvious. One effective method to pinpoint it is by tracing the fuel pump wires through the wiring harness. This approach leverages the logical layout of motorcycle wiring systems, where components are connected in a traceable manner. Start by identifying the fuel pump itself, typically located near the fuel tank. From there, follow the wires leading away from the pump, as they will eventually connect to the relay.
Tracing wires requires patience and a systematic approach. Begin by removing the seat and fuel tank to access the wiring harness. Use a wiring diagram specific to the 2005 GSXR 1000 to identify the color-coded fuel pump wires, usually black and red. Follow these wires as they route through the harness, often along the frame or near the battery. Look for a junction where multiple wires converge—this is a strong indicator of the relay’s location. A multimeter can also be used to confirm continuity between the pump and the relay, ensuring you’re on the right track.
While tracing wires, be mindful of the harness’s complexity. Motorcycle wiring is often bundled tightly and routed through hard-to-reach areas. Use a flashlight and a small mirror to inspect hidden areas, and avoid tugging or pulling on wires to prevent damage. If the relay isn’t immediately visible, consider that it may be integrated into a larger fuse box or relay block, often located near the battery or under the seat. Referencing the bike’s service manual can provide additional insights into the relay’s exact position.
Once you’ve located the relay, test its functionality by checking for power at the fuel pump connector with the ignition on. If power is present but the pump isn’t running, the relay may be faulty. Replacement relays for the 2005 GSXR 1000 are typically available at motorcycle parts suppliers, and swapping them out is a straightforward process. Always disconnect the battery before working on electrical components to avoid short circuits.
In summary, tracing the fuel pump wires through the wiring harness is a reliable method to locate the relay on a 2005 GSXR 1000. This hands-on approach combines visual inspection, logical deduction, and basic electrical testing to identify the component’s position. With the right tools and a methodical mindset, even a novice can successfully locate and diagnose the fuel pump relay, ensuring their bike runs smoothly.
Installing an Electric Fuel Pump on Your Airplane: A Step-by-Step Guide
You may want to see also
Explore related products
Service Manual Diagram: Refer to the GSXR 1000 manual for exact relay location
Locating the fuel pump relay on a 2005 GSXR 1000 can be a straightforward task if you have the right resources. The Service Manual Diagram is your most reliable guide, as it provides precise, model-specific information tailored to your motorcycle. Unlike generic online advice, which may vary in accuracy, the manual offers a detailed schematic that pinpoints the exact location of the relay within the bike’s electrical system. This ensures you avoid unnecessary guesswork or potential damage from incorrect disassembly.
The GSXR 1000 manual typically includes a dedicated section for the electrical system, where the fuel pump relay is clearly marked. This diagram not only shows the relay’s physical location but also its wiring connections and surrounding components. For instance, on the 2005 model, the fuel pump relay is often found in the under-seat area, near the battery or fuse box, but the manual will confirm this with visual and textual references. Referencing the diagram saves time and reduces the risk of misidentifying similar-looking relays or connectors.
One practical tip when using the service manual is to cross-reference the diagram with the actual components on your bike. Start by removing the seat to access the under-seat area, then compare the manual’s illustration to the layout of relays and fuses. The fuel pump relay is usually labeled with a specific code or symbol, such as “FP” or “FPR,” which the manual will explain. If you’re unsure, trace the wiring from the fuel pump itself to the relay, as the manual’s diagram will show this pathway clearly.
While online forums and videos can offer helpful insights, they often lack the precision of a service manual. For example, some sources might suggest the relay is near the airbox or under the tank, but these locations can vary by year or regional model differences. The manual eliminates this ambiguity, ensuring you work with accurate, manufacturer-verified information. Additionally, the manual includes troubleshooting steps related to the fuel pump relay, such as testing for continuity or checking for corrosion, which can be invaluable during maintenance.
In conclusion, the Service Manual Diagram is an indispensable tool for locating the fuel pump relay on a 2005 GSXR 1000. Its detailed, model-specific guidance not only saves time but also prevents errors that could lead to further issues. By following the manual’s instructions and cross-referencing the diagram with your bike’s components, you can confidently identify and service the relay, ensuring your GSXR 1000 runs smoothly. Always prioritize the manual’s accuracy over less reliable sources for critical tasks like this.
Why Fuel Pumps Fail: Common Causes and Prevention Tips
You may want to see also
Frequently asked questions
The fuel pump relay on a 2005 GSXR 1000 is typically located under the rider's seat, near the ECU (Engine Control Unit) and other relays.
To access the fuel pump relay, lift the rider's seat by removing the seat lock, then locate the relay box near the ECU. The fuel pump relay is usually labeled or can be identified by its wiring connections.
The fuel pump relay controls the power supply to the fuel pump, ensuring it activates when the ignition is turned on and shuts off when the engine is off or in case of a fault.
Yes, you can test the relay by checking for continuity or using a multimeter to verify power is reaching the fuel pump when the ignition is on. Consult the service manual for specific testing procedures.
Common symptoms include the engine not starting, stalling, or difficulty starting due to lack of fuel delivery. You may also hear the fuel pump not priming when the ignition is turned on.
