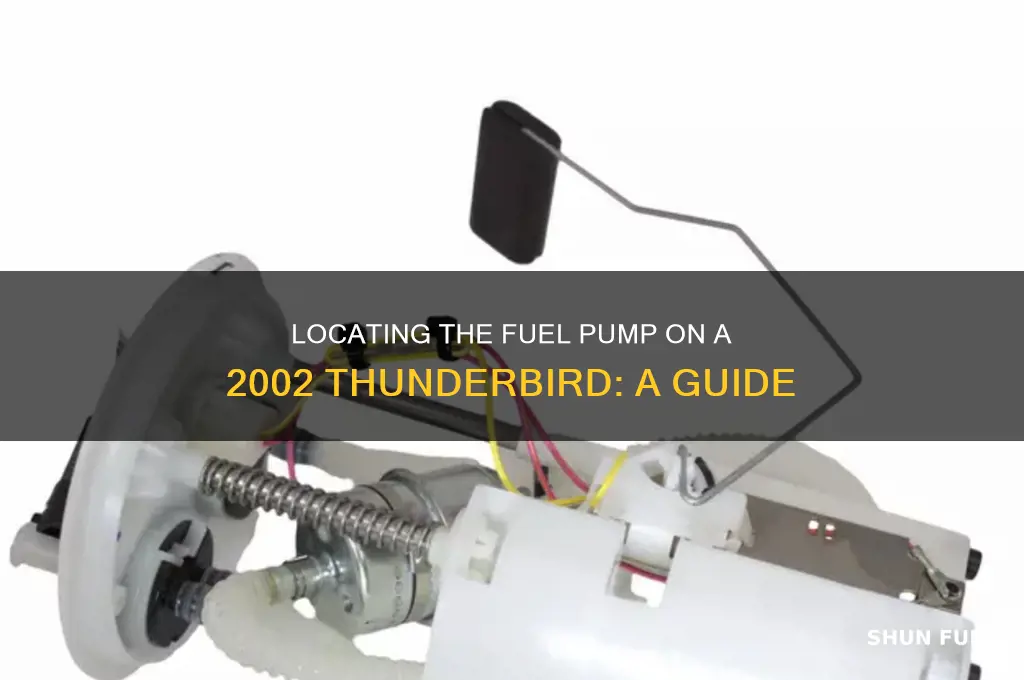

The 2002 Ford Thunderbird, a modern revival of the iconic classic, houses its fuel pump within the fuel tank, a common placement in many vehicles for safety and efficiency. Located beneath the rear seat, accessing the fuel pump requires removing the seat cushion and the fuel pump access panel, which is secured by a few bolts. This design ensures the pump is protected from external elements and potential damage, while also simplifying the process of replacing or servicing the component. Understanding the location of the fuel pump is crucial for troubleshooting fuel delivery issues or performing maintenance on this beloved roadster.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank |
| Access Point | Through the rear seat or trunk (requires removing access panel) |
| Tank Type | In-tank fuel pump module |
| Fuel System | Return-less EFI (Electronic Fuel Injection) |
| Pump Type | Electric turbine pump |
| Replacement | Requires fuel tank removal or specialized tools for in-tank access |
| Common Issues | Fuel pump failure, clogged fuel filter, or faulty relay |
| Diagnostic | Check fuel pressure, listen for pump operation, or use OBD-II scanner |
| Compatibility | Specific to 2002 Ford Thunderbird (3.9L V8 engine) |
| Maintenance | Regular fuel filter changes recommended |
Explore related products
What You'll Learn
Fuel pump location under rear seat
The fuel pump in a 2002 Ford Thunderbird is strategically located beneath the rear seat, a design choice that maximizes space efficiency while ensuring accessibility for maintenance. This placement is part of the vehicle’s fuel system architecture, which integrates the pump within the fuel tank itself, positioned directly under the rear seating area. To access it, you’ll need to remove the rear seat, a process that involves releasing retaining bolts or clips, depending on the trim level. This location shields the pump from external damage while keeping it centrally located for optimal fuel delivery.
Analyzing this design reveals a balance between engineering practicality and user convenience. By placing the fuel pump under the rear seat, Ford minimized noise intrusion into the cabin, as the pump operates within the confines of the fuel tank. Additionally, this location reduces the risk of contamination from debris or moisture, which could compromise the pump’s performance. However, it also means that diagnosing or replacing the pump requires more steps compared to vehicles with external fuel tanks. For DIY enthusiasts, understanding this layout is crucial to avoid unnecessary disassembly of unrelated components.
If you suspect a failing fuel pump—symptoms include sputtering, stalling, or difficulty starting—accessing it begins with removing the rear seat. Start by locating the seat release mechanisms, typically found at the front or rear edge of the seat. Once removed, you’ll expose the fuel tank access panel, which may require additional tools to open. Always work in a well-ventilated area and ensure the vehicle is on a level surface with the engine off. For safety, relieve fuel system pressure before proceeding, a step often overlooked but critical to prevent accidents.
Comparatively, this setup differs from older vehicles where fuel pumps were often mounted externally, such as on the frame or inline with the fuel line. The 2002 Thunderbird’s in-tank design is more common in modern vehicles due to its efficiency and safety benefits. However, it also means that replacing the pump typically involves dropping the tank, a task that can be labor-intensive. For those not comfortable with this level of complexity, consulting a professional mechanic is advisable to avoid costly mistakes or safety hazards.
In conclusion, the fuel pump’s location under the rear seat in the 2002 Thunderbird is a thoughtful design choice that prioritizes functionality and safety. While accessing it requires more steps than some other vehicles, understanding the process empowers owners to tackle diagnostics or maintenance with confidence. Always refer to the vehicle’s manual for specific instructions and consider the task’s complexity before attempting a DIY repair. With the right approach, addressing fuel pump issues can be manageable, even for those with moderate mechanical skills.
Ford F150 1995 Fuel Pump Location: Is It on the Rail?
You may want to see also
Explore related products
Accessing fuel pump in 2002 Thunderbird
The fuel pump in a 2002 Ford Thunderbird is located inside the fuel tank, a common placement in modern vehicles to keep the pump cool and reduce the risk of vapor lock. This design, while efficient, complicates access for maintenance or replacement. To reach the fuel pump, you must first locate the fuel tank, which is situated beneath the rear passenger side of the vehicle. This positioning is consistent with many rear-wheel-drive cars, where the tank is placed ahead of the rear axle for better weight distribution.
Steps to Access the Fuel Pump:
- Safety First: Ensure the vehicle is on a level surface, the engine is off, and the fuel system pressure is relieved. Disconnect the battery to prevent accidental ignition.
- Remove the Rear Seat: Lift the rear seat cushion and unbolt the seat back to expose the fuel pump access panel. This panel is typically located in the trunk area, directly above the fuel tank.
- Access the Fuel Pump Module: Unscrew the retaining bolts on the access panel and carefully lower the fuel pump module. Be cautious of residual fuel in the lines.
- Disconnect Electrical and Fuel Lines: Detach the electrical connector and fuel lines from the pump. Use appropriate tools to avoid damaging the quick-disconnect fittings.
Cautions and Practical Tips:
Working on a fuel system carries inherent risks, including fire hazards and fuel exposure. Always wear safety goggles and gloves, and have a fire extinguisher nearby. If you’re unsure about any step, consult a professional. Additionally, consider replacing the fuel pump as part of a complete module to ensure compatibility and reduce future issues.
Comparative Insight:
Unlike older vehicles where fuel pumps were often mounted externally, the 2002 Thunderbird’s in-tank design requires more disassembly but offers better performance and longevity. This evolution reflects advancements in automotive engineering, prioritizing efficiency and safety over ease of access.
Accessing the fuel pump in a 2002 Thunderbird involves methodical disassembly and attention to safety. While the process is more involved than in older models, understanding the steps and precautions ensures a successful repair or replacement. This design, though less accessible, underscores the vehicle’s engineering focus on reliability and performance.
