The fuel pump on a 2001 Mazda 626 is located inside the fuel tank, which is situated beneath the rear passenger seats. Accessing the fuel pump requires removing the rear seat cushion and the fuel pump access panel, followed by lowering the fuel tank slightly or completely removing it, depending on the specific repair or maintenance task. This design ensures the fuel pump operates efficiently in a submerged environment, helping to maintain consistent fuel pressure and cooling. If you suspect issues with the fuel pump, such as poor engine performance or difficulty starting, it’s advisable to consult a professional mechanic, as working with fuel systems can be hazardous and requires specialized tools and knowledge.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank |
| Access Method | Requires removing the rear seat and fuel tank access panel |
| Fuel Tank Location | Beneath the rear seat area |
| Tools Required | Socket set, wrench, screwdriver, and possibly a fuel line disconnect tool |
| Safety Precautions | Relieve fuel system pressure before removal |
| Replacement Difficulty | Moderate (requires mechanical skill and proper tools) |
| Common Issues | Fuel pump failure, clogged fuel filter, or electrical issues |
| Replacement Part | Fuel pump module (includes pump and sender unit) |
| Estimated Labor Time | 1-2 hours (depending on experience) |
| Vehicle Model | 2001 Mazda 626 |
Explore related products
What You'll Learn
Fuel pump location in 2001 Mazda 626 engine bay
The fuel pump in a 2001 Mazda 626 is not located in the engine bay, contrary to what one might expect. Instead, it is situated within the fuel tank, a common design choice for many modern vehicles. This placement offers several advantages, including better cooling for the pump and reduced noise levels in the cabin. Understanding this location is crucial for maintenance and troubleshooting, as accessing the fuel pump requires removing the fuel tank, a task that demands careful preparation and safety measures.
To locate and access the fuel pump, start by ensuring the vehicle is on a level surface and the fuel tank is as empty as possible to minimize spillage risks. Disconnect the negative battery terminal to prevent accidental ignition. Next, relieve the fuel system pressure by locating the Schrader valve on the fuel rail and carefully releasing the pressure using the appropriate tool. Once the pressure is relieved, proceed to remove the fuel tank. This involves disconnecting the fuel lines, electrical connectors, and any retaining straps or bolts securing the tank. It’s essential to work methodically and avoid forcing any components to prevent damage.
Comparing this design to older models, where fuel pumps were often mounted externally, highlights the evolution of automotive engineering. The in-tank location in the 2001 Mazda 626 not only enhances efficiency but also reduces the risk of fuel pump failure due to heat and vibration. However, this design also means that replacing the fuel pump is more labor-intensive, requiring specialized tools and a clear understanding of the process. For DIY enthusiasts, this can be a challenging task, but with patience and the right approach, it is achievable.
A practical tip for diagnosing fuel pump issues before disassembly is to listen for the pump’s priming sound when the ignition is turned to the "on" position without starting the engine. If no sound is heard, it may indicate a faulty pump or relay. Additionally, using a fuel pressure gauge to test the system can provide valuable insights before proceeding with a replacement. Always prioritize safety by working in a well-ventilated area and avoiding open flames or sparks when dealing with fuel systems.
In conclusion, while the fuel pump’s location in the 2001 Mazda 626’s fuel tank may complicate access, it offers significant benefits in terms of performance and longevity. By following a systematic approach and adhering to safety guidelines, both professionals and DIYers can successfully address fuel pump-related issues. This knowledge not only empowers vehicle owners but also ensures the continued reliability of their Mazda 626.
Enhancing Fuel Pump and Injector Performance Through Effective Lubrication
You may want to see also
Explore related products
Identifying the fuel pump on a 2001 Mazda 626
The fuel pump on a 2001 Mazda 626 is located inside the fuel tank, a common placement for in-tank fuel pumps in modern vehicles. This design helps maintain fuel pressure and reduces the risk of vapor lock, ensuring consistent fuel delivery to the engine. To access the fuel pump, you’ll need to remove the fuel tank, which requires careful preparation to avoid fuel spills or hazards. Start by relieving the fuel system pressure using the Schrader valve on the fuel rail, then disconnect the battery to prevent accidental sparks.
Once the tank is safely lowered, the fuel pump module will be visible at the top of the tank. It’s a cylindrical unit with electrical connectors and fuel lines attached. Before removing it, note the orientation of the pump and any locking mechanisms to ensure proper reassembly. The pump is typically secured with a locking ring or retaining plate, which can be loosened with a strap wrench or appropriate tool. Be cautious not to damage the fuel tank or surrounding components during this process.
Identifying the fuel pump module is straightforward once the tank is exposed. It consists of the pump itself, a sender unit for the fuel gauge, and a filter sock to prevent debris from entering the pump. If you’re replacing the pump, ensure the new unit matches the original specifications, including flow rate and pressure. Aftermarket kits often include a new filter sock and installation hardware, but verify compatibility with the 2001 Mazda 626’s fuel system.
A practical tip for diagnosing fuel pump issues before removal is to listen for the pump’s priming cycle when the ignition is turned on. A humming sound from the fuel tank area indicates the pump is operational. If no sound is heard, check the fuel pump relay and fuse before proceeding with removal. This step can save time and effort by ruling out electrical issues before disassembling the fuel system.
In summary, identifying and accessing the fuel pump on a 2001 Mazda 626 requires understanding its in-tank location and the steps needed to safely remove the fuel tank. Proper preparation, including relieving fuel pressure and disconnecting the battery, ensures a safe and efficient process. By recognizing the pump’s components and verifying its functionality beforehand, you can streamline repairs and avoid unnecessary work.
Fixing Your Honda Ruckus Fuel Pump: A Step-by-Step Repair Guide
You may want to see also
Explore related products
Accessing the fuel pump in a 2001 Mazda 626
The fuel pump in a 2001 Mazda 626 is located inside the fuel tank, a common placement for modern vehicles to ensure safety and efficiency. This design protects the pump from external damage and helps maintain fuel pressure. However, accessing it requires removing the fuel tank, a task that demands careful preparation and execution. Before starting, ensure the vehicle is on a flat surface, the fuel tank is nearly empty, and the battery is disconnected to prevent accidents.

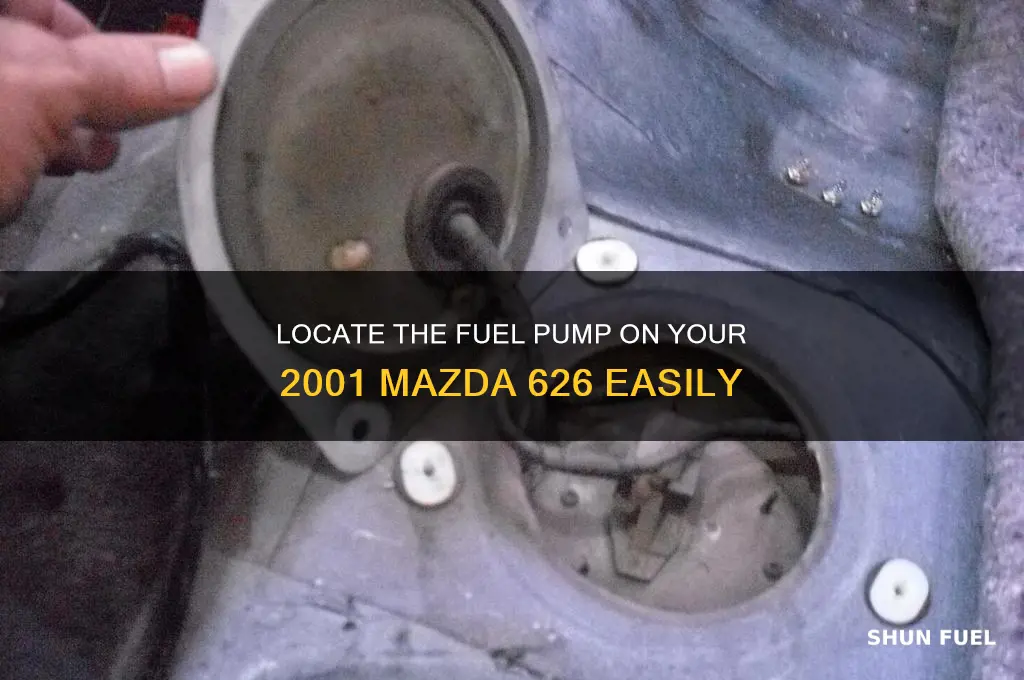

To begin the process, start by relieving the fuel system pressure using the Schrader valve located on the fuel rail. This step is crucial to avoid fuel spillage and potential hazards. Next, locate the fuel tank, which is positioned beneath the rear seat area. Remove the rear seat cushion by pressing the release tabs and lifting it upward. This exposes the fuel pump access panel, secured by a few screws. Removing these screws grants access to the fuel pump assembly, but be cautious of residual fuel in the tank.
Once the access panel is removed, disconnect the electrical connector and fuel lines from the pump. This step requires precision to avoid damaging the connections. With these components detached, the fuel pump module can be carefully lifted out of the tank. Note that the module includes the pump, sending unit, and float, all of which should be handled gently to prevent damage. If replacing the pump, ensure the new unit is compatible with the 2001 Mazda 626’s specifications.
Reinstallation follows the reverse order of removal. Secure the new or repaired fuel pump module into the tank, reattach the fuel lines and electrical connector, and reinstall the access panel. After reassembly, reconnect the battery and test the fuel pump by turning the ignition to the "on" position (without starting the engine). Listen for the pump’s priming sound, which confirms proper installation. Finally, reinstall the rear seat cushion and ensure all components are securely fastened before driving the vehicle.
While this process may seem daunting, it is manageable with basic mechanical skills and the right tools. However, if uncertainty arises, consulting a professional mechanic is advisable to avoid costly mistakes. Accessing the fuel pump in a 2001 Mazda 626 is a task that combines precision, safety, and patience, ensuring the vehicle’s fuel system operates reliably for years to come.
Locate the Fuel Pump Relay in Your 2002 BMW 325i
You may want to see also
Explore related products
Tools needed to locate 2001 Mazda 626 fuel pump
Locating the fuel pump on a 2001 Mazda 626 requires more than just knowing its position—you need the right tools to access it safely and efficiently. The fuel pump is situated inside the fuel tank, which means you’ll need to remove the tank to reach it. This task demands a combination of basic hand tools and specialized equipment to ensure the job is done correctly without damaging the vehicle or compromising safety.
Essential Tools for the Job
To begin, gather a floor jack and jack stands to safely lift the vehicle and access the underside. A wrench set, including both metric sockets and open-end wrenches, is crucial for removing bolts and fasteners. A screwdriver set (flathead and Phillips) will be needed for any clips or panels in the way. Additionally, a fuel line disconnect tool is essential for safely detaching the fuel lines without causing leaks or damage. Always keep a drain pan handy to catch any residual fuel when disconnecting the lines.
Specialized Tools and Safety Gear
Since the fuel pump is inside the tank, you’ll need a strap wrench to loosen the tank’s retaining ring securely. A pair of safety goggles and nitrile gloves are non-negotiable to protect against fuel spills and debris. If you’re working in a poorly ventilated area, consider a respirator to avoid inhaling fumes. For added precision, a trim removal tool can help detach the rear seat or trunk lining without causing cosmetic damage to the interior.
Optional but Helpful Tools
While not strictly necessary, a battery-operated impact wrench can save time when removing stubborn bolts. A fuel pump module removal tool can simplify the process of extracting the pump assembly from the tank. If you’re unsure about the fuel system’s pressure, a fuel pressure gauge can help verify it’s safe to proceed. Lastly, a work light or flashlight is invaluable for illuminating the undercarriage and tank area, ensuring no step is overlooked.
Practical Tips for Tool Use
Before starting, ensure all tools are clean and in good condition to prevent slipping or breakage. When using the floor jack, always place it on a solid, level surface and double-check that the vehicle is securely on the stands. When disconnecting fuel lines, work slowly to avoid spilling fuel, and keep a rag nearby to wipe up any drips. Finally, label or organize bolts and fasteners as you remove them to simplify reassembly. With the right tools and careful preparation, locating and accessing the 2001 Mazda 626 fuel pump becomes a manageable task.
Carb for Fuel Pump Lawn Mower: Do You Really Need It?
You may want to see also
Explore related products
Common issues with 2001 Mazda 626 fuel pump placement
The 2001 Mazda 626’s fuel pump is located inside the fuel tank, a common placement for modern vehicles to protect the pump from heat and external damage. However, this design introduces specific challenges for owners. Accessing the fuel pump requires removing the fuel tank, a labor-intensive process that often deters DIY repairs. Unlike external pumps, which can be replaced without dropping the tank, this internal setup demands specialized tools and safety precautions, such as relieving fuel system pressure and ensuring a well-ventilated workspace.
One recurring issue with this placement is difficulty diagnosing fuel pump failure. Symptoms like engine sputtering or stalling can mimic other problems, such as clogged fuel filters or faulty injectors. Without direct access to the pump, mechanics and owners often rely on indirect tests, like fuel pressure gauge readings or listening for the pump’s priming hum when the ignition is turned on. Misdiagnosis can lead to unnecessary part replacements, adding time and cost to repairs.
Another challenge is the fuel pump’s susceptibility to contamination from debris in the tank. Over time, rust, dirt, or sediment can accumulate, clogging the pump’s intake or causing premature wear. While an in-tank location theoretically shields the pump, the 2001 Mazda 626’s design lacks a robust pre-filter, leaving the pump vulnerable. Regular fuel filter changes and using high-quality fuel can mitigate this, but the issue persists, particularly in older vehicles with neglected maintenance.
Replacing the fuel pump is further complicated by its integration with the fuel level sender unit, often sold as a single assembly. This means replacing the entire module, even if only the pump fails, significantly increasing repair costs. Aftermarket options may offer separate components, but compatibility and reliability vary. For budget-conscious owners, this can be a frustrating trade-off between OEM reliability and affordability.
In summary, the 2001 Mazda 626’s in-tank fuel pump placement, while protective, creates accessibility, diagnostic, and maintenance challenges. Owners should prioritize preventive measures, such as regular fuel system checks, and be prepared for the complexity and cost of repairs. Understanding these issues can help mitigate frustration and ensure the vehicle’s longevity.
Locating the Fuel Pump on a 1994 Mercury Sable
You may want to see also
Frequently asked questions
The fuel pump on a 2001 Mazda 626 is located inside the fuel tank, which is situated beneath the rear seat area of the vehicle.
To access the fuel pump, you need to remove the rear seat cushion, locate the fuel pump access panel, and then disconnect the electrical connectors and fuel lines before removing the pump.
Yes, the fuel pump module can be replaced without removing the entire fuel tank by accessing it through the service panel under the rear seat.
You’ll need basic hand tools such as wrenches, screwdrivers, a fuel line disconnect tool, and possibly a specialized fuel pump lock ring removal tool.
Yes, always relieve fuel system pressure, disconnect the battery, and work in a well-ventilated area to avoid fuel fumes and fire hazards.
