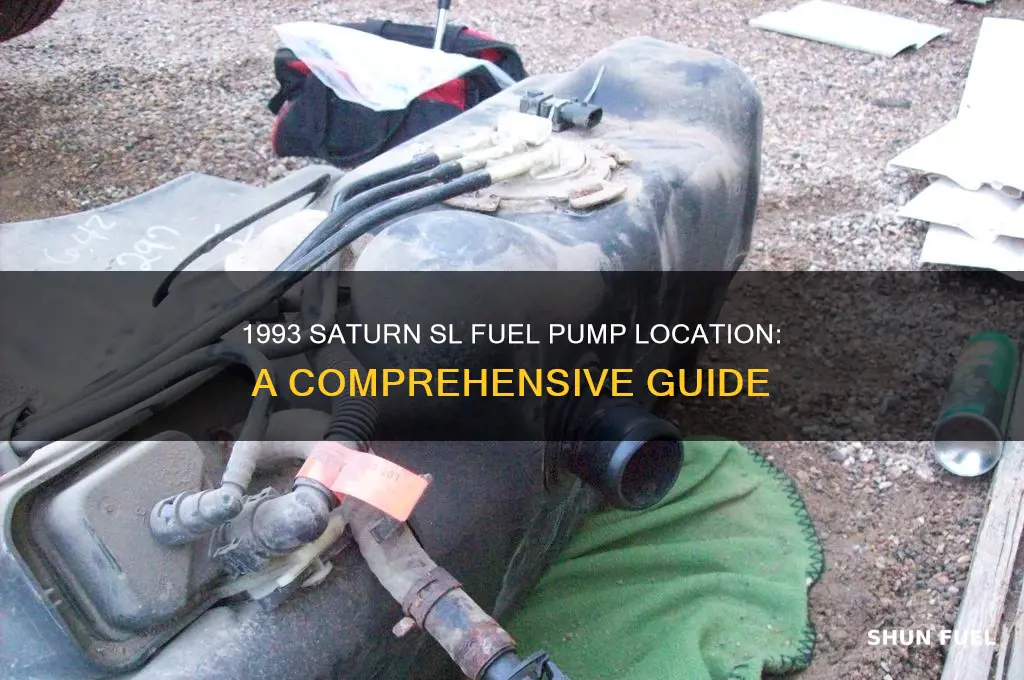

The fuel pump on a 1993 Saturn SL is located inside the fuel tank, a common placement for many vehicles of that era. Accessing it requires removing the fuel tank from the vehicle, which involves disconnecting the fuel lines, electrical connector, and tank straps. This task is typically performed when the fuel pump fails or requires maintenance, and it’s recommended to follow a repair manual or seek professional assistance to ensure safety and proper installation, as working with fuel systems can be hazardous.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank |
| Access Method | Requires removing the fuel tank for access |
| Tank Removal | Fuel tank must be lowered from the vehicle |
| Tank Straps | Two straps secure the fuel tank; both need to be removed |
| Pump Module | Fuel pump is part of a module assembly inside the tank |
| Electrical Connector | Located near the fuel tank, typically on the top or side |
| Fuel Lines | Connected to the pump module inside the tank |
| Tools Required | Jack, jack stands, wrenches, screwdrivers, and possibly a fuel line tool |
| Safety Precautions | Relieve fuel system pressure and disconnect battery before starting |
| Difficulty Level | Moderate to difficult due to tank removal |
| Estimated Time | 2-4 hours depending on experience and tools |
| Common Issues | Fuel pump failure, clogged fuel filter, or faulty electrical connections |
| **Replacement Recommendation | Replace the entire fuel pump module if faulty |
Explore related products
What You'll Learn
Fuel pump location under rear seat
The 1993 Saturn SL's fuel pump is tucked away under the rear seat, a design choice that prioritizes safety and space efficiency. This location might seem unconventional compared to other vehicles, but it's a hallmark of Saturn's innovative engineering. By placing the fuel pump inside the fuel tank, which is positioned under the rear seat, Saturn engineers reduced the risk of fuel leakage during collisions and freed up valuable cargo space.
Accessing the fuel pump requires removing the rear seat, a task that's straightforward but demands attention to detail. Start by locating the retaining bolts securing the seat to the floor. These are typically found along the seat's base and can be removed with a socket wrench. Once the bolts are out, carefully lift the seat assembly, being mindful of any wiring harnesses connected to it. Beneath the seat, you'll find the fuel tank access panel, which needs to be removed to expose the fuel pump assembly.
When working on the fuel pump, it's crucial to prioritize safety. Ensure the vehicle is on a level surface, and the ignition is turned off. Relieve the fuel system pressure before attempting any repairs to prevent accidental fuel spray. This can be done by locating the Schrader valve on the fuel rail and pressing the valve stem with a suitable tool. Additionally, work in a well-ventilated area, and avoid any potential ignition sources, such as open flames or sparks.
One advantage of the fuel pump's under-seat location is the ease of fuel pump module replacement. Unlike some vehicles that require dropping the fuel tank for pump replacement, the 1993 Saturn SL allows for a more accessible approach. After removing the rear seat and access panel, disconnect the electrical connector and fuel lines from the pump module. Then, remove the retaining ring or bolts securing the module to the tank, and carefully lift it out. Installation is the reverse process, ensuring all connections are secure and the module is properly seated.
In summary, the 1993 Saturn SL's fuel pump location under the rear seat offers a unique blend of safety, space optimization, and accessibility. While it may require a bit more effort to access than traditional fuel pump setups, the design allows for relatively straightforward maintenance and repairs. By following proper safety precautions and understanding the specific steps involved, owners can confidently address fuel pump-related issues, ensuring their Saturn SL remains a reliable and efficient vehicle.
Jump-Starting Your Volvo S80's Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Accessing the fuel pump assembly
The fuel pump assembly in a 1993 Saturn SL is located inside the fuel tank, a design choice that helps maintain fuel pressure and reduces the risk of vapor lock. Accessing this component requires careful planning and execution to avoid hazards like fuel spills or electrical shorts. Before starting, ensure the vehicle is on a level surface, the engine is cool, and the fuel tank is as empty as possible to minimize spillage.
To begin, relieve the fuel system pressure by locating the Schrader valve on the fuel rail and attaching a pressure gauge. Depress the valve to release any residual pressure. Next, disconnect the negative battery terminal to prevent accidental ignition. Raise the vehicle securely on jack stands to access the underside of the fuel tank. The tank is positioned near the rear of the vehicle, supported by straps bolted to the chassis. Remove the bolts securing these straps, then carefully lower the tank to access the top-mounted fuel pump assembly.
Once the tank is accessible, clean the area around the pump assembly to prevent debris from entering the tank. Use a flathead screwdriver to pry off the locking ring securing the pump module, then carefully lift the assembly out of the tank. Be cautious not to damage the float arm or fuel lines during removal. Inspect the pump, filter, and sender unit for wear or contamination, as these components often require replacement as a single unit.
Reinstallation follows the reverse process, but with critical steps to ensure functionality. Apply a thin coat of thread sealant to the locking ring threads to prevent leaks, then reinstall the pump assembly, ensuring the float arm moves freely. Secure the locking ring firmly but avoid over-tightening, which can damage the tank. Reattach the fuel tank straps, lower the vehicle, and reconnect the battery. Finally, turn the ignition to the "on" position for a few seconds to pressurize the system, then check for leaks before starting the engine.
This process, while detailed, is manageable with basic tools and attention to safety. Accessing the fuel pump assembly in a 1993 Saturn SL requires patience and precision, but following these steps ensures a successful repair without compromising the vehicle’s fuel system integrity. Always prioritize safety and consult a repair manual for vehicle-specific diagrams if needed.
Fuel Pump Relay Fuse: Identifying the Correct Fuse for Your Vehicle
You may want to see also
Explore related products
Removing the seat for access
Accessing the fuel pump on a 1993 Saturn SL often requires removing the rear seat, a task that seems straightforward but demands precision to avoid damage. The seat is secured by bolts and clips designed to withstand years of use, yet they can become stubborn due to corrosion or age. Before starting, gather a socket set, a flathead screwdriver, and a trim removal tool. These tools ensure you can address both visible fasteners and hidden retainers without marring the interior.
Begin by locating the two 13mm bolts at the front base of the seat, typically concealed by plastic caps. Pry these caps gently with the trim tool to expose the bolts. Once removed, tilt the seat forward to reveal additional clips or screws along the rear edge. These clips often require a firm but controlled pull to disengage, as they are designed to hold the seat firmly in place. Avoid excessive force, as plastic components can crack under stress.
With the seat free, slide it backward to expose the fuel pump access panel beneath. This panel is secured by a series of Phillips-head screws, which should be removed methodically to avoid stripping. Beneath the panel lies the fuel tank, with the pump module attached to its top surface. This step-by-step approach ensures you gain access without causing collateral damage to the vehicle’s interior or fuel system.
While removing the seat, consider the condition of the seat frame and mounting points. Over time, these areas can accumulate debris or rust, particularly in older vehicles. Cleaning these surfaces with a wire brush and applying a rust inhibitor can prevent future issues. Additionally, inspect the seat cushion for wear or damage, as this is an opportune moment to address minor repairs before reassembly.
Reinstalling the seat requires reversing the removal process, but with added attention to alignment. Ensure the seat locks securely into place by testing its stability before tightening all fasteners. Misalignment can compromise safety and cause unnecessary strain on the mounting hardware. By approaching this task methodically, you not only gain access to the fuel pump but also maintain the integrity of your Saturn SL’s interior.
Does Your Boat's Electric Fuel Pump Receive Signal During Startup?
You may want to see also
Explore related products
Fuel pump module components
The fuel pump module in a 1993 Saturn SL is a critical assembly located within the fuel tank, responsible for delivering fuel to the engine under the correct pressure. Understanding its components is essential for diagnostics, maintenance, or replacement. The module typically includes the electric fuel pump, a sender unit for the fuel gauge, a filter sock to trap contaminants, and a float mechanism. These components work in tandem to ensure consistent fuel supply and accurate fuel level readings.
Analyzing the fuel pump itself, it is an electric motor-driven unit that generates the necessary pressure to push fuel from the tank to the engine. In the 1993 Saturn SL, this pump is designed to operate within a specific pressure range, usually between 30 to 60 PSI, depending on the engine’s demands. Over time, the pump’s efficiency can degrade due to wear or contamination, leading to symptoms like hard starting, stalling, or reduced performance. Regular inspection of the pump’s electrical connections and fuel lines can help identify issues before they escalate.
The sender unit, another key component, measures the fuel level in the tank and relays this information to the fuel gauge on the dashboard. It consists of a float attached to a variable resistor, which changes resistance as the fuel level rises or falls. If the sender unit fails, the fuel gauge may read inaccurately or remain stuck. Testing the sender unit involves checking its resistance values at different fuel levels, which can be done using a multimeter.
The filter sock, often overlooked, plays a vital role in preventing debris from entering the fuel pump and clogging the system. Made of a fine mesh material, it traps particles from the fuel before they reach the pump. Over time, the filter can become saturated with contaminants, reducing fuel flow. Replacing the filter sock during fuel pump replacement is a best practice to ensure longevity and performance.
Lastly, the float mechanism is integral to the sender unit’s operation, ensuring accurate fuel level readings. It must move freely within the tank to provide precise measurements. If the float becomes damaged or stuck, it can lead to incorrect fuel gauge readings. During maintenance, inspect the float for cracks or debris buildup, and ensure it moves smoothly along its guide rod. Understanding these components and their functions allows for targeted troubleshooting and efficient repairs, keeping the 1993 Saturn SL’s fuel system reliable.
Does Your Fuel Pump Relay Go Bad? Signs and Solutions
You may want to see also
Explore related products
Tools needed for fuel pump replacement
The 1993 Saturn SL's fuel pump is located inside the fuel tank, a common placement for many vehicles of that era. This design protects the pump from external damage and helps maintain fuel pressure. However, it also means that replacing the fuel pump requires removing the tank, a task that demands specific tools and careful preparation.
Essential Tools for the Job:
To tackle this replacement, you'll need a core set of tools. A floor jack and jack stands are crucial for safely raising the vehicle and providing access to the fuel tank. A wrench set, including both open-end and box-end wrenches, will be necessary for loosening and tightening various bolts and nuts. A screwdriver set, both flathead and Phillips, is essential for removing any screws securing the fuel tank or its components. Additionally, a fuel line disconnect tool will be required to safely release the fuel lines from the tank without causing damage or leaks.
Specialized Tools and Considerations:
Beyond the basics, a few specialized tools will make the job smoother. A fuel pump module removal tool, specifically designed for Saturn vehicles, can simplify the process of extracting the pump assembly from the tank. A torque wrench is essential for ensuring that all connections are tightened to the manufacturer's specifications, preventing leaks and potential safety hazards. Finally, a drain pan is crucial for catching any fuel that remains in the tank during the removal process, minimizing environmental impact and cleanup.
Safety First:
Before beginning any work on the fuel system, it's imperative to prioritize safety. Always work in a well-ventilated area, away from open flames or sparks. Relieve the fuel system pressure by locating and depressing the Schrader valve on the fuel rail. Wear safety goggles and gloves to protect against fuel spills and debris. Ensure the vehicle's battery is disconnected to prevent accidental ignition. By taking these precautions and equipping yourself with the right tools, you'll be well-prepared to tackle the fuel pump replacement on your 1993 Saturn SL.
Testing Fuel Pump Relay in a 1995 Buick LeSabre: A Guide
You may want to see also
Frequently asked questions
The fuel pump on a 1993 Saturn SL is located inside the fuel tank, which is situated under the rear seat area of the vehicle.
To access the fuel pump, you need to remove the rear seat cushion, disconnect the battery, relieve fuel system pressure, and then lower the fuel tank to access the pump assembly.
Yes, common issues include fuel pump failure, which can cause the engine to stall or not start, and electrical connector problems that may require replacing the pump or repairing the wiring.
