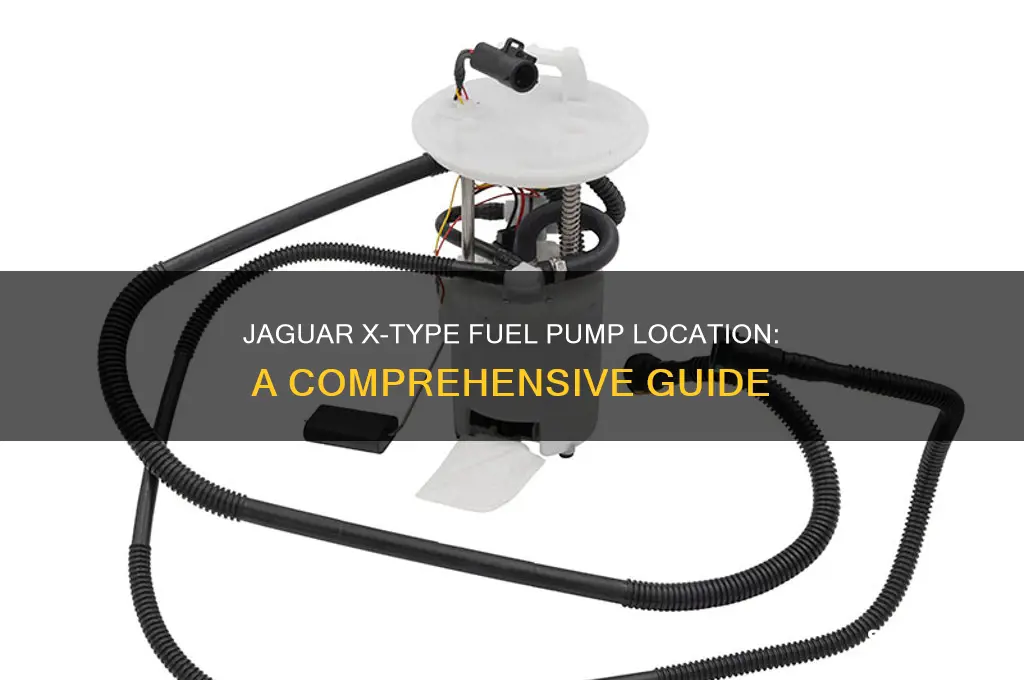

The fuel pump in a Jaguar X-Type is typically located inside the fuel tank, a common placement in modern vehicles to ensure efficient fuel delivery and reduce the risk of vapor lock. Accessing the fuel pump requires removing the rear seat cushion and the fuel pump access panel, followed by lowering the fuel pump assembly from the tank. This design not only protects the pump from external damage but also helps maintain a consistent fuel supply to the engine. If you suspect issues with the fuel pump, such as poor engine performance or difficulty starting, it’s essential to consult the vehicle’s manual or seek professional assistance for accurate diagnosis and repair.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank |
| Access Point | Beneath the rear seat (requires removing the seat and fuel pump access panel) |
| Tank Type | Integrated fuel pump and sender unit |
| Tools Required | Socket set, screwdriver, fuel line disconnect tool |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Model Applicability | Jaguar X-Type (2002–2009, all variants) |
| Replacement Difficulty | Moderate (requires fuel tank partial or full removal in some cases) |
| Common Issues | Fuel pump failure, electrical connector corrosion |
| Diagnostic Codes | P0087, P0088 (low fuel pressure), P0191 (fuel rail pressure sensor issues) |
Explore related products
What You'll Learn
Fuel pump location in Jaguar X-Type engine bay
The fuel pump in a Jaguar X-Type is located within the fuel tank, a design choice that offers both advantages and challenges for maintenance. This in-tank placement is common in modern vehicles, including the X-Type, as it helps maintain fuel pressure more efficiently and reduces the risk of fuel line vapor lock. However, accessing the fuel pump requires removing the fuel tank, a task that demands careful preparation and safety precautions. Before starting, ensure the vehicle is on a level surface, the fuel tank is nearly empty, and the battery is disconnected to prevent accidental ignition.
To locate and access the fuel pump, begin by relieving the fuel system pressure using the appropriate valve, typically found near the fuel rail. Next, raise the vehicle securely on jack stands to access the underside. The fuel tank is situated beneath the rear seat area, and its removal involves disconnecting the fuel lines, electrical connectors, and tank straps. Once the tank is lowered, the fuel pump module can be accessed by removing the retaining ring or screws that secure it to the tank. This process requires basic hand tools and a methodical approach to avoid damaging fuel lines or electrical components.
A comparative analysis of the Jaguar X-Type’s fuel pump location reveals its design aligns with industry standards for safety and efficiency. Unlike older models with external fuel pumps, the in-tank design minimizes noise and heat exposure, contributing to a quieter and more reliable system. However, this design necessitates more labor-intensive maintenance compared to external pumps, which can often be replaced without removing the fuel tank. For DIY enthusiasts, investing in a fuel pump removal tool and a repair manual specific to the X-Type can streamline the process and reduce frustration.
When replacing the fuel pump, it’s crucial to select a high-quality, OEM-compatible unit to ensure longevity and performance. Aftermarket options may offer cost savings but vary in reliability, so research and reviews are essential. Reinstallation involves reversing the removal steps, ensuring all connections are secure and the tank is properly sealed to prevent leaks. A post-installation pressure test and fuel system check are recommended to confirm the repair’s success. While the task is manageable with the right tools and knowledge, those uncomfortable with fuel system work should consult a professional to avoid safety risks.
In summary, the Jaguar X-Type’s fuel pump location in the fuel tank reflects modern automotive engineering priorities but requires careful handling during maintenance. By understanding the process, preparing adequately, and using the right tools, owners can address fuel pump issues effectively. This knowledge not only saves on repair costs but also enhances familiarity with the vehicle’s critical systems, fostering confidence in DIY maintenance.
