The 2000 Ford F150, a popular and reliable pickup truck, often requires maintenance and troubleshooting, especially when it comes to electrical components like the fuel pump fuse. Locating the fuel pump fuse in this model is essential for diagnosing issues related to fuel delivery, such as a non-starting engine or poor performance. The fuse is typically found in the under-hood fuse box, which is usually located near the battery or on the driver's side fender. Identifying the correct fuse requires consulting the owner's manual or the fuse box diagram, as it is often labeled as Fuel Pump or FP. Understanding its location can save time and effort when addressing fuel system problems in the 2000 F150.
| Characteristics | Values |
|---|---|
| Location | Under the hood, in the power distribution box (fuse box) |
| Fuse Number | Fuse #12 (20A) |
| Fuse Box Diagram Label | "Fuel Pump" or "F/P" |
| Fuse Box Position | Typically in the top row, near the firewall |
| Fuse Type | Blade-type fuse (ATC/ATO) |
| Amperage Rating | 20 Amps |
| Related Relay | Fuel Pump Relay (located in the same power distribution box) |
| Year/Model Applicability | 2000 Ford F150 |
| Additional Notes | Check the fuse box lid or owner's manual for exact diagram and confirmation |
Explore related products
What You'll Learn
- Fuse Box Location: Identify the fuse box in a 2000 Ford F150 for fuel pump fuse
- Fuse Diagram: Understand the fuse diagram to locate the fuel pump fuse accurately
- Common Issues: Diagnose common problems related to the fuel pump fuse in a 2000 F150
- Replacement Steps: Learn how to replace the fuel pump fuse in a 2000 Ford F150
- Safety Tips: Follow safety precautions when working with the fuel pump fuse in a 2000 F150

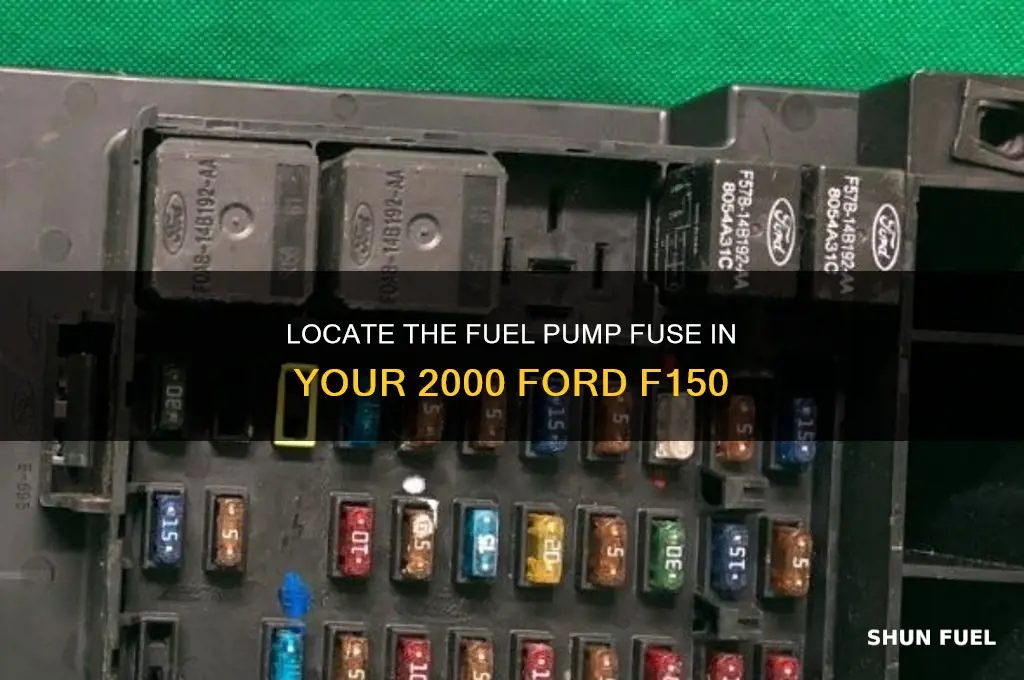

Fuse Box Location: Identify the fuse box in a 2000 Ford F150 for fuel pump fuse
Locating the fuse box in a 2000 Ford F150 to access the fuel pump fuse is a straightforward task once you know where to look. The primary fuse box, also known as the Power Distribution Box, is situated in the engine compartment. This box houses most of the vehicle’s critical fuses and relays, including the one for the fuel pump. It’s typically located on the driver’s side of the engine bay, near the firewall. Identifying this box is the first step in troubleshooting fuel pump issues or performing maintenance.
Once you’ve located the Power Distribution Box, the next challenge is finding the specific fuse for the fuel pump. The fuse panel cover usually includes a diagram indicating which fuse corresponds to the fuel pump. In the 2000 Ford F150, the fuel pump fuse is often labeled as "FUEL PUMP" or "FP" and is typically a 20-amp fuse. If the diagram is missing or unclear, consult the owner’s manual or a reliable online resource for accurate identification. Ensuring you have the correct fuse is crucial to avoid unnecessary replacements or further complications.
Accessing the fuse box requires no special tools, but it’s important to proceed with caution. Start by opening the hood and securing it in place. The Power Distribution Box is usually protected by a black plastic cover that can be removed by pressing the tabs on the sides or lifting it directly. Once the cover is off, visually inspect the fuses and their labels. If the fuel pump fuse appears damaged or blown, it’s a strong indicator of the issue. Always replace a blown fuse with one of the same amperage to prevent electrical damage.
For added safety, it’s advisable to disconnect the battery before working with the fuse box, especially if you’re handling multiple components. This minimizes the risk of electrical shock or short circuits. After replacing the fuse, reattach the cover securely and test the vehicle to ensure the fuel pump is functioning correctly. If the problem persists, further diagnosis may be required, such as checking the fuel pump relay or testing the pump itself. Understanding the fuse box layout and its components empowers you to address issues efficiently and maintain your 2000 Ford F150’s reliability.
