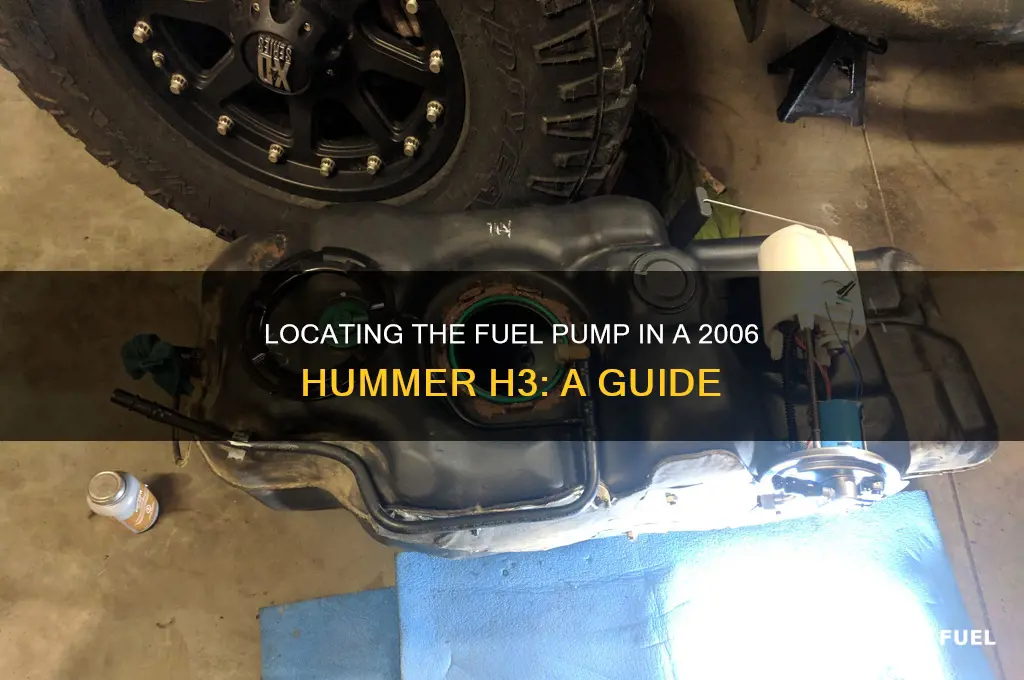

The 2006 Hummer H3, a rugged and powerful SUV, houses its fuel pump within the fuel tank, a common design feature in modern vehicles to maintain fuel pressure and ensure efficient engine operation. Locating the fuel pump in this model requires accessing the fuel tank, typically situated beneath the rear passenger side of the vehicle. To replace or service the fuel pump, one must first safely relieve the fuel system pressure, disconnect the battery, and then carefully lower the tank to access the pump assembly. This process demands attention to safety protocols, as working with fuel systems poses risks of fire or explosion if not handled properly. Understanding the exact location and procedure for accessing the fuel pump is essential for both DIY enthusiasts and professional mechanics to perform maintenance or repairs on the 2006 Hummer H3.
Explore related products
What You'll Learn
Fuel pump location in 2006 Hummer H3 engine bay
The fuel pump in a 2006 Hummer H3 is located within the fuel tank, a common placement in modern vehicles to reduce the risk of fuel line vapor lock and improve safety. This design choice means that accessing the fuel pump requires removing the fuel tank, a task that demands careful preparation and adherence to safety protocols. Before beginning, ensure the vehicle is on a level surface, the engine is cool, and the fuel tank is as empty as possible to minimize spillage and fire hazards.
To locate and access the fuel pump, start by relieving the fuel system pressure using the Schrader valve on the fuel rail. Disconnect the negative battery terminal to prevent accidental ignition. Raise the vehicle securely on jack stands to access the underside. The fuel tank is positioned beneath the rear passenger seat area, protected by a skid plate. Remove the skid plate and disconnect the fuel lines, electrical connectors, and tank straps. Lower the tank carefully to expose the fuel pump module, which is attached to the top of the tank.
Replacing the fuel pump involves removing the locking ring that secures the module to the tank. Use a specialized fuel pump module removal tool to avoid damaging the tank. Once the module is free, inspect the fuel tank for debris or contamination, as this can cause premature failure of the new pump. Installation is the reverse of removal, but ensure all connections are secure and the locking ring is properly seated. After reassembly, check for leaks and reinitialize the fuel system by cycling the ignition before starting the engine.
Understanding the fuel pump’s location and the steps required to access it not only aids in troubleshooting but also empowers owners to perform maintenance or repairs with confidence. While the process is straightforward, it requires attention to detail and safety precautions. For those uncomfortable with DIY repairs, consulting a professional mechanic is advisable to avoid complications or damage to the fuel system. This knowledge ensures the 2006 Hummer H3 remains reliable, even as it ages.
Mastering Electric Fuel Pump Regulation: A Comprehensive Step-by-Step Guide
You may want to see also
Explore related products
Steps to access the fuel pump in a 2006 H3
The fuel pump in a 2006 Hummer H3 is located inside the fuel tank, a common placement in modern vehicles to keep the pump cool and reduce the risk of vapor lock. Accessing it requires careful planning and execution to avoid damage or injury. Here’s a step-by-step guide to safely reach the fuel pump.
Step 1: Prepare the Vehicle
Begin by relieving the fuel system pressure to prevent accidental fuel spray or ignition. Locate the fuel pressure relief valve, typically near the engine bay, and follow the manufacturer’s instructions to depressurize the system. Next, disconnect the negative battery terminal to eliminate the risk of electrical shorts. Ensure the vehicle is on a flat, stable surface and use wheel chocks for added safety.
Step 2: Remove the Fuel Tank
The fuel tank must be removed to access the pump. Start by draining the tank or siphoning out as much fuel as possible to reduce weight and spillage. Loosen the fuel lines and electrical connections carefully, labeling them for reassembly. Use a floor jack to support the tank while removing the mounting straps. Lower the tank slowly and place it on a secure surface, ensuring no debris enters the fuel lines.
Step 3: Extract the Fuel Pump Assembly
With the tank removed, locate the fuel pump access point, usually covered by a round locking ring. Use a specialized fuel pump removal tool to unlock and remove the ring without damaging the tank. Carefully lift the pump assembly out, noting its orientation for reinstallation. Inspect the pump and filter for wear or contamination before proceeding with repairs or replacement.
Cautions and Practical Tips
Always work in a well-ventilated area and avoid open flames or sparks when handling fuel. Wear safety goggles and gloves to protect against fuel exposure. If the tank is difficult to remove, check for hidden retaining bolts or brackets. For reassembly, ensure all seals and gaskets are intact to prevent leaks. Testing the new pump before reinstalling the tank can save time and effort.
Accessing the fuel pump in a 2006 Hummer H3 is a methodical process requiring attention to detail and safety precautions. By following these steps and exercising caution, you can successfully reach and replace the fuel pump, restoring your vehicle’s performance. Always consult a repair manual or professional if unsure about any step.
Fuel Pump Relay Pin Guide: Jump Start Your Vehicle Safely
You may want to see also
Explore related products
Common issues with the 2006 Hummer H3 fuel pump
The 2006 Hummer H3’s fuel pump is located inside the fuel tank, a common placement for modern vehicles to keep the pump cooled by the surrounding fuel. However, this design also means that accessing the pump for repairs or replacement requires dropping the tank, a task that can be labor-intensive and costly. Owners often report difficulty diagnosing fuel pump issues due to its hidden location, making it crucial to recognize early signs of failure.
One of the most common issues with the 2006 Hummer H3’s fuel pump is premature failure, often occurring between 80,000 and 120,000 miles. Symptoms include a sputtering engine, difficulty starting, or a complete loss of power while driving. These problems arise when the pump’s internal components wear out, reducing fuel pressure and flow to the engine. Ignoring these signs can lead to stalling, which poses a safety risk, especially in high-traffic areas.
Another frequent complaint is the fuel pump’s susceptibility to contamination from debris in the fuel tank. The H3’s fuel system lacks a robust pre-filter, allowing dirt and rust particles to reach the pump, causing internal damage over time. This issue is exacerbated in regions with poor fuel quality or older vehicles with corroded tanks. Regular fuel filter replacements and using high-quality fuel can mitigate this risk, but the pump’s vulnerability remains a design flaw.
Replacing the fuel pump on a 2006 Hummer H3 is not a DIY-friendly task due to the need to remove the fuel tank. The process involves draining the tank, disconnecting fuel lines, and lowering the tank to access the pump assembly. Labor costs at a professional shop can range from $600 to $1,000, depending on location and parts quality. Aftermarket pumps are available at a lower cost than OEM parts, but their reliability varies, so research is essential before purchasing.
To extend the life of the fuel pump, H3 owners should maintain consistent fuel levels above a quarter tank. Running on low fuel increases the pump’s operating temperature, accelerating wear. Additionally, using a fuel system cleaner every 15,000 miles can help remove buildup and reduce strain on the pump. While these measures won’t prevent all issues, they can delay the need for costly repairs and keep the vehicle running smoothly for longer.
Troubleshooting Your Lawn Mower: A Step-by-Step Fuel Pump Check Guide
You may want to see also
Explore related products
Replacement cost for 2006 Hummer H3 fuel pump
The fuel pump in a 2006 Hummer H3 is located inside the fuel tank, a common placement for in-tank fuel pumps in modern vehicles. This design ensures consistent fuel pressure and reduces the risk of vapor lock, but it complicates replacement. Accessing the pump requires removing the fuel tank, a task that demands careful planning and safety precautions due to the flammable nature of gasoline.
Replacing the fuel pump on a 2006 Hummer H3 typically costs between $600 and $1,200, including parts and labor. The fuel pump assembly itself ranges from $300 to $600, depending on the brand and whether it’s OEM or aftermarket. Labor costs account for the bulk of the expense, as the process involves draining the fuel tank, lowering it from the vehicle, and installing the new pump. DIYers can save on labor but should only attempt the job if they’re experienced with automotive repairs and have the necessary tools, such as a jack, jack stands, and a fuel line disconnect tool.
When budgeting for this repair, consider additional costs like a new fuel filter (recommended when replacing the pump) and a fuel tank seal, which may need replacement if damaged during removal. Opting for a higher-quality pump can extend the lifespan of the repair, though it may increase upfront costs. Always verify the compatibility of the replacement pump with your Hummer’s specific engine and fuel system to avoid complications.
For those weighing the DIY route, the process involves disconnecting the battery, relieving fuel system pressure, removing the fuel tank, and replacing the pump assembly. However, working on a fuel system carries inherent risks, including fire hazards and fuel spills. If unsure, hiring a professional mechanic ensures the job is done safely and correctly, though it will add to the overall cost.
Finally, regular maintenance can help prevent premature fuel pump failure. Keep the fuel tank at least a quarter full to prevent the pump from running dry, which can cause overheating. Additionally, using high-quality fuel and replacing the fuel filter as recommended can reduce strain on the pump, potentially delaying the need for replacement. While the cost of replacing a 2006 Hummer H3 fuel pump is significant, addressing the issue promptly prevents further damage to the fuel system and ensures reliable vehicle performance.
Locating the Fuel Pump in a 2000 Toyota Tacoma: A Guide
You may want to see also
Explore related products
Symptoms of a failing fuel pump in a 2006 H3
The fuel pump in a 2006 Hummer H3 is located inside the fuel tank, a common placement for modern vehicles to keep the pump cooled by the surrounding fuel. This design, while efficient, can make diagnosing and replacing the pump more challenging. However, recognizing the symptoms of a failing fuel pump early can save you from being stranded on the road. One of the first signs is a sputtering engine at high speeds, as the pump struggles to deliver sufficient fuel under demand. This symptom often worsens during acceleration or when climbing hills, as the engine requires more fuel than the failing pump can supply.
Another telltale sign is difficulty starting the engine, especially after the vehicle has been sitting for a while. A failing fuel pump may not build up enough pressure to deliver fuel to the injectors, resulting in extended cranking or a complete failure to start. If you notice that your H3 cranks but doesn’t fire, or if it starts only after multiple attempts, the fuel pump could be the culprit. Checking the fuel pressure with a gauge can confirm this suspicion, though it’s best left to a professional unless you’re experienced with automotive diagnostics.
Unusual noises from the fuel tank area, such as whining or buzzing, can also indicate a failing fuel pump. These sounds are often most noticeable during startup or when the fuel tank is nearly empty. While some noise is normal, a sudden increase in volume or a change in tone suggests the pump’s internal components are wearing out. Ignoring these sounds can lead to a complete pump failure, leaving you with a vehicle that won’t run at all.
A less obvious symptom is a sudden drop in fuel efficiency. If your H3 is consuming more fuel than usual without a change in driving habits, the fuel pump may not be delivering fuel consistently. This inconsistency forces the engine to run richer, burning more fuel to compensate. Monitoring your fuel economy over time can help identify this issue before it escalates.
Finally, a failing fuel pump can trigger the check engine light, often accompanied by error codes related to fuel system pressure or delivery. While this light can indicate numerous issues, it’s worth investigating the fuel pump, especially if other symptoms are present. Using an OBD-II scanner to read the codes can provide valuable clues, but diagnosing the exact cause may require professional tools and expertise. Addressing these symptoms promptly can prevent costly repairs and ensure your 2006 Hummer H3 remains reliable.
Kawasaki ZX7 Fuel Pump Installation: Correct Orientation Guide
You may want to see also
Frequently asked questions
The fuel pump in a 2006 Hummer H3 is located inside the fuel tank, which is situated beneath the rear passenger side of the vehicle.
To access the fuel pump, you’ll need to remove the rear passenger side seat, lift the carpet, and locate the fuel pump access panel. Disconnect the battery, relieve fuel system pressure, and then remove the panel to access the pump.
Yes, the fuel pump module in a 2006 Hummer H3 is designed to be replaced without removing the entire fuel tank. However, the tank will need to be lowered slightly to access and replace the pump assembly.
