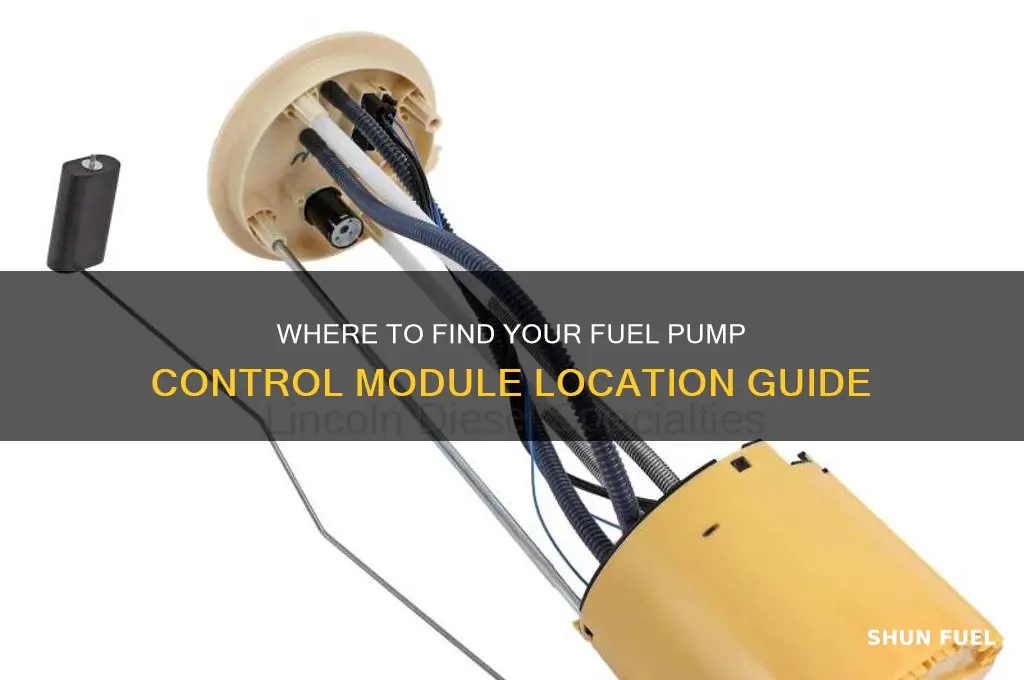

The fuel pump control module (FPCM) is a critical component in modern vehicles, responsible for regulating the operation of the fuel pump to ensure optimal fuel delivery to the engine. Its location varies depending on the make and model of the vehicle, but it is commonly found in one of several places: near the fuel tank, within the engine bay, or integrated into the fuel pump assembly itself. For instance, in many Ford vehicles, the FPCM is located in the rear driver’s side of the vehicle, often near the fuel tank or within the trunk area. In contrast, some GM vehicles may have it mounted under the rear seat or in the trunk. Consulting the vehicle’s service manual is the most reliable way to pinpoint its exact location, as it provides detailed diagrams and instructions tailored to the specific model.
| Characteristics | Values |
|---|---|
| Location | Typically near the fuel tank or in the engine bay, depending on the vehicle. |
| Common Placement | Inside the fuel tank (in-tank module) or near the fuel tank (external module). |
| Vehicle Type | Varies by make and model; consult the vehicle manual for exact location. |
| Function | Controls fuel pump operation, ensuring proper fuel delivery to the engine. |
| Appearance | Small, rectangular or square module with electrical connectors. |
| Access Difficulty | May require removing interior panels or fuel tank for in-tank modules. |
| Related Components | Fuel pump, fuel filter, relay, and wiring harness. |
| Diagnostic Importance | Critical for diagnosing fuel delivery issues or pump malfunctions. |
| Replacement Complexity | Moderate to high, depending on location and vehicle design. |
| Safety Precautions | Disconnect battery and relieve fuel system pressure before accessing. |
Explore related products
What You'll Learn
Under Vehicle Near Fuel Tank
The fuel pump control module (FPCM) is often strategically positioned under the vehicle near the fuel tank, a location that balances accessibility and protection. This placement ensures the module is close to the fuel pump it controls, minimizing electrical signal degradation and response time. Typically, you’ll find it mounted on the chassis or subframe, secured by brackets or bolts to withstand vibrations and environmental stresses. Its proximity to the fuel tank also allows for shorter wiring harnesses, reducing the risk of electrical faults.
Locating the FPCM under the vehicle near the fuel tank isn’t arbitrary—it’s a design choice rooted in functionality. This area is shielded from extreme heat sources like the engine bay, which could damage the module’s electronics. Additionally, being near the fuel tank simplifies diagnostics and repairs, as technicians can access both components simultaneously. However, this location exposes the module to road debris, moisture, and corrosion, so manufacturers often encase it in a protective housing or apply corrosion-resistant coatings.
If you’re attempting to locate or service the FPCM, start by consulting your vehicle’s manual for exact positioning, as designs vary by make and model. Typically, you’ll need to raise the vehicle on jack stands or a lift to access the underside safely. Look for a small, rectangular or square module with electrical connectors, often near the fuel tank’s mounting straps or lines. Be cautious of fuel system components—avoid sparks or open flames, and ensure the ignition is off before working.
For DIY enthusiasts, replacing or inspecting the FPCM in this location requires basic tools like wrenches, screwdrivers, and possibly a trim panel removal tool. If the module is corroded or damaged, consider applying dielectric grease to connectors during reassembly to prevent future issues. While this location is convenient for mechanics, it’s less ideal for amateur repairs due to the need for undercarriage access. If unsure, consult a professional to avoid mishandling fuel system components.
In summary, the FPCM’s placement under the vehicle near the fuel tank is a practical compromise between efficiency and durability. While it simplifies diagnostics and reduces signal delays, it also demands careful maintenance to combat environmental wear. Understanding this location and its implications can save time and prevent errors during repairs, making it a critical piece of knowledge for both professionals and DIYers alike.
Step-by-Step Guide to Installing a Fuel Pump on Your Lawn Tractor
You may want to see also
Explore related products
Inside Trunk Behind Liner
One common location for the fuel pump control module is inside the trunk, concealed behind the liner. This placement is strategic, as it protects the module from moisture, debris, and physical damage while keeping it accessible for maintenance. Manufacturers often choose this spot to balance convenience and safety, ensuring the module remains out of sight but within reach for diagnostics or repairs.
To locate the fuel pump control module inside the trunk, start by removing the trunk liner. This typically involves unsnapping or unbolting the liner’s fasteners, which are often located along the edges or corners. Once removed, inspect the area for a small, rectangular module with electrical connectors. It’s usually mounted on the inner trunk panel or near the spare tire well. Be cautious not to damage nearby wiring harnesses or components during the process.
A key advantage of this location is its protection from extreme temperatures and road vibrations, which can degrade electronic components over time. However, accessing the module requires careful handling of the trunk liner to avoid tearing or misaligning it. If you’re unsure about the process, consult your vehicle’s manual or a professional to avoid unnecessary complications.
Comparing this location to others, such as under the rear seat or in the engine bay, the trunk placement offers better insulation from heat and moisture. For example, modules placed near the engine are more exposed to high temperatures, which can shorten their lifespan. Conversely, trunk-mounted modules benefit from the cooler, drier environment, contributing to their longevity.
In summary, the fuel pump control module’s placement inside the trunk behind the liner is a thoughtful design choice that prioritizes protection and accessibility. By understanding how to locate and handle it properly, you can ensure efficient maintenance and avoid potential issues. Always approach the task methodically, using the right tools and precautions to preserve both the module and the surrounding components.
Mastering Dual Action Ford Fuel Pump Installation: A Step-by-Step Guide
You may want to see also
Explore related products
Near Driver Side Frame Rail
The fuel pump control module (FPCM) is a critical component in modern vehicles, responsible for regulating the fuel pump's operation to ensure optimal engine performance. One common location for this module is near the driver side frame rail, a strategic placement that balances accessibility and protection. This area is often chosen by manufacturers due to its proximity to the fuel tank and the vehicle's electrical system, streamlining wiring and reducing the risk of damage from road debris or minor collisions. Understanding this location can save time during diagnostics or replacements, as it narrows down the search area significantly.
When locating the FPCM near the driver side frame rail, it’s essential to follow a systematic approach. Start by consulting the vehicle’s service manual, as this will provide precise details tailored to your make and model. Typically, the module is mounted on the inner side of the frame rail, secured with bolts or clips for easy removal. Use a flashlight and a mirror to inspect the area, as it may be obscured by other components. If the module is encased in a protective cover, carefully remove it to access the unit without causing damage. Always disconnect the battery before handling electrical components to prevent short circuits.
Comparing this location to others, such as under the rear seat or near the fuel tank, highlights its advantages. Placing the FPCM near the driver side frame rail reduces exposure to extreme temperatures and moisture, which can degrade the module over time. Additionally, this location minimizes the length of wiring required to connect the module to the fuel pump and engine control unit, reducing the risk of electrical faults. However, it’s worth noting that this placement may require more effort to access in vehicles with limited undercarriage clearance, making the use of ramps or a lift advisable.
For DIY enthusiasts, replacing or inspecting the FPCM near the driver side frame rail can be a manageable task with the right tools and precautions. Begin by jacking up the vehicle and securing it on stands to gain sufficient clearance. Wear safety goggles and gloves to protect against sharp edges and debris. Once the module is accessible, test it using a multimeter to confirm it’s faulty before proceeding with a replacement. When installing a new module, ensure all connections are secure and apply dielectric grease to terminals to prevent corrosion. Finally, clear any diagnostic trouble codes (DTCs) related to the fuel pump system using an OBD-II scanner to ensure proper functionality.
In conclusion, the driver side frame rail is a practical and protective location for the fuel pump control module, offering benefits in terms of accessibility and durability. By familiarizing yourself with this placement and following proper procedures, you can efficiently diagnose, repair, or replace the module, ensuring your vehicle’s fuel system operates reliably. Whether you’re a professional mechanic or a DIY enthusiast, understanding this specific location can streamline your work and save valuable time.
Step-by-Step Guide: Installing a Fuel Pump in a Chrysler Seabream
You may want to see also
Explore related products
Under Rear Seat Area
The under-rear-seat area is a common location for the fuel pump control module (FPCM) in many modern vehicles, particularly sedans and SUVs. This placement is strategic, as it leverages the vehicle’s center of gravity to protect the module from extreme temperatures, moisture, and physical damage. Manufacturers often choose this spot to ensure the FPCM remains insulated from road debris and exhaust heat while maintaining accessibility for diagnostics and repairs. If you’re troubleshooting fuel system issues, this is one of the first areas to inspect, especially in vehicles like the Ford F-150, Chevrolet Silverado, or Toyota Camry, where this design is prevalent.
Lifting the rear seat to access the FPCM requires a methodical approach. Start by locating the seat release levers, typically found near the seat base or along the rear deck. Once released, tilt the seat upward, exposing the under-seat compartment. In some vehicles, a plastic cover or carpet panel may need to be removed to reveal the module. Be cautious not to damage wiring harnesses or connectors during this process. A flashlight and basic hand tools, such as a trim removal tool, can aid in safely accessing the area without causing unintended harm to the vehicle’s interior.
Comparing this location to others, such as the fuel tank or engine bay, highlights its advantages. Unlike modules mounted on the fuel tank, which require dropping the tank for access, the under-rear-seat FPCM is far more serviceable. Similarly, it avoids the heat and grime of the engine bay, reducing the risk of corrosion or electrical failure. However, this location can pose challenges in vehicles with limited rear cabin space or those equipped with subwoofers or additional storage compartments. Always consult the vehicle’s service manual to confirm the exact location and any specific precautions.
For DIY enthusiasts, testing the FPCM in this area is relatively straightforward. Use a multimeter to check for power and ground at the module’s connector, ensuring the ignition is on. If voltage readings are within specifications (typically 12V), the issue may lie elsewhere. If not, inspect the fuse and relay associated with the FPCM, often found in the underhood fuse box. Replacing a faulty module requires disconnecting the battery, unplugging the electrical connector, and removing any retaining bolts. Always handle the new module with care, avoiding static electricity, which can damage internal components.
In conclusion, the under-rear-seat area is a practical and protective location for the fuel pump control module, balancing accessibility with safety. Familiarizing yourself with this design can save time and frustration during diagnostics or repairs. Whether you’re a professional technician or a vehicle owner, understanding this layout ensures you’re well-prepared to address fuel system issues efficiently. Always prioritize safety and precision when working in this area to maintain the integrity of both the module and the vehicle’s interior.
Pump Fuel Insanity Review: Unveiling Its Effectiveness and Potential Benefits
You may want to see also
Explore related products
In Engine Bay Fuse Box
The engine bay fuse box is a critical component in modern vehicles, often housing the fuel pump control module (FPCM) among other essential relays and fuses. This centralized location is strategic, as it allows for easy access during diagnostics and repairs while keeping the module protected from extreme underbody conditions like moisture and debris. Typically situated near the battery or along the firewall, the fuse box is designed to withstand the high temperatures and vibrations inherent in the engine compartment. Identifying the FPCM here requires consulting the vehicle’s manual or diagram, as its exact position varies by make and model. For instance, in some Ford vehicles, the FPCM is integrated into the main fuse box, while in others, like certain GM models, it may be a standalone unit nearby.
Analyzing the placement of the FPCM in the engine bay fuse box reveals its role in the vehicle’s electrical system hierarchy. The fuse box acts as a hub, distributing power to critical systems while providing overcurrent protection. The FPCM, being responsible for regulating fuel pump operation, is positioned here to ensure direct communication with the engine control unit (ECU) and other sensors. This proximity minimizes signal degradation and latency, crucial for maintaining optimal fuel delivery. For DIY enthusiasts, understanding this layout is essential for troubleshooting issues like a non-starting engine or erratic fuel gauge readings. A blown fuse or faulty relay in this area can often be the root cause, making it a logical first stop during diagnostics.
When locating the FPCM in the engine bay fuse box, follow these steps: first, disconnect the battery to prevent electrical mishaps. Next, identify the fuse box by referring to the vehicle’s manual or using online resources specific to your model. Open the fuse box cover and inspect the diagram on the underside, which labels each component. The FPCM is often marked as a relay or module with a distinct shape or color. If unsure, use a multimeter to test for power and ground at the suspected module. Caution: avoid touching exposed terminals or working in wet conditions to prevent short circuits. Once located, assess for signs of corrosion, loose connections, or damage, as these are common culprits for FPCM-related failures.
Comparatively, the engine bay fuse box offers advantages over alternative FPCM locations, such as the fuel tank or passenger compartment. Placing the module here reduces the length of wiring required, lowering the risk of voltage drop and improving system efficiency. Additionally, it simplifies maintenance, as technicians can access the module without removing interior panels or dropping the fuel tank. However, this location exposes the FPCM to higher temperatures, necessitating robust heat-resistant designs. Manufacturers address this by using materials like high-temperature plastics and incorporating heat sinks. For vehicle owners, this trade-off means easier repairs but a need for periodic inspection to ensure the module remains in good condition.
In practice, knowing the FPCM’s location in the engine bay fuse box empowers drivers to address common fuel system issues proactively. For example, if the fuel pump fails to prime during startup, checking the fuse box for a blown fuse or faulty relay can save time and diagnostic costs. Similarly, corrosion around the FPCM terminals can cause intermittent issues, which can be resolved with a simple cleaning using electrical contact cleaner and a wire brush. For older vehicles, upgrading to a more durable FPCM or adding a fuse box cover gasket can prevent moisture intrusion. By familiarizing oneself with this component’s location and function, drivers can maintain their vehicle’s reliability and avoid unnecessary trips to the mechanic.
