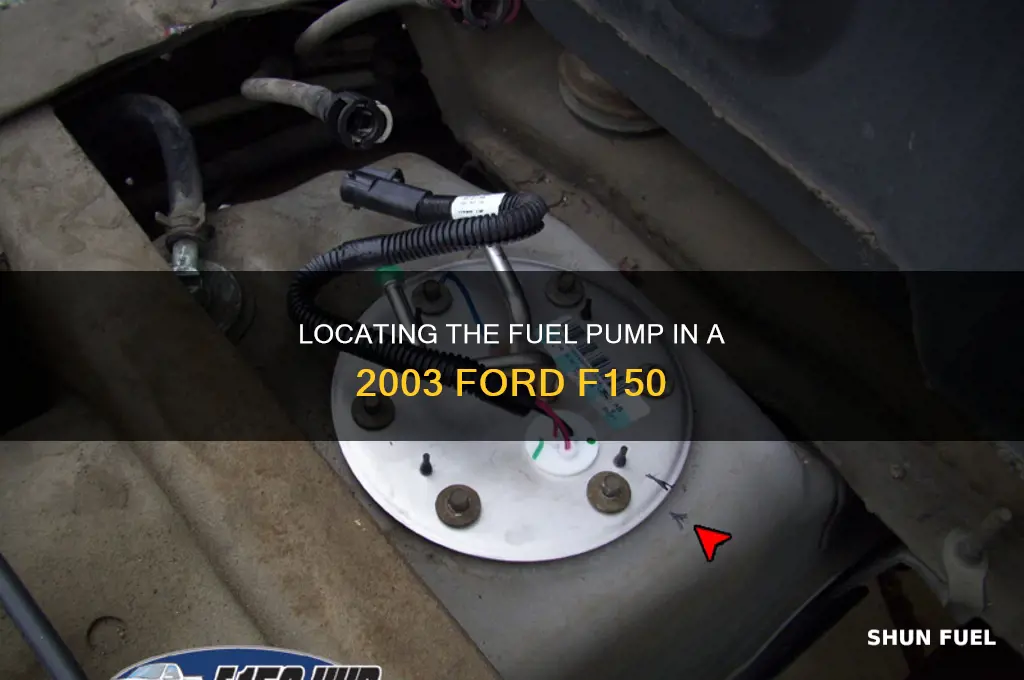

The 2003 Ford F-150, a popular pickup truck known for its reliability and performance, often leaves owners wondering about the location of its fuel pump. In this model, the fuel pump is typically located inside the fuel tank, a common placement in many modern vehicles to ensure safety and efficiency. Accessing the fuel pump requires removing the fuel tank, which is situated beneath the truck bed, usually on the driver's side. This design protects the pump from external damage and maintains a consistent fuel supply, but it also means that replacing or servicing the pump can be a more involved process, often requiring specialized tools and knowledge of the vehicle's fuel system.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank (in-tank fuel pump) |
| Access Method | Requires dropping the fuel tank for access |
| Fuel Tank Location | Beneath the truck bed, between the frame rails |
| Tank Removal Steps | 1. Relieve fuel system pressure 2. Disconnect battery 3. Drain fuel 4. Remove fuel lines and electrical connectors 5. Lower and remove the fuel tank |
| Pump Replacement | Replace the entire fuel pump module (pump and sender unit) |
| Tools Required | Wrenches, screwdrivers, fuel line disconnect tools, jack stands |
| Difficulty Level | Moderate to difficult (requires mechanical skill and safety precautions) |
| Safety Precautions | Work in a well-ventilated area, avoid sparks, and handle fuel carefully |
| Common Symptoms of Failure | Engine sputtering, difficulty starting, loss of power, no start condition |
| Year/Model Specific | 2003 Ford F-150 (all trims with in-tank fuel pump) |
Explore related products
What You'll Learn
Fuel pump location in 2003 F150 engine bay
The fuel pump in a 2003 Ford F150 is not located in the engine bay, which often surprises those unfamiliar with its design. Instead, it’s positioned inside the fuel tank, a common placement in modern vehicles to reduce fire hazards and maintain fuel pressure stability. This in-tank design requires accessing the fuel tank itself for inspection, replacement, or maintenance, making it a more involved task than engine bay-mounted pumps. Understanding this location is crucial for troubleshooting fuel delivery issues or planning repairs.
To access the fuel pump, start by relieving the fuel system pressure and disconnecting the battery to prevent accidents. Locate the fuel tank beneath the truck’s bed, typically near the rear passenger side. Remove the protective skid plate if equipped, then disconnect the fuel lines and electrical connectors attached to the pump module. Use a specialized lock ring tool to detach the pump assembly from the tank, as forcing it can damage the tank. This process highlights why in-tank pumps, while safer, demand more effort to service compared to their engine bay counterparts.
A key advantage of the in-tank fuel pump design is its ability to maintain fuel coolness, reducing the risk of vapor lock in high-temperature conditions. However, this benefit comes with the trade-off of increased complexity during replacement. For a 2003 F150, expect to spend 2–4 hours on the task, depending on experience and tools. Always work in a well-ventilated area and avoid open flames or sparks due to fuel vapors. After installation, check for leaks and ensure proper operation before driving.
Comparing the 2003 F150’s in-tank pump to older models with external pumps reveals a shift toward safety and efficiency. While external pumps are easier to access, they’re more susceptible to heat and damage. The in-tank design, though less convenient, aligns with modern automotive standards. For DIYers, investing in a fuel pump module removal tool and a repair manual specific to the F150 can streamline the process. Professional installation is recommended for those uncomfortable with fuel system work, as mistakes can lead to costly repairs or safety hazards.
Finally, regular maintenance of the fuel system can extend the pump’s lifespan. Keep the fuel tank at least a quarter full to prevent the pump from running dry, which can cause overheating. Use high-quality fuel and consider adding a fuel system cleaner every 10,000 miles to reduce contaminants. While the in-tank location of the 2003 F150’s fuel pump adds complexity, its design prioritizes safety and performance, making it a worthwhile trade-off for long-term reliability.
Mastering Small Engine Fuel Pump Priming: A Step-by-Step Guide
You may want to see also
Explore related products
Identifying fuel pump on 2003 F150 chassis
The fuel pump in a 2003 Ford F150 is located inside the fuel tank, a common placement in many modern vehicles to keep the pump cool and reduce the risk of vapor lock. This in-tank design requires accessing the fuel tank to inspect or replace the pump, which involves a series of steps that demand careful attention to safety and procedure. Before starting, ensure the vehicle is on a level surface, the engine is off, and the battery is disconnected to prevent accidental ignition.
To identify the fuel pump, first locate the fuel tank, typically positioned beneath the rear seat or bed of the truck. Accessing the pump involves removing the fuel tank or using an access panel, depending on the F150’s configuration. If your model has an access panel, it simplifies the process, as you can reach the pump without dropping the tank. However, many 2003 F150s require tank removal, which involves draining the fuel, disconnecting lines, and lowering the tank safely. Always use a jack or support to handle the tank’s weight and avoid spills or damage.
Once the tank is accessible, the fuel pump module is usually secured by a locking ring or bolts. The module includes the pump, sender unit, and sometimes a filter. Identifying the pump itself is straightforward, as it’s the electric motor component within the module. Before removal, relieve fuel system pressure by loosening the Schrader valve on the fuel rail (if equipped) to prevent fuel spray. This step is critical for safety and ease of work.
Comparing the 2003 F150’s fuel pump to earlier models highlights advancements in design and placement. Older trucks often had external pumps, which were more exposed to heat and debris. The in-tank design not only improves reliability but also integrates the pump with the sender unit, streamlining diagnostics. For DIY enthusiasts, understanding this evolution underscores the importance of following specific procedures for the 2003 model, as generic approaches may not apply.
In conclusion, identifying the fuel pump on a 2003 F150 chassis requires familiarity with its in-tank location and the steps to access it safely. Whether using an access panel or removing the tank, precision and caution are key. By recognizing the pump’s role within the module and adhering to safety protocols, you can efficiently diagnose or replace it, ensuring your F150’s fuel system operates reliably. Always consult a repair manual or professional guidance if unsure, as mistakes can lead to costly repairs or safety hazards.
Mastering Snowmobile Maintenance: A Step-by-Step Guide to Priming Your Fuel Pump
You may want to see also
Explore related products
Accessing fuel pump in 2003 F150 fuel tank
The fuel pump in a 2003 Ford F150 is located inside the fuel tank, a design choice that helps maintain a consistent fuel supply and protects the pump from external damage. Accessing it requires careful planning and execution to avoid safety hazards and potential damage to the vehicle. Before starting, ensure the truck is on a level surface, the engine is cool, and the fuel tank is as empty as possible to minimize spillage and fumes.
Steps to Access the Fuel Pump:
- Disconnect the Battery: Remove the negative battery cable to prevent accidental sparks or electrical issues during the process.
- Relieve Fuel System Pressure: Locate the Schrader valve on the fuel rail (near the engine) and use a pressure gauge to release residual pressure.
- Remove the Bed: The fuel tank is accessed from underneath the truck, but removing the bed provides easier access. Unbolt the bed mounts, disconnect wiring harnesses, and carefully lift the bed using a suitable jack or support system.
- Lower the Fuel Tank: Support the tank with a jack, then unbolt the straps holding it in place. Carefully lower the tank to access the top, where the fuel pump module is located.
Cautions and Practical Tips:
Always work in a well-ventilated area and avoid open flames or sparks. Use a drip pan to catch any fuel that may spill during tank removal. If the tank is difficult to lower, check for obstructions or additional fasteners. Consider replacing the fuel tank straps if they show signs of wear, as they are critical for secure reinstallation.
Accessing the fuel pump in a 2003 F150 is a labor-intensive task that requires mechanical aptitude and safety awareness. While removing the bed is optional, it significantly simplifies the process. Proper preparation and caution ensure a successful repair without compromising safety or vehicle integrity. If unsure, consult a professional to avoid costly mistakes.
Why Fuel Pumps Are Essential for Four-Wheeler Performance and Efficiency
You may want to see also
Explore related products
![A-Premium Enginie Water Pump [8Cyl 5.0L DOHC] w/O-Ring Compatible with Ford Cars - F-150 2011-2023, Mustang 2011-2023 - (Only fit with 3 Bolt Flange)](https://m.media-amazon.com/images/I/71c9MUwEwnL._AC_UY218_.jpg)
Tools needed to locate 2003 F150 fuel pump
Locating the fuel pump in a 2003 Ford F150 requires a few essential tools to ensure the process is efficient and safe. The fuel pump is situated inside the fuel tank, which means accessing it involves removing the tank or using specialized equipment. Here’s a breakdown of the tools you’ll need and how to use them effectively.
Step 1: Gather the Tools
Start by assembling a jack, jack stands, wrench set, screwdriver set, and a fuel line disconnect tool. These tools are critical for safely raising the vehicle, removing bolts, and disconnecting fuel lines. A pair of safety gloves and safety goggles are also mandatory to protect against fuel spills and debris. For a more precise approach, consider renting or purchasing a fuel pump module removal tool, which simplifies the extraction process.
Cautionary Notes
Before proceeding, relieve the fuel system pressure using the Schrader valve located near the fuel rail. Failure to do this can result in fuel spraying when disconnecting lines. Additionally, work in a well-ventilated area and avoid open flames or sparks, as gasoline fumes are highly flammable. If you’re unsure about any step, consult a repair manual or seek professional assistance.
Practical Tips for Success
When removing the fuel tank, ensure the vehicle is on a level surface and securely supported on jack stands. Use a drain pan to catch any residual fuel when disconnecting the lines. If the tank is rusted or difficult to remove, apply penetrating oil to stubborn bolts and allow it to sit for 15–20 minutes before attempting to loosen them. Once the tank is accessible, the fuel pump module can be carefully extracted using the appropriate tool.
With the right tools and precautions, locating and accessing the fuel pump in a 2003 F150 is a manageable task. Proper preparation and adherence to safety guidelines will ensure a smooth process, saving time and minimizing risks. Whether you’re a DIY enthusiast or a seasoned mechanic, having the correct tools on hand is the key to success.
Why Aftermarket Fuel Pumps Fail Prematurely: Common Causes Explained
You may want to see also
Explore related products
Common issues with 2003 F150 fuel pump placement
The 2003 Ford F150’s fuel pump is located inside the fuel tank, a design choice that, while common, introduces specific vulnerabilities. One recurring issue is the pump’s exposure to heat and debris, as the tank’s internal environment lacks adequate shielding. Over time, sediment and contaminants accumulate, causing the pump to overwork and eventually fail prematurely. This placement also complicates diagnostics, as symptoms like sputtering or stalling can mimic other fuel system issues, leading to misdiagnosis and unnecessary repairs.
Another challenge arises from the fuel pump’s reliance on proper fuel levels for cooling. The 2003 F150’s pump is not externally cooled, meaning it depends on fuel immersion to dissipate heat. Driving with a low fuel tank increases the pump’s operating temperature, accelerating wear and reducing lifespan. Owners often overlook this, assuming the pump is self-sustaining, but consistent low fuel levels can lead to failure within 80,000–100,000 miles, far sooner than expected.
Accessing the fuel pump for maintenance or replacement is a labor-intensive process, further exacerbated by its in-tank location. Removing the tank requires draining fuel, disconnecting lines, and lowering the assembly—a task that demands precision and safety precautions. DIY repairs are risky due to the potential for fuel spills or electrical hazards, while professional replacements can cost $500–$800, including parts and labor. This complexity discourages proactive maintenance, leaving many owners reactive to failures.
Comparatively, vehicles with externally mounted fuel pumps offer easier access and better cooling, reducing these issues. The 2003 F150’s design, however, prioritizes space efficiency over serviceability. Retrofitting an external pump is impractical due to compatibility and cost, leaving owners to manage the inherent drawbacks. Regular fuel filter changes and using higher-octane fuel can mitigate some risks, but the pump’s placement remains a structural limitation.
Instructively, owners can extend the pump’s life by adopting preventive measures. Keeping the fuel tank at least a quarter full ensures consistent cooling, while using a fuel additive every 5,000 miles reduces sediment buildup. Annual inspections for fuel line leaks or corrosion can catch early signs of strain. For those experiencing symptoms, a fuel pressure test (ideal range: 30–60 PSI) can confirm pump health before committing to replacement. Awareness of these issues transforms maintenance from reactive to proactive, minimizing downtime and costs.
Finding the Fuel Pump Relay in a 1997 Eldorado
You may want to see also
Frequently asked questions
The fuel pump on a 2003 Ford F150 is located inside the fuel tank, which is situated beneath the truck bed, near the driver's side rear wheel.
To access the fuel pump, you’ll need to remove the truck bed or drop the fuel tank. It’s recommended to relieve fuel pressure, disconnect the battery, and use proper safety equipment before starting.
Common signs include difficulty starting the engine, sputtering or stalling, reduced power, and unusual noises coming from the fuel tank area.
Yes, but it requires intermediate mechanical skills and tools. If you’re unsure, it’s best to have a professional perform the replacement to avoid safety risks or damage.
The cost varies depending on labor and parts, but typically ranges from $400 to $800, including the fuel pump assembly and installation.
