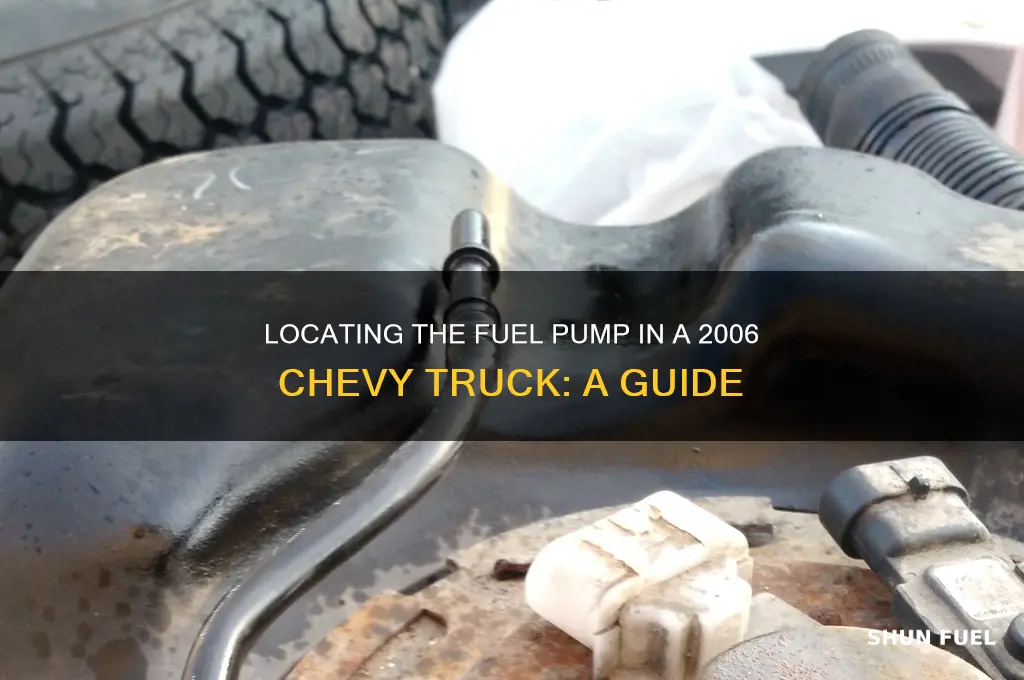

The fuel pump in a 2006 Chevy truck is typically located inside the fuel tank, a common design feature in modern vehicles to help maintain fuel pressure and reduce the risk of vapor lock. This in-tank placement also protects the pump from external damage and helps keep the fuel cool, which can improve its efficiency. To access the fuel pump for maintenance or replacement, the fuel tank must be lowered or removed, a process that requires careful attention to safety, as it involves working with flammable materials and potentially hazardous conditions. Understanding the location and function of the fuel pump is essential for troubleshooting fuel system issues and ensuring the vehicle runs smoothly.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank (in-tank fuel pump) |
| Access Method | Requires removing the bed or accessing through a service panel (if available) |
| Fuel Tank Location | Beneath the truck bed, between the frame rails |
| Pump Type | Electric fuel pump |
| Compatibility | Fits 2006 Chevrolet Silverado 1500, 2500, and 3500 models |
| Replacement Difficulty | Moderate to difficult (requires fuel tank removal or bed removal) |
| Tools Required | Jack, jack stands, wrenches, screwdrivers, fuel line disconnect tools |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Common Symptoms of Failure | Engine stalling, difficulty starting, loss of power, whining noise from tank |
| Replacement Part | OEM or aftermarket fuel pump module assembly |
| Estimated Replacement Time | 2-4 hours depending on experience and tools |
Explore related products
What You'll Learn
Fuel pump location in 2006 Chevy truck
The fuel pump in a 2006 Chevy truck is located inside the fuel tank, a common placement in modern vehicles to help maintain fuel pressure and reduce the risk of vapor lock. This in-tank design also protects the pump from external damage and keeps it submerged in fuel, which helps to cool the pump and extend its lifespan. If you’re looking to locate or replace the fuel pump, accessing it requires removing the fuel tank, a task that demands careful attention to safety and proper tools.
To access the fuel pump, start by relieving the fuel system pressure using the Schrader valve located on the fuel rail. Next, disconnect the battery to prevent accidental ignition. Raise the vehicle securely on jack stands to gain access to the fuel tank. Carefully remove the fuel tank straps and lower the tank to access the pump assembly. The pump is typically secured by a locking ring or bolts, which can be removed with the appropriate tools. Always work in a well-ventilated area and avoid open flames or sparks when dealing with fuel systems.
Comparing the 2006 Chevy truck’s fuel pump to earlier models highlights advancements in design and efficiency. Older trucks often had external fuel pumps, which were more susceptible to heat and mechanical failure. The in-tank design not only improves reliability but also integrates the pump with the sending unit, simplifying diagnostics and replacement. This evolution underscores the importance of understanding your vehicle’s specific system when troubleshooting or performing maintenance.
For DIY enthusiasts, replacing the fuel pump on a 2006 Chevy truck can save significant labor costs, but it’s not a task to be taken lightly. Ensure you have a new fuel pump assembly, gasket, and locking ring before starting. After installation, reattach the fuel tank securely and double-check all connections. Turn the key to the "on" position (without starting the engine) to pressurize the system and check for leaks. This step-by-step approach ensures a safe and effective repair, keeping your truck running smoothly for years to come.
Bypassing Fuel Pump Inertia Switch in a 1998 Ford Escort
You may want to see also
Explore related products
Steps to access fuel pump in 2006 Chevy
The fuel pump in a 2006 Chevy truck is located inside the fuel tank, a common placement in modern vehicles to keep the pump cool and reduce the risk of vapor lock. Accessing it requires careful steps to ensure safety and efficiency. Begin by parking the truck on a flat, stable surface and engaging the parking brake. Gather the necessary tools: a jack, jack stands, wrenches, and a new fuel pump if you’re replacing it. Always work in a well-ventilated area and avoid open flames or sparks, as fuel vapors are highly flammable.
Start by relieving the fuel system pressure to prevent accidental fuel spray. Locate the fuel pressure relief valve, typically near the engine bay, and follow the vehicle manual’s instructions to release the pressure. Once complete, disconnect the negative battery terminal to eliminate the risk of electrical shorts. Next, raise the truck using a jack and secure it on jack stands to access the fuel tank. The tank is positioned beneath the truck bed, near the rear axle. Carefully remove the bed bolts and gently lift the bed to expose the tank, or use a tank access panel if available.
With the fuel tank exposed, disconnect the electrical connector and fuel lines from the pump assembly. Use a wrench to loosen the retaining ring or bolts securing the pump to the tank. Be cautious not to damage the tank or surrounding components. Once the pump is free, lower the tank slightly to extract it. If replacing the pump, ensure the new unit is compatible with your 2006 Chevy model and install it following the reverse steps. Reattach all connections securely and reassemble the truck bed or access panel.
After installation, lower the truck and reconnect the battery. Turn the ignition to the "on" position (without starting the engine) to pressurize the fuel system and check for leaks. If no leaks are detected, start the engine and monitor for proper fuel pump operation. This process, while detailed, ensures the fuel pump is accessed and replaced safely, maintaining the truck’s performance and reliability. Always consult the vehicle’s manual or a professional mechanic if unsure about any step.
Understanding Fuel Pump Cracks: Causes, Symptoms, and Prevention Tips
You may want to see also
Explore related products
Common issues with 2006 Chevy fuel pump
The 2006 Chevy truck's fuel pump, typically located in the fuel tank, is a critical component that can exhibit several common issues over time. One prevalent problem is fuel pump failure, often caused by contamination from debris or low-quality fuel. This can lead to reduced fuel pressure, resulting in poor engine performance, stalling, or difficulty starting the vehicle. Regularly using high-quality fuel and replacing the fuel filter at recommended intervals (usually every 30,000 miles) can mitigate this risk.
Another frequent issue is electrical malfunctions in the fuel pump system. The wiring harness or connectors may corrode or become loose, interrupting power supply to the pump. Symptoms include intermittent power loss or a complete failure to start. Inspecting the wiring harness for damage and ensuring secure connections can prevent such problems. If corrosion is detected, cleaning the terminals with electrical contact cleaner and applying dielectric grease can restore functionality.
Overheating is a less common but significant issue, particularly in high-mileage vehicles. Prolonged operation under heavy loads or in hot climates can cause the fuel pump motor to overheat, leading to premature failure. Installing a fuel pump with a higher temperature rating or ensuring the fuel tank is at least one-quarter full (to keep the pump submerged and cool) can help prevent overheating.
Lastly, fuel pump noise is a telltale sign of impending failure. A whining or humming sound from the fuel tank area, especially during startup or acceleration, indicates wear in the pump's internal components. While not an immediate failure, this noise warrants prompt inspection and potential replacement to avoid being stranded. Replacing the fuel pump before complete failure can save time and money, as it often involves dropping the fuel tank, a labor-intensive process.
In summary, addressing these common issues—contamination, electrical malfunctions, overheating, and unusual noise—through preventive maintenance and timely repairs can extend the life of the 2006 Chevy truck's fuel pump and ensure reliable vehicle performance.
Testing Your 1988 S10 Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Replacing fuel pump in 2006 Chevy truck
The fuel pump in a 2006 Chevy truck is located inside the fuel tank, a design common to many modern vehicles for safety and efficiency. This placement protects the pump from external damage and helps maintain fuel pressure. However, it also means replacing the pump requires removing the tank, a task that demands careful planning and execution. Before starting, ensure you have the necessary tools, including a jack, jack stands, wrenches, and a new fuel pump assembly. Safety should be your top priority, so work in a well-ventilated area and relieve the fuel system pressure before proceeding.
Replacing the fuel pump begins with disconnecting the battery to prevent electrical hazards. Next, relieve the fuel pressure by locating the Schrader valve on the fuel rail and pressing the valve stem with a tool. Once pressure is released, raise the truck and secure it on jack stands to access the fuel tank. Disconnect the fuel lines and electrical connectors, taking note of their positions for reassembly. Use a wrench to loosen the tank straps and carefully lower the tank to access the pump. Remove the retaining ring or bolts securing the pump to the tank, then disconnect the pump from the sending unit and carefully pull it out.
When installing the new fuel pump, ensure it is compatible with your 2006 Chevy truck model. Some pumps come as part of a complete module, which simplifies installation but may cost more. Clean the tank opening and inspect the fuel sender gasket for damage, replacing it if necessary. Insert the new pump, reattach the sending unit, and secure it with the retaining ring or bolts. Reinstall the tank, reconnect the fuel lines and electrical connectors, and lower the truck. After reassembly, turn the ignition to the "on" position for a few seconds to prime the pump, then check for leaks before starting the engine.
One common mistake during this process is neglecting to properly seal the fuel tank or over-tightening the pump assembly, which can lead to leaks or damage. To avoid this, use a torque wrench if available and follow the manufacturer’s specifications. Additionally, consider replacing the fuel filter while the tank is down, as it’s a cost-effective preventive measure. Finally, test drive the truck to ensure the new pump operates smoothly. With patience and attention to detail, replacing the fuel pump in a 2006 Chevy truck is a manageable task that can save you significant labor costs.
Understanding Dual Fuel Heat Pumps: Efficient Heating and Cooling Solutions
You may want to see also
Explore related products
Tools needed for 2006 Chevy fuel pump repair
The 2006 Chevy truck's fuel pump is located in the fuel tank, a design common to many modern vehicles for safety and efficiency. Accessing it requires a specific set of tools to ensure a safe and effective repair. Here’s a detailed breakdown of what you’ll need and why each tool is essential.
Essential Tools for the Job
To begin, a floor jack and jack stands are non-negotiable. The fuel tank must be lowered for access, and these tools ensure stability and safety while working underneath the vehicle. A socket set with extensions is crucial for removing bolts and fasteners, particularly a 10mm and 15mm socket, which are commonly used on Chevy trucks. A fuel line disconnect tool is also necessary to safely detach the fuel lines without causing leaks or damage.
Specialized Tools for Precision
A lock ring removal tool is specific to this repair, as it’s required to remove the fuel pump module’s locking ring. Without this tool, accessing the pump is nearly impossible. Additionally, a strap wrench is useful for loosening the fuel filter, which may need replacement during the repair. For electrical connections, a multimeter is essential to test the pump’s functionality before and after installation, ensuring the issue is resolved.
Safety and Convenience Tools
Safety should never be overlooked. Safety goggles and gloves protect against fuel spills and debris. A drain pan is necessary to catch fuel when disconnecting lines, preventing environmental contamination and fire hazards. For tight spaces, a flashlight or headlamp ensures visibility, while a pry bar can assist in gently maneuvering components without causing damage.
Optional but Helpful Tools
While not mandatory, a fuel pump module tester can diagnose issues before disassembly, saving time and effort. A torque wrench ensures bolts are tightened to factory specifications, preventing future leaks. Lastly, a parts cleaning solvent is useful for cleaning the fuel tank area before installing the new pump, ensuring longevity.
By gathering these tools beforehand, you’ll streamline the repair process, minimize risks, and ensure a successful outcome. Each tool plays a specific role, and their collective use guarantees a professional-grade repair on your 2006 Chevy truck’s fuel pump.
Why Fuel Pumps Fail: Common Causes and Warning Signs
You may want to see also
Frequently asked questions
The fuel pump in a 2006 Chevy truck is located inside the fuel tank, which is typically mounted underneath the truck bed.
To access the fuel pump, you’ll need to remove the fuel tank. This involves draining the fuel, lowering the tank, and then removing the pump assembly from the top of the tank.
Yes, always relieve fuel system pressure, disconnect the battery, and work in a well-ventilated area to avoid fire hazards. Use proper safety equipment like gloves and safety goggles.
No, the fuel pump is an in-tank unit, so the fuel tank must be removed to access and replace the pump.
Common signs include difficulty starting the engine, sputtering or stalling, reduced fuel efficiency, and a whining noise coming from the fuel tank.
