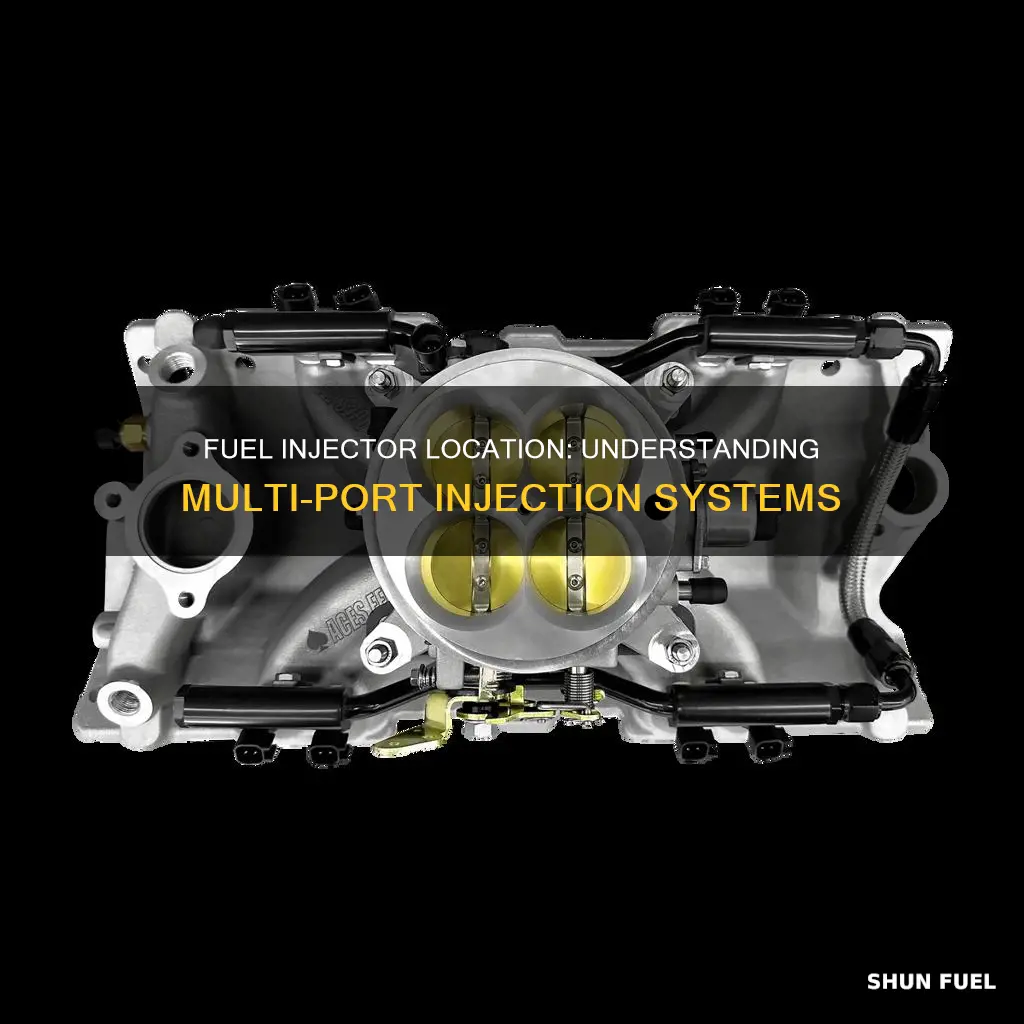

Multi-port fuel injection (MFI) systems, also known as port, multi-point, or sequential fuel injection, have a fuel injector for each cylinder, usually located so that they spray directly at the intake valve. This is in contrast to single-point injection, which uses a single injector in a throttle body mounted similarly to a carburettor on an intake manifold. Multi-port fuel injection systems provide more accurate fuel metering and quicker response times than single-point injection systems. The main advantage of multi-port fuel injection is that it meters fuel more precisely, better achieving the desired air-fuel ratio and improving all related aspects.
| Characteristics | Values |
|---|---|
| Location of fuel injectors in multiport fuel injectors | The fuel injector is located in the combustion chamber, inlet manifold, or throttle body. |
| Type of injection | Multi-point injection (also called port injection) |
| Injection process | Injects fuel into the intake ports just upstream of each cylinder's intake valve |
| Number of injectors | Typically, multi-point injected systems use multiple fuel injectors, but some systems use a central injector |
| Control of injectors | The ECM controls the injectors by pulse width, the time the injector sprays fuel into the port |
| Advantages of multiport fuel injection | Port fuel delivery, high reliability, better hot starts, reduced vapor emissions, and faster prime on hot restarts |
Explore related products
What You'll Learn
- Injectors are located in the combustion chamber, inlet manifold or throttle body
- Multi-point injection injects fuel into intake ports
- Single-point injection uses one injector in a throttle body
- Direct injection: fuel is injected into the main combustion chamber of each cylinder
- Multiport and sequential fuel injection systems inject atomized fuel into a port
Injectors are located in the combustion chamber, inlet manifold or throttle body
Fuel injectors are located in different parts of an engine, depending on the type of fuel injection system used. In multiport fuel injection systems, fuel is injected into the intake ports just upstream of each cylinder's intake valve. This is in contrast to single-point injection, where fuel is injected at a central point within an intake manifold.
The injectors themselves can be located in the combustion chamber, inlet manifold, or throttle body. Direct injection means that fuel is injected directly into the main combustion chamber of each cylinder. This is the most common system in modern automotive engines, and the fuel is sprayed into the air inside the cylinder or combustion chamber. The air and fuel are mixed only inside the combustion chamber, meaning only air is sucked into the engine during the intake stroke.
Inlet manifold injection systems, or multi-point injection, use injectors located at the intake ports or throttle body. This type of injection system injects fuel into the intake ports just upstream of each cylinder's intake valve. This is more efficient than single-point injection as the fuel is mixed with the air before entering the intake manifold, providing better performance and fuel economy.
Throttle body injection systems, or single-point injection, use one injector in a throttle body mounted on an intake manifold. This type of injection system is similar to carburetted induction systems, where fuel is mixed with air before entering the intake manifold. Throttle body injection was a relatively low-cost way for automakers to reduce exhaust emissions and improve "driveability".
Fuel Injectors in the 1988 318: How Many Are There?
You may want to see also
Explore related products
Multi-point injection injects fuel into intake ports
Multi-point injection, also known as port injection, is a fuel injection system that injects fuel into the intake ports just upstream of each cylinder's intake valve. This is in contrast to single-point injection, where fuel is injected at a central point within an intake manifold. In multi-point injection, each cylinder has its own fuel injector mounted in the intake manifold, located right outside its intake port. This ensures that the fuel vapour is almost always entirely drawn into the cylinder.
The multi-port injection system is an evolution of the throttle body injection (TBI) system, which is similar to carburetted induction systems. In TBI, the fuel injector is located in the throttle body, and the fuel is mixed with air before entering the intake manifold. Multi-port injection systems, on the other hand, inject fuel directly into a port just before the intake valve, making them more efficient than TBI systems.
The main advantage of multi-point injection is its ability to meter fuel more precisely. This helps achieve the desired air-fuel ratio and improves fuel economy and emissions. Additionally, it virtually eliminates the possibility of fuel condensation or collection in the intake manifold. As a result, the intake manifold can be made from lighter-weight materials, such as plastic, which further improves fuel economy.
Multi-port injection systems can be sequential or simultaneous. In sequential systems, the injectors are fired individually, allowing for more precise fuel control. In simultaneous systems, all injectors are fired simultaneously with each revolution of the crankshaft. While sequential systems are more efficient, most engines today use simultaneous multi-port injection systems.
Fuel Injector Issues: Flooding the Throttle Body?
You may want to see also
Explore related products
Single-point injection uses one injector in a throttle body
Single-point injection (SPI), also known as throttle-body injection (TBI), uses one injector in a throttle body. This is mounted similarly to a carburettor on an intake manifold. The fuel is mixed with the air before entering the intake manifold. Single-point injection was introduced in the 1940s for large aircraft engines and in the 1980s for cars. It was a relatively low-cost way for automakers to reduce exhaust emissions and comply with tightening regulations.
Single-point injection was used extensively in American-made passenger cars and light trucks from 1980 to 1995, and in some European cars in the early to mid-1990s. The system was called Throttle-Body Injection by General Motors, Central Fuel Injection by Ford, PGM-CARB by Honda, and EGI by Mazda.
In a single-point injection system, the injector is usually installed right behind the throttle valve in the throttle body. The injection amount is exclusively dependent on the injection time, as it takes place above the throttle flap and not in the vacuum area. The throttle flap potentiometer is an important sensor for determining the injection amount.
Single-point injection is now considered obsolete. This is because it does not allow for the formation of very precise mixtures required for modern emission regulations.
Replacing Fuel Injectors in a 2001 Quest: Step-by-Step Guide
You may want to see also
Explore related products
Direct injection: fuel is injected into the main combustion chamber of each cylinder
Direct injection is a fuel-delivery technology that allows gasoline engines to burn fuel more efficiently, resulting in increased power, cleaner emissions, and improved fuel economy.
Direct injection, also known as petrol direct injection (PDI), is a mixture formation system for internal combustion engines that run on gasoline (petrol). In direct injection, fuel is injected directly into the combustion chamber of each cylinder. This is in contrast to manifold injection systems, which inject fuel into the intake manifold (inlet manifold).
The first GDI engine to reach production was introduced in 1925 for a low-compression truck engine. However, usage of the technology remained rare until an electronic GDI system was introduced in 1996 by Mitsubishi for mass-produced cars. GDI has seen rapid adoption by the automotive industry in recent years, with its usage in the United States increasing from 2.3% of production for model year 2008 vehicles to approximately 50% for model year 2016 vehicles.
Direct injection engines use two fuel pumps: a low-pressure pump and a high-pressure pump. The low-pressure pump sends fuel from the tank, through the fuel filter, and into the high-pressure pump. The engine's camshaft then drives the high-pressure pump, allowing fuel pressure as high as 2,500 pounds of force per square inch (PSI). This highly pressurised fuel travels through fuel rails and directly into the engine cylinders via specifically designed fuel injectors.
The primary disadvantages of direct injection engines are complexity and cost. Direct injection systems are more expensive to build because their components must be more rugged. They handle fuel at significantly higher pressures than indirect injection systems, and the injectors themselves must be able to withstand the heat and pressure of combustion inside the cylinder.
Fuel Injector Spray Penetration: Insufficient, Why and How to Fix It
You may want to see also
Explore related products
Multiport and sequential fuel injection systems inject atomized fuel into a port
Sequential fuel injection systems, on the other hand, fire each injector individually. This system is more efficient than multiport systems because changes to the fuel mixture are instantaneous. Most engines today have sequential fuel injection systems.
The fuel injector is essentially a spray nozzle that performs the final stage in the delivery of fuel into the engine. The injector is located in the combustion chamber, inlet manifold, or, less commonly, the throttle body. Fuel injectors that also control the metering are called injection valves, while injectors that perform all three functions are called unit injectors. Direct injection means that the fuel is injected directly into the main combustion chamber of each cylinder. The air and fuel are mixed only inside the combustion chamber, which means that only air is sucked into the engine during the intake stroke.
Multi-point injection, also called port injection, injects fuel into the intake ports just upstream of each cylinder's intake valve, rather than at a central point within an intake manifold. Typically, multi-point injected systems use multiple fuel injectors, but some systems, such as GM's central port injection system, use tubes with poppet valves fed by a central injector instead of multiple injectors. Single-point injection, also known as throttle-body injection, uses one injector in a throttle body mounted similarly to a carburettor on an intake manifold.
Cleaning Fuel Injectors: '08 Liberty Maintenance Guide
You may want to see also
Frequently asked questions
A multiport fuel injector is a system that uses multiple fuel injectors, with each cylinder getting its own fuel injector mounted in the intake manifold, right outside its intake port.
The fuel injectors are located near the intake valve.
Each cylinder has a separate injector nozzle, which injects atomized fuel into a port before the intake valve. The fuel is injected directly into a port just before the intake valve.
Single-point injection uses a single injector in a throttle body, similar to a carburettor. It is a low-cost way to reduce emissions and improve "driveability". Multiport injection, on the other hand, is more efficient and provides better performance, fuel economy, and emissions.
Multiport injection systems fire the injectors in groups, whereas sequential fuel injection systems fire each injector individually, making changes to the fuel mixture instantaneous. Sequential fuel injection is more efficient than multiport injection.
