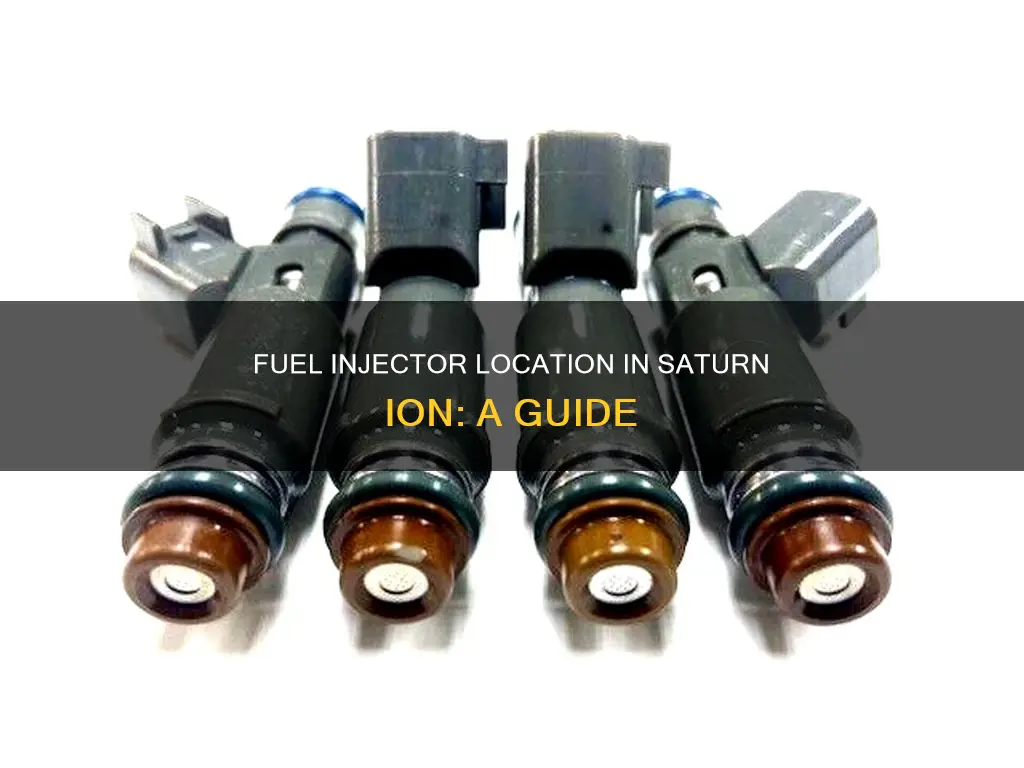

The fuel injectors in a Saturn Ion are fuel metering devices that spray atomized droplets of fuel into the engine's intake manifold or directly into the combustion chamber. They are usually connected to a fuel rail located on top of the engine, which is supplied with fuel under pressure from the fuel pump in the fuel tank. The fuel injectors deliver gas to the engine during every cycle, ensuring the car can always deliver the power needed under any driving conditions.
| Characteristics | Values |
|---|---|
| Location | Connected to a fuel rail located on the top of the engine |
| Function | Spray atomized droplets of fuel into the engine's intake manifold or directly into the combustion chamber |
| Maintenance | Should be regularly serviced and cleaned to prevent blockage and malfunction |
| Signs of Malfunction | Poor fuel economy, rough idle, loss of power, misfiring, check engine light |
| Replacement Procedure | Remove pressure from the fuel rail, disconnect electrical connectors, unbolt and remove the fuel rail, replace injector(s) |
| Cleaning Procedure | Use specialized cleaning equipment, OHM testing, ultra-sonic bathing, and flow-matching |
| Compatibility | Set of 4 Re-Manufactured Genuine Fuel Injectors compatible with Saturn Ion 2.2L 2005-2007 |
Explore related products
What You'll Learn
Fuel injector malfunctions
Fuel injectors are an essential component of a Saturn Ion's engine, delivering fuel during each cycle to ensure the vehicle can always deliver the power needed under any driving conditions. However, fuel injectors can malfunction, and this can have a noticeable impact on the performance of your Saturn Ion.
Symptoms of a Faulty Fuel Injector
When a fuel injector is malfunctioning, you may experience a range of issues, including rough cold starts, surging during cold idle, poor throttle response, and stumbling during acceleration when cold. You may also notice a worsening of your fuel economy and a build-up of diesel-level soot. These symptoms can be similar to those of a faulty fuel pump or fuel filter, so it is important to correctly diagnose a fuel injector issue by checking the fuel pressure at the rail before replacing injectors.
Diagnostic Codes
A single malfunctioning fuel injector can trigger a diagnostic code in your Saturn Ion, such as P0202 or P0205, which indicates a circuit malfunction in cylinder 2 or cylinder 5, respectively. These codes are usually accompanied by noticeable symptoms, such as a misfire, which will hurt the vehicle's acceleration and fuel mileage. The check engine light will also likely illuminate on your dashboard.
Causes of Fuel Injector Malfunctions
There are two main ways that fuel injectors can malfunction: they can become clogged, dirty, or unresponsive, leading to an insufficient amount of fuel entering the combustion chamber; or they can begin to leak, causing issues such as a bad fuel odour or engine stalling. In addition, faulty wiring around the injector can lead to a voltage that is outside the normal operating range, triggering a diagnostic code.
Fixing the Issue
If you suspect a faulty fuel injector, it is recommended to use a scanner that reads misfire data to confirm which cylinder is affected before replacing any components. A new fuel injector is relatively affordable and can be installed with some basic tools and safety precautions.
Fuel Injector Cleaner: GM's Recommendation for Optimum Performance
You may want to see also
Explore related products
Fuel injector replacement
The fuel injectors in a Saturn Ion deliver gas to the engine during each cycle, ensuring the car can deliver the power needed under any driving conditions. When the fuel injectors are blocked or malfunctioning, you may experience poor fuel economy, difficulty getting your RPMs to the expected range, and more serious issues like surging under different throttle loads.
To replace the fuel injectors in a Saturn Ion, you will need to remove the injector requiring replacement from the fuel rail. Before beginning this process, ensure the engine is cold, then relieve the pressure within the fuel rail by briefly running the engine with the fuel pump fuse removed. Next, remove the upper plenum on the intake manifold, along with any cables, hoses, or wiring that may restrict access. Disconnect the supply and return lines from the fuel rail, and unlock and remove the electrical connectors to the fuel injector.
Once the electrical connectors are removed, you can unbolt and lift the fuel rail from the intake manifold. Take care not to allow any debris to enter the exposed openings. After removing the fuel rail, you can take out the injector requiring replacement. When reinstalling the serviced or replaced injector, use a new O-ring and apply engine oil to prevent damage. Reinstall the fuel rail, reconnect the supply and return lines, and reinstall the plenum along with all cables, hoses, or wiring. Finally, run the engine and carefully check for leaks before road-testing the vehicle.
It is important to note that on-car cleaning of fuel injectors may not be as effective as off-the-car cleaning due to the tiny internal filter baskets that should be replaced during the servicing process. Additionally, specialised cleaning and test equipment are required for servicing fuel injectors. Therefore, the decision to repair or replace the injector will depend on the specific issue and customer preference.
Fuel Injectors in 2000 Dodge Neon: Are They There?
You may want to see also
Explore related products
Fuel injector cleaning
Fuel injectors deliver fuel to your car’s combustion chamber. They spray just enough fuel into the chamber for your engine to burn effectively. If an injector becomes blocked or malfunctions, it can lead to poor fuel economy, surging under different throttle loads, and problems getting your RPMs into the expected range.
To clean your fuel injectors, you must first remove them from your vehicle’s engine. This will vary depending on your engine, so it is recommended to consult your vehicle’s service manual or an aftermarket maintenance manual for in-depth instructions. Generally, you will need to disconnect the fuel supply and remove the fuel rails. After removing the fuel injectors, take out the rubber o-ring from the fuel rail side of the injector. Attach a rubber hose to the opening using hose clamps to prevent any cleaner spills during the cleaning process.
Next, connect one side of an electrical lead to the injectors and the other side to the positive terminal of your vehicle’s battery. Only connect the lead when you are ready to create a spark. To ensure a thorough clean, disconnect the rubber hose from the rail side and attach it to the outflow side. Allow the cleaner to flow through the injectors in the opposite direction to remove any deposits or buildup.
There are hundreds of fuel injector cleaners on the market. A gas additive injector cleaner can be poured directly into the gas tank, although this may become too diluted to be effective. Alternatively, a true injector cleaning procedure involves attaching a pressure canister to the fuel line and using a high-powered cleaner in place of the fuel. You can pour the cleaning solvent into the pressure canister and then attach a compressed air line. Set the air pressure to what the fuel pump would normally provide, then remove the fuel pump relay and start the engine using only the cleaner as fuel. Run about one or two pints of the cleaner, then put everything back together.
Fixing a Leaking Fuel Injector Pump: DIY Guide
You may want to see also
Explore related products
Fuel injector location
The fuel injectors in a Saturn Ion are located within the engine, connected to a fuel rail at the top of the engine. This rail supplies the injectors with fuel under pressure from the fuel pump, which is located in the fuel tank.
The fuel injector is a metering device that sprays atomized droplets of fuel into the engine's intake manifold or directly into the combustion chamber. The PCM (powertrain control module) controls the solenoid's 'on' time to maintain an optimized air-fuel ratio as the engine load and operating conditions change.
A typical procedure for removing the fuel injectors involves first relieving the pressure within the fuel rail by running the engine with the fuel pump fuse out. The upper plenum on the intake manifold is then removed, along with any cables, hoses, or wiring that may restrict access. The supply and return lines are disconnected from the fuel rail, and the electrical connectors to each fuel injector are unlocked and removed. The fuel rail is then unbolted and removed from the intake manifold, and the injectors can be taken out.
It is important to clean the area under the fuel rail before reinstalling new injectors, as sand and dirt can accumulate and cause issues. Off-the-car cleaning is more effective than on-the-car cleaning due to the tiny internal filter baskets within the injectors that should be replaced during servicing.
Removing Fuel Injector Pump from Ford 3600 Tractor
You may want to see also
Explore related products
Fuel injector leaks
The fuel injectors in a Saturn Ion are located at the top of the engine. Fuel injector leaks are rare but tend to occur in older vehicles. They can be dangerous and have the potential to cause severe and costly engine damage. Therefore, it is important to identify and fix the problem as soon as possible.
Symptoms of a Leaking Fuel Injector
There are several signs that may indicate a leaking fuel injector. These include:
- Increased fuel consumption
- Rough idling
- Engine misfires
- Oil thinning, which can lead to engine bearing damage and, in some cases, even an explosion inside the engine
- Fuel odors inside and around the car
- Poor emissions
- Hard starting when the engine is hot
- Engine stalling due to hydrolocking, where excess fuel enters the combustion chamber and cannot be compressed
Causes of Fuel Injector Leaks
- O-ring failure between the injector and fuel rail: The O-ring can become brittle and crack over time due to engine heat or wear, causing a break in the seal of the fuel injector.
- Clogged injector: Carbon deposits can build up on the injector nozzles, causing them to stick in either the open or closed position. This can lead to plunger issues, preventing the plunger from retracting and allowing fuel to leak out.
- Damaged seal or body: A cracked fuel injector body or damaged O-rings can cause external leaks, leading to fuel escaping into the intake manifold.
Fixes for Fuel Injector Leaks
Resolving a leaking fuel injector depends on the specific problem. Here are some possible fixes:
- Replace the O-ring: If the leak is at the top of the O-ring near the fuel injector rail, it may be necessary to replace it.
- Clean the injector: In cases of a clogged injector, proper cleaning techniques can restore the injector's function. However, it is recommended to seek professional injector cleaning services.
- Replace the injector: If the fuel injector body is damaged or corroded, it cannot be mended, and a replacement is required.
Cleaning Honda CR-V Fuel Injectors: DIY Guide
You may want to see also
Frequently asked questions
Fuel injectors are fuel metering devices that spray atomized droplets of fuel in a specific pattern into the engine’s intake manifold or directly into the combustion chamber.
The fuel injectors in a Saturn Ion are usually connected to a fuel rail located on the top of the engine.
Signs that your fuel injectors are blocked or malfunctioning include poor fuel economy, problems getting your RPMs into the range, and more serious issues like surging under different throttle loads.
If you notice any fuel odor around your car, do not start your car due to the fire hazard. Check for visible leaks and contact a professional mechanic to get your fuel injector replaced.
