Fuel injectors are devices that deliver fuel to an internal combustion engine. They are typically located in the intake manifold and their purpose is to introduce fuel into the engine in a controlled manner. The injector pulse is a short, high-voltage burst of electrical current that is sent to the injector by the engine's computer. This current flow opens the injector's internal coil windings and allows pressurised fuel to flow into the engine. The injector pulse can be used to determine whether the fuel injector is operating properly or if it's defective. It is controlled by the cam position sensor, in the distributor, and not the Crank position sensor on the flywheel. A faulty fuel injector can often be diagnosed using common hand tools.
| Characteristics | Values |
|---|---|
| Purpose | To check whether the fuel injector is operating properly or if it’s defective |
| Testing tools | Multimeter, test light, analog meter, ohm meter, probe, screwdriver |
| Testing process | Testing power at the injector terminals, testing ground wire, testing resistance, observing pulsing light, observing injector pulse pattern, measuring amperage, testing fuel pressure |
| Cost of replacement | Between $100 and $500 for a new injector |
| Fuel injector pulse controlled by | Cam position sensor |
| Fuel injector pulse duration and intensity controlled by | Engine computer |
Explore related products
What You'll Learn
Injector pulse testing methods
Visual Inspection and Manual Testing: One basic method is to visually inspect the fuel injectors and manually check for any issues. This can include looking for physical damage, leaks, or clogs in the injectors. Additionally, you can use a test light to check the pulse intensity of each injector. By connecting the test light to the wire for the last fuel injector clip, you can then reconnect each injector one by one. If the pulse intensity remains the same for all injectors, they are likely functioning correctly. If the light dims when connecting a particular injector, it indicates a faulty injector that needs replacement.
Voltage and Resistance Checks: Testing the voltage and resistance of the injector circuit is another important aspect of injector pulse testing. Using a multimeter, you can check the voltage at the injector connector. A reading of around 5 volts is typical, while a higher voltage, such as 12 volts, may indicate an issue with the ECU or a short circuit. Additionally, performing a resistance test on the ground wire using a sensitive ohm meter can help identify potential problems.

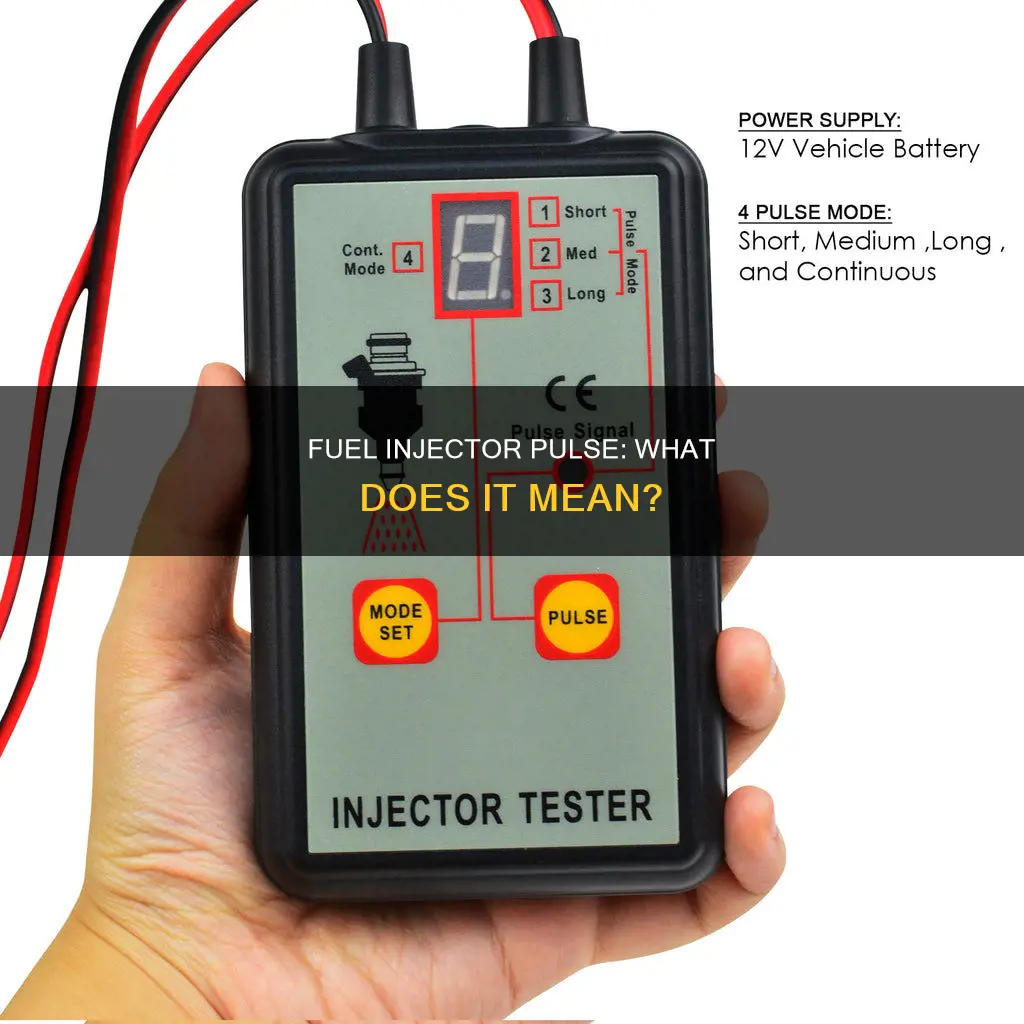

Handheld Fuel Injector Testers: There are also handheld fuel injector testers available that offer a more comprehensive diagnostic approach. These testers typically have multiple pulse modes, such as short, medium, long, and continuous, which help identify issues with the injectors. They can be connected to the fuel injectors to test each one individually, detecting problems like sticking, leaking, or burnt-out conditions. These testers often feature a large LED display and are designed to work with gasoline vehicles, excluding diesel engines.
OBDII Scanner: If your vehicle is equipped with an OBDII (On-Board Diagnostic) scanner and the check engine light is on, you can use it to check for error codes related to the cylinders or injectors. This can provide valuable information about potential issues with the fuel injectors or the vehicle's electronic control unit, helping to determine if injector replacement or a professional diagnostic is necessary.
It is important to consult a professional mechanic if you are unsure about performing these tests or interpreting the results accurately. They can provide expert advice and ensure that the appropriate diagnostic procedures are followed for your specific vehicle.
Fuel Injector Replacement: DIY or Call the Mechanic?
You may want to see also
Explore related products
How to identify a faulty fuel injector
Fuel injectors are an important part of a car's engine. They deliver fuel into the engine's combustion chamber, spraying a fine mist of fuel to ensure the engine has the right mix to ignite and run smoothly. However, over time, fuel injectors can become clogged, dirty, or wear out. Here are some ways to identify a faulty fuel injector:
Poor Fuel Economy
A faulty fuel injector may not deliver fuel efficiently, either by spraying too much or not enough. This inconsistency can lead to poor fuel economy, as the engine may consume more fuel than necessary to maintain performance or struggle to utilize the fuel effectively. As a result, you may notice that you need to fill up your gas tank more often, despite your driving habits remaining the same.
Engine Stalls or Misfires
A faulty fuel injector can disrupt the combustion process by not delivering an adequate fuel supply to a cylinder. This can cause the engine to misfire or stall, leading to a sudden decrease in performance, especially when accelerating. Engine stalling and misfiring can also be caused by a dirty fuel injector, which messes with the engine's internal combustion processes.
Check Engine Light
The illumination of the "check engine" light on the dashboard is often an indicator of a malfunctioning fuel injector. This light is controlled by the ECU (engine control unit), which monitors misfires in the engine. However, it is important to note that the check engine light can also be triggered by various other issues, so conducting a diagnostics scan with an OBD-II scanner tool can help identify error codes related to the fuel injector.
Rough Idling
When a vehicle is idling, it should feel smooth and steady. However, if a fuel injector is clogged, leaking, or malfunctioning, a cylinder may receive too much or too little fuel, resulting in an uneven engine speed or rough idling.
RPM Needle Moves Erratically
The RPM (Revolutions Per Minute) needle measures how quickly your engine's crankshaft spins. A faulty fuel injector can send inconsistent amounts of fuel to the cylinder, causing the engine speed to fluctuate unexpectedly. This will be visible as erratic movements of the RPM needle on your dashboard.
Black Smoke and Foul Odor from Tailpipe
A faulty injector may cause the engine to run rich, where there is too much fuel in the air-fuel mixture. This can result in black smoke coming out of the tailpipe, along with a foul odor resembling rotten eggs or sulfur.
Fuel Leak
A fuel leak could be a sign of a crack in the rubber seals or the fuel injector itself. If you suspect a fuel leak, do not attempt to start your car, as the fuel could ignite. Instead, contact a professional mechanic or towing service to have your vehicle inspected and repaired.
If you suspect a faulty fuel injector, it is recommended to have a complete diagnosis performed by a qualified technician. They can conduct electrical testing, engine scans, and flow tests to determine the root cause of the issue and provide appropriate solutions.
Fuel Injector Leaks: Engine Oil Contamination and Solutions
You may want to see also
Explore related products
The role of the cam position sensor
The fuel injector pulse is controlled by the cam position sensor, which is located in the distributor. This sensor plays a crucial role in the engine's performance and efficiency. It provides the Engine Control Unit (ECU) with vital information about the camshaft's position and rotation, specifically indicating whether the number one cylinder is on the compression stroke or the exhaust stroke. This information is essential for the ECU to accurately manage the fuel injection process and ignition timing.
The cam position sensor ensures that the fuel injectors pulse in sync with the cam/valve opening. If this sensor malfunctions, the injectors may still pulse, but they could be out of phase with the camshaft's position, leading to improper fuel injection timing. This, in turn, can cause a range of performance issues, including rough idling, stalling, reduced power output, and increased fuel consumption. Therefore, it is important to regularly check the cam position sensor and perform maintenance or replacement if necessary.
In some vehicles, the Crankshaft Position Sensor (CKP) also plays a pivotal role in injector pulse timing. The CKP provides precise measurements of the crankshaft's position and rotational speed, enabling the ECU to calculate the optimal timing for fuel injection and spark ignition. A faulty CKP can lead to similar performance issues as a malfunctioning cam position sensor, and it may require replacement if tapping it gently with a spanner does not resolve the issue.
To diagnose issues with the cam position sensor or CKP, several techniques can be employed, including code reading, oscilloscope testing, and physical inspection of the sensor's wiring. It is important to note that diagnosing sensor issues can be challenging due to their hidden locations and complex signal nature. However, addressing any problems with these sensors is crucial for maintaining optimal engine performance, fuel efficiency, and emissions control.
Overall, the cam position sensor and CKP play critical roles in the fuel injection process, ensuring that the injectors pulse at the correct time and that the engine operates efficiently, with maximum power output and minimal emissions. Regular maintenance and timely replacement of these sensors are essential for the overall performance and longevity of the vehicle.
How Transmission Fluid Cleans Fuel Injectors
You may want to see also
Explore related products
The impact of timing on engine performance
The correct ignition timing ensures that the air-fuel mixture is ignited at the perfect moment, maximising power output and minimising fuel consumption. Advancing ignition timing can improve low-end torque and make the engine feel more responsive. It also contributes to a smooth engine operation and improves fuel efficiency. On the other hand, incorrect timing can cause symptoms such as engine knocking or pinging, a loss of power or acceleration, decreased fuel economy, and an overheating engine.
The engine timing refers to the precise coordination of the opening and closing of intake and exhaust valves with the movement of the pistons. This synchronization ensures that air and fuel enter the combustion chamber at the right moment and that exhaust gases are expelled efficiently. Engine timing is controlled by components such as the crankshaft, camshaft(s), timing belt or chain, and associated pulleys or gears. These components regulate valve operation and ignition timing, optimizing combustion efficiency and power output.
The performance and exhaust emissions of an engine are influenced by the ignition timing. Optimal power and torque are achieved at a specific range of ignition timing, and volumetric efficiency increases with advancing ignition timing. Advancing ignition timing too much can also be detrimental, as it can cause the gas to burn while the piston is still rising, reducing the net work produced. Therefore, finding the optimal ignition timing is crucial for maximizing engine performance and efficiency.
Removing Tight Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
The cost of replacing a fuel injector
On average, the cost of replacing a single fuel injector can range from a few hundred dollars to several thousand. For example, the total cost of replacing a fuel injector on a Honda Civic may be less than $500, while the cost of a high-pressure fuel injector for a BMW could range from $500 to $800 for the part alone. In some cases, the cost of replacing a fuel injector on a high-performance luxury vehicle could exceed $4,000.
It is worth noting that the cost of labour for this type of repair can also be significant, ranging from $276 to $406, while parts can cost between $453 and $540. Additionally, your mechanic may recommend replacing multiple fuel injectors at once, as it can save on labour costs and prevent future issues.
To keep costs down, regular maintenance and early issue detection are crucial. Injector seal replacements, for instance, are quite affordable, typically costing around £50. However, the labour costs for this repair can increase the total expense due to the expertise and time required by the mechanic.
Some signs that your fuel injector needs to be replaced include a rough or stalling engine at idle, inadequate fuelling during acceleration, reduced engine power and efficiency, and over-fuelling. It is important to note that replacing fuel injectors can be complicated and should be left to a professional due to the risk of fire and potential for further damage to the vehicle if the repair is done incorrectly.
Removing Fuel Injectors in Kia Sportage: Step-by-Step Guide
You may want to see also
Frequently asked questions
A fuel injector pulse is a short, high-voltage burst of electrical current that is sent to a fuel injector by the engine's computer. This opens the injector's internal coil windings and allows pressurised fuel to flow into the engine.
You can test the injector pulse by using a multimeter or test light. If there is no power at either terminal, check for blown fuses or a broken wire. If there is power at both terminals, the injector is defective and needs to be replaced.
The pulse width tells you how long the injector is being opened for. Issues with pulse width usually indicate a problem with the drivers for the injectors, typically the ECM.
