Removing tight fuel injectors can be a challenging task, especially when dealing with older vehicles or those with specific designs. It is important to gather the right tools and safety equipment before starting the process, including wrenches, screwdrivers, pliers, and a socket set. The first step is to locate the fuel rail, which is usually held in place by bolts or brackets, and remove it by loosening the bolts with a socket and ratchet. Depending on the vehicle model, the fuel line may also need to be disconnected from the fuel rail. With the fuel rail removed, the injectors can be accessed and carefully removed by gently prying and pulling them out, ensuring not to damage the plastic or O-rings. In some cases, a special tool like a slide hammer or injector remover may be required to remove tightly stuck injectors.

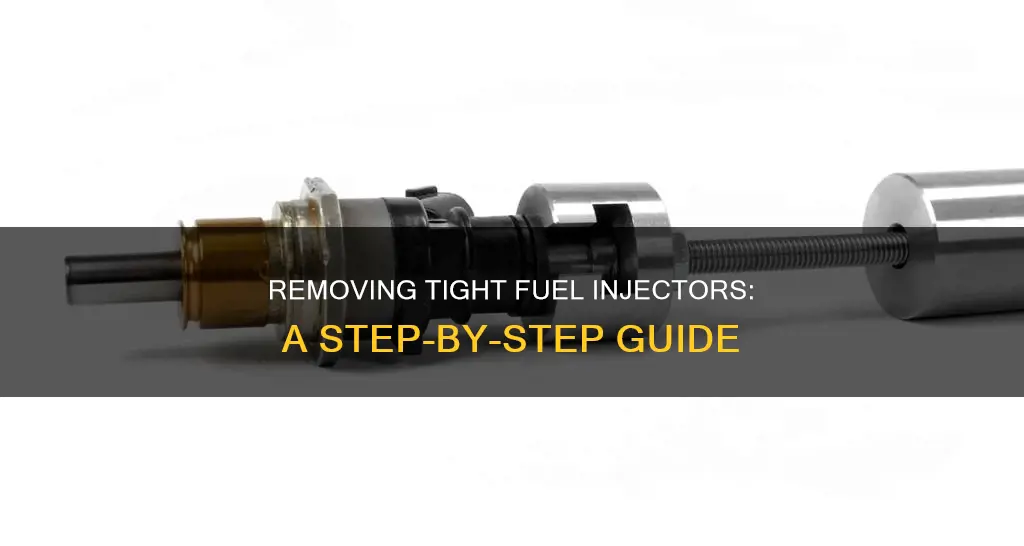

How to Remove Tight Fuel Injectors
| Characteristics | Values |
|---|---|
| Safety equipment | Gloves, safety glasses |
| Tools | Wrenches, screwdrivers, pliers, socket set, torque wrench, soft-jaw pliers, flat head screwdriver, vice grips, fuel injector tool, slide hammer |
| Steps | Disconnect battery, remove engine covers, disconnect electrical connectors, remove bolts and brackets holding fuel rail, remove fuel line, remove injector clips, gently pull injectors out, test or replace |
| Tips | Use lubricant, check repair manual, ensure engine is cold, check for leaks, test drive after replacement |
Explore related products
What You'll Learn
Prepare the necessary tools and safety equipment
To remove a tight fuel injector, it is important to prepare the necessary tools and safety equipment. Here is a detailed list of the items you will need:
Tools:
- A fuel injector removal kit, such as the AGA Direct Fuel Injector Removal and Installation Kit, which includes an injector seal remover and installation tools.
- Assorted common wrenches.
- A socket and ratchet set.
- A fuel line disconnect tool.
- Screwdrivers, including a Phillips head screwdriver.
- Soft-jaw pliers.
- A small pry bar.
- A penetrating lubricant to spray on the injectors.
- Clean cloths to wipe up any residual fuel spillage.
Safety Equipment:
- Safety glasses or eye protection to shield your eyes from any debris or fuel spray.
- Gloves to protect your hands and avoid getting fuel on your skin.
- A fire extinguisher within reach to address any potential fires or fuel spray.
- A clean work area to prevent dirt and debris from contaminating the fuel injector and fuel system.
- Ensure the engine is cool before beginning work, and disconnect the battery to prevent any unexpected electrical issues.
- Relieve the fuel pressure prior to removing any components to prevent fuel spray. This can be done by pressing a valve on the fuel line or pulling the fuel pump relay and cranking the engine for a few seconds.
It is important to note that working on a fuel injection system can be dangerous due to the flammable nature of fuel. Always exercise caution and refer to your vehicle's manual for specific instructions and safety precautions before beginning any work.
Cleaning Fuel Injectors: DIY Guide to Restore Performance
You may want to see also
Explore related products
Disconnect the battery and electrical connectors
Disconnecting the battery and electrical connectors is an important step in removing tight fuel injectors. It is crucial to ensure that you have the right tools and safety equipment before beginning this process.
First, make sure that the engine is cold enough to touch. This is an important safety precaution as you will be working with electrical components and fuel lines. Once the engine has cooled down, put on your safety gloves and glasses to protect yourself from fuel spills and debris.
Now, locate the battery. It is typically located in the engine bay, and you will need to identify the positive and negative terminals. The positive terminal is marked with a plus sign (+) or a red cover, while the negative terminal has a minus sign (-) or a black cover. Disconnect the battery by first loosening the nut on the positive terminal using a wrench and then detaching the positive cable. Repeat this step for the negative terminal and cable. Ensure that the connections are secure and there are no loose wires or cables.
With the battery disconnected, you can now focus on the electrical connectors. Fuel injectors have electrical connectors that need to be carefully removed. Use pliers to gently disconnect the electrical connector on each injector. Some injectors may have small metal clips that look like staples. If you encounter these clips, use a small flathead screwdriver to remove or depress them before grasping the injector. Be cautious when removing the connectors, as the injectors are attached to the fuel rail, and applying excessive force can deform or bend the rail.
By following these steps, you will successfully disconnect the battery and electrical connectors, paving the way for the next steps in removing tight fuel injectors.
Fuel Injectors: 13B Mazda Rotary Engine's Power Secrets
You may want to see also
Explore related products
Remove bolts, brackets, and fuel lines
To remove bolts, brackets, and fuel lines, start by examining the fuel injector. If there is a small metal clip, use a small flathead screwdriver to remove or depress it. Then, gently pull out the injector from the fuel rail.
The fuel rail is held in place by bolts and brackets. Use a socket and ratchet to remove these. Depending on the model, you may need to disconnect the fuel line from the fuel rail to move it. Before doing this, ensure the engine is cold, disconnect the battery, and remove plastic engine covers using the appropriate socket.
Some designs require you to remove the fuel line and the fuel rail before accessing the injectors. Wear protective gear and have a cloth ready, as some residual fuel may spill out.
If the bolts are very tight, you can try using a lubricant. Spray a penetrating oil and let it sit, then use a wrench to try and twist the bolt back and forth until it breaks free. Alternatively, you can use automatic transmission fluid and acetone in a 50/50 mix.
Once the bolts are removed, carefully lift the fuel rail off the intake manifold, bringing the injectors with it. This will require some force, but be careful not to deform or bend the fuel rail.
Fuel Injector Maintenance for Can-Am X3 Performance
You may want to see also
Explore related products
Use lubricant to loosen tight injectors
When it comes to removing tight fuel injectors, lubricants can be a great aid. Here's a step-by-step guide on how to use lubricant to loosen tight fuel injectors effectively:
First, identify the location of the fuel injectors. They are usually found under a cap on top of the engine, held in place by bolts, brackets, or small clips. Before accessing the injectors, it may be necessary to remove the fuel line and the fuel rail. It is important to wear protective gear during this process, as there may be residual fuel spillage.
Once you have located the injectors, the next step is to remove the Phillips head screws on the injector caps. This can be challenging, and you may need to use vice grips if the screws are seized. With the screws removed, gently pry up under the connector using a flathead screwdriver.
Now it's time to apply the lubricant. Spray a generous amount of penetrating lubricant or oil onto the injectors. Allow the lubricant to sit for a while, giving it time to work its way into the tight areas. You can use products like WD-40, PB Blaster, Kroil, or a 50/50 mix of automatic transmission fluid and acetone as a homemade penetrating oil alternative.
After applying the lubricant, attempt to rotate the injectors by hand. If they are still tight, you can use a wrench to gently twist them back and forth until they start to move more freely. This step may require some force, but it will help loosen the injectors.
Finally, use soft-jawed pliers to apply pressure between the injector's clip and the rail, gently pulling and twisting until the injector pops out. It is important to be cautious during this step to avoid damaging the plastic components.
By following these steps and using lubricant effectively, you can successfully loosen and remove tight fuel injectors. Remember to have the injectors tested or replaced once they are removed, and always refer to your vehicle's service manual for specific recommendations and precautions.
Removing a Volvo DD13 Fuel Injector: Step-by-Step Guide
You may want to see also
Explore related products
Reinstall new injectors and reconnect the battery
To reinstall new fuel injectors, begin by dipping the tip of each new injector in a small cup of gasoline. Then, slide the new injectors into their slots on the fuel rail, ensuring that the clips are inserted into the fuel rail with the gas-dipped side facing the engine's intake manifold. Line the injectors into the corresponding holes on the engine, and apply adequate lubricant to the O-rings.
Before reconnecting the battery, ensure that the fuel injectors are correctly installed and there are no leaks. Turn the key to the "on" position, but do not start the engine. Wait for 20-30 seconds, and if the injectors are installed correctly, the vehicle should run smoothly. Let the vehicle run for a minute, allowing the system to equalize and refill.
After the engine has cycled, shut off the vehicle and inspect the fuel rail for any leaks. If there are no leaks, get down on your knees and double-check that nothing is leaking underneath the vehicle. Use a flashlight to spot any reflections from leaking gas. If there are no leaks, you can reconnect the battery and start the engine.
Removing Fuel Injectors from SR20DET: Step-by-Step Guide
You may want to see also
Frequently asked questions
Removing a tight fuel injector can be a tricky process. First, ensure you have the right tools and safety equipment. You will need a basic set of hand tools, including wrenches, screwdrivers, and pliers. A socket set and a torque wrench are also recommended. Gloves and safety glasses should be worn to protect your skin and eyes from fuel spills and debris. Once you have gathered your tools, follow these steps:
- Remove the fuel line and the fuel rail.
- Disconnect the electrical connectors on each injector.
- Remove any clips or brackets holding the injectors in place.
- Gently pull each injector out.
You will need a basic set of hand tools, including wrenches, screwdrivers, and pliers. A socket set, particularly one with deep sockets, is recommended for reaching bolts in tight spaces. A torque wrench is necessary for tightening bolts to the manufacturer's specifications.
It is important to take safety precautions when removing a tight fuel injector to protect yourself and your vehicle. Wear gloves and safety glasses to protect your skin and eyes from fuel spills and debris. It is also recommended to disconnect the battery before beginning the removal process. Place a cloth or towel underneath the fuel rail to catch any residual fuel that may spill out.
