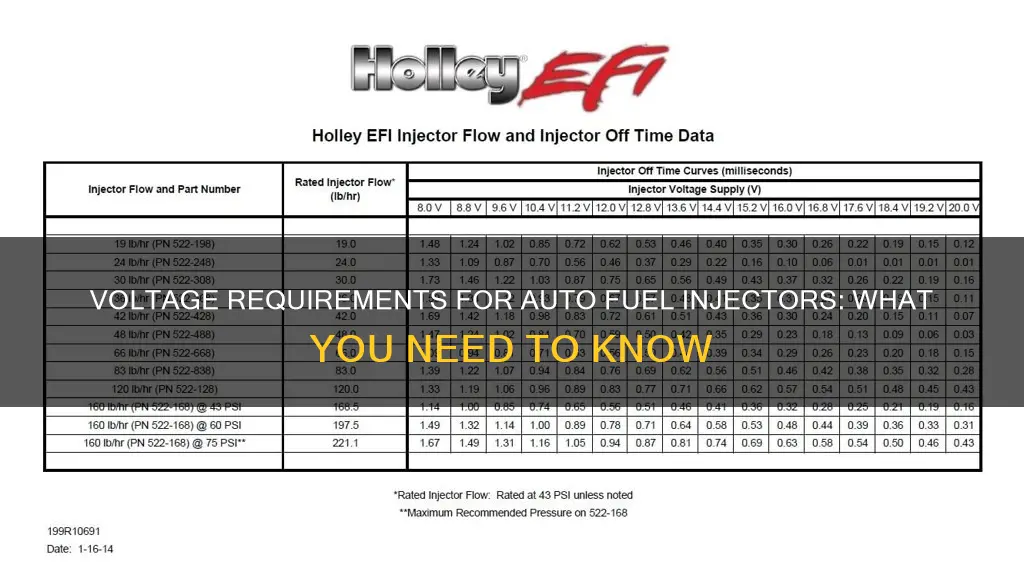

Fuel injectors are responsible for passing the right amount of fuel into the cylinders, and they work millions of times. Therefore, they may wear off, affecting the fuel economy and engine performance. It is important to check if the fuel injectors are receiving the correct voltage. This can be done by testing the injector resistance and wiring. The voltage can be measured using a DVOM, and if the meter does not auto-range, it should be set to the lowest range. The negative lead of the DVOM should be touched to a ground source, and the positive lead should be connected to the wiring harness terminal. One terminal should read 0 volts, and the other 12 volts or around 12. The wiring harness of all the injectors should then be tested, and they should all read around 12 volts. If the reading is too low, there is a problem with the wiring.
| Characteristics | Values |
|---|---|
| Optimum Voltage | 12 volts |
| Optimum Voltage Range | 12-17 ohms (high impedance injectors) |
| 2-5 ohms (low impedance injectors) | |
| Testing | DVOM set to measure ohms |
| Set multimeter to the lowest range if the meter doesn't auto-range | |
| Test injector wiring to ensure everything is connected properly |
Explore related products
What You'll Learn
- Injector resistance: DVOM set to measure ohms, with a range of 12-17 ohms for high impedance injectors and 2-5 ohms for low impedance injectors
- Injector wiring: Ensuring proper connections and testing with a DVOM to check for voltage drops
- Voltage requirements: Typically, 12 volts (battery voltage) is required at the injector, with variations during cranking
- Grounding: Checking for proper grounding of the circuit to prevent voltage loss at the injector supply
- Spray patterns: Testing injector spray patterns to identify issues like clogging, which can lead to incomplete fuel burning and engine misfires
Injector resistance: DVOM set to measure ohms, with a range of 12-17 ohms for high impedance injectors and 2-5 ohms for low impedance injectors
Injector resistance testing is an important step in ensuring that your fuel injectors are receiving the correct voltage. To perform this test, you will need a digital volt-ohm meter (DVOM) that is set to measure ohms. This will allow you to determine the resistance of your fuel injectors, which should fall within a certain range.
High impedance injectors, which are commonly found in modern cars, typically have a resistance ranging from 12 to 17 ohms. On the other hand, low impedance injectors, which are usually found in high-performance or larger injectors, exhibit much lower resistance, typically measuring between 2 and 5 ohms.
To test the resistance of your fuel injectors, start by placing the meter leads on the prongs inside the connector, ensuring they do not touch each other. Repeat this process for all injectors, as they should all demonstrate similar resistance levels. If you notice a significant deviation in resistance between injectors, it may be necessary to inspect the specific injector for any issues.
It is important to note that you can refer to your vehicle's repair guide to determine the exact resistance values for your specific injectors. Additionally, you can test the injector wiring to ensure that all connections are secure and functioning properly. By following these steps, you can effectively evaluate the resistance of your fuel injectors and identify any potential issues.
Clean Fuel Injectors: Enhancing Performance and Efficiency
You may want to see also
Explore related products
Injector wiring: Ensuring proper connections and testing with a DVOM to check for voltage drops
Ensuring that your fuel injectors are receiving the correct voltage is essential for optimal fuel efficiency and engine performance. Faulty fuel injectors can lead to poor fuel economy, engine misfires, and even engine failure. Here's a comprehensive guide on injector wiring and testing with a DVOM (digital volt-ohmmeter) to check for voltage drops:
Injector Wiring:
Before testing the voltage, it's crucial to ensure that the injector wiring is properly connected and free from damage. Here's a step-by-step guide:
- Inspect the Fuel Injector Wiring: Start by visually inspecting the fuel injector wiring for any signs of damage, including cuts, abrasions, or loose connections. Ensure that all connections are secure.
- Remove the Injector Wiring Harness: The wiring harness typically has two terminals that the injector prongs insert into. Remove the harness by moving any slide lock and pressing down on the tabs.
- Set the DVOM: Set your DVOM to measure DC voltage. If the meter doesn't auto-range, set it to the lowest setting.
- Test Voltage: Connect the negative lead of the DVOM to a ground source, such as an unpainted piece of the frame under the hood. Then, connect the positive lead to the wiring harness terminal. One terminal should read 0 volts, while the other should read around 12 volts.
- Test All Injector Wiring Harnesses: Leave the ground lead in position and repeat the voltage test on all injector wiring harnesses. Each injector should have a reading of around 12 volts. A significantly lower reading indicates excess resistance or a problem in the wiring.
- Compare Resistance: All injectors should have similar resistance readings. High impedance injectors commonly found in modern cars will range from 12 to 17 ohms, while low impedance injectors in high-performance or larger injectors will range from 2 to 5 ohms.
- Inspect Major Differences: If you notice a significant difference in resistance between injectors, that specific injector should be inspected further to ensure it is functioning correctly.
Testing with a DVOM to Check for Voltage Drops:
- Voltage Drop Testing: Voltage drop testing is useful to determine if the positive and negative sides of a circuit are functioning correctly. Connect the meter probes to either the positive or negative side of the circuit, testing one side at a time.
- Measuring Voltage Drop: Place the meter probes at the start and finish of the circuit. Any voltage that cannot flow through the circuit will be displayed on the DVOM as a voltage drop. Typically, a voltage drop exceeding 100 millivolts (0.10 Volts) is a cause for concern.
- Testing with a Test Lamp: You can also use a test lamp to check for voltage drops. Connect the lamp to the battery and then to the vehicle's wiring harness. If the lamp shines as brightly as when connected directly to the battery, the wire is good. A dim or unilluminated lamp indicates a defective vehicle wire.
- Visual Inspection: Before using any testing tools, perform a thorough visual inspection of the wiring. Sometimes, the problem may be evident, such as damage caused by rodents.
By following these steps and regularly testing your injector wiring and voltage drops, you can help ensure that your fuel injectors are receiving the correct voltage, which is crucial for the proper functioning of your vehicle's engine.
How Long Do Toyota Fuel Injectors Last?
You may want to see also
Explore related products
Voltage requirements: Typically, 12 volts (battery voltage) is required at the injector, with variations during cranking
The voltage requirements for auto fuel injectors typically involve a 12-volt battery voltage at the injector, with some variations observed during the cranking process. This voltage standard is crucial for ensuring the proper functioning of fuel injectors, which play a vital role in maintaining fuel consistency and overall engine performance.
To verify that the auto fuel injectors are receiving the correct voltage, a Digital Volt-Ohm Meter (DVOM) is often used to measure the DC voltage. The first step is to set the DVOM to the lowest range if it doesn't auto-range. Next, the negative lead of the DVOM is connected to a ground source, typically an unpainted section of the car's frame located under the hood. This step ensures a stable reference point for voltage measurement.
Subsequently, the positive lead of the meter is connected to the wiring harness terminal, which consists of two terminals. One terminal will be grounded and display 0 volts, while the other terminal should read close to 12 volts. This process is then repeated for all injector wiring harnesses, ensuring that each injector receives a voltage of around 12 volts.
During the cranking process, the voltage supplied to the fuel injectors may experience a drop. In some cases, the voltage can decrease to approximately 6-7 volts. This reduction in voltage can impact the performance of the injectors, potentially leading to issues with fuel delivery and engine startup. However, once the starter is disengaged and the engine is running, the relay supply voltage typically returns to normal VBATT (battery voltage) or Alternator levels.
It is important to note that voltage variations during cranking can be challenging to track and may require specialized equipment, such as an O-scope, for accurate measurements. Additionally, factors such as dirty battery terminals or issues with ground connections can also influence the voltage received by the fuel injectors.
Fuel Injector Noises: What Sounds Should You Hear?
You may want to see also
Explore related products
$21.99 $25.99
Grounding: Checking for proper grounding of the circuit to prevent voltage loss at the injector supply
To ensure that auto fuel injectors are receiving the correct voltage, it is important to check for proper grounding of the circuit to prevent voltage loss at the injector supply. Here are some detailed steps to help you with the process:
First, understand the basics of grounding. Grounding, also known as earthing, is a crucial safety measure that involves connecting electrical circuits to a common reference point, typically the Earth. This provides a low-impedance path for electrical current to flow in the event of a fault or short circuit, protecting your vehicle from electrical damage and shock.
Now, let's move on to checking the grounding of the circuit for the fuel injectors. For this task, you will need a digital multimeter or a digital volt-ohm meter (DVOM). A multimeter has two probes, usually red and black, while a DVOM will allow you to measure DC voltage. Follow these steps:
- Set up your multimeter or DVOM: If your meter does not auto-range, set it to the lowest range. For a multimeter, ensure it is set to measure resistance or continuity.
- Identify the ground source: Look for an unpainted piece of the frame under the hood of your vehicle. This will serve as your ground source.
- Test the ground source: Touch the black probe (negative lead) of your multimeter or DVOM to the ground source.
- Connect to the wiring harness terminal: Take the positive lead (red probe) and connect it to the wiring harness terminal of the fuel injectors.
- Observe the readings: With the ground lead still in position, test each injector. The reading should be around 12 volts for each injector. If the reading is significantly different or too low, it indicates a problem with the wiring or the injector itself.
- Compare injector readings: All injectors should have similar resistance readings. A major difference in resistance between injectors suggests that something needs to be inspected or repaired.
- Check the injector wiring: Ensure that all connections are secure and properly made.
By following these steps, you can ensure proper grounding of the circuit for your auto fuel injectors, preventing voltage loss and maintaining the correct voltage supply to the injectors. Remember, working with electrical systems can be dangerous. If you are uncomfortable or inexperienced, consult a qualified electrician or automotive professional for assistance.
Using Fuel Injector Cleaners: A Step-by-Step Guide
You may want to see also
Explore related products
Spray patterns: Testing injector spray patterns to identify issues like clogging, which can lead to incomplete fuel burning and engine misfires
Fuel injectors are responsible for passing the right amount of fuel into the cylinders. Over time, they may wear off, leading to poor fuel consistency and engine performance. Therefore, it is essential to ensure that the injectors are receiving the correct voltage and to test their spray patterns to identify issues.
Testing Injector Spray Patterns
To test the spray pattern of a fuel injector, it is necessary to understand the different types of spray patterns and the factors that can affect them. Injector spray patterns can vary, with some common types being the two-hole spray pattern and the wide "V" pattern. The spray pattern is important as it needs to be directed into the combustion chamber at the correct angle and atomization shape. A distorted spray pattern can cause engine misfires.
One method to test the spray pattern is to use a testing machine that allows for adjusted settings and improved visibility. When in the testing machine, a working fuel injector spray should produce a clear-coloured, fine spray, resembling a light mist.
Another method involves disabling the ignition and briefly turning the ignition switch to crank the engine, observing the spray pattern into catch jars. It is important to pressurize the fuel system and check that the injectors are not spraying or drooling when they are not firing. Unless the injectors are extremely dirty, differences in spray patterns may not be obvious. Therefore, it is recommended to have the injectors cleaned and tested by a professional service, which can also confirm consistent fuel delivery.
Additionally, when testing injector spray patterns, it is important to consider the voltage and wiring of the injectors. High impedance injectors, commonly found in modern cars, should display a range of 12 to 17 ohms, while low impedance injectors will show a range of 2 to 5 ohms. A digital voltmeter or an O-scope can be used to check for a steady voltage, and if there is no voltage, it indicates a problem that requires further investigation.
BMW E92 Fuel Injector Coding: A Step-by-Step Guide
You may want to see also
Frequently asked questions
Auto fuel injectors require 12 volts of battery voltage.
You can use a DVOM to measure the DC voltage. If the meter doesn't auto range, set it to the lowest. Touch the negative lead of the DVOM to a ground source, such as an unpainted piece of the frame under the hood. Then, connect the positive lead to the wiring harness terminal. One terminal should read 0 volts, and the other should read 12 volts or around 12.
The injectors could be clogged, which would decrease the spray inside the cylinder and cause the fuel to not burn completely, resulting in a misfire.
