The Chevy Monte Carlo SS fuel line is an essential component of the vehicle's fuel system, connecting the engine to the fuel tank. The fuel line set typically includes multiple lines with specific dimensions, such as a supply line, a return line, and a vapor line, along with hoses, unions, and a fuel filter. The lines are constructed with attention to precision and rust protection, ensuring easy installation and reliable performance. With variations in engine sizes and model years, it is important for owners and mechanics to identify the correct fuel line specifications for their Chevy Monte Carlo SS to maintain optimal fuel delivery and engine performance.
| Characteristics | Values |
|---|---|
| Supply Line | 3/8" |
| Return Line | 5/16" |
| Evap/Vapor Line | 5/16" |
| Hoses | Engine Connection |
| Nylon Line | With Union |
| Unions | 3 |
| Fuel Filter | 1 |
Explore related products
What You'll Learn
- Monte Carlo SS fuel lines: 1 supply line 3/8, 1 vapor line 5/16, hose connections
- Monte Carlo SS 3.8L: Nylon line attached to vapor line
- Monte Carlo fuel lines: 1 supply line 3/8, 1 return line 5/16, 1 evap line 5/16
- Monte Carlo SS fuel line set: 1 fuel filter, 3 unions, nylon line with union
- LinesToGo: Order assistance and correct part confirmation
Monte Carlo SS fuel lines: 1 supply line 3/8, 1 vapor line 5/16, hose connections

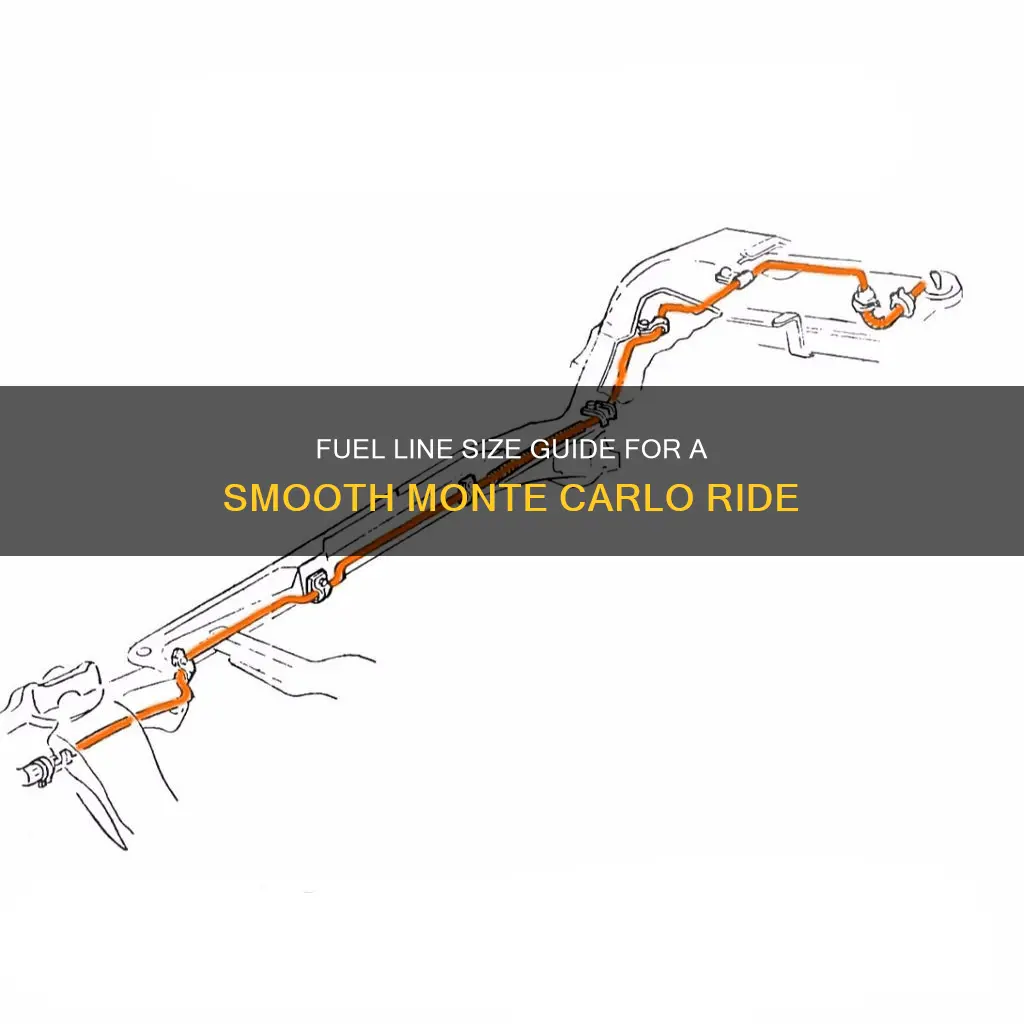

The Chevy Monte Carlo SS fuel line set includes 1 supply line 3/8", 1 vapor line 5/16", hose connections, and 2 unions. The supply line is 3/8" in diameter, while the vapor line is 5/16" and runs from the fuel tank to the charcoal canister. This line is designed to replace the original vapor emission line and follows the factory routing. It is pre-formed and includes the correct tube ends and protective wrap, working with factory components.
The fuel lines are constructed from Galfan-coated steel tubing, providing rust protection, and are computer-controlled (CNC) for precise installation. The hoses are made from stainless steel braided Teflon with OE-style fittings. The set also includes a nylon line with a union and 2 unions.
The Chevy Monte Carlo fuel lines run from the engine to the fuel tank. The set includes 1 supply line 3/8", 1 return line 5/16", 1 evap line 5/16", hoses to the engine connection, a nylon line with union, 3 unions, and 1 fuel filter. The supply, return, and evap lines refer to the flow of fuel and vapour between the engine and the fuel tank, ensuring proper fuel delivery and circulation.
It is important to ensure that you are ordering the correct parts for your specific Monte Carlo model and year. The fuel line sets are designed to fit specific models and years, such as the 2001 Chevy Monte Carlo SS 3.8L, and may not be compatible with other variations. Always verify the compatibility and consult with experts or mechanics before making any purchases or installations.
Fuel Line Diameters for CJ7: Rubber Hose Sizing
You may want to see also
Explore related products
2001 Monte Carlo SS 3.8L: Nylon line attached to vapor line
The 2001 Monte Carlo SS 3.8L fuel line set includes a nylon line attached to the vapor line. This nylon line is not a direct replacement for the original vapor line. Instead, it is a section of nylon line that will need to be spliced to the original nylon line on the vehicle.
On the opposite end of the original nylon line are connectors, which may be damaged during the removal process. Repair kits with new OEM connectors are available if needed. These repair kits will also need to be spliced onto the original nylon line.
The fuel line set for the 2001 Monte Carlo SS 3.8L includes the following:
- One supply line 3/8" (in two easy-to-install sections)
- One return line 5/16" (in two easy-to-install sections)
- One vapor line 5/16" (in two easy-to-install sections)
- Hoses to engine connection
- Nylon line with union
- Three unions
- One fuel filter
The lines are constructed from Galfan-coated steel tubing for rust protection and are CNC (Computer Numerically Controlled) bent for easy and precise installation. All hoses are made from Stainless Steel Braided Teflon with OE-style fittings.
The Power of Red Line Fuel System Components
You may want to see also
Explore related products
Monte Carlo fuel lines: 1 supply line 3/8, 1 return line 5/16, 1 evap line 5/16
The Chevy Monte Carlo fuel line set includes 1 supply line 3/8", 1 return line 5/16", and 1 evap or vapor line 5/16". These lines run from the engine to the fuel tank and include hoses to engine connections, a nylon line with a union, and 2 or 3 unions. The nylon line attached to the vapour line is not a direct replacement and will need to be spliced to the original line.
The Chevy Monte Carlo SS fuel line set is similar but does not include a return line or an evap line; instead, it has a vapor line. This line also has engine-to-hose connections off the fuel tank.
For the 2003 and 2004 Chevy Monte Carlo 3.4L engines, the fuel line set includes the same supply, return, and vapour lines as the standard Monte Carlo, all in easy-to-install sections. The lines are constructed from Galfan®-coated steel tubing for rust protection and are CNC-bent for precise installation.
It's important to note that the nylon line attached to the vapour line is not a direct replacement for the original nylon line on the vehicle. It will need to be spliced, and there is a risk of damaging the connectors during this process. Repair kits with new OEM connectors are available if needed.
Fuel Dock Efficiency: Best Practices for Quick Service
You may want to see also
Explore related products
Monte Carlo SS fuel line set: 1 fuel filter, 3 unions, nylon line with union
The Chevy Monte Carlo SS fuel line set for the 2000 and 2002 3.8L Non-Supercharged engine models includes: 1 supply line 3/8" (in 2 easy-to-install sections), 1 return line 5/16" (in 2 sections), 1 vapor line 5/16" (in 2 sections), hoses for the engine connection, a nylon line with union, 3 unions, and 1 fuel filter. The lines are constructed from Galfan®-coated steel tubing for rust protection, and the hoses are made from stainless steel braided Teflon with OE-style fittings.
Before installing the fuel line, it is important to note that a shipping bend will need to be removed from the lines labelled SA254A375B, SA254A313BB, and SA254A313CB. Additionally, the nylon line attached to the new vapor line is not a direct replacement. It is a section of nylon line that will need to be spliced to the original nylon line on the vehicle.
The original nylon line has connectors on the opposite end, which may be damaged during removal. Repair kits with new OEM connectors are available, and these will also need to be spliced onto the original nylon line. When cutting the new nylon hose, it should be cut to match the position of the original nylon hose and vice versa.
This fuel line set is designed for the 2000 and 2002 3.8L Non-Supercharged engine models of the Chevy Monte Carlo SS. It is important to select the correct fuel lines for the specific year and model of your vehicle.
Fuel Line Blockage: Causes and Effects Explained
You may want to see also
Explore related products
LinesToGo: Order assistance and correct part confirmation
At LinesToGo, we are happy to assist you with your order and ensure you are getting the correct parts for your vehicle. In this case, you are looking for fuel lines for your Chevy Monte Carlo.
First, it is important to confirm the year and model of your Chevy Monte Carlo. We carry fuel lines for the 2001 Chevy Monte Carlo SS 3.8L. If you have a different year or model, please let us know, and we can help you find the appropriate fuel lines.
Assuming you have the 2001 Chevy Monte Carlo SS 3.8L, the correct fuel line set includes:
- 1 supply line 3/8"" (in 2 easy-to-install sections)
- 1 return line 5/16"" (in 2 easy-to-install sections)
- 1 vapor line 5/16"" (in 2 easy-to-install sections)
- Hoses to engine connection
- Nylon line with union
- 3 unions
- 1 fuel filter
The lines are constructed from Galfan® coated steel tubing for rust protection and are CNC (Computer Numerically Controlled) bent for easy and precise installation. All hoses are made from Stainless Steel Braided Teflon with OE-style fittings.
If you have any further questions or concerns about the fuel lines or their installation, please do not hesitate to contact us. Our toll-free number is 1-855-781-5992, and we can assist you with your order and any other queries you may have.
Understanding Rubber Fuel Line OD and Its Importance
You may want to see also
Frequently asked questions
The supply line is 3/8".
It comes in 2 easy-to-install sections.
The return line is 5/16" and also comes in 2 easy-to-install sections.
The vapor line is 5/16" and comes in 2 easy-to-install sections.
The vapor lines are made of nylon.
