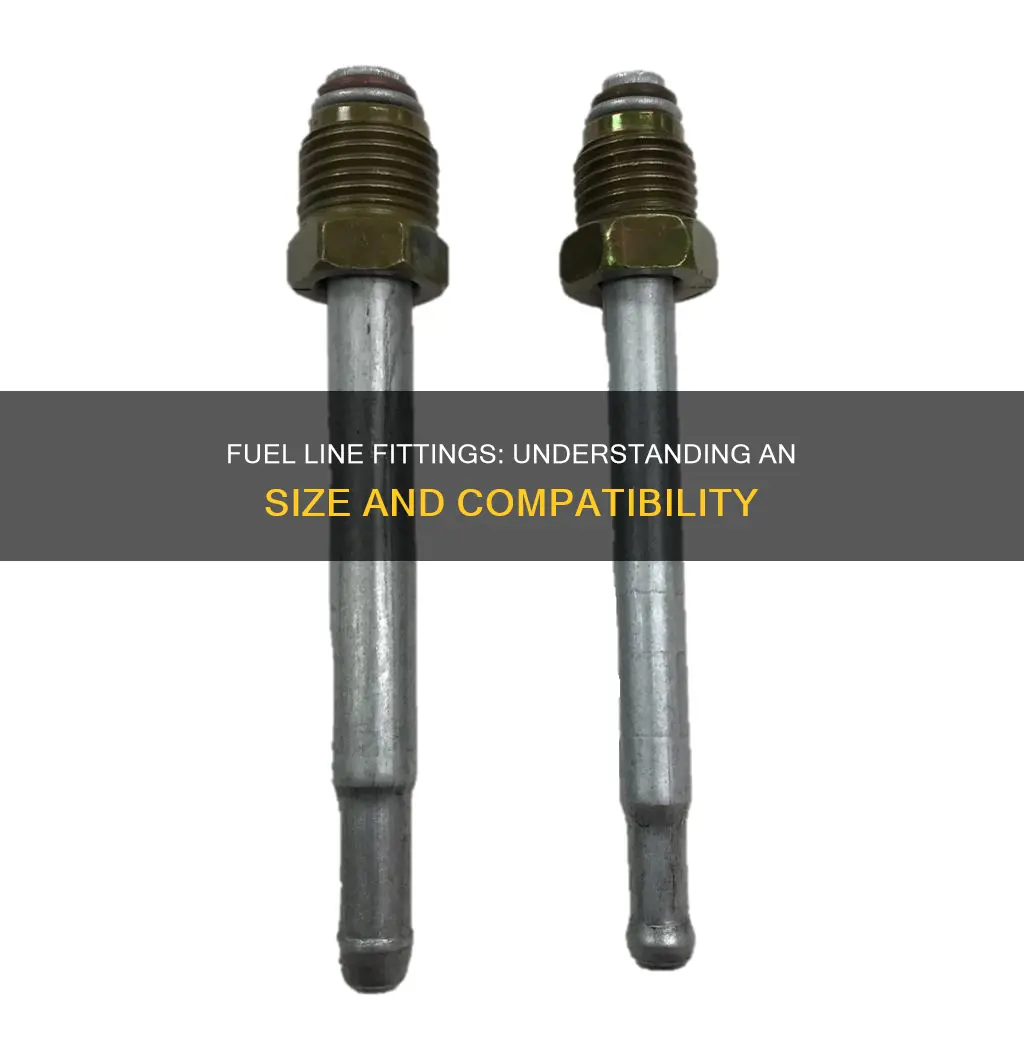

Fuel line fittings are available in a variety of sizes and types, including SAE size configurations and those manufactured to AN standards, which are commonly used in high-end racing and performance fuel systems. The size of the fuel line fittings can vary, with common sizes being 5/16, 3/8, and 1/4. It is important to ensure that the size of the fuel line fittings matches the size of the fuel line to prevent leaks and ensure proper sealing. Different types of fittings include adapter fittings, pipe fittings, and port fittings, each with its own advantages and applications.
Characteristics and Values of AN Fittings on Fuel Lines
| Characteristics | Values |
|---|---|
| Fitting Ends | 37° cone on each end |
| Thread Type | Straight Thread |
| O-ring Seals | Yes |
| O-ring Size | Defined by "AS" standard |
| Dash Numbers | Assigned based on size |
| Boss-Seal Style O-rings | "900" Series |
| Example | -906 for -6AN ports |
| Hose Barb Size | 5/16" |
| Rigid Fuel Line | Copper with threaded flared fittings |
| Flexibility | Flexible hoses available |
