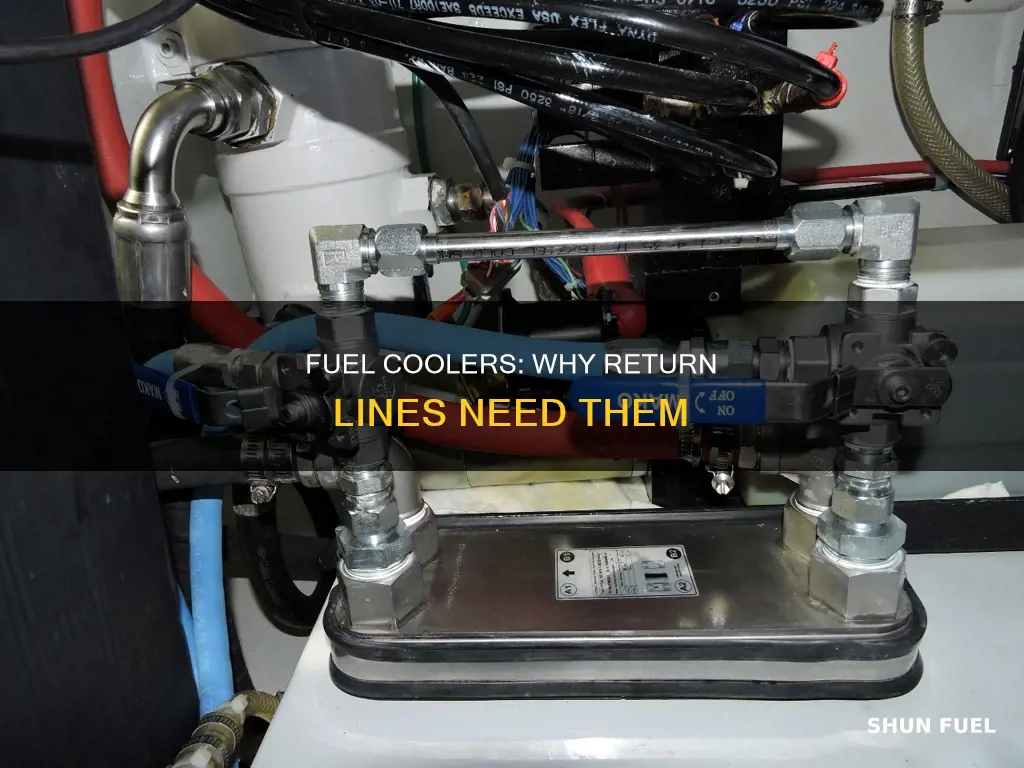

Fuel coolers are an integral part of fuel systems in most marine electronic engines and are also used in many non-electronic engines. They are used to cool the heated fuel return flow. The purpose of fuel coolers in return lines is to remove excess heat from the fuel before it returns to the tank. This is important because cooler fuel equals denser fuel, which can result in more horsepower from the engine. Additionally, removing excess heat can help prevent vapor lock, where fuel boils in the lines and makes it difficult to restart the engine until it cools down. Removing excess heat can also increase the longevity of fuel lines and filters.
| Characteristics | Values |
|---|---|
| Purpose | To cool the heated fuel return flow |
| To stabilize or control the max temp of the on-engine ECM | |
| To prevent vapor lock | |
| To prevent fuel vaporization in the return line | |
| To prevent fuel from turning into gas | |
| To increase longevity of fuel lines and filters | |
| To provide nearly constant pressure to the injectors |
Explore related products
What You'll Learn
Fuel coolers prevent vapor lock
Fuel coolers are used in fuel return lines to cool the heated fuel return flow. They are typically found in marine electronic engines and are also used as a factory-installed option on many non-electronic engines.
Fuel coolers are important as they prevent vapor lock, a problem caused by liquid fuel changing state to vapour while still in the fuel delivery system of gasoline-fuelled internal combustion engines. This disrupts the operation of the fuel pump, causing a loss of feed pressure to the carburetor or fuel injection system, resulting in transient loss of power or complete stalling. Restarting the engine from this state may be difficult. The fuel can vaporize due to being heated by the engine, by the local climate, or due to a lower boiling point at high altitudes.
Vapor lock is more likely to occur in the fuel injector lines after the flow divider, as fuel is sent to the injector nozzles to be sprayed into the intake manifold. This is because the heat from the engine cylinders and crankcase radiates outwards and upwards towards the fuel injector lines. Additionally, the greater the volatility of the fuel, the higher the probability of vapor lock occurring.
Fuel coolers help to maintain a stabilized temperature in the fuel tank, preventing the fuel from reaching a high enough temperature to cause vapor lock. By cooling the fuel, the density of the fuel is increased, which can translate into more horsepower available from the engine.
There are various methods to prevent vapor lock, such as using a thermal barrier like a heat shield or heat sleeve to protect the fuel lines from getting hot. Another method is to mount a fuel cooler under the vehicle, close to the tank, to remove heat from the fuel before it returns to the tank.
How Air Enters Diesel Fuel Lines
You may want to see also
Explore related products
Cooler fuel is denser, providing more horsepower
The purpose of fuel coolers in return lines is to keep the fuel in the rails cool by flushing hot fuel back to the cool fuel tank. This is important because it prevents vapor lock, which can make it difficult to restart the engine. Additionally, cooler fuel is denser, which can provide more horsepower.
Cooler fuel is denser because molecules slow down when they get cold, which results in a decrease in volume. This means that there are more fuel molecules available to combust, and since combustion works on the basis of a precise chemical equation, having more fuel molecules available can lead to more power. Colder fuel also has a greater capacity to absorb heat from the inlet charge, further increasing the amount of air heading for the cylinder.
In addition to increasing power, denser fuel can also improve fuel efficiency. This is because denser fuel burns more efficiently, which means that more of the fuel is being used to generate power. This can lead to cost savings over time, as well as reduced emissions.
It is important to note that while cooling fuel can have benefits, it is not always necessary. In some cases, excess heat can be safely dissipated through the surfaces of the fuel tanks, especially in large tanks. Additionally, in engines that cruise at very low HP levels, a fuel cooler may not be necessary as the operator may not notice any decrease in HP even if the fuel supply approaches higher temperatures.
Overall, while cooler fuel can provide more horsepower, the decision to use a fuel cooler depends on the specific application and requirements of the engine and fuel system. It is important to consider factors such as tank size, operating temperature, and horsepower requirements when determining whether a fuel cooler is needed.
Lawn Mower Fuel Lines: Materials and Maintenance
You may want to see also
Explore related products
Cooler fuel is more stable
The implications of hot fuel in the tank go beyond just a higher temperature reading. Firstly, hotter fuel is less dense, which translates to lower available horsepower from the engine. This decrease in density can impact the overall performance and efficiency of the vehicle. Additionally, high temperatures can cause the fuel to vaporize more easily, leading to potential running issues. While vaporization in the return line may not cause significant operational problems, it can result in the loss of certain fuel components with low vapor pressure.
The inclusion of a fuel cooler in the return line helps mitigate these issues by reducing the temperature of the returning fuel. By doing so, the fuel cooler maintains the stability of the fuel, ensuring it remains in a denser, liquid state. This has several benefits. Firstly, denser fuel provides the engine with more horsepower, improving overall performance. Secondly, cooler fuel is less likely to vaporize, reducing the risk of vapor-related issues in the fuel lines, such as vapor lock.
The importance of maintaining stable fuel temperatures is recognized by engine manufacturers, who specify maximum fuel supply temperatures. While fuel coolers are not always necessary, especially in engines with large fuel tanks or low horsepower requirements, they can play a crucial role in certain applications. For example, in high-performance setups or engines with high horsepower ratings, fuel coolers can help prevent a significant drop in horsepower due to high fuel temperatures.
In summary, cooler fuel is indeed more stable, and fuel coolers in return lines serve the important purpose of maintaining fuel stability. By keeping the fuel temperature in check, fuel coolers contribute to the overall performance, efficiency, and reliability of the engine. While not all engines require fuel coolers, they can be a valuable addition, particularly in high-performance or high-horsepower applications.
Understanding Outboard Motors: Fuel Pickup Line Essentials
You may want to see also
Explore related products
Fuel coolers increase component longevity
In addition, fuel coolers can help to increase the longevity of fuel lines and filters. It is likely that fuel lines and filters would last longer with 90-degree-Fahrenheit fuel passing through them as opposed to 140-degree-plus fuel.
Fuel coolers can also help to prevent vapor lock. In a return system, it is nearly impossible to vapor lock when the car is off since any fuel that boils in the lines is blown out back to the tank at the restart. On the other hand, in a returnless system, if enough fuel boils in the lines during a heat-soaked stop, it can be difficult to get the car to restart until it cools off.
Furthermore, fuel coolers can help to prevent the loss of octane. Warmer fuel loses octane more quickly, and some components of modern gasoline evaporate at barely above room temperature.
While fuel coolers can increase component longevity, it is important to note that they are not always necessary. For example, vessels with very large fuel tanks may not require a fuel cooler as excess heat can be safely dissipated through the surfaces of the tanks. Additionally, some engines have a maximum fuel supply temperature that must not be exceeded, but the method used to control the fuel supply temperature is not specified, and a fuel cooler may not be required.
Emergency Fuel Line Repair: Temporary Plug Solutions
You may want to see also
Explore related products
Fuel coolers are not always necessary
For example, in vessels with large fuel tanks, the excess heat can be safely dissipated through the surfaces of the tanks via air cooling, conduction, or convection. Additionally, some engines have a much lower rating than their recreational equivalents, and the operator may never notice any decrease in horsepower even if the fuel supply temperature rises.
In the case of return fuel systems, the hot fuel is flushed back to the cool fuel tank, preventing vapor lock when the car is turned off. This system also makes it easier to set up after injector modifications. However, returnless systems have been introduced to minimize evaporation by keeping the fuel in the tank cooler.
While fuel coolers can help stabilize fuel temperatures, it is not a requirement for all engines. For instance, in the case of Cummins Electronic engines, the supply fuel is used to stabilize the maximum temperature of the on-engine ECM, and the maximum supply temperature is 140°F for electronic engines and 160°F for mechanical engines.
Furthermore, some individuals have expressed concerns about the effectiveness of fuel coolers in preventing pump failure, especially during track days for sports cars. They suggest that simply filling up the tank during the day may be a more straightforward solution than installing a fuel cooler.
How Fuel Line Cleaners Improve Engine Performance
You may want to see also
Frequently asked questions
Fuel coolers are used to cool the heated fuel return flow, preventing excess heat from building up. This is especially important in marine applications, where fuel coolers are standard on most electronic engines.
Fuel coolers work by removing excess heat from the fuel before it returns to the tank. This can be done through various methods such as air cooling, conduction, or convection.
Cooler fuel is denser, which can result in increased horsepower from the engine. Fuel coolers can also help to extend the lifespan of fuel lines and filters by reducing the temperature of the fuel passing through them.
Some engines, particularly those with large fuel tanks, may be able to safely dissipate excess heat through the surfaces of the tanks alone, without the need for a dedicated fuel cooler. However, this is highly dependent on the specific application.
