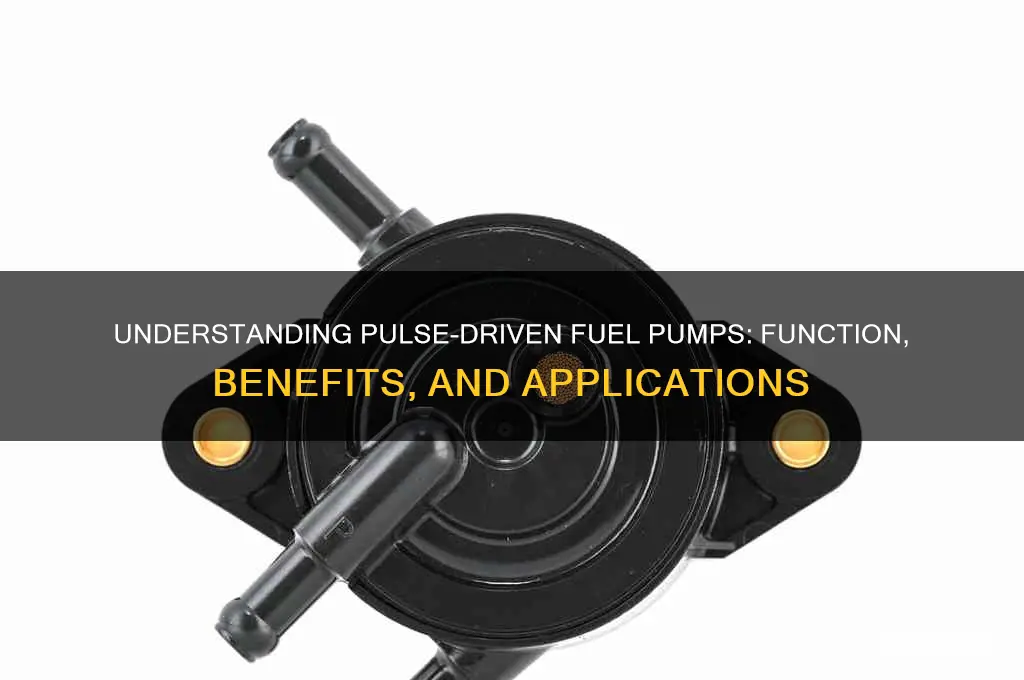

A pulse-driven fuel pump is a specialized type of fuel delivery system commonly used in carbureted engines, particularly in motorcycles and small engines. Unlike traditional electric or mechanical fuel pumps, it operates by utilizing the pulsating pressure created by the engine's intake or exhaust cycle to draw fuel from the tank and deliver it to the carburetor. This design eliminates the need for external power sources, making it simple, lightweight, and reliable. The pump typically consists of a diaphragm that moves in response to the pressure pulses, creating a vacuum that draws fuel through the system. Its efficiency and low maintenance requirements have made it a popular choice in applications where simplicity and durability are paramount.
| Characteristics | Values |
|---|---|
| Definition | A pulse-driven fuel pump is a type of mechanical fuel pump that utilizes engine pulses (pressure fluctuations) to draw fuel from the tank and deliver it to the carburetor or fuel injection system. |
| Operation Principle | Relies on the pressure differential created by the engine's intake and exhaust strokes to create a pumping action. |
| Components | Diaphragm, check valves, inlet and outlet ports, pulsating chamber connected to the engine's intake manifold. |
| Fuel Delivery | Provides a consistent fuel flow at a relatively low pressure, suitable for carbureted engines. |
| Pressure Output | Typically generates low pressure (around 4-7 psi) compared to electric fuel pumps. |
| Power Source | Engine vacuum or mechanical linkage, eliminating the need for electricity. |
| Applications | Commonly found in older carbureted vehicles, motorcycles, small engines, and marine applications. |
| Advantages | Simple design, reliable, low cost, self-priming, less prone to vapor lock. |
| Disadvantages | Limited fuel pressure for high-performance applications, dependent on engine vacuum, can be noisy. |
| Maintenance | Requires periodic diaphragm and valve inspection/replacement. |
Explore related products
What You'll Learn
- Pulse-Driven Mechanism: Explains how pressure pulses from engine exhaust generate pumping action
- Fuel Delivery System: Describes how the pump ensures consistent fuel flow to the engine
- Advantages Over Electric Pumps: Highlights reliability, simplicity, and cost-effectiveness compared to electric alternatives
- Application in Engines: Focuses on use in diesel engines and small aircraft systems
- Maintenance and Durability: Discusses low maintenance needs and long lifespan due to fewer moving parts
Pulse-Driven Mechanism: Explains how pressure pulses from engine exhaust generate pumping action
The pulse-driven fuel pump operates on a principle that transforms the rhythmic pressure pulses from an engine's exhaust system into a mechanical pumping action. This mechanism leverages the natural ebb and flow of exhaust gases, which are expelled in bursts during the engine's combustion cycle. Each pulse creates a pressure differential that, when harnessed correctly, can drive a diaphragm or piston within the pump. This design eliminates the need for an external power source, making it highly efficient and self-sustaining in the context of internal combustion engines.
To understand the process, consider the exhaust stroke of a four-stroke engine. As the exhaust valve opens, high-pressure gases rush out of the cylinder, creating a series of pressure waves. These waves are channeled through a specially designed exhaust manifold and into the pulse-driven fuel pump. Inside the pump, a check valve system ensures that the pressure pulses act unidirectionally, pushing the diaphragm or piston in a way that draws fuel from the tank and delivers it to the carburetor or fuel injection system. The timing of these pulses aligns with the engine's RPM, ensuring a consistent fuel supply under varying load conditions.
One practical example of this mechanism is found in older motorcycle designs, particularly those with two-stroke engines. In these systems, the pulse-driven fuel pump is often integrated into the exhaust pipe, where the high-frequency pressure pulses are most pronounced. For instance, a typical setup might involve a diaphragm pump mounted near the exhaust header, with a hose connecting it to the fuel tank. As the engine runs, the exhaust pulses create a vacuum and pressure cycle, causing the diaphragm to flex at a rate proportional to engine speed. This design ensures that fuel delivery scales with engine demand, optimizing performance without the need for electrical components.
While the pulse-driven mechanism is elegant in its simplicity, it requires precise tuning to function effectively. The exhaust system must be designed to produce consistent pressure pulses, and the pump’s check valves must operate with minimal friction to avoid energy loss. Maintenance is critical, as carbon buildup in the exhaust manifold or wear on the pump’s diaphragm can disrupt the pumping action. For enthusiasts working on vintage vehicles, regular inspection of these components is essential. A practical tip: use a manometer to measure pressure differentials across the pump during operation, ensuring they fall within the manufacturer’s specified range (typically 1–3 psi for small engines).
In comparison to electric fuel pumps, pulse-driven systems offer distinct advantages in specific applications. They are lighter, more compact, and immune to electrical failures, making them ideal for off-road vehicles or aircraft where reliability is paramount. However, their dependency on exhaust pulses limits their use in modern engines with more regulated exhaust systems. For those restoring classic vehicles or building custom projects, understanding this mechanism allows for informed decisions about fuel system design. By harnessing the engine’s own exhaust energy, the pulse-driven fuel pump exemplifies the ingenuity of early automotive engineering, blending simplicity with functionality.
Understanding Fuel Pump Amp Draw: A Comprehensive Guide for Vehicle Owners
You may want to see also
Explore related products
Fuel Delivery System: Describes how the pump ensures consistent fuel flow to the engine
A pulse-driven fuel pump operates by harnessing the rhythmic pressure fluctuations within the fuel system, ensuring a steady and reliable fuel supply to the engine. Unlike traditional electric or mechanical pumps, this system leverages the engine’s own pulses to drive fuel flow, making it highly efficient and self-regulating. This mechanism is particularly common in carbureted engines and small aircraft, where simplicity and reliability are paramount. The pump’s design eliminates the need for external power sources, reducing complexity and potential points of failure.
To understand how the pump ensures consistent fuel flow, consider its core components: a diaphragm, inlet and outlet valves, and a pulse line connected to the engine’s exhaust or intake manifold. As the engine runs, pressure variations in the pulse line cause the diaphragm to flex, alternately drawing fuel into the pump chamber and expelling it toward the carburetor or fuel injection system. This cyclical action mirrors the engine’s rhythm, naturally synchronizing fuel delivery with demand. For example, during acceleration, increased manifold pressure drives the pump to deliver more fuel, while idle conditions reduce the pulse intensity, moderating flow accordingly.
One critical aspect of this system is its ability to maintain fuel pressure within a narrow, optimal range. Excessive pressure can lead to fuel vaporization or leakage, while insufficient pressure results in starvation and poor combustion. Pulse-driven pumps inherently regulate this balance by responding directly to engine load. For instance, in a small aircraft engine, the pump might maintain a pressure differential of 1-3 psi between the fuel tank and carburetor, ensuring atomized fuel reaches the combustion chamber without flooding or faltering. Regular inspection of the pulse line for cracks or blockages is essential, as even minor issues can disrupt this delicate equilibrium.
Practical maintenance tips include checking the diaphragm for wear or tears, as a compromised seal can lead to air infiltration and erratic fuel delivery. Additionally, ensuring the inlet and outlet valves are free of debris prevents flow restrictions. For enthusiasts working on vintage vehicles or aircraft, sourcing compatible diaphragms and valves from specialized suppliers is crucial, as modern replacements may not fit or function correctly. A simple test involves disconnecting the pulse line and manually applying pressure to verify the pump’s mechanical integrity before reassembly.
In comparison to electric fuel pumps, pulse-driven systems offer distinct advantages in low-demand applications. They consume no electrical power, making them ideal for off-grid or battery-conscious setups. However, their reliance on engine pulses limits their use in high-performance or turbocharged engines, where fuel demands exceed the pump’s capacity. For hobbyists or professionals restoring classic engines, understanding this trade-off is key to selecting the right fuel delivery system. By mastering the nuances of pulse-driven pumps, one can ensure consistent, efficient fuel flow tailored to the engine’s unique requirements.
Chrysler 300 Fuel Pump Fuse Location: A Quick Guide
You may want to see also
Explore related products
Advantages Over Electric Pumps: Highlights reliability, simplicity, and cost-effectiveness compared to electric alternatives
Pulse-driven fuel pumps operate by leveraging the mechanical pulses from an engine's motion, typically via a diaphragm or plunger mechanism, to move fuel through the system. This contrasts with electric pumps, which rely on an external power source and complex electronics. The inherent simplicity of pulse-driven designs translates to fewer points of failure, making them a reliable choice for applications where durability is paramount. For instance, in small engines like those found in motorcycles, lawnmowers, or outboard motors, pulse-driven pumps often outlast their electric counterparts due to their robust, mechanical-only construction.
Consider the maintenance aspect: electric fuel pumps require wiring, connectors, and sometimes even a dedicated controller, all of which can degrade over time or fail due to environmental factors like moisture or heat. Pulse-driven pumps, on the other hand, eliminate these vulnerabilities by drawing power directly from the engine's motion. This not only reduces the risk of electrical faults but also simplifies troubleshooting. For example, if a pulse-driven pump fails, the issue is typically mechanical (e.g., a worn diaphragm), which is often easier and cheaper to diagnose and repair than an electrical malfunction.
Cost-effectiveness is another critical advantage. Electric fuel pumps, especially those with advanced features like variable flow rates or integrated pressure regulators, can be significantly more expensive to manufacture and replace. Pulse-driven pumps, with their minimalist design, are generally more affordable both upfront and in terms of long-term maintenance. This makes them an ideal choice for budget-conscious applications or high-volume production environments, such as in the manufacturing of compact generators or agricultural equipment.
To illustrate, a pulse-driven fuel pump in a chainsaw might cost $20–$30 to replace, whereas an electric pump for the same device could run $50–$80. Additionally, the installation of a pulse-driven pump is often straightforward, requiring only basic tools and minimal technical expertise. For DIY enthusiasts or small repair shops, this simplicity can save both time and money, further enhancing the pump's overall value proposition.
In conclusion, while electric fuel pumps offer advantages in terms of precision and adaptability, pulse-driven pumps excel in reliability, simplicity, and cost-effectiveness. Their mechanical dependency on the engine's motion reduces complexity and potential failure points, making them a practical choice for rugged, cost-sensitive applications. Whether you're maintaining a vintage motorcycle or designing a new line of portable machinery, understanding these advantages can help you make an informed decision tailored to your specific needs.
Testing Your Polaris 500 Sportsman's Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Application in Engines: Focuses on use in diesel engines and small aircraft systems
Pulse-driven fuel pumps, leveraging pressure fluctuations to move fuel, offer distinct advantages in diesel engines and small aircraft systems. In diesel engines, where high injection pressures are critical for efficient combustion, these pumps excel. Unlike traditional electric or mechanical pumps, pulse-driven variants synchronize with the engine’s firing sequence, harnessing exhaust pulses or mechanical vibrations to generate fuel pressure. This integration reduces parasitic power loss, as the pump operates without drawing energy from the crankshaft or electrical system. For instance, in heavy-duty diesel trucks, pulse-driven pumps can maintain injection pressures up to 25,000 psi, ensuring optimal atomization and fuel-air mixing, which translates to improved fuel efficiency and reduced emissions.
In small aircraft systems, reliability and weight savings are paramount. Pulse-driven fuel pumps, often powered by the engine’s exhaust or crankshaft pulses, eliminate the need for additional electrical components, reducing failure points and system complexity. This is particularly critical in single-engine aircraft, where fuel system failures can be catastrophic. For example, in a Lycoming O-320 engine, a pulse-driven pump can be integrated into the exhaust manifold, using exhaust pulses to drive fuel flow. This setup not only ensures consistent fuel delivery at varying altitudes but also reduces the overall weight by up to 2 kilograms compared to electric pumps, contributing to better payload capacity and fuel economy.
When implementing pulse-driven fuel pumps in diesel engines, engineers must consider the pump’s resonance frequency to match the engine’s firing order. Mismatches can lead to inefficient pumping or mechanical stress. For a four-stroke diesel engine with a firing order of 1-3-4-2, the pump’s design should align with the exhaust pulse frequency, typically around 120–150 Hz at idle. In small aircraft, the pump’s material selection is critical due to temperature extremes and vibration. Stainless steel or titanium housings are recommended to withstand exhaust temperatures exceeding 600°C, while elastomeric diaphragms should be rated for over 1 million cycles to ensure longevity.
A comparative analysis highlights the pulse-driven pump’s edge over electric alternatives in both applications. In diesel engines, electric pumps require robust cooling systems to manage heat dissipation, adding complexity. Pulse-driven pumps, however, operate cooler due to their passive energy source. In aircraft, electric pumps demand redundant systems for safety, increasing weight and cost. Pulse-driven pumps, by contrast, offer inherent redundancy through their mechanical linkage to the engine, making them a more streamlined solution.
To maximize performance, operators should adhere to maintenance protocols tailored to pulse-driven systems. In diesel engines, inspect the pump’s diaphragm and valves every 500 operating hours for wear or debris buildup. In aircraft, pre-flight checks should include verifying the pump’s response to engine pulses, ensuring immediate fuel flow upon startup. For both applications, avoid using fuels with excessive contaminants, as these can accelerate wear on the pump’s internal components. By leveraging these insights, engineers and operators can harness the full potential of pulse-driven fuel pumps in demanding engine environments.
Best Fuel Pump Upgrade for 4th Gen F-Body LT1 Engines
You may want to see also
Explore related products
Maintenance and Durability: Discusses low maintenance needs and long lifespan due to fewer moving parts
Pulse-driven fuel pumps stand out in the automotive world for their simplicity and reliability, a direct result of their minimal moving parts. Unlike traditional mechanical fuel pumps, which rely on numerous components like gears, diaphragms, or vanes, pulse-driven systems operate using the engine’s pulsating pressure. This design inherently reduces wear points, making them less prone to failure over time. For instance, a typical pulse-driven pump might consist of just a one-way valve and a pressure chamber, compared to the dozen or more parts in a conventional electric pump. This simplicity translates to fewer opportunities for malfunction, ensuring a longer operational lifespan with minimal intervention.
From a maintenance perspective, the reduced complexity of pulse-driven fuel pumps is a game-changer. Traditional pumps often require periodic checks for leaks, replacements of worn seals, or adjustments to maintain pressure. In contrast, pulse-driven systems rarely demand more than a visual inspection during routine service intervals. For example, a mechanic might check for signs of corrosion or debris buildup around the valve, but actual repairs are infrequent. This low-maintenance nature is particularly beneficial for older vehicles or those in harsh environments, where consistent fuel delivery is critical. Owners can expect to save both time and money, as the pump’s durability minimizes the need for costly replacements or repairs.
To maximize the lifespan of a pulse-driven fuel pump, proactive care is still essential, though minimal. One practical tip is to ensure the fuel system remains free of contaminants, as even small particles can disrupt the pump’s operation. Using high-quality fuel filters and regularly replacing them every 10,000 to 15,000 miles can prevent debris from reaching the pump. Additionally, maintaining proper fuel pressure is key; a gauge reading consistently below 30 psi or above 60 psi (depending on the vehicle’s specifications) could indicate an issue that, if left unchecked, might strain the pump. Addressing such discrepancies promptly ensures the pump operates within its optimal range, further extending its life.
Comparatively, the durability of pulse-driven fuel pumps makes them an attractive option for both daily drivers and performance enthusiasts. While electric pumps might offer higher flow rates for modified engines, their complexity often leads to shorter lifespans, especially under extreme conditions. Pulse-driven pumps, on the other hand, excel in longevity, often outlasting the vehicles they’re installed in. This reliability is particularly valuable in applications where downtime is costly, such as commercial fleets or off-road vehicles. By prioritizing a design with fewer moving parts, pulse-driven pumps deliver a robust solution that balances efficiency with endurance, making them a smart choice for those seeking hassle-free fuel delivery.
Failing Fuel Pump: Can It Trigger Knock Sensor Error Codes?
You may want to see also
Frequently asked questions
A pulse-driven fuel pump is a type of mechanical fuel pump that operates using the pressure pulses generated by the engine's motion, typically driven by a camshaft or other engine component, to move fuel from the tank to the carburetor or fuel injection system.
A pulse-driven fuel pump works by utilizing the reciprocating motion of a diaphragm or plunger, which is actuated by the engine's pressure pulses. As the diaphragm or plunger moves, it creates a vacuum that draws fuel into the pump, and then pressurizes it to deliver the fuel to the engine.
A pulse-driven fuel pump offers several advantages, including simplicity, reliability, and low maintenance requirements. It also eliminates the need for an external power source, as it is driven directly by the engine, making it a popular choice for carbureted engines and applications where electrical fuel pumps are not suitable.
