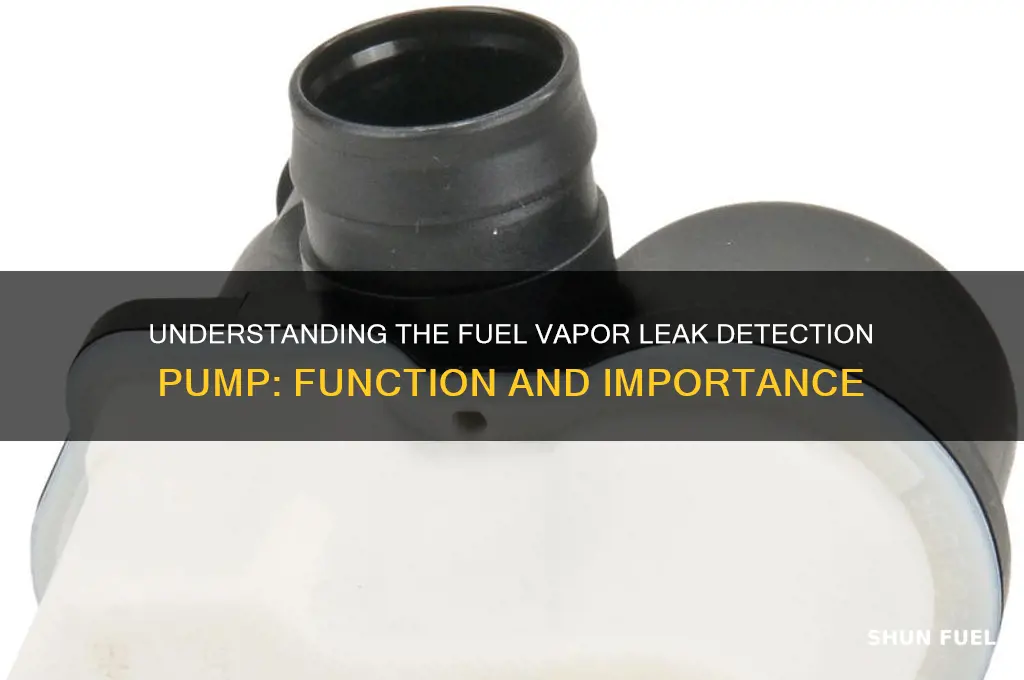

A fuel vapor leak detection pump is a critical component in modern vehicle emissions systems, designed to identify and prevent fuel vapor leaks from the evaporative emissions control (EVAP) system. This pump works by creating a vacuum or pressure within the EVAP system, allowing the vehicle’s onboard diagnostics to detect even minor leaks that could release harmful hydrocarbons into the atmosphere. By ensuring the integrity of the fuel system, this pump plays a vital role in reducing air pollution, maintaining compliance with environmental regulations, and preserving the overall efficiency of the vehicle’s fuel management system. Its operation is essential for both environmental sustainability and the proper functioning of the vehicle.
| Characteristics | Values |
|---|---|
| Purpose | Detects leaks in the fuel vapor recovery system of a vehicle. |
| Functionality | Monitors pressure changes to identify leaks in hoses, valves, or seals. |
| Location | Typically integrated into the evaporative emission control (EVAP) system. |
| Operation | Uses a vacuum pump to create pressure changes and measure system integrity. |
| Components | Pump, pressure sensor, control module, and associated hoses/valves. |
| Power Source | Vehicle's electrical system (12V DC). |
| Diagnostic Role | Helps diagnose EVAP system leaks, triggering check engine light if detected. |
| Environmental Impact | Reduces hydrocarbon emissions by ensuring fuel vapors are contained. |
| Regulation Compliance | Required by emissions standards (e.g., EPA, CARB). |
| Maintenance | Regularly checked during emissions testing or diagnostic scans. |
| Common Failure Modes | Pump malfunction, clogged hoses, or faulty pressure sensors. |
| Vehicle Compatibility | Standard in most modern gasoline-powered vehicles. |
| Technology | Often uses a diaphragm pump for precise pressure control. |
| Cost of Replacement | Varies, typically $100–$300 depending on vehicle make/model. |
| Lifespan | Designed to last the vehicle's lifetime with proper maintenance. |
Explore related products
What You'll Learn
- Pump Functionality: Detects leaks in the fuel vapor system by creating vacuum pressure
- EVAP System Role: Integral part of the vehicle's EVAP system to control emissions
- Diagnostic Use: Helps identify leaks during emissions testing and diagnostics
- Operation Process: Cycles on/off to monitor vapor pressure changes in the system
- Common Issues: Failure symptoms include check engine light and failed emissions tests
Pump Functionality: Detects leaks in the fuel vapor system by creating vacuum pressure
The fuel vapor leak detection pump is a critical component in modern vehicles, designed to ensure the integrity of the fuel vapor system. Its primary function is to detect leaks by creating vacuum pressure within the system, a process that is both precise and essential for environmental and safety compliance. This mechanism operates by isolating the fuel vapor system and applying a controlled vacuum, allowing the pump to monitor pressure changes that indicate potential leaks. Even a small breach, such as a crack in a hose or a loose fitting, can be identified through this method, ensuring that harmful vapors do not escape into the atmosphere.
To understand the pump’s operation, consider the steps involved in a typical leak detection cycle. First, the pump seals off the fuel vapor system from the atmosphere, creating a closed environment. Next, it generates a vacuum, reducing the pressure inside the system to a predetermined level, often specified by the vehicle manufacturer (e.g., 10–15 inches of mercury). The pump then monitors the pressure over time; if the pressure drops more rapidly than expected, it signals a leak. This process is automated and typically runs during the vehicle’s self-diagnostic checks, such as during the first 5–10 minutes of engine operation after a cold start.
From a practical standpoint, the pump’s functionality is not just about compliance but also about preventing long-term damage to the vehicle and the environment. Fuel vapor leaks can lead to reduced fuel efficiency, increased emissions, and even safety hazards, such as the risk of fire. For instance, a leaking fuel vapor canister or purge valve can allow gasoline vapors to escape, contributing to air pollution and potentially triggering a "Check Engine" light. Regular maintenance, including inspecting hoses and connections, is crucial to support the pump’s effectiveness. Vehicle owners should be aware that ignoring leak detection warnings can result in failed emissions tests and costly repairs.
Comparatively, older vehicles without this technology relied on less accurate methods, such as visual inspections or basic pressure tests, which often missed small leaks. The introduction of the fuel vapor leak detection pump marked a significant advancement in automotive diagnostics, aligning with stricter environmental regulations. For example, the pump’s ability to detect leaks as small as 0.020 inches in diameter ensures that vehicles meet standards like the EPA’s evaporative emission requirements. This precision not only protects the environment but also helps drivers avoid penalties associated with non-compliance.
In conclusion, the fuel vapor leak detection pump’s role in creating vacuum pressure to identify leaks is a testament to its ingenuity and importance. By understanding its functionality and the steps involved in leak detection, vehicle owners can better appreciate the technology’s role in maintaining their car’s health and environmental impact. Regular attention to this system, combined with prompt action when issues arise, ensures that the pump continues to perform its vital function effectively.
Signs Your Lawn Mower Fuel Pump is Failing: Quick Diagnosis Guide
You may want to see also
Explore related products
EVAP System Role: Integral part of the vehicle's EVAP system to control emissions
Modern vehicles are equipped with an EVAP (Evaporative Emission Control) system, a critical component designed to minimize the release of harmful fuel vapors into the atmosphere. At the heart of this system lies the fuel vapor leak detection pump, a device engineered to identify and diagnose leaks within the EVAP system. This pump operates by creating a vacuum or pressure within the fuel tank and associated lines, allowing the vehicle's onboard computer to detect even minor leaks that could otherwise go unnoticed. By ensuring the integrity of the EVAP system, this pump plays a pivotal role in maintaining compliance with stringent emissions regulations.
The EVAP system's primary function is to capture and store fuel vapors that would otherwise escape from the fuel tank and other components. These vapors are then routed to the engine, where they are burned during the combustion process, effectively reducing emissions. The fuel vapor leak detection pump enhances this process by periodically testing the system for leaks. During a self-diagnostic cycle, the pump isolates the EVAP system and applies pressure or vacuum to monitor for pressure drops or increases, which indicate a leak. This proactive approach ensures that any potential issues are identified before they contribute to excessive emissions or trigger a check engine light.
From a practical standpoint, understanding the role of the fuel vapor leak detection pump is essential for vehicle maintenance. For instance, if a leak is detected, it could stem from a cracked hose, loose fuel cap, or faulty purge valve. Addressing these issues promptly not only prevents environmental harm but also avoids potential performance problems, such as reduced fuel efficiency or rough idling. Mechanics often use smoke machines or specialized diagnostic tools to pinpoint leaks, but the initial alert typically comes from the leak detection pump's operation. Regular inspections and timely repairs are key to keeping the EVAP system functioning optimally.
Comparatively, older vehicles without advanced EVAP systems were more prone to releasing fuel vapors directly into the atmosphere, contributing significantly to air pollution. The introduction of the fuel vapor leak detection pump represents a leap forward in emissions control technology, aligning with global efforts to reduce greenhouse gases and improve air quality. While this component adds complexity to modern vehicles, its benefits far outweigh the drawbacks, making it an indispensable part of contemporary automotive design.
In conclusion, the fuel vapor leak detection pump is not just a diagnostic tool but an integral part of the EVAP system's mission to control emissions. By systematically checking for leaks, it ensures that fuel vapors are contained and properly utilized, rather than released into the environment. For vehicle owners and technicians alike, recognizing the importance of this pump underscores the need for regular maintenance and swift action when issues arise. Its role in emissions reduction highlights the intersection of technology and environmental stewardship in the automotive industry.
Where to Find the Fuel Pump Fuse in a 1993 Ford Ranger
You may want to see also
Explore related products
$32.99 $34.99
Diagnostic Use: Helps identify leaks during emissions testing and diagnostics
A fuel vapor leak detection pump is a critical component in modern vehicle emissions systems, designed to ensure that harmful vapors from the fuel tank do not escape into the atmosphere. Its diagnostic use is particularly valuable during emissions testing and routine diagnostics, where identifying leaks is essential for compliance and environmental protection. By simulating a vacuum or pressure condition within the fuel vapor system, the pump helps technicians pinpoint even minor leaks that might otherwise go unnoticed. This process is not only a regulatory requirement but also a proactive measure to maintain vehicle efficiency and reduce environmental impact.
During emissions testing, the fuel vapor leak detection pump operates by creating a controlled environment to test the integrity of the evaporative emission control system. Technicians typically connect the pump to the vehicle’s fuel tank and apply a specific pressure or vacuum, often in the range of -14 to -22 inches of water column (inH₂O) for vacuum tests or 14 to 22 inH₂O for pressure tests. If the system holds the pressure or vacuum without deviation, it indicates no leaks. However, any drop or rise outside the acceptable range signals a potential issue, such as a cracked hose, loose fitting, or faulty canister. This method is far more precise than visual inspections, which are often insufficient for detecting small leaks.
The diagnostic process using this pump is straightforward but requires attention to detail. First, ensure the vehicle is turned off and the fuel tank is at least half full to stabilize the vapor pressure. Connect the pump to the vehicle’s evaporative system via the test port, typically located near the charcoal canister or fuel tank. Activate the pump and monitor the pressure or vacuum gauge for stability over a set period, usually 1 to 2 minutes. If the reading fluctuates, isolate sections of the system to identify the leak’s source. For example, disconnect hoses one at a time and retest to narrow down the problem area. This systematic approach minimizes guesswork and maximizes accuracy.
One of the key advantages of using a fuel vapor leak detection pump is its ability to identify leaks that could lead to failed emissions tests or increased hydrocarbon emissions. For instance, a small leak in the purge valve or vent hose might not affect vehicle performance but could cause the vehicle to exceed permissible emission limits. By catching these issues early, drivers can avoid costly repairs and penalties associated with non-compliance. Additionally, regular diagnostics using this pump can extend the life of the evaporative emission control system, as timely repairs prevent further damage to components like the charcoal canister or fuel tank.
In practical terms, this diagnostic tool is indispensable for both professional mechanics and vehicle owners. For DIY enthusiasts, investing in a portable leak detection pump can save time and money by enabling at-home diagnostics before an emissions test. Professionals, on the other hand, rely on this equipment to provide accurate and reliable results for their customers. Regardless of the user, understanding the pump’s operation and interpreting its readings correctly are crucial for effective leak detection. With proper use, the fuel vapor leak detection pump ensures vehicles remain environmentally friendly and compliant with regulatory standards.
Mastering Mechanical Fuel Pump Timing: Step-by-Step Advancement Guide
You may want to see also
Explore related products
Operation Process: Cycles on/off to monitor vapor pressure changes in the system
The fuel vapor leak detection pump operates through a precise on/off cycling mechanism, systematically monitoring vapor pressure changes within the vehicle's evaporative emission control system. This process is critical for identifying leaks as small as 0.02 inches in diameter, ensuring compliance with environmental regulations like the EPA's Tier 3 standards. Each cycle begins with the pump creating a vacuum, drawing air through the system to establish a baseline pressure. It then pauses, allowing the system to stabilize, and measures pressure changes over time. If the pressure drops unexpectedly, the pump flags a potential leak, triggering a diagnostic trouble code (DTC) for further inspection.
To understand the pump's operation, consider its role in the vehicle's readiness test. During the first 10 minutes of engine operation, the pump initiates a series of cycles, typically 5 to 10, depending on the manufacturer's calibration. For example, in a Toyota Prius, the pump cycles every 2 minutes, while a Ford F-150 may cycle every 3 minutes. These intervals are designed to balance accuracy with fuel efficiency, as excessive cycling can increase power consumption. Technicians often use scan tools to monitor these cycles, ensuring the pump functions within specifications, such as maintaining a vacuum of -20 to -30 inHg during the test.
A key aspect of the pump's operation is its ability to differentiate between normal pressure fluctuations and actual leaks. For instance, temperature changes can cause vapor pressure to rise or fall, mimicking a leak. To account for this, the pump incorporates temperature compensation algorithms, adjusting its thresholds based on ambient conditions. In colder climates, where vapor pressure naturally decreases, the pump may allow for a larger pressure drop before flagging an issue. Conversely, in warmer regions, it tightens its tolerance to avoid false positives. This adaptability ensures accurate diagnostics across diverse operating environments.
Practical tips for maintaining the pump's effectiveness include regular inspection of the charcoal canister and vapor lines for clogs or damage. A clogged canister can restrict airflow, causing the pump to misinterpret pressure changes as leaks. Additionally, using high-quality fuel caps with proper sealing mechanisms is essential, as a faulty cap is a common source of evaporative system leaks. For DIY enthusiasts, monitoring the pump's cycling pattern during a cold start can provide early indications of system issues. If the pump fails to cycle or cycles excessively, it may indicate a malfunction requiring professional diagnosis.
In conclusion, the fuel vapor leak detection pump's cycling process is a sophisticated yet practical solution for ensuring vehicle emissions compliance. By understanding its operation, intervals, and environmental adjustments, both technicians and vehicle owners can better maintain the system's integrity. Regular maintenance and awareness of the pump's behavior not only prevent costly repairs but also contribute to reducing harmful emissions, aligning with broader environmental goals.
Understanding Inline DC Fuel Pump Amp Draw: A Comprehensive Guide
You may want to see also
Explore related products
Common Issues: Failure symptoms include check engine light and failed emissions tests
A malfunctioning fuel vapor leak detection pump can trigger a cascade of problems, often first noticed by the illumination of the dreaded check engine light. This warning signal, while generic, frequently points to issues within the evaporative emission control (EVAP) system, of which the leak detection pump is a critical component. Modern vehicles are equipped with sophisticated onboard diagnostics that monitor the EVAP system for leaks, pressure changes, and proper functionality. When the pump fails to maintain the necessary vacuum or detect leaks accurately, the system flags an error, prompting the check engine light to activate. Ignoring this warning can lead to more severe consequences, including failed emissions tests, as the EVAP system plays a pivotal role in capturing and recirculating fuel vapors, reducing harmful emissions.
For vehicle owners, the check engine light is often a source of anxiety, as it can indicate anything from a loose gas cap to a major engine issue. However, when paired with a failed emissions test, the culprit is frequently a compromised EVAP system. Emissions tests specifically assess the vehicle’s ability to control and manage fuel vapors, a task directly tied to the leak detection pump’s performance. A failing pump may allow vapors to escape into the atmosphere or disrupt the system’s pressure balance, causing the vehicle to exceed allowable emission limits. This not only results in a failed test but also contributes to environmental pollution, defeating the purpose of the EVAP system.
Diagnosing a faulty fuel vapor leak detection pump requires a systematic approach. Start by using an OBD-II scanner to retrieve the specific trouble code associated with the EVAP system, such as P0440 or P0455, which often point to leaks or pump malfunctions. Next, inspect the pump and its associated components for physical damage, disconnections, or clogs. In some cases, the pump itself may need to be tested for proper operation using a vacuum gauge or smoke machine to simulate leaks. If the pump is indeed faulty, replacement is typically the most effective solution, as these components are not designed for repair.
Preventive maintenance can significantly reduce the likelihood of pump failure. Regularly inspect the EVAP system during routine vehicle check-ups, paying close attention to hoses, valves, and the charcoal canister, which can become saturated or clogged over time. Ensure the gas cap is tightened securely after refueling, as a loose cap is a common cause of EVAP system errors. For older vehicles or those in regions with extreme temperatures, consider replacing the pump proactively every 100,000 to 150,000 miles, as these conditions can accelerate wear and tear.
In conclusion, while a check engine light and failed emissions test can stem from various issues, a malfunctioning fuel vapor leak detection pump is a frequent offender. Addressing this problem promptly not only ensures compliance with environmental regulations but also maintains the overall health of the vehicle. By understanding the symptoms, diagnostic steps, and preventive measures, vehicle owners can mitigate the impact of pump failure and avoid the inconvenience and expense of repeated repairs.
Understanding the Mechanics of a 2-Cycle Fuel Pump Operation
You may want to see also
Frequently asked questions
A fuel vapor leak detection pump is a component in a vehicle's evaporative emission control (EVAP) system designed to detect leaks in the fuel vapor recovery system, ensuring no harmful vapors escape into the atmosphere.
The pump operates by creating a vacuum or pressure in the EVAP system and monitoring changes in pressure. If a leak is detected, the pump sends a signal to the vehicle's computer, which triggers a check engine light.
It is crucial for reducing air pollution by preventing fuel vapors from escaping into the atmosphere. It also helps vehicles comply with environmental regulations.
Symptoms include a check engine light, difficulty starting the vehicle, reduced fuel efficiency, and noticeable fuel odors around the vehicle.
While it may not prevent the car from running, driving with a faulty pump can lead to increased emissions, potential fuel system issues, and failure to pass emissions tests. It’s best to have it repaired promptly.
