Rajan Wilcox

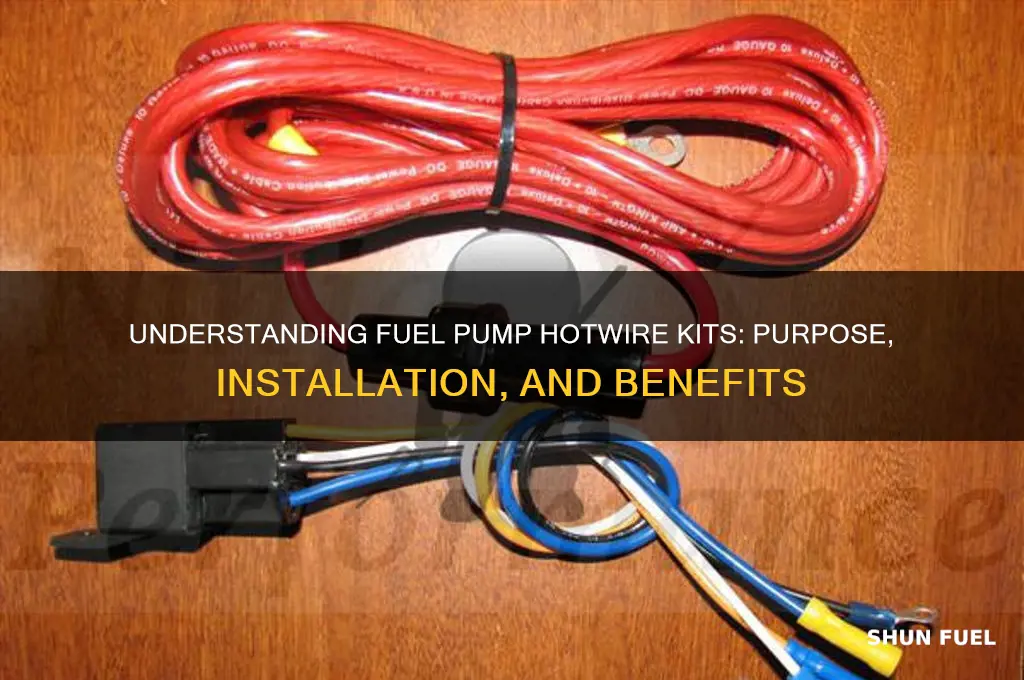

A fuel pump hotwire kit is an essential tool for automotive enthusiasts and mechanics, designed to bypass a vehicle's factory wiring harness and directly power the fuel pump. This kit is particularly useful in situations where the original wiring is faulty, during engine swaps, or when testing fuel pump functionality. Typically consisting of a relay, fuse, and wiring components, the hotwire kit ensures a reliable and high-current power supply to the fuel pump, preventing issues like fuel starvation or inconsistent performance. It is a straightforward solution for diagnosing fuel system problems or temporarily operating a fuel pump without relying on the vehicle's existing electrical system.
| Characteristics | Values |
|---|---|
| Definition | A fuel pump hotwire kit is a device used to bypass the vehicle's factory fuel pump relay and wiring, directly powering the fuel pump from the battery. |
| Purpose | To test or operate the fuel pump independently of the vehicle's electrical system, often for diagnostic purposes or emergency fuel pump operation. |
| Components | Typically includes a switch, heavy-duty wire, fuse, and connectors to ensure safe and direct power delivery to the fuel pump. |
| Compatibility | Designed for use with most 12V automotive fuel pumps, but compatibility varies by vehicle make and model. |
| Installation | Requires basic automotive wiring knowledge; involves connecting the kit directly to the battery and fuel pump terminals. |
| Safety Features | Includes an inline fuse to prevent electrical overload and potential damage to the fuel pump or vehicle. |
| Usage Scenarios | Commonly used for diagnosing fuel pump issues, testing fuel pump functionality, or temporarily operating a fuel pump in emergency situations. |
| Legal Considerations | Use may be restricted by local laws or vehicle regulations; always check before installation. |
| Cost | Typically ranges from $20 to $50, depending on brand and included components. |
| Availability | Widely available at auto parts stores, online retailers, and automotive supply shops. |
Explore related products
What You'll Learn
- Purpose of Hotwire Kit: Bypasses fuel pump relay to test pump functionality directly from the battery
- Components Included: Wires, connectors, and instructions for temporary fuel pump activation
- When to Use: Diagnose fuel pump issues, verify pump operation, or test during repairs?
- Installation Steps: Connect kit to battery and fuel pump for immediate power supply
- Safety Precautions: Ensure vehicle is off, use insulated tools, and avoid sparks near fuel
Purpose of Hotwire Kit: Bypasses fuel pump relay to test pump functionality directly from the battery
A fuel pump hotwire kit is a diagnostic tool designed to isolate and test the functionality of a fuel pump by bypassing the vehicle's electrical system. This method is particularly useful when diagnosing fuel delivery issues, as it eliminates variables like faulty relays, fuses, or wiring harnesses that might otherwise complicate the diagnosis. By connecting the fuel pump directly to the battery, the hotwire kit provides a clear, unambiguous test of the pump’s mechanical and electrical integrity.
To use a hotwire kit effectively, start by locating the fuel pump connector, typically found near the fuel tank or in the engine bay. Disconnect the pump’s wiring harness and attach the hotwire kit’s leads to the pump’s positive and negative terminals. Ensure the battery is off before making connections to prevent sparks or short circuits. Once connected, turn the ignition to the "on" position without starting the engine, then briefly touch the hotwire kit’s leads to the battery terminals. A functional fuel pump will produce a distinct humming or whirring sound, indicating proper operation. If no sound is heard, the pump may be faulty, or there could be an issue with the kit’s connections.
One critical caution when using a hotwire kit is to avoid prolonged connection to the battery, as this can damage the pump’s motor or cause overheating. Limit the test to 2–3 seconds at a time, allowing the pump to cool between attempts. Additionally, always work in a well-ventilated area and avoid any open flames or sparks, as fuel vapors can be highly flammable. For safety, disconnect the battery’s ground cable before beginning the test to minimize electrical hazards.
Comparatively, while a hotwire kit is a direct method for testing the fuel pump, it does not diagnose issues within the vehicle’s fuel system relay or wiring. If the pump functions with the hotwire kit but not in the vehicle, the problem likely lies elsewhere in the electrical system. In such cases, further diagnostic steps, such as testing the relay or checking for voltage at the pump’s connector, are necessary. The hotwire kit’s strength lies in its simplicity and ability to isolate the pump as the sole variable, making it an indispensable tool for mechanics and DIY enthusiasts alike.
In conclusion, a fuel pump hotwire kit serves as a straightforward yet powerful diagnostic tool by bypassing the fuel pump relay to test the pump’s functionality directly from the battery. Its ease of use, combined with the ability to isolate the pump as the test subject, makes it an essential component of any automotive troubleshooting toolkit. However, users must exercise caution to avoid damage or safety risks, ensuring the kit is used correctly and briefly. When applied properly, the hotwire kit provides clear, actionable insights into fuel pump health, streamlining the diagnostic process and saving time and resources.
Locate Honda Magna Fuel Pump on Microfiche: A Comprehensive Guide
You may want to see also
Explore related products
$62.69 $65.99
Components Included: Wires, connectors, and instructions for temporary fuel pump activation
A fuel pump hotwire kit is a specialized tool designed for emergency situations where a vehicle’s fuel pump fails, leaving the driver stranded. Among its essential components are wires, connectors, and detailed instructions for temporary fuel pump activation. These elements work in tandem to bypass the vehicle’s electrical system, directly powering the fuel pump to get the engine running long enough to reach a repair facility. The kit’s simplicity belies its effectiveness, making it a must-have for drivers who prioritize preparedness.
The wires included in a hotwire kit are typically heavy-duty, capable of handling the high current required to operate a fuel pump. They are often color-coded for easy identification, reducing the risk of incorrect connections. Connectors, another critical component, are designed to securely attach the wires to the fuel pump and power source, ensuring a stable electrical circuit. These connectors are usually insulated to prevent short circuits and heat damage, which could exacerbate an already stressful situation. Together, these components form the backbone of the kit’s functionality.
Instructions are perhaps the most overlooked yet vital part of a fuel pump hotwire kit. Clear, step-by-step guidance ensures even those with minimal automotive knowledge can safely activate the fuel pump. These instructions often include diagrams or illustrations, making it easier to identify the correct terminals on the fuel pump and battery. Additionally, they emphasize safety precautions, such as disconnecting the battery before starting and avoiding contact with moving engine parts. Following these instructions precisely can mean the difference between a successful temporary fix and a dangerous mishap.
Practical tips for using a hotwire kit include testing the connections before starting the engine to ensure they are secure and functioning. It’s also advisable to keep the kit in an easily accessible location, such as the glove compartment or trunk, to save time during an emergency. For those unfamiliar with their vehicle’s fuel pump location, consulting the owner’s manual beforehand can streamline the process. While a hotwire kit is not a permanent solution, it provides a reliable temporary fix, offering peace of mind and a way out of a potentially inconvenient situation.
Locating the Fuel Pump on a 1985 Porsche 944: A Guide
You may want to see also
Explore related products
$10.99 $11.99
When to Use: Diagnose fuel pump issues, verify pump operation, or test during repairs
A fuel pump hotwire kit is a diagnostic tool that bypasses the vehicle's fuel pump relay and wiring harness, allowing direct power to the pump. This method is crucial for pinpointing issues within the fuel delivery system. When the engine cranks but doesn’t start, or when fuel pressure is inconsistent, a hotwire kit can isolate whether the pump itself is functioning properly. By connecting the kit directly to the battery and pump, mechanics eliminate variables like faulty relays, corroded connectors, or wiring issues, ensuring the pump’s operation is the sole focus.
Diagnosing fuel pump issues often begins with a simple voltage test at the pump connector, but this doesn’t confirm the pump’s mechanical ability to deliver fuel. A hotwire kit bridges this gap by supplying uninterrupted power, allowing you to listen for pump operation or measure fuel pressure. For example, if the pump whirrs loudly but the engine still fails to start, the issue may lie in the fuel filter, lines, or injectors. Conversely, silence indicates a failed pump or broken circuit, narrowing down the problem area significantly.
During repairs, a hotwire kit serves as a verification tool to ensure the new or repaired pump functions before reassembling components. After replacing a fuel pump, connect the kit to test the pump’s operation without relying on the vehicle’s electrical system. This step prevents unnecessary disassembly if the issue persists. Additionally, when troubleshooting intermittent fuel delivery problems, the kit can be used to simulate continuous pump operation, helping identify whether the issue is electrical or mechanical in nature.
While hotwiring a fuel pump is straightforward, caution is essential. Always disconnect the fuel line or relieve system pressure before testing to avoid spills or hazards. Use insulated tools and ensure the kit’s wires are securely connected to prevent short circuits. For vehicles with high-pressure fuel systems, such as direct injection models, consult the manufacturer’s guidelines to avoid damage. Proper usage not only safeguards the vehicle but also ensures accurate diagnostics, saving time and resources in the repair process.
Mastering FASS Fuel Pump Priming: A Step-by-Step Guide
You may want to see also
Explore related products
Installation Steps: Connect kit to battery and fuel pump for immediate power supply
A fuel pump hotwire kit is a simple yet effective tool designed to bypass the vehicle's complex wiring harness and directly connect the fuel pump to the battery, providing an immediate and reliable power supply. This setup is particularly useful in emergency situations, such as when the fuel pump relay fails or during diagnostic procedures. The installation process is straightforward, but it requires attention to detail to ensure safety and functionality.
Step-by-Step Installation Guide
- Gather the Components: Ensure you have all necessary parts of the hotwire kit, including the heavy-duty wire (typically 10-12 gauge), inline fuse holder (rated for 15-20 amps), and appropriate connectors. The inline fuse is critical to protect the circuit from overcurrent, which could damage the fuel pump or cause a fire.
- Locate the Fuel Pump Connector: Identify the fuel pump’s wiring harness connector, usually found near the fuel tank. This connector varies by vehicle make and model, so consult your vehicle’s manual or a repair guide if unsure. Disconnect the existing connector to isolate the fuel pump from the vehicle’s electrical system.
- Connect the Hotwire Kit: Strip the ends of the heavy-duty wire and attach one end to the positive terminal of the battery using a ring terminal or clamp. Secure the connection tightly to prevent voltage drops. Route the wire safely away from moving parts or hot surfaces. At the fuel pump end, splice the wire into the power feed wire of the fuel pump connector. Use heat shrink tubing or electrical tape to insulate the splice thoroughly.
- Install the Inline Fuse: Place the inline fuse holder between the battery and the fuel pump connection. This ensures that any electrical fault is contained, preventing damage to the fuel pump or wiring. Double-check that the fuse rating matches the fuel pump’s current draw, typically found in the vehicle’s specifications.
- Test the Setup: With the ignition on, activate the fuel pump by turning the key to the "on" position or using a dedicated switch if included in the kit. Listen for the fuel pump’s hum, which indicates proper operation. Verify fuel pressure at the engine using a gauge to ensure the pump is delivering fuel effectively.
Cautions and Practical Tips
Always disconnect the battery before beginning installation to prevent accidental short circuits. Avoid routing wires near exhaust components or sharp edges that could damage the insulation. If the fuel pump does not activate, check all connections for continuity and ensure the fuse is intact. For long-term use, consider adding a switch to control the fuel pump independently, enhancing safety and convenience.
Installing a fuel pump hotwire kit is a practical solution for bypassing complex electrical systems and ensuring immediate fuel pump operation. By following these steps and adhering to safety precautions, you can achieve a reliable setup suitable for emergency repairs or diagnostic testing. Always prioritize safety and consult vehicle-specific resources for accurate connector and wiring details.
Big Block vs. Small Block Fuel Pumps: Are They Interchangeable?
You may want to see also
Explore related products
Safety Precautions: Ensure vehicle is off, use insulated tools, and avoid sparks near fuel
Before attempting to hotwire a fuel pump, it's crucial to prioritize safety. Always ensure the vehicle is completely turned off, with the key removed from the ignition. This simple step eliminates the risk of accidental engine starts, which can lead to severe injuries or damage. Even a momentary lapse in attention can have catastrophic consequences, so make it a habit to double-check the vehicle's status before proceeding.
When working with electrical components, especially near fuel, the choice of tools is critical. Opt for insulated tools, such as screwdrivers and pliers with rubber or plastic grips, to minimize the risk of electrical shorts. These tools act as a barrier between you and the electrical current, reducing the likelihood of shocks or sparks. Keep in mind that even small sparks can ignite fuel vapors, so it's essential to use tools specifically designed for automotive electrical work.
In the context of fuel pump hotwiring, the environment plays a significant role in safety. Avoid working in areas with open flames, hot surfaces, or other potential ignition sources. Fuel is highly flammable, and its vapors can travel unseen, increasing the risk of fire or explosion. If you must work in a confined space, ensure proper ventilation to disperse fuel vapors. Consider using a portable fan or opening windows and doors to create airflow, but never rely on ventilation alone – always prioritize spark prevention.
To further minimize risks, follow a systematic approach when hotwiring a fuel pump. Begin by disconnecting the battery's negative terminal to eliminate any residual electrical current. Then, carefully inspect the fuel pump's wiring harness for damage or corrosion, as compromised wires can lead to shorts or sparks. When connecting the hotwire kit, ensure a secure and clean connection, free from frayed wires or exposed conductors. By taking these precautions, you can significantly reduce the likelihood of accidents and create a safer working environment.
In practice, this means adopting a cautious and methodical mindset. For instance, if you're working on a vehicle with a high-pressure fuel system, such as a modern direct-injection engine, exercise extra care. These systems operate at significantly higher pressures, increasing the risk of fuel injection-related injuries. Always refer to the vehicle's manual or consult a professional if you're unsure about the specific safety requirements. By combining insulated tools, a spark-free environment, and a systematic approach, you can safely and effectively utilize a fuel pump hotwire kit while minimizing risks to yourself and the vehicle.
Step-by-Step Guide to Installing an Aftermarket Polaris Fuel Pump
You may want to see also
Frequently asked questions
A fuel pump hotwire kit is a device used to bypass the vehicle's factory wiring and directly power the fuel pump from the battery, often used for testing, diagnostics, or temporary operation.
You would use a fuel pump hotwire kit when troubleshooting fuel delivery issues, testing a new or replacement fuel pump, or temporarily operating the pump without relying on the vehicle's existing wiring system.
Installing a fuel pump hotwire kit is relatively straightforward, requiring basic knowledge of automotive wiring. It typically involves connecting the kit to the battery and fuel pump terminals, but always follow the manufacturer's instructions.
If used incorrectly, a fuel pump hotwire kit could potentially cause damage, such as overloading the fuel pump or creating electrical issues. Always ensure proper connections and use the kit only as intended for short-term testing or diagnostics.
