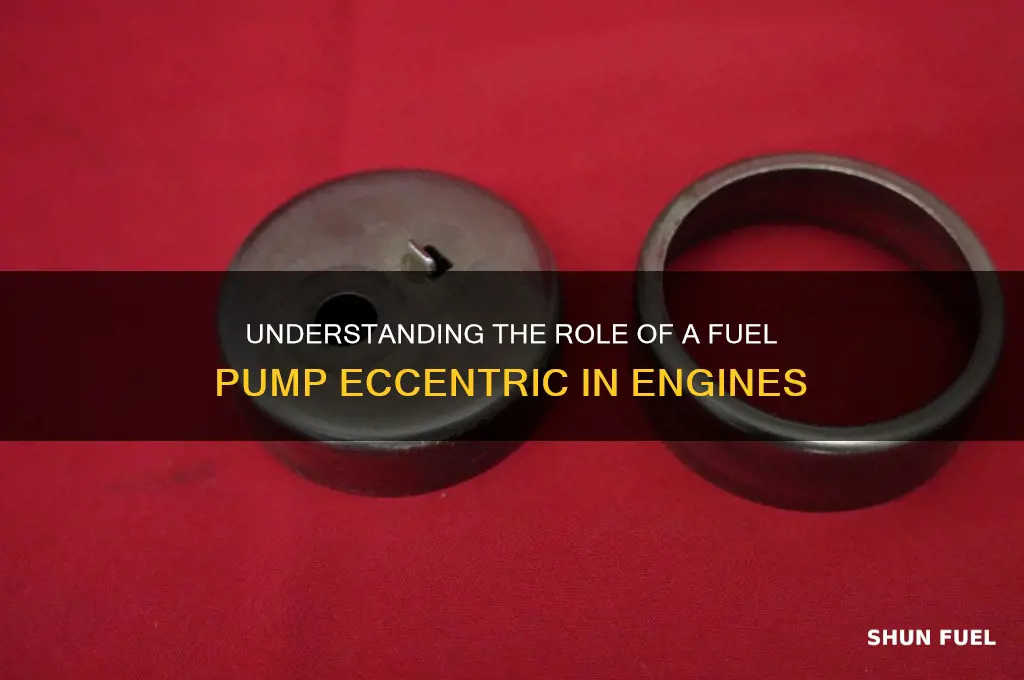

A fuel pump eccentric is a critical component in mechanical fuel pump systems, commonly found in older carbureted engines. It is a precisely machined, off-center (eccentric) lobe or cam that rotates within the fuel pump, driving a diaphragm or plunger to create suction and pressure. As the eccentric rotates, its off-center design causes the diaphragm or plunger to move up and down, drawing fuel from the tank and delivering it to the carburetor. This mechanism ensures a consistent and reliable fuel supply to the engine, making the eccentric a key element in the proper functioning of mechanical fuel pumps. Understanding its role and maintenance is essential for diagnosing and resolving fuel delivery issues in vintage or classic vehicles.
| Characteristics | Values |
|---|---|
| Definition | A fuel pump eccentric is a mechanical component in carbureted engines, typically found in older vehicles, that drives the fuel pump. It is an off-center (eccentric) lobe on the camshaft or a separate shaft, designed to actuate the fuel pump's diaphragm or plunger. |
| Function | Converts rotational motion from the camshaft into reciprocating motion to operate the fuel pump, ensuring fuel delivery from the tank to the carburetor. |
| Location | Mounted on the camshaft or a dedicated eccentric shaft, often near the fuel pump. |
| Material | Typically made of hardened steel or cast iron for durability and wear resistance. |
| Design | Eccentric lobe with an off-center axis, creating a rocking or linear motion when rotating. |
| Application | Commonly used in older carbureted engines (e.g., classic cars, motorcycles, small engines) before the widespread adoption of electric fuel pumps. |
| Advantages | Simple, reliable, and mechanically driven (no need for external power source). |
| Disadvantages | Limited to carbureted systems; not suitable for modern fuel-injected engines. Wear over time can affect fuel delivery. |
| Maintenance | Requires periodic inspection for wear or damage; may need replacement if the eccentric lobe becomes worn or misaligned. |
| Modern Relevance | Largely obsolete in contemporary vehicles but still used in restoration projects or vintage engines. |
Explore related products
What You'll Learn
- Eccentric Mechanism Basics: How the eccentric shaft drives the fuel pump's reciprocating motion
- Fuel Pump Types: Eccentric design differences in inline, distributor, and other pump types
- Wear and Failure: Common issues like eccentric shaft wear and its impact on performance
- Eccentric vs. Cam: Comparison of eccentric and cam-driven fuel pump mechanisms
- Maintenance Tips: Steps to inspect and maintain the fuel pump eccentric for longevity
Eccentric Mechanism Basics: How the eccentric shaft drives the fuel pump's reciprocating motion
The eccentric mechanism is a cornerstone of fuel pump operation, translating rotational motion into the reciprocating action necessary for fuel delivery. At its heart lies the eccentric shaft, a precisely engineered component with an off-center axis. This intentional asymmetry is the key to converting the engine's rotary motion into the linear movement required to drive the fuel pump's plunger or piston.
Imagine a circle drawn around a central point. Now, picture a smaller circle slightly offset from the center, its center point not aligned with the larger one. This smaller circle represents the eccentric shaft's rotation. As it spins, any point on its circumference traces an elliptical path, creating the reciprocating motion needed to draw fuel into the pump and then force it onward.
This mechanism's brilliance lies in its simplicity and reliability. Unlike gears or complex linkages, the eccentric design minimizes wear points and potential failure modes. The contact between the eccentric shaft and the pump's follower (the component that translates the motion) is typically a rolling contact, reducing friction and extending component life. This makes it ideal for the demanding environment of an engine bay, where vibrations, heat, and constant operation are the norm.
Crucial to the eccentric mechanism's effectiveness is precise engineering. The eccentricity, or the distance between the shaft's center and the offset axis, directly determines the stroke length of the fuel pump's plunger. This, in turn, dictates the volume of fuel delivered per cycle. Manufacturers carefully calculate this eccentricity to ensure the pump delivers the exact fuel quantity required by the engine under various operating conditions.
Understanding the eccentric mechanism's fundamentals is essential for diagnosing fuel pump issues. Unusual noises, such as a knocking or rattling sound, could indicate excessive wear in the eccentric shaft or follower. Reduced fuel pressure or engine performance may point to a worn eccentric lobe, resulting in diminished pump efficiency. Recognizing these symptoms and understanding the underlying mechanics empowers mechanics and enthusiasts alike to pinpoint problems and implement effective repairs.
