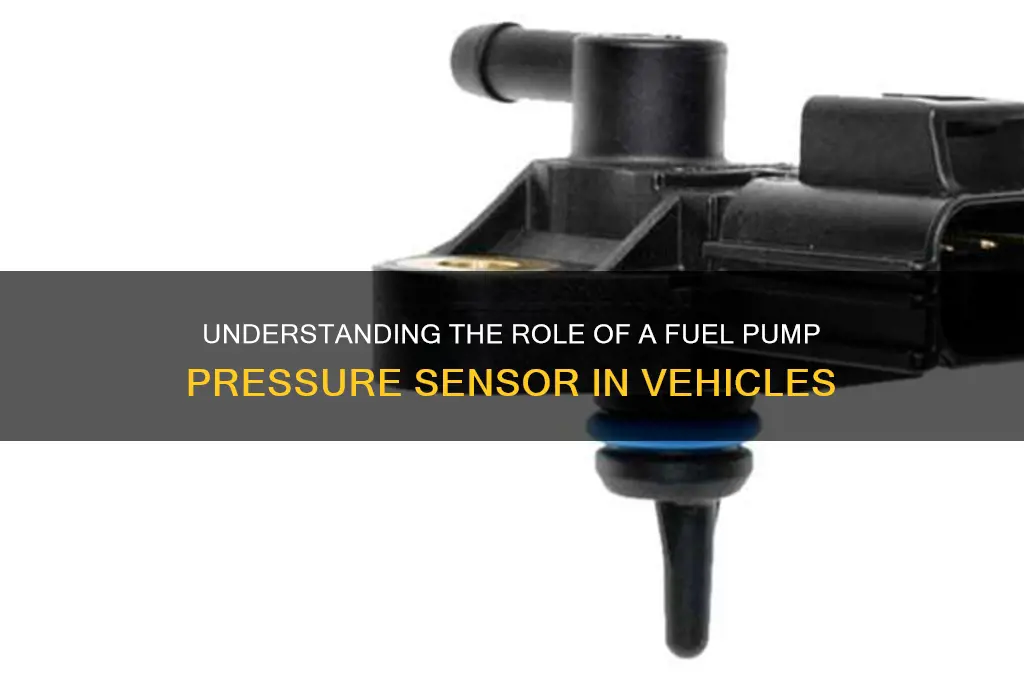

A fuel pump pressure sensor is a critical component in modern vehicle fuel systems, designed to monitor and regulate the pressure of fuel delivered to the engine. This sensor ensures optimal fuel efficiency, performance, and emissions by providing real-time data to the engine control unit (ECU). Located within the fuel system, it measures the pressure of fuel as it travels from the tank to the injectors, allowing the ECU to adjust fuel delivery based on driving conditions. Malfunctioning sensors can lead to issues such as poor engine performance, reduced fuel economy, or even engine stalling, making their proper functioning essential for vehicle reliability.
| Characteristics | Values |
|---|---|
| Definition | A fuel pump pressure sensor is a device that monitors the fuel pressure in the fuel system of an engine. |
| Primary Function | Measures fuel pressure to ensure optimal engine performance and efficiency. |
| Location | Typically installed in the fuel line, fuel rail, or near the fuel pump. |
| Type of Sensor | Piezoresistive or piezoelectric sensor, depending on the design. |
| Output Signal | Voltage or frequency signal proportional to the fuel pressure. |
| Operating Range | Varies by vehicle, typically 0 to 100 psi (0 to 6.89 bar). |
| Accuracy | ±1-3% of full scale, depending on the sensor quality. |
| Response Time | Typically < 10 milliseconds for accurate pressure readings. |
| Power Supply | Usually operates on 5V or 12V DC from the vehicle's electrical system. |
| Compatibility | Designed for specific fuel types (e.g., gasoline, diesel) and vehicle models. |
| Durability | Resistant to fuel contaminants, temperature fluctuations, and vibration. |
| Diagnostic Codes | Can trigger OBD-II trouble codes (e.g., P0087, P0088) if malfunctioning. |
| Maintenance | Generally maintenance-free but may require replacement if faulty. |
| Common Issues | Clogging, electrical failure, or inaccurate readings due to wear. |
| Cost | Varies by brand and vehicle, typically $50-$200 USD. |
| Importance | Critical for fuel injection systems, ensuring proper air-fuel mixture and engine performance. |
Explore related products
What You'll Learn
- Function: Measures fuel pressure in the system to ensure optimal engine performance
- Location: Typically found near the fuel pump or fuel rail
- Symptoms of Failure: Engine misfires, poor acceleration, or stalling due to incorrect pressure
- Types: Mechanical and electronic sensors are common in modern vehicles
- Maintenance: Regular checks prevent issues; replace if faulty to avoid engine damage
Function: Measures fuel pressure in the system to ensure optimal engine performance
The fuel pump pressure sensor is a critical component in modern vehicles, tasked with monitoring the fuel pressure within the system. This sensor ensures that the engine receives the correct amount of fuel at the right pressure, which is essential for efficient combustion and optimal performance. Without accurate pressure measurements, the engine may run too rich or too lean, leading to decreased fuel efficiency, increased emissions, and potential damage to engine components. For instance, in a typical gasoline direct injection (GDI) system, the fuel pressure can range from 200 to 2,000 psi, depending on the engine load and operating conditions. The sensor must provide precise readings within this range to maintain the delicate balance required for smooth operation.
Consider the process of diagnosing a malfunctioning fuel pump pressure sensor. If the sensor fails to deliver accurate data, the engine control unit (ECU) may compensate incorrectly, causing symptoms like rough idling, stalling, or poor acceleration. To troubleshoot, mechanics often use a digital multimeter to check the sensor’s voltage output, which should correlate with the fuel pressure. For example, a sensor in a 3.5L V6 engine might output 0.5 volts at 40 psi and 4.5 volts at 70 psi. If the readings deviate, the sensor may need replacement. Regular maintenance, such as cleaning the sensor’s electrical contacts and ensuring the fuel filter is not clogged, can prevent such issues and extend the sensor’s lifespan.
From a comparative perspective, the fuel pump pressure sensor’s role is akin to a thermostat in a home heating system. Just as a thermostat adjusts the temperature to maintain comfort, the pressure sensor adjusts fuel delivery to optimize engine performance. However, unlike a thermostat, which operates in a relatively stable environment, the pressure sensor must function under extreme conditions, including high temperatures and vibrations. This demands robust construction and materials, such as stainless steel diaphragms and sealed electronics, to withstand these challenges. Modern sensors often incorporate advanced technologies like microelectromechanical systems (MEMS) for enhanced accuracy and durability.
Persuasively, investing in a high-quality fuel pump pressure sensor is a wise decision for any vehicle owner. While aftermarket sensors may be cheaper, they often lack the precision and reliability of OEM (original equipment manufacturer) parts. A subpar sensor can lead to frequent repairs and higher long-term costs. For example, a premium sensor in a diesel engine might cost $150 but ensures consistent performance over 100,000 miles, whereas a $50 aftermarket alternative may fail within 30,000 miles. Additionally, using the correct sensor for your vehicle’s make and model is crucial, as compatibility issues can void warranties and compromise safety. Always consult the vehicle’s manual or a trusted mechanic to make an informed choice.
Finally, understanding the fuel pump pressure sensor’s function empowers drivers to recognize early warning signs of failure. Unusual noises from the fuel tank, erratic fuel gauge readings, or a check engine light are common indicators. For preventive care, monitor fuel consumption and address any sudden changes promptly. In colder climates, ensure the fuel system is insulated to prevent pressure fluctuations due to temperature extremes. By staying proactive and informed, vehicle owners can maintain optimal engine performance and avoid costly repairs, ensuring their vehicle remains reliable and efficient for years to come.
Locate the Fuel Pump on Your 2000 Sea-Doo GTI Easily
You may want to see also
Explore related products
Location: Typically found near the fuel pump or fuel rail
The fuel pump pressure sensor's location is a strategic choice, often nestled in close proximity to the fuel pump or fuel rail. This positioning is not arbitrary; it's a deliberate design decision that ensures the sensor can accurately monitor the fuel system's pressure. In modern vehicles, where precision is paramount, this placement allows for real-time data collection, enabling the engine control unit (ECU) to make instantaneous adjustments. For instance, in high-performance engines, the sensor's location near the fuel rail facilitates rapid response to pressure fluctuations, ensuring optimal fuel delivery during aggressive acceleration or high-load conditions.
From an installation perspective, locating the sensor near the fuel pump or rail simplifies the wiring and plumbing process. Technicians and DIY enthusiasts alike appreciate this design, as it reduces the complexity of retrofitting or replacing the sensor. When installing a new sensor, ensure the wiring harness is routed away from hot surfaces and securely connected to the ECU. A common mistake is to overlook the sensor's orientation; always align it according to the manufacturer's specifications to prevent inaccurate readings. For vehicles with return-style fuel systems, the sensor is typically placed on the fuel rail to monitor pressure before distribution to the injectors.
A comparative analysis reveals that the location of the fuel pump pressure sensor differs slightly between gasoline and diesel engines. In gasoline engines, the sensor is usually mounted on the fuel rail, providing a direct measurement of the fuel pressure supplied to the injectors. Diesel engines, however, often position the sensor near the fuel pump due to the higher pressures involved. This distinction highlights the importance of understanding the specific fuel system architecture when diagnosing or replacing the sensor. For example, diesel fuel systems operating at 20,000-30,000 psi require sensors designed to withstand these extreme pressures, whereas gasoline systems typically operate at 40-60 psi.
Consider a scenario where a vehicle exhibits symptoms of fuel pressure irregularities, such as rough idling or poor acceleration. The first step in diagnosis is to locate the fuel pump pressure sensor, typically near the fuel pump or rail. Using a digital multimeter, measure the sensor's output voltage while the engine is running. Compare the readings to the manufacturer's specifications; deviations may indicate a faulty sensor or issues within the fuel system. If replacement is necessary, choose a sensor with the correct pressure range and ensure compatibility with your vehicle's fuel type. Always consult the vehicle's service manual for specific torque values and safety precautions when removing or installing components near the fuel system.
In practical terms, understanding the sensor's location can save time and prevent misdiagnosis. For instance, if a vehicle with a return-style fuel system shows low pressure readings, inspect the sensor's connection at the fuel rail before suspecting a failing fuel pump. Similarly, in vehicles with in-tank fuel pumps, the sensor's proximity to the pump allows for quick checks of the pump's output pressure. Regular maintenance, such as cleaning the sensor's electrical contacts and inspecting for fuel leaks, can extend its lifespan. By familiarizing yourself with the sensor's location and function, you can approach fuel system issues with confidence and precision.
How Motors Draw Gas Without a Fuel Pump: Alternative Methods Explained
You may want to see also
Explore related products
Symptoms of Failure: Engine misfires, poor acceleration, or stalling due to incorrect pressure
A fuel pump pressure sensor is a critical component in modern vehicles, ensuring the engine receives the correct amount of fuel at the right pressure. When this sensor fails, the consequences can be immediate and noticeable, often manifesting as engine misfires, poor acceleration, or stalling. These symptoms are not just inconvenient; they can indicate a serious issue that requires prompt attention. Understanding these signs can help vehicle owners diagnose problems early and prevent further damage.
Engine misfires are one of the most common symptoms of a failing fuel pump pressure sensor. When the sensor fails to accurately measure fuel pressure, the engine control unit (ECU) may deliver an incorrect air-fuel mixture to the cylinders. This imbalance can cause the engine to misfire, resulting in a noticeable jerking or shaking sensation while driving. For example, a vehicle with a malfunctioning sensor might misfire under load, such as during acceleration or while climbing a hill. If left unaddressed, repeated misfires can damage spark plugs, catalytic converters, or even the engine itself.
Poor acceleration is another telltale sign of incorrect fuel pressure. When the sensor fails, the fuel pump may not deliver enough pressure to meet the engine’s demands, particularly during high-load situations. This can make the vehicle feel sluggish or unresponsive, even when the accelerator pedal is fully depressed. For instance, a driver might notice a significant delay in speed increase when merging onto a highway or overtaking another vehicle. This symptom is often accompanied by a whining noise from the fuel tank, indicating the pump is struggling to maintain pressure.
Stalling is perhaps the most alarming symptom of a failing fuel pump pressure sensor. If the sensor sends inaccurate data, the ECU may cut off fuel delivery entirely, causing the engine to stall unexpectedly. This can happen at idle, during deceleration, or even while driving at constant speeds. For safety, drivers should pay attention to warning signs like the engine sputtering or the fuel gauge fluctuating before a stall occurs. In extreme cases, a vehicle may refuse to start altogether, as the fuel system fails to build adequate pressure during ignition.
To address these issues, vehicle owners should monitor their car’s performance and respond to symptoms promptly. If misfires, poor acceleration, or stalling occur, a diagnostic scan tool can help identify error codes related to fuel pressure. In some cases, cleaning or replacing the fuel pump pressure sensor may resolve the problem. However, if the fuel pump itself is failing, a complete replacement may be necessary. Regular maintenance, such as fuel filter changes every 30,000 miles, can also prevent sensor failure by ensuring clean fuel reaches the system. Ignoring these symptoms not only risks further damage but also compromises safety on the road.
Understanding the Yamaha G1 Fuel Pump: Functionality and Operation Explained
You may want to see also
Explore related products
Types: Mechanical and electronic sensors are common in modern vehicles
Modern vehicles rely on fuel pump pressure sensors to maintain optimal engine performance, and understanding the types of sensors involved is crucial for diagnostics and maintenance. Mechanical sensors, often found in older systems, operate through physical mechanisms like diaphragms or springs to measure fuel pressure. These sensors are robust and straightforward, typically requiring less electrical integration, but they may lack the precision needed for advanced fuel injection systems. For instance, a mechanical sensor might activate a warning light when pressure drops below 30 psi, a common threshold for carbureted engines.
In contrast, electronic sensors dominate contemporary vehicles due to their accuracy and adaptability. These sensors use piezoelectric or resistive elements to convert pressure changes into electrical signals, which the engine control unit (ECU) interprets. For example, a modern electronic sensor can detect pressure variations as small as 0.5 psi, ensuring precise fuel delivery in direct injection systems. This level of detail is essential for meeting emissions standards and improving fuel efficiency, especially in turbocharged or hybrid engines.
Choosing between mechanical and electronic sensors depends on the vehicle’s age, design, and performance requirements. For classic cars or carbureted engines, a mechanical sensor may suffice, offering reliability without the complexity of electronic systems. However, for vehicles with electronic fuel injection (EFI), an electronic sensor is non-negotiable. Upgrading an older vehicle to an electronic sensor can enhance performance but requires compatibility checks and professional installation to ensure proper calibration with the ECU.
Maintenance and troubleshooting differ significantly between the two types. Mechanical sensors are prone to wear from physical stress, such as diaphragm fatigue or spring corrosion, and often require replacement after 100,000 miles. Electronic sensors, while more durable, can fail due to electrical issues like short circuits or signal interference. A practical tip for diagnosing electronic sensor issues is to use a multimeter to check voltage output; a reading outside the manufacturer’s specified range (typically 0.5–4.5 volts) indicates a problem.
In summary, mechanical and electronic fuel pump pressure sensors each have their place in automotive technology. While mechanical sensors offer simplicity and durability for basic systems, electronic sensors provide the precision and adaptability required for modern engines. Understanding their differences ensures informed decisions in maintenance, upgrades, and repairs, ultimately contributing to a vehicle’s longevity and performance.
Locating the Fuel Pump in a 2001 Mitsubishi Mirage
You may want to see also
Explore related products
Maintenance: Regular checks prevent issues; replace if faulty to avoid engine damage
A fuel pump pressure sensor is a critical component in modern vehicles, ensuring the engine receives the correct amount of fuel at the right pressure. Over time, this sensor can wear out or malfunction, leading to performance issues or even engine damage. Regular maintenance is not just a recommendation—it’s a necessity. Ignoring this component can result in poor fuel efficiency, rough idling, or stalling, all of which are symptoms of a system struggling to maintain optimal pressure.
To prevent these issues, incorporate routine checks into your vehicle’s maintenance schedule. Start by consulting your car’s manual for the recommended inspection intervals, typically every 30,000 to 50,000 miles. During these checks, use a fuel pressure gauge to verify the sensor’s readings against the manufacturer’s specifications. For example, a gasoline engine might require fuel pressure between 30 and 60 PSI, while diesel engines often operate at higher ranges. Discrepancies here signal a potential problem.
Replacing a faulty fuel pump pressure sensor is straightforward but requires precision. Begin by relieving the fuel system pressure and disconnecting the battery to avoid accidents. Locate the sensor, often found near the fuel pump or fuel rail, and remove it using the appropriate tools. Install the new sensor, ensuring all connections are secure and seals are intact. After replacement, test the system by starting the engine and monitoring pressure levels. If you’re unsure, consult a professional to avoid costly mistakes.
The cost of neglect far outweighs the effort of maintenance. A failing sensor can lead to excessive fuel consumption, increased emissions, or even catastrophic engine failure. For instance, prolonged low fuel pressure can cause the engine to run lean, overheating components like pistons or valves. Conversely, high pressure can flood the engine, leading to misfires or hydrostatic lock. Regular checks and timely replacements are small investments compared to the expense of repairing a damaged engine.
Finally, consider environmental and safety factors. A malfunctioning fuel pump pressure sensor can contribute to higher emissions, harming both your vehicle’s efficiency and the environment. Additionally, fuel leaks caused by pressure irregularities pose a fire hazard. By staying proactive with maintenance, you not only protect your vehicle but also contribute to safer, more sustainable driving practices. Treat this component with the attention it deserves—your engine will thank you.
Locating the Fuel Pump on a C7 Caterpillar Engine: A Guide
You may want to see also
Frequently asked questions
A fuel pump pressure sensor is a device that monitors the fuel pressure within the fuel system of a vehicle, ensuring it operates within the optimal range for efficient engine performance.
The sensor measures the fuel pressure by detecting changes in resistance or voltage, which it then sends as a signal to the engine control unit (ECU) to adjust fuel delivery accordingly.
Symptoms include poor engine performance, reduced fuel efficiency, difficulty starting the engine, and illumination of the check engine light on the dashboard.
Yes, if left unaddressed, a faulty sensor can lead to improper fuel delivery, causing engine misfires, overheating, or even catastrophic damage over time.
Replacement involves locating the sensor (often near the fuel pump or fuel rail), disconnecting the electrical connector, removing the old sensor, and installing the new one, ensuring proper sealing to prevent fuel leaks.
