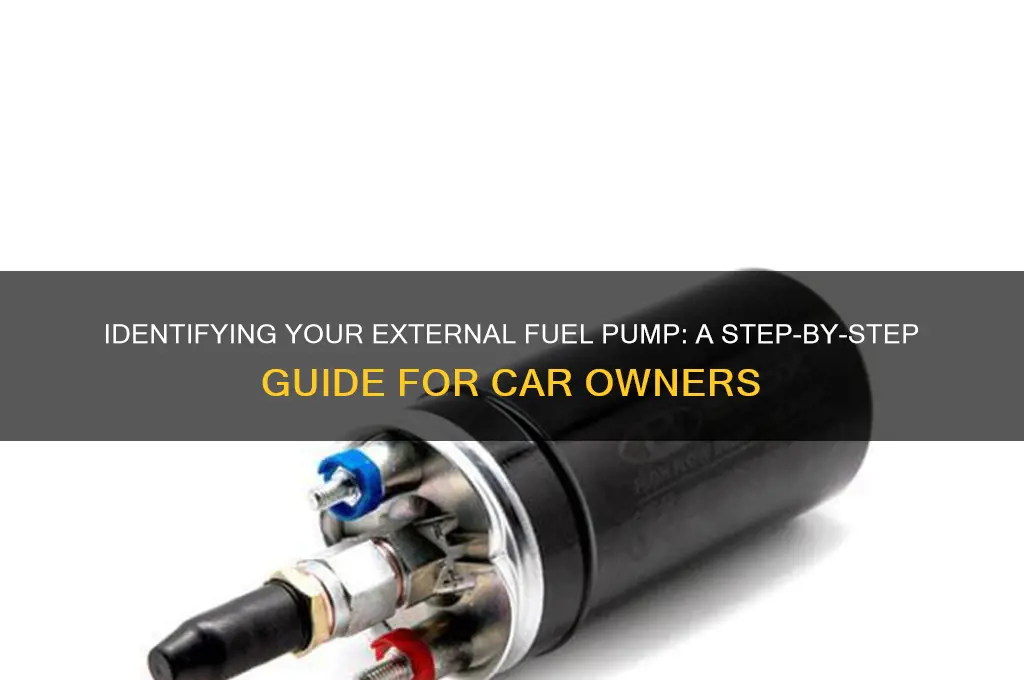

Identifying your external fuel pump is crucial for maintenance, troubleshooting, or replacement, and it begins with understanding its location and appearance. Typically, external fuel pumps are mounted outside the fuel tank, often near the tank or along the fuel lines, and are usually cylindrical or rectangular in shape. To locate it, consult your vehicle’s manual for specific placement details, as it varies by make and model. Visually inspect the pump for labels or markings indicating the manufacturer or part number, which can help confirm its identity. Additionally, check for connections such as fuel lines, electrical wires, and mounting brackets, as these are distinctive features of an external fuel pump. If unsure, compare it with reference images or seek professional assistance to ensure accurate identification.
| Characteristics | Values |
|---|---|
| Location | Typically mounted outside the fuel tank, often near the tank or along the fuel line. |
| Shape and Size | Varies by manufacturer; common shapes include cylindrical or rectangular. Size depends on vehicle make/model. |
| Mounting | Usually secured with brackets or straps to the vehicle chassis or frame. |
| Inlet and Outlet Ports | Has clearly marked fuel inlet and outlet ports for fuel line connections. |
| Electrical Connector | Equipped with a wiring harness connector for power supply and control. |
| Manufacturer Label | Often has a label or stamp indicating the manufacturer, part number, and sometimes the vehicle compatibility. |
| Noise Level | Audible humming or whirring sound when the ignition is on (normal operation). |
| Pressure Rating | Specified pressure output (e.g., 30-60 PSI) depending on the vehicle's fuel system requirements. |
| Material | Typically made of durable materials like aluminum or plastic for corrosion resistance. |
| Compatibility | Specific to vehicle make, model, and year; check the vehicle manual or part number for confirmation. |
| Accessories | May include a fuel filter or pressure regulator integrated into the pump assembly. |
| Replacement Indicators | Symptoms like engine sputtering, difficulty starting, or no fuel pressure indicate a faulty pump. |
Explore related products
What You'll Learn
- Pump Location: Check under the vehicle near the fuel tank for the pump assembly
- Pump Noise: Listen for a humming sound near the fuel tank when ignition is on
- Fuel Pressure Test: Use a gauge to measure pressure at the fuel rail for pump functionality
- Visual Inspection: Look for fuel lines, electrical connectors, and the pump module near the tank
- Symptoms of Failure: Note engine sputtering, stalling, or difficulty starting as signs of a faulty pump
Pump Location: Check under the vehicle near the fuel tank for the pump assembly
One of the most straightforward ways to identify your external fuel pump is by locating it under the vehicle near the fuel tank. This is a common placement across many vehicle models, designed for accessibility during maintenance. Start by parking your vehicle on a flat surface, engaging the parking brake, and allowing the engine to cool. Use a jack to safely lift the vehicle and secure it on stands. Once underneath, look for a cylindrical or rectangular assembly attached to or near the fuel tank. This is likely your fuel pump module, which often includes the pump, sending unit, and filter.
Analyzing the pump’s location reveals its functional design. Positioning the pump near the fuel tank minimizes the distance fuel must travel, reducing the risk of vapor lock and ensuring consistent fuel delivery. In older vehicles, the pump may be mounted directly on the tank, while newer models often integrate it into a single module. If you’re unsure, consult your vehicle’s manual or a repair guide for a diagram specific to your make and model. This step is crucial, as misidentifying the pump can lead to unnecessary work or damage.
For a hands-on approach, follow these steps: After locating the pump assembly, inspect it for signs of wear, such as cracks, leaks, or corrosion. Gently tap the tank area with a rubber mallet while someone starts the vehicle; if the pump is faulty, you may hear unusual noises or experience starting issues. If you suspect a problem, disconnect the fuel lines (after relieving pressure) and test the pump’s output using a pressure gauge. Always prioritize safety by working in a well-ventilated area and avoiding open flames or sparks.
Comparatively, internal fuel pumps (located inside the tank) are less accessible and require tank removal for inspection. External pumps, however, offer the advantage of easier diagnosis and replacement. For instance, a Ford F-150 typically has an external pump mounted beneath the driver’s side, while a Honda Civic’s pump is often integrated into the tank. Understanding these differences ensures you approach the task with the right tools and expectations, saving time and frustration.
Finally, a practical tip: If you’re still unsure, trace the fuel lines from the engine compartment to the tank. The pump is usually the first component after the tank, ensuring fuel is pressurized before reaching the engine. For added clarity, take a photo of the assembly before proceeding with any work. This visual reference can help you reassemble components correctly or compare with online resources. Identifying your external fuel pump correctly is the first step toward troubleshooting or maintenance, making this under-vehicle inspection a valuable skill for any vehicle owner.
