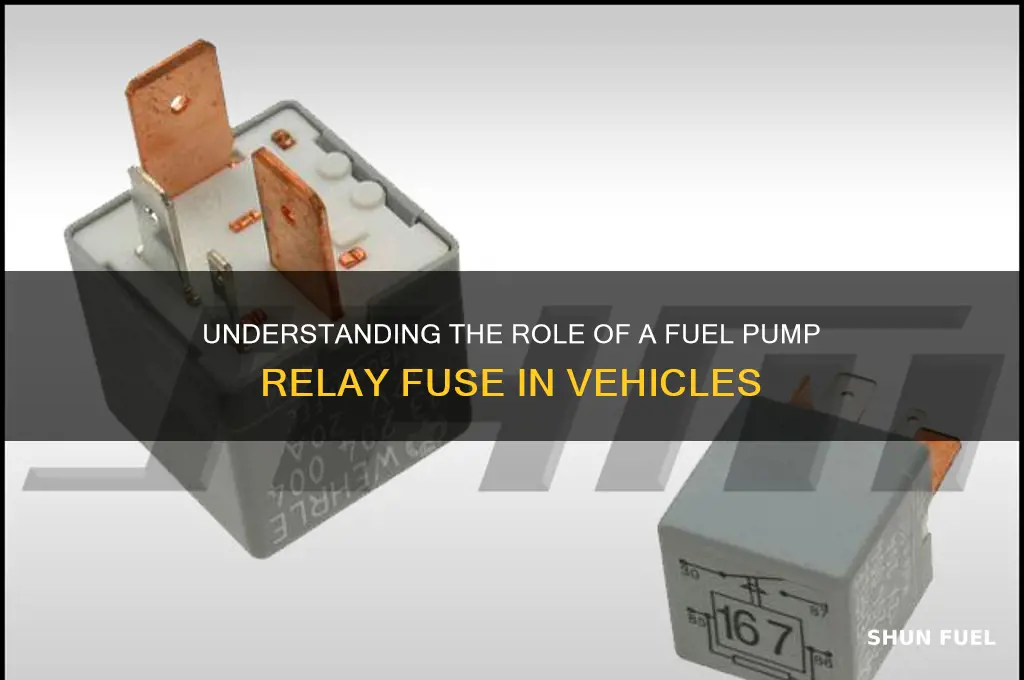

A fuel pump relay fuse is a critical component in a vehicle's fuel system, acting as a safeguard to protect the fuel pump relay from electrical overloads or short circuits. This small yet essential fuse is typically located in the fuse box and is designed to interrupt the electrical circuit if excessive current flows through the fuel pump relay, preventing potential damage to the relay or the fuel pump itself. By ensuring the proper functioning of the fuel pump relay, the fuse plays a vital role in maintaining consistent fuel delivery to the engine, which is crucial for the vehicle's performance and reliability. Understanding the function and location of the fuel pump relay fuse is important for troubleshooting fuel system issues and performing routine maintenance.
| Characteristics | Values |
|---|---|
| Definition | A fuel pump relay fuse is a protective device that safeguards the fuel pump relay circuit from electrical overloads or short circuits. |
| Function | Prevents excessive current from damaging the fuel pump relay or wiring. |
| Location | Typically found in the fuse box (under the hood or inside the cabin). |
| Rating (Amperage) | Varies by vehicle, commonly rated between 10A to 30A. |
| Type | Blade-type fuse (e.g., ATC, ATM, or mini fuse). |
| Role in Fuel System | Ensures the fuel pump relay operates safely and reliably. |
| Symptoms of Failure | Engine not starting, fuel pump not running, or intermittent fuel delivery. |
| Diagnosis | Check for blown fuse, continuity, or proper voltage supply. |
| Replacement | Replace with the same amperage and type as specified by the manufacturer. |
| Related Components | Fuel pump relay, fuel pump, ECU (Engine Control Unit), wiring harness. |
| Importance | Critical for maintaining fuel system functionality and vehicle operation. |
Explore related products
What You'll Learn
- Fuel Pump Relay Function: Controls power to the fuel pump, ensuring it operates only when the engine is running
- Fuse Role in Circuit: Protects the fuel pump relay and wiring from electrical overloads or short circuits
- Symptoms of Failure: Engine stalling, no start condition, or fuel pump not priming due to faulty relay or fuse
- Location and Testing: Typically found in the fuse box; tested using a multimeter for continuity and voltage
- Replacement and Maintenance: Replace with correct amperage fuse; inspect relay and wiring for damage during maintenance
Fuel Pump Relay Function: Controls power to the fuel pump, ensuring it operates only when the engine is running
The fuel pump relay is a critical component in modern vehicles, acting as the gatekeeper for power delivery to the fuel pump. Its primary function is to ensure the fuel pump operates only when the engine is running or about to start, optimizing efficiency and safety. Without this relay, the fuel pump could run continuously, wasting energy and increasing the risk of fuel system issues. This mechanism is particularly vital in vehicles with electronic fuel injection systems, where precise fuel delivery is essential for performance and emissions control.
Consider the relay as a switch that responds to signals from the engine control unit (ECU). When you turn the ignition key, the ECU sends a signal to the relay, allowing power to flow to the fuel pump. Once the engine starts, the relay keeps the circuit open, maintaining fuel delivery. If the engine stalls or is turned off, the relay cuts power, stopping the fuel pump immediately. This process prevents fuel from being unnecessarily pressurized in the system, reducing the risk of leaks or over-enrichment during idle periods.
From a maintenance perspective, understanding the fuel pump relay’s role is crucial for diagnosing fuel system issues. A faulty relay can cause symptoms like hard starting, stalling, or no-start conditions. For instance, if the relay fails to close, the fuel pump won’t receive power, resulting in a lack of fuel pressure. Conversely, if the relay remains stuck closed, the fuel pump may run continuously, draining the battery and overheating the pump. Testing the relay involves checking for continuity with a multimeter or swapping it with a known-good unit to isolate the problem.
Comparing the fuel pump relay to other electrical components highlights its unique role. Unlike a fuse, which protects circuits from overcurrent, the relay actively controls power flow based on operational conditions. Similarly, while a fuel pump switch (found in older vehicles) manually activates the pump, the relay automates this process, integrating it with the ECU’s logic. This automation ensures the fuel pump operates seamlessly with other engine systems, enhancing reliability and performance.
In practical terms, knowing the relay’s location can save time during troubleshooting. Most vehicles place the fuel pump relay in the under-hood fuse/relay box or near the ECU. Consult your vehicle’s manual for exact placement. If you suspect a relay issue, inspect it for signs of corrosion, melting, or loose connections. Replacing a faulty relay is typically straightforward, requiring no specialized tools, but always verify compatibility with your vehicle’s make and model. By understanding and maintaining this component, you can ensure your fuel system operates efficiently and safely.
Locating the Fuel Pump on a 1994 Ford Ranger: A Guide
You may want to see also
Explore related products
Fuse Role in Circuit: Protects the fuel pump relay and wiring from electrical overloads or short circuits
A fuel pump relay fuse is a critical component in a vehicle's electrical system, specifically designed to safeguard the fuel pump relay and associated wiring from electrical overloads or short circuits. This small yet vital device acts as a sacrificial component, interrupting the circuit when excessive current flows, thereby preventing potential damage to more expensive and complex parts of the system. Without this fuse, a short circuit or overload could lead to melted wires, a fried relay, or even a fire, compromising the vehicle's safety and performance.
Consider the fuel pump relay as the middleman between the vehicle’s battery and the fuel pump, ensuring the pump operates only when the engine is running. The fuse, typically rated for a specific amperage (e.g., 15–20 amps for most passenger vehicles), is strategically placed in the circuit to monitor current flow. If the current exceeds the fuse’s rating—say, due to a short circuit in the wiring harness—the fuse’s internal element melts, breaking the circuit and halting the flow of electricity. This immediate response prevents catastrophic damage, allowing the issue to be diagnosed and repaired without further risk.
To illustrate, imagine a scenario where a rodent chews through the fuel pump wiring, creating a direct path for current to flow unchecked. Without the fuse, this short circuit could cause the wiring to overheat, potentially igniting nearby components. However, with the fuse in place, the excessive current triggers the fuse to blow, cutting power to the circuit before any significant damage occurs. This protective mechanism not only saves the fuel pump relay and wiring but also ensures the driver’s safety by preventing electrical fires.
Practical maintenance tips underscore the importance of this component. Always replace a blown fuse with one of the exact same amperage rating; using a higher-rated fuse defeats its protective purpose, while a lower-rated fuse may blow prematurely under normal operating conditions. Additionally, inspect the fuse and its surrounding wiring during routine vehicle checks, especially if you notice symptoms like a non-starting engine or erratic fuel pump operation. A blown fuse is often the first indicator of an underlying electrical issue that requires attention.
In summary, the fuel pump relay fuse is a silent guardian in the vehicle’s electrical system, playing a pivotal role in protecting the fuel pump relay and wiring from overloads and short circuits. Its design ensures that minor electrical faults do not escalate into major failures, making it an indispensable safety feature. Understanding its function and maintaining it properly can save both time and money, while also enhancing the overall reliability of the vehicle.
Testing Fuel Pump Relay R6: Step-by-Step Guide for Accurate Diagnosis
You may want to see also
Explore related products
Symptoms of Failure: Engine stalling, no start condition, or fuel pump not priming due to faulty relay or fuse
A vehicle's fuel pump relay fuse is a critical component in the fuel delivery system, acting as a switch that controls power to the fuel pump. When this fuse fails, it can lead to a cascade of issues that directly impact the engine's performance. One of the most immediate symptoms of a faulty fuel pump relay fuse is engine stalling. This occurs because the fuel pump intermittently loses power, causing an inconsistent fuel supply to the engine. For instance, you might notice the engine sputtering or losing power during acceleration or while idling, especially under load or at high speeds. This symptom is often misdiagnosed as a carburetor or ignition problem, but the root cause lies in the disrupted fuel flow due to the failing relay or fuse.
Another telltale sign of a faulty fuel pump relay fuse is a no start condition. When the relay or fuse fails completely, the fuel pump receives no power, preventing it from delivering fuel to the engine. This results in a vehicle that cranks but refuses to start, leaving drivers stranded. A quick diagnostic step is to listen for the fuel pump priming sound when turning the ignition key to the "on" position. If the pump doesn’t make its usual humming noise, the relay or fuse is a likely culprit. This issue is particularly frustrating because it mimics symptoms of a dead battery or faulty starter, leading to unnecessary repairs if not properly diagnosed.
A less obvious but equally critical symptom is the fuel pump not priming. Priming is the process where the fuel pump builds pressure in the fuel lines before the engine starts. If the relay or fuse is faulty, the pump may not prime at all, or it may do so inconsistently. This can lead to extended cranking times before the engine starts or, in severe cases, prevent the engine from starting altogether. Mechanics often use a fuel pressure gauge to test for this issue, but car owners can perform a preliminary check by cycling the ignition key on and off a few times to see if the pump engages. If it doesn’t, the relay or fuse should be inspected immediately.
To address these symptoms, start by locating the fuel pump relay fuse in the vehicle’s fuse box, typically found under the hood or near the dashboard. Consult the owner’s manual for the exact location and fuse rating (commonly 10–20 amps). Use a multimeter to test the fuse for continuity; a broken circuit indicates a blown fuse. If the fuse is intact, swap the fuel pump relay with a similar one in the fuse box to see if the issue resolves, as relays can fail without showing physical damage. Replacing a faulty fuse or relay is a straightforward fix, costing only a few dollars, but ignoring these symptoms can lead to more expensive repairs or safety hazards on the road. Always carry spare fuses and a multimeter in your vehicle for quick diagnostics.
Understanding Mikuni Single Fuel Pump: Mechanism, Function, and Operation Explained
You may want to see also
Explore related products
Location and Testing: Typically found in the fuse box; tested using a multimeter for continuity and voltage
The fuel pump relay fuse is a critical component in your vehicle's electrical system, often tucked away in the fuse box. This unassuming part plays a pivotal role in ensuring your engine receives the necessary fuel for operation. Locating it is the first step in troubleshooting potential issues. Most vehicles have the fuse box situated under the dashboard or in the engine compartment, with a diagram on the cover indicating the position of each fuse. Identifying the fuel pump relay fuse is straightforward once you consult your vehicle's manual, which provides a detailed layout of the fuse box.
Testing this fuse requires a multimeter, a versatile tool for diagnosing electrical problems. Begin by setting the multimeter to the continuity or resistance mode. With the ignition off, remove the fuel pump relay fuse and place one probe on each terminal. A reading of zero or near zero indicates a functioning fuse, while a high resistance reading suggests a break in the circuit. This simple test can save you from unnecessary part replacements and pinpoint the issue accurately.
Voltage testing is another crucial step in assessing the fuel pump relay fuse. Switch the multimeter to the voltage setting and turn the ignition to the "on" position without starting the engine. Place the probes on the fuse terminals; a reading within the specified range (typically 12-14 volts) confirms proper voltage supply. If the reading is low or non-existent, it may indicate a faulty fuse or an issue with the wiring harness. This methodical approach ensures you diagnose the problem correctly before proceeding with repairs.
For those new to automotive diagnostics, it’s essential to exercise caution. Always disconnect the battery before working with electrical components to prevent short circuits. Keep a record of your findings, as this can be invaluable for future reference or when consulting a mechanic. Understanding the location and testing procedures for the fuel pump relay fuse empowers you to address fuel system issues confidently, potentially saving time and money on repairs. With practice, these steps become second nature, making you more adept at maintaining your vehicle’s performance.
Understanding Fuel Pump Exports: Key Components and Global Trade Insights
You may want to see also
Explore related products
Replacement and Maintenance: Replace with correct amperage fuse; inspect relay and wiring for damage during maintenance
A blown fuel pump relay fuse can leave you stranded, as it cuts power to the fuel pump, starving the engine of fuel. When replacing this fuse, precision is critical: always use a fuse with the correct amperage rating, typically found in the vehicle’s manual or on the fuse box cover. Using a higher-amperage fuse may bypass the protective function, risking electrical damage or fire, while a lower-amperage fuse will likely blow again immediately. Keep a set of commonly used fuses in your vehicle for quick replacements, ensuring they match the original specifications.
During maintenance, inspecting the fuel pump relay and its wiring is as vital as replacing the fuse. Start by checking the relay for signs of overheating, such as discoloration or melting, which could indicate an underlying electrical issue. Test the relay’s functionality by swapping it with a similar relay in the fuse box (e.g., the horn relay) to see if the problem persists. Next, examine the wiring harness for frayed or corroded wires, particularly near the fuel tank and engine bay, where exposure to heat and moisture is common. A multimeter can help verify continuity in the circuit, ensuring power flows uninterrupted to the fuel pump.
Practical maintenance tips include cleaning fuse contacts with a wire brush to remove corrosion, which can cause intermittent power loss. If the fuse blows repeatedly, investigate the fuel pump itself for excessive current draw, often caused by a failing pump motor or clogged fuel filter. For older vehicles (typically over 10 years), consider upgrading the wiring harness to a higher-gauge wire to handle modern fuel pump demands better. Always disconnect the battery before working on the electrical system to prevent short circuits.
Comparing the fuel pump relay fuse to other fuses highlights its unique role: it’s not just a safety device but a critical link in the fuel delivery system. Unlike accessory fuses, which protect non-essential systems, the fuel pump fuse directly impacts drivability. Regularly inspecting this fuse and its associated components during routine maintenance (e.g., oil changes) can prevent unexpected failures. For DIY enthusiasts, investing in a fuse puller and a basic multimeter is a small cost that pays off in diagnostic efficiency and peace of mind.
In conclusion, replacing a fuel pump relay fuse is a straightforward task, but it requires attention to detail and a proactive approach to maintenance. By using the correct amperage fuse, inspecting the relay and wiring, and addressing underlying issues, you can ensure reliable fuel delivery and avoid costly repairs. Treat this component as a gateway to your vehicle’s performance, deserving of the same care as the engine or transmission.
Choosing the Right Gauge Wire for Your LS1 Fuel Pump Upgrade
You may want to see also
Frequently asked questions
A fuel pump relay fuse is a protective device in a vehicle's electrical system that safeguards the fuel pump relay from electrical overloads or short circuits. It ensures the relay operates safely and prevents damage to the fuel pump and related components.
The fuel pump relay fuse is typically located in the vehicle's fuse box, which can be found under the hood, in the cabin, or near the driver's side dashboard. Refer to the owner’s manual for the exact location.
If the fuel pump relay fuse blows, the fuel pump relay will not receive power, causing the fuel pump to stop working. This results in the engine not starting or stalling due to lack of fuel delivery.
To replace a fuel pump relay fuse, locate the fuse box, identify the correct fuse using the diagram, remove the blown fuse with a fuse puller or pliers, and insert a new fuse of the same amperage rating. Ensure the vehicle is off during the process.
