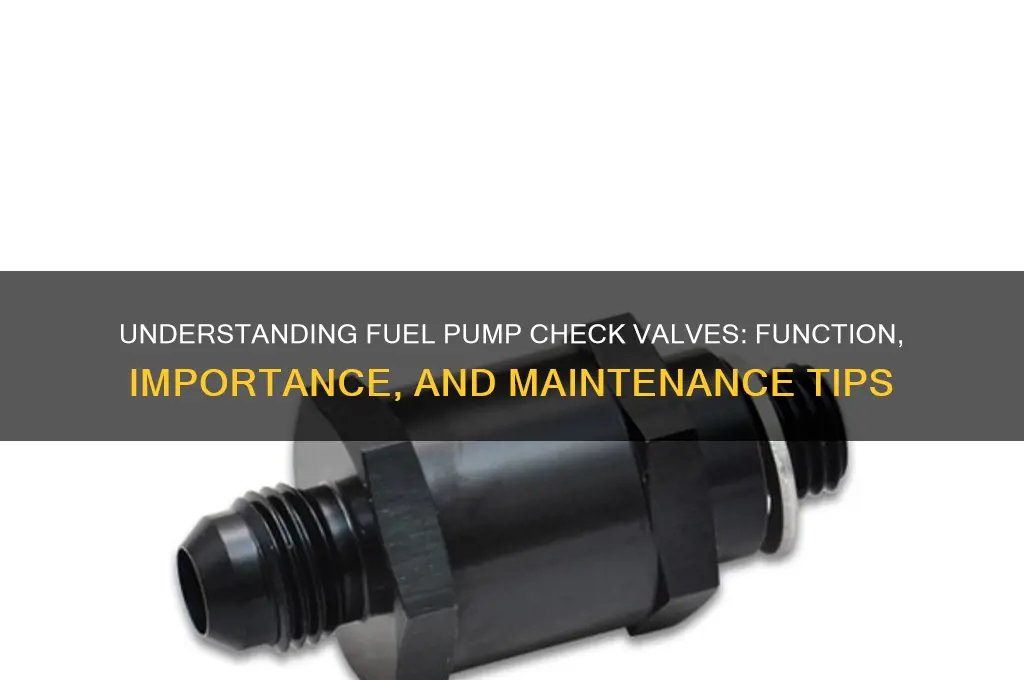

A fuel pump check valve is a critical component in a vehicle's fuel system, designed to prevent fuel from flowing backward from the engine to the fuel tank. Located within the fuel pump assembly, this one-way valve ensures that fuel pressure is maintained in the fuel lines, even when the engine is turned off, which aids in quicker starts and consistent fuel delivery. By allowing fuel to flow only in the direction of the engine, the check valve also helps prevent air from entering the system, which could otherwise cause starting difficulties or engine performance issues. Regular inspection and maintenance of the fuel pump check valve are essential to avoid common problems such as fuel pressure loss, engine stalling, or reduced fuel efficiency. Understanding its function and importance can help vehicle owners diagnose and address fuel system issues more effectively.
| Characteristics | Values |
|---|---|
| Definition | A one-way valve integrated into or near the fuel pump, allowing fuel flow in one direction only. |
| Primary Function | Prevents fuel from flowing back into the tank when the engine is off, maintaining residual pressure in the fuel system. |
| Location | Typically located within the fuel pump module (in-tank) or near the fuel pump (external). |
| Material | Commonly made of durable materials like stainless steel, brass, or high-grade plastics. |
| Failure Symptoms | Hard starting, stalling, rough idling, or extended cranking time due to fuel drain-back. |
| Maintenance | Generally not serviceable individually; replacement often requires a new fuel pump assembly. |
| Types | Integrated (built into the fuel pump) or standalone (external to the pump). |
| Pressure Rating | Designed to withstand fuel system operating pressures, typically 30-60 PSI. |
| Compatibility | Specific to fuel type (gasoline, diesel) and vehicle make/model. |
| Importance | Critical for quick engine restarts and maintaining fuel system integrity. |
Explore related products
What You'll Learn
- Check Valve Function: Prevents fuel backflow in the pump, ensuring consistent pressure and engine performance
- Types of Check Valves: Includes ball, swing, and reed valves, each with unique designs
- Common Failure Symptoms: Engine stalling, hard starts, or fuel pressure loss indicate valve issues
- Testing the Check Valve: Use a pressure gauge to check for leaks or improper sealing
- Replacement and Maintenance: Regular inspection and timely replacement prevent fuel system failures
Check Valve Function: Prevents fuel backflow in the pump, ensuring consistent pressure and engine performance
Fuel flow in modern engines is a precision dance, and the check valve is the choreographer. This small but critical component within the fuel pump ensures that fuel moves in one direction only: towards the engine. Without it, fuel would flow backward when the pump cycles off, causing pressure drops, hard starts, and inconsistent performance. Think of it as a one-way gate in a water system—essential for maintaining flow integrity.
Consider the consequences of a malfunctioning check valve. If fuel backflows, the pump must work harder to re-establish pressure with each cycle, leading to increased wear and reduced efficiency. In extreme cases, backflow can cause air to enter the fuel lines, resulting in engine stalls or failure to start. For instance, in a high-performance vehicle, a faulty check valve can cause noticeable hesitation during acceleration, as the engine struggles to receive a consistent fuel supply. Regular inspection and replacement of the check valve, especially in older vehicles or those with high mileage, can prevent such issues.
From an engineering perspective, the check valve’s design is a marvel of simplicity. Typically a spring-loaded ball or flap, it opens under forward pressure and seals tightly when flow reverses. This mechanism requires minimal maintenance but is crucial for longevity. For DIY enthusiasts, replacing a check valve involves draining the fuel tank, accessing the pump assembly, and swapping the valve—a task that demands precision and safety precautions, such as working in a well-ventilated area and using non-sparking tools.
Comparing the check valve to other fuel system components highlights its unique role. While the fuel pump generates pressure and the filter removes contaminants, the check valve ensures that pressure remains stable between pump cycles. This distinction is particularly important in fuel-injected engines, where precise fuel delivery is critical for combustion efficiency. For example, in a turbocharged engine, consistent fuel pressure is essential to prevent lean conditions that can damage the engine.
In practical terms, understanding the check valve’s function empowers vehicle owners to diagnose and address fuel system issues proactively. Symptoms like extended cranking times, sputtering at idle, or loss of power under load may indicate check valve failure. While professional diagnosis is recommended, knowing the valve’s role can save time and money by focusing repairs on the correct component. For fleet managers or mechanics, keeping spare check valves in stock can minimize downtime, ensuring vehicles remain operational with minimal disruption.
Diagnosing Motorcycle Fuel Pump Relay: A Step-by-Step Guide to Check and Fix
You may want to see also
Explore related products
Types of Check Valves: Includes ball, swing, and reed valves, each with unique designs
Check valves are essential components in fuel pump systems, ensuring one-way fluid flow and preventing backflow. Among the various types, ball, swing, and reed valves stand out for their distinct designs and applications. Each type offers unique advantages, making them suitable for specific fuel pump requirements.
Ball Check Valves: Precision in Simplicity
Ball check valves operate using a spherical ball that rests on a seat, sealing the flow path when fluid reverses direction. Their simplicity is a strength: minimal moving parts reduce wear and maintenance needs. Ideal for high-pressure fuel systems, these valves handle large flow rates efficiently. However, they require precise alignment to ensure the ball seats correctly, preventing leaks. For optimal performance, inspect the ball and seat for debris buildup, especially in systems using ethanol-blended fuels, which can leave residues over time.
Swing Check Valves: Reliability in Motion
Swing check valves feature a hinged disc that swings open with forward flow and closes when flow reverses. Their design allows for low pressure drop, making them energy-efficient. Commonly used in larger fuel pump systems, they excel in applications with moderate flow velocities. A key caution: avoid installing these valves in vertical lines, as gravity can hinder disc closure, leading to backflow. Regularly check the hinge mechanism for corrosion or binding, particularly in systems exposed to moisture or contaminants.
Reed Check Valves: Compact and Responsive
Reed valves use a thin, flexible metal or composite reed that lifts to allow flow and snaps shut to block backflow. Their compact size and fast response time make them ideal for small fuel pumps and high-speed engines. Lightweight reeds minimize inertia, ensuring quick closure even at high RPMs. However, reeds are prone to fatigue over time, especially in systems with frequent pressure fluctuations. Replace reeds every 50,000 miles or sooner if performance degrades, and avoid using them in systems with abrasive particles, which can damage the reed surface.
Choosing the Right Valve: A Practical Guide
Selecting the appropriate check valve depends on system demands. For high-pressure, high-flow applications, ball valves offer durability. Swing valves suit moderate-flow systems with horizontal orientation. Reed valves are best for compact, high-speed setups. Always consider fuel type and environmental factors, as ethanol and contaminants can affect valve longevity. Periodic inspection and maintenance ensure all types perform reliably, safeguarding fuel pump efficiency and engine health.
Mercury Thunderbolt Outboard: Fuel Pump Presence Explained
You may want to see also
Explore related products
Common Failure Symptoms: Engine stalling, hard starts, or fuel pressure loss indicate valve issues
A fuel pump check valve is a critical component in a vehicle's fuel system, designed to maintain fuel pressure in the lines when the engine is off, ensuring quick and reliable starts. However, when this valve fails, it can lead to noticeable and frustrating symptoms that affect your vehicle's performance. Engine stalling, hard starts, and fuel pressure loss are telltale signs that your check valve may be compromised. These issues not only disrupt your driving experience but can also indicate deeper problems if left unaddressed.
Engine stalling is one of the most alarming symptoms of a failing check valve. When the valve malfunctions, it fails to hold fuel pressure in the system, causing the engine to lose power and stall, especially during idle or when coming to a stop. This can be dangerous, particularly in high-traffic situations or when navigating intersections. If your vehicle stalls unexpectedly, it’s crucial to inspect the fuel pump check valve as a potential culprit. Ignoring this symptom could lead to repeated stalling, increasing the risk of accidents and further engine damage.
Hard starts are another common indicator of check valve issues. A properly functioning valve ensures that fuel remains pressurized in the lines, allowing the engine to start smoothly. When the valve fails, the fuel system loses pressure, forcing the pump to work harder to build pressure from scratch. This results in extended cranking times or multiple attempts to start the engine. If you notice your vehicle struggles to start, especially after it has been sitting for a while, the check valve may be to blame. Addressing this issue promptly can save you from being stranded with a vehicle that won’t start.
Fuel pressure loss is the root cause behind both stalling and hard starts, and it’s a direct consequence of a failing check valve. A diagnostic test using a fuel pressure gauge can confirm if the pressure drops significantly after the engine is turned off. Normal fuel pressure should remain stable for several hours, but a faulty check valve will cause it to drop rapidly. If the pressure falls below the manufacturer’s specifications (typically 30–60 PSI for most vehicles), the valve is likely compromised. Regularly monitoring fuel pressure can help catch this issue early, preventing more severe symptoms from developing.
To mitigate these problems, it’s essential to inspect and replace the fuel pump check valve if failure is suspected. Replacement typically involves accessing the fuel pump assembly, which may require dropping the fuel tank in some vehicles. Always consult your vehicle’s manual or a professional mechanic for specific instructions. Using high-quality replacement parts and ensuring proper installation can restore fuel system integrity, eliminating stalling, hard starts, and pressure loss. Proactive maintenance not only ensures reliable vehicle performance but also extends the lifespan of your fuel system components.
Testing Fuel Pumps Made Easy: Using a Current Clamp Guide
You may want to see also
Explore related products
Testing the Check Valve: Use a pressure gauge to check for leaks or improper sealing
A fuel pump check valve is a critical component in a vehicle's fuel system, designed to prevent fuel from flowing backward and maintain pressure in the fuel lines when the engine is off. This ensures a quick start and stable fuel delivery. However, over time, the check valve can wear out, leading to leaks or improper sealing, which can cause hard starts, stalling, or reduced engine performance. Testing the check valve using a pressure gauge is a precise and effective method to diagnose these issues before they escalate.
To begin testing, disconnect the fuel line from the fuel rail and attach a pressure gauge to the fuel pump outlet. Start the engine and allow it to idle for a few minutes to stabilize the fuel pressure. Then, shut off the engine and observe the gauge. A properly functioning check valve should maintain the fuel pressure for at least 5 minutes, with a drop of no more than 5 PSI. If the pressure drops rapidly or falls below the specified range, it indicates a faulty check valve that allows fuel to drain back into the tank.
When conducting this test, ensure the fuel pump is in good condition, as a weak pump can skew results. Use a high-quality pressure gauge with a range suitable for your vehicle’s fuel system, typically 0–100 PSI for most gasoline engines. Always relieve fuel system pressure before disconnecting any lines to avoid injury or spills. If you’re unsure about the process, consult a repair manual or seek professional assistance to avoid misdiagnosis.
Comparing the test results to manufacturer specifications is crucial for accurate diagnosis. For example, a Toyota Camry’s fuel system may require a minimum residual pressure of 40 PSI, while a Ford F-150 might specify 50 PSI. If the check valve fails the test, inspect it for debris, corrosion, or physical damage. In some cases, cleaning the valve may resolve the issue, but replacement is often necessary for long-term reliability.
In conclusion, testing the check valve with a pressure gauge is a straightforward yet essential procedure for maintaining fuel system integrity. By identifying leaks or sealing issues early, you can prevent costly repairs and ensure your vehicle starts reliably. This method not only saves time but also provides a clear, data-driven diagnosis, making it a valuable skill for both DIY mechanics and professionals alike.
Understanding Fuel Pump Voltage Boosters: Enhancing Engine Performance and Efficiency
You may want to see also
Explore related products
Replacement and Maintenance: Regular inspection and timely replacement prevent fuel system failures
A fuel pump check valve is a critical component in a vehicle's fuel system, designed to prevent fuel from flowing backward from the engine to the fuel tank. This ensures consistent fuel pressure and delivery, which is essential for optimal engine performance. Over time, however, this valve can wear out or become clogged, leading to reduced fuel efficiency, engine stalling, or even complete system failure. Regular inspection and timely replacement are not just maintenance tasks—they are proactive measures to safeguard your vehicle’s reliability and longevity.
Inspection Protocol: What to Look For
Begin by checking for symptoms of a failing check valve, such as hard starting, sputtering at high speeds, or a sudden drop in fuel pressure. During a physical inspection, remove the fuel pump assembly (typically located inside the fuel tank) and examine the valve for debris, cracks, or signs of warping. Use a pressure gauge to test the valve’s ability to hold pressure; if it drops by more than 1-2 PSI within a minute, the valve is likely compromised. For vehicles over 100,000 miles or those with high-mileage engines, biannual inspections are recommended, especially if the vehicle frequently operates in dusty or dirty environments.
Replacement Steps: Precision Matters
Replacing a fuel pump check valve requires precision and safety precautions. Start by relieving fuel system pressure and disconnecting the battery to avoid sparks. Drain the fuel tank or use a manual pump to lower the fuel level before removing the pump assembly. Once accessed, carefully detach the old valve, ensuring no debris enters the system. Install the new valve following the manufacturer’s torque specifications, and retest the system for leaks and proper pressure retention. Always use OEM or high-quality aftermarket parts to ensure compatibility and durability.
Maintenance Tips: Prolonging Valve Lifespan
Preventive maintenance can significantly extend the life of a fuel pump check valve. Regularly replace fuel filters every 20,000-30,000 miles to minimize debris buildup. Use high-quality fuel additives to clean the system and prevent corrosion. For vehicles stored long-term, stabilize the fuel to avoid varnish formation, which can clog the valve. Additionally, avoid running the fuel tank below a quarter full, as this increases the risk of debris entering the pump and valve assembly.
Cost vs. Consequence: A Practical Perspective
While replacing a fuel pump check valve may cost $100-$300 in parts and labor, neglecting this maintenance can lead to far costlier repairs. A failed check valve can damage the fuel pump, injectors, or even the engine, resulting in bills exceeding $1,000. Timely replacement not only saves money but also ensures safety, as fuel system failures can lead to stalling or fires. Think of it as an investment in your vehicle’s performance and your peace of mind.
Final Takeaway: A Small Part with a Big Impact
The fuel pump check valve may be small, but its role in maintaining fuel system integrity is monumental. By adhering to a strict inspection schedule, following precise replacement procedures, and implementing preventive maintenance, you can avoid the headaches of unexpected breakdowns. Treat this component with the attention it deserves, and your vehicle will reward you with reliability and efficiency for years to come.
Signs of a Failing Fuel Pump: Causes, Symptoms, and Solutions
You may want to see also
Frequently asked questions
A fuel pump check valve is a one-way valve located within or near the fuel pump that prevents fuel from flowing backward into the fuel tank after the engine is turned off.
The fuel pump check valve is important because it maintains fuel pressure in the fuel lines, ensuring quick starts and preventing air from entering the system, which could cause hard starting or engine performance issues.
The fuel pump check valve is typically located inside the fuel pump module, which is usually inside the fuel tank, or it may be a separate component near the fuel pump.
If the fuel pump check valve fails, fuel can drain back into the tank, causing extended crank times, hard starting, or even no-start conditions, as the fuel system will need to repressurize each time the engine is started.
To test a fuel pump check valve, you can measure fuel pressure after turning off the engine; if the pressure drops rapidly, the check valve may be faulty. Alternatively, a mechanic can perform a more detailed diagnostic test using specialized tools.
