Fuel injection is the process of introducing fuel into an internal combustion engine, usually an automotive engine, using a fuel injector. Fuel injectors are spray nozzles that perform the final stage of delivering fuel into the engine. They can be found in the combustion chamber, inlet manifold, or throttle body. The fuel pump relay is an essential component of the combustion engine model, supplying the engine with the fuel it needs to run. When the ignition is turned on, the fuel pump relay provides a consistent voltage to the fuel pump. The fuel injector is a critical component of the fuel injection process, but is it a relay or a solenoid?

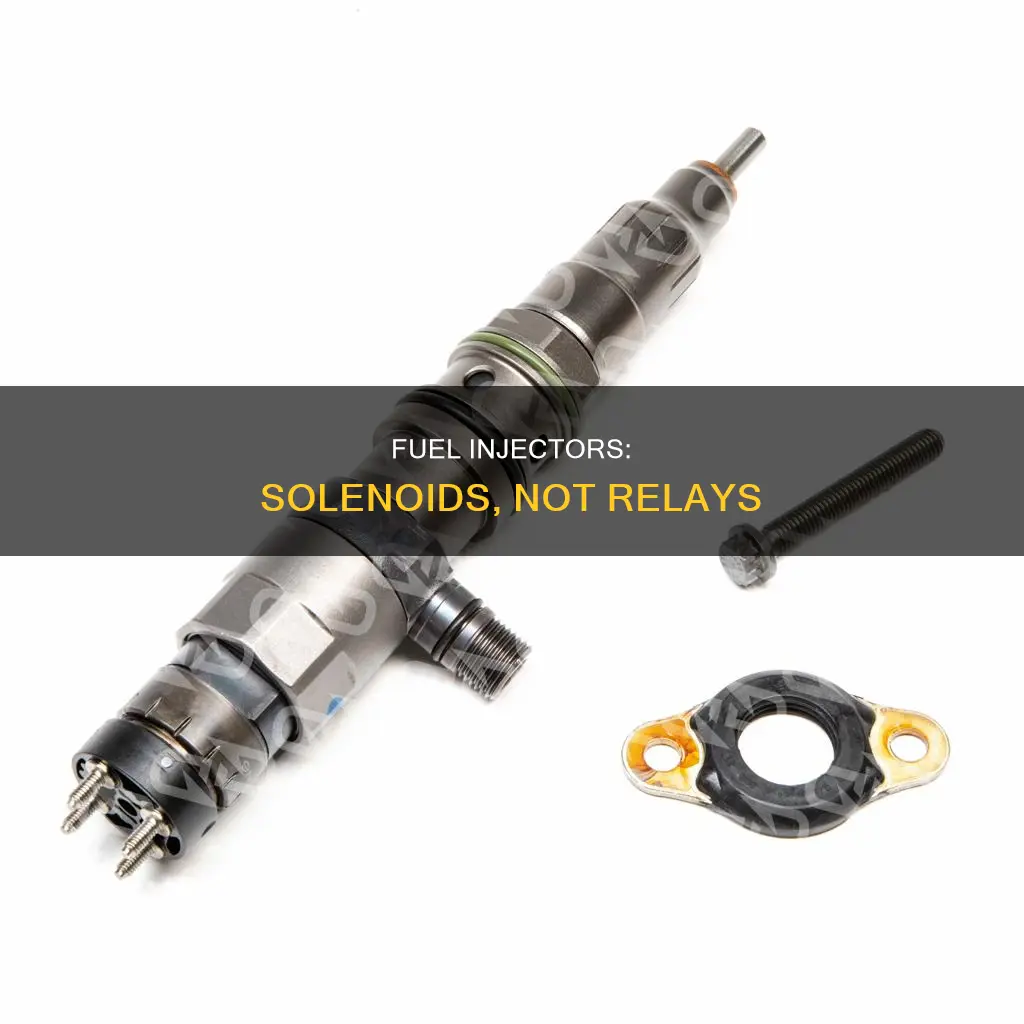

Is a fuel injector a relay or solenoid?
| Characteristics | Values |
|---|---|
| Definition | A fuel injector is a spray nozzle that performs the final stage in the delivery of fuel into the engine. |
| Location | The injector is located in the combustion chamber, inlet manifold or throttle body. |
| Types | Fuel injectors which also control the metering are called injection valves, while injectors that perform all three functions are called unit injectors. |
| Working | The fuel is sprayed with the help of a nozzle that is opened and closed with a solenoid-operated needle valve. |
| Working (cont'd) | Electromagnetic or solenoid injectors have a traditional coil. The voltage that’s applied to the coil pulls the solenoid valve up. |
| Working (cont'd) | A relay is used to carry a heavier current without resorting to excessive heavy wiring. |
| Working (cont'd) | A fuel pump relay supplies a consistent voltage to the fuel pump when the ignition is turned on. |
Explore related products
What You'll Learn
- Fuel injectors are spray nozzles that deliver fuel into the engine
- Fuel injection relays supply voltage to the fuel pump when the ignition is turned on
- A relay carries a heavier current without needing excessive heavy wiring
- Electromagnetic solenoid injectors have a traditional coil, with voltage applied to the coil pulling the solenoid valve up
- The fuel pump relay is usually controlled by the ignition or the power control module
Fuel injectors are spray nozzles that deliver fuel into the engine
Fuel injectors are a crucial component of modern engines, playing a vital role in delivering fuel for combustion. They are essentially spray nozzles that introduce fuel into the engine, marking the final stage of the fuel delivery process. This process, known as fuel injection, was first introduced in the Herbert-Akroyd oil engine in 1891, marking the beginning of a new era in engine technology.
Over time, fuel injection systems have evolved, and today, they are commonly used in both diesel and petrol engines. The injectors are strategically located in the combustion chamber, inlet manifold, or, less frequently, the throttle body. The placement of the injectors ensures that fuel is delivered directly to where it is needed, optimising combustion and engine performance.
The fuel injection process can vary depending on the type of system employed. In a common-rail system, for instance, fuel is supplied from the fuel tank to a common header, known as the accumulator. From there, it is directed through tubing to the injectors, which then spray the fuel into the combustion chambers. This spraying action is facilitated by a nozzle that is opened and closed with a solenoid-operated needle valve, creating a fine mist of fuel for efficient combustion.
The introduction of fuel through injectors offers several advantages. Firstly, it atomises the fuel, breaking it down into tiny droplets under high pressure. This atomisation ensures a more complete and efficient combustion process, resulting in improved engine performance and fuel efficiency. Secondly, fuel injection provides greater control over the metering and delivery of fuel, allowing for precise adjustments to meet the engine's demands.
In addition to the common-rail system, other types of fuel injection systems include multi-point injection (port injection) and single-point injection (throttle-body injection). Multi-point injection involves injecting fuel into the intake ports just upstream of each cylinder's intake valve, utilising multiple fuel injectors or tubes with poppet valves. On the other hand, single-point injection uses a single injector in the throttle body, similar to a carburettor, where fuel and air are mixed before entering the intake manifold.
