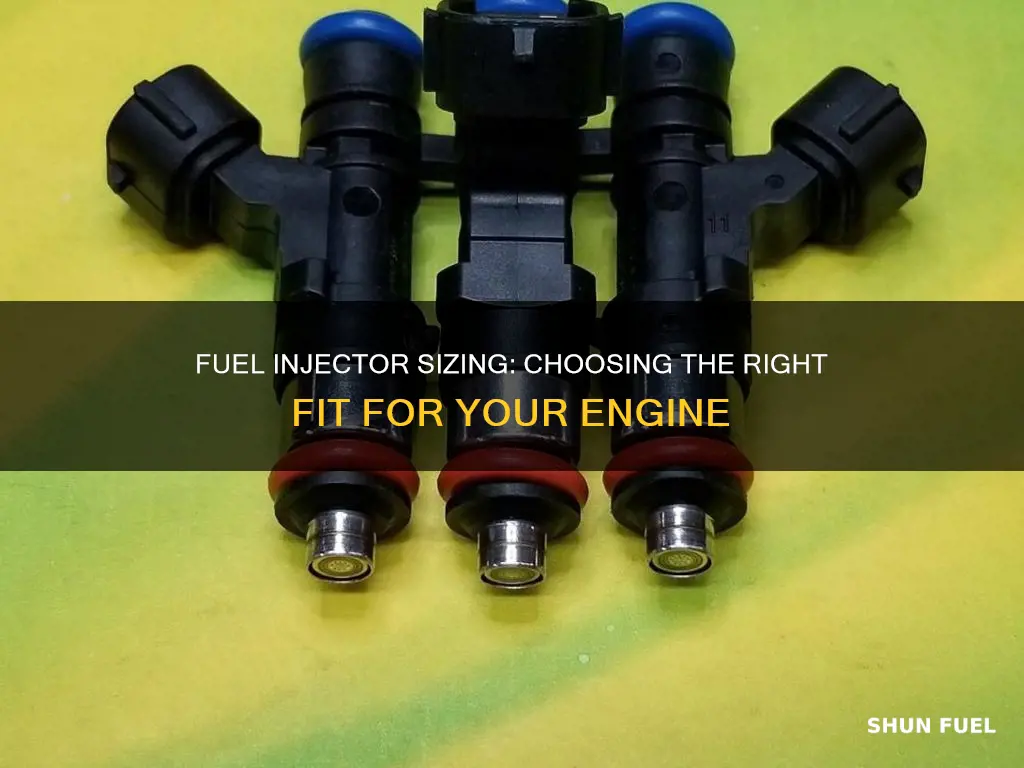

Choosing the right fuel injector size for your engine is critical for performance and tuning control. It can be challenging to determine the size and flow rate of your fuel injector, as there are many factors to consider, such as the type of fuel, the injector harness plug style, and the engine's RPM. Modern fuel injectors come in three main sizes: 34mm, 48mm, and 60mm, and there are also various plug types, such as Ev1/Jetronic and Ev6/USCAR. To determine the correct fuel injector size, you can use online calculators or perform manual calculations, considering factors like brake-specific fuel consumption (BSFC) and duty cycle.
Explore related products
What You'll Learn
Fuel injector sizing calculators
Several online fuel injector sizing calculators are available, such as those offered by MAPerformance, POWERNATION, and FuelTech. These calculators simplify the process of selecting the appropriate fuel injector size, which is crucial for achieving optimal engine performance and tuning control.
The MAPerformance calculator requires users to input their goal crank horsepower, the number of injectors (cylinders) in their engine, the correct number based on engine aspiration, and the goal PSI at the rail. This calculator assists users in determining the required flow rate for their specific application.
The POWERNATION calculator employs a specific formula that takes into account the estimated maximum horsepower, brake-specific fuel consumption (BSFC), and the number of cylinders. By multiplying the maximum horsepower by the BSFC and making subsequent calculations, users can determine the necessary fuel injector size in pounds per hour (lbs/hr). This value can then be converted to cubic centimeters per minute (cc/min) to account for fuel density and obtain the fuel flow rate.
FuelTech's calculator caters to racers and builders, allowing them to select the number of fuel injectors, input the estimated horsepower, and specify the type of induction. It can also determine the maximum horsepower rating of fuel injectors by working backward from the injector sizing and other parameters. Additionally, FuelTech's engine management systems offer a wide range of standard options, such as sequential injection, O2 closed loop, Data Logger, and Boost Controller.
These calculators serve as valuable resources for anyone seeking to optimize their engine's performance by selecting the correct fuel injector size. By utilizing these tools, users can ensure that their vehicles receive the precise amount of fuel needed for efficient operation.
Outlander Fuel Injector: How to Remove and Replace
You may want to see also
Explore related products
Fuel type
Fuel injectors are designed to deliver fuel to the engine, and selecting the right size is critical for performance and tuning control. The wrong choice of fuel injectors can cause the engine to run roughly, or even ruin it altogether.
The type of fuel used is an important factor when choosing the right fuel injector. For example, if you are using an alcohol-based fuel like E85, the injector will be open much longer to deliver the fuel, and this keeps the injector operating in a linear range. This is why flex fuel cars tend to run poorly on 93 octane, but perform well on E85 due to the longer opening times.
The fuel type also determines the injector size. For instance, a 4-cylinder turbo car that makes 800-900 whp will need a large injector in the range of 1600-2000cc/min to deliver enough fuel. The same car with a smaller injector, like a 1000cc/min, will have a difficult time with idle quality and drivability.
It is also important to note that increasing airflow, such as by installing a turbocharger or supercharger, will require a corresponding increase in fuel delivery to maintain the same AFR level. This means that doubling the airflow entering the engine will require doubling the fuel delivery to maintain the desired AFR level.
To determine the right fuel injector size for your fuel type and engine setup, it is recommended to use a fuel injector calculator or seek the aid of a reputable car tuner.
Additionally, it is crucial to ensure that accurate injector data is provided to the on-board computer. This includes information such as injector response and dead time, which is the time it takes for the injector to open and for fuel to flow once energised by the on-board computer. Accurate injector data enables proper control of the fuel injector, especially during idle and light throttle driving situations, leading to better performance and fuel economy.
Fuel Injectors: Signs to Look Out for When Replacing
You may want to see also
Explore related products
![HiSport Fuel Injector Seal Kits Rebuild Set Include O-rings, Pintle Caps, Seal Spacers, Filter Baskets with 1pcs Filter Removal Tool [8 Set]](https://m.media-amazon.com/images/I/71D2r04zhLL._AC_UY218_.jpg)
Injector harness plug style
When it comes to injector harness plug styles, there are several prominent styles that cover the majority of applications. The most popular electrical connectors are the EV1, EV6 (USCAR), and Multec 2 connectors, but there are also several import styles as well. The EV6 style connector, also called a USCAR, is more modern and very common, dominating new injector models. They have an O-ring on the male end of the plug and are considered water-resistant, aiding in corrosion resistance. The EV1 connector, on the other hand, is found on earlier models, especially common on older low impedance injectors.
Another style to consider is the Denso/Sumitomo connector, which offers similar benefits to USCAR and is most common on imported vehicles. Additionally, manufacturer-specific fuel injector connector types exist, with many OEM brands of auto, truck, marine, motorcycle, and ATV applications using their own unique injector connector designs. For example, brands like GM Delphi, Honda, Nippon Denso, Sumitomo, Nissan, and Toyota use distinct injector connectors.
It is important to note that the EV1, EV6, and Multec connectors are not interchangeable, so if you already have a wiring harness, ensure that the injector you choose has the correct connectors. Adapters are widely available, so you won't have much difficulty finding a good match for your injector harness plug style.
Jasper's Comprehensive Coverage: Fuel Injectors Included
You may want to see also
Explore related products
Injector flow rate
Fuel injector flow rate sizing is the first thing to consider when determining the fuel injector size you need. While there is no industry standard, the standard flow rate is 43 psi/3 bar. The size and flow rate of your fuel injector will depend on several factors, including the fuel type you want to use. For example, when sizing your injector for gasoline, a simple rule of thumb is to use 1cc/min flow for each horsepower. So, if you want to make 1000 crank horsepower on 93 octane gasoline, using a fuel pressure of 43 psi, you will need a 1000cc injector. This rule of thumb can also be used for ethanol-based fuels, but you must remember to add 30% since ethanol requires more fuel to produce the same power.
There are also many different plug types for fuel injectors, which can be confusing. Many are known by their Bosch manufacturing generation, such as ev1 or ev6, which is technically incorrect but has become the accepted naming convention. Ev1/Jetronic, for example, is found on earlier models, especially older low impedance injectors, and does not have an internal O-ring, so it is not water-resistant. On the other hand, Ev6/USCAR is more modern and common on new injector models. They have an O-ring on the male end of the plug, making them water-resistant, and aiding in corrosion resistance.
If you are unsure about which fuel injector size you need, there are online fuel injector calculators available to help you determine the proper size. These calculators can recommend fuel injector sizing for naturally aspirated and turbo combinations that run on different fuels, such as gasoline, alcohol, or ethanol. You can input the number of fuel injectors, estimated horsepower, and the type of induction to get the proper sizing.
It is critical to select the proper fuel injector size for performance and tuning control in a fuel-injected engine combination. Modern fuel injector manufacturers have solutions that can bring top technology to nearly every vehicle, and if you have difficulty making an injector fit, a fuel injector specialist can help you adapt it.
Grounding Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
Injector body style
Choosing the right fuel injector size is critical for performance and tuning control. Selecting the right fuel injector size is important to avoid ruining your engine. Bigger is not always better, and unless your engine is set up to deal with the extra fuel, the excess fuel will flood the engine and it will either not run at all or run too rich, leading to fouled spark plugs and engine damage.
When it comes to injector body style, there are a few things to consider. Modern fuel injectors come in various sizes and styles, and manufacturers have solutions that can bring top technology to nearly every vehicle. The most common sizes are 34mm, 48mm, and 60mm, with 60mm being highly popular due to the ease of raising the fuel rail with a small shim. The injector harness plug style is also an important consideration, with options like USCAR (EV6), Jetronic (EV1), and Denso (Sumitomo) available.
To determine the right injector body style, start by looking at your OEM fuel injector, as there may be a direct swap or adapter option available. If you're using an aftermarket intake, it may come with a fuel rail kit, or you can reuse the OEM rails. The manufacturer should provide guidance on the required body style. If you're unsure, seek help from a fuel injector specialist, as they can provide advice and offer solutions to adapt injectors to fit your vehicle.
Additionally, consider the height of the injector along with its electrical connector. There are several popular injector connectors to choose from, such as the two-prong EV6 style connector (USCAR) and the EV1 connector. It's important to know the connector style before placing an order.
Fuel Injector Ticking: What's the Deal?
You may want to see also
Frequently asked questions
The fuel injector size you need depends on several factors, including the fuel type, the engine's horsepower, and the number of cylinders. You can use an online calculator or perform the calculations manually to determine the required fuel flow rate and select an appropriate injector size.
Common fuel types include gasoline, ethanol, and race gases such as methanol and E85. The fuel type affects the injector size because different fuels have varying energy contents and flow rates.
Engine horsepower is directly proportional to the required fuel flow rate. A simple rule of thumb is to provide 1cc/min of fuel flow for each horsepower. For example, a 1000 horsepower engine on gasoline would typically need a 1000cc injector.
Yes, the number of cylinders impacts the fuel flow rate per injector. For example, in an 8-cylinder engine, the total fuel flow is divided by 8, so each injector's requirement is reduced.
Yes, several online calculators are available, such as the Fuel Injector Calculator from FuelTech and the Flow Rate Calculator from Fuel Injector Clinic. These tools consider various factors to recommend the appropriate fuel injector size for your specific application.
