Fuel injectors are a crucial component in modern engines, playing a significant role in the transition from fossil fuels to cleaner energy sources. They are responsible for delivering fuel into the engine's internal combustion chamber, where it is mixed with air and ignited to generate power. The primary function of the hat on a fuel injector is to control the airflow into the engine, ensuring optimal combustion and efficient power generation. This airflow control is achieved through the use of butterflies within the fuel injection hat or manifold, which adjust the amount of air provided to the engine. The interaction between the fuel injector and airflow management is essential for maintaining the required air-to-fuel ratio, complying with emissions standards, and optimizing engine performance.
| Characteristics | Values |
|---|---|
| Purpose | Controls air |
| Location | Throttle body |
| Components | Butterflies, mechanical cable with linkage, throttle stop, barrel valve, air valve |
| Function | Controls air volume with throttle stop, controls fuel volume with spring pressure in the idle control valve |
| Use | Used in mechanical fuel injection systems, which are still in use today |
Explore related products
$9.49
What You'll Learn
Fuel injectors are electronically-controlled valves
In a fuel injection system, the fuel injector acts as a valve that controls the flow of fuel into the engine. The injector is electronically actuated, allowing it to open and close multiple times per second. This rapid actuation results in the atomization of the fuel, creating a fine mist that enhances combustion and improves engine performance. The atomization also contributes to better fuel efficiency and reduced emissions, making it a critical component in meeting environmental regulations.
The operation of the fuel injector is influenced by various factors, including engine speed and intake manifold air density. By taking these factors into account, the injector can precisely calculate and deliver the required amount of fuel. This calculation is known as the pulse width, which refers to the duration for which the injector remains open. The pulse width is controlled by the Engine Control Unit (ECU), which utilizes algorithms and lookup tables to determine the appropriate settings for different operating conditions.
The design of the fuel injector itself is also important. The injector typically consists of a nozzle, a plunger, and a solenoid-operated valve. When the injector is energized, an electromagnet moves the plunger, opening the valve and allowing pressurized fuel to be released through the nozzle. The nozzle's design further atomizes the fuel, creating a fine mist that promotes efficient combustion.
Fuel injectors have evolved over time, with advancements such as the American Bendix Electrojector system, introduced in 1957, which utilized analogue electronics for control. Subsequently, the Bosch D-Jetronic system, produced from 1967 to 1976, employed a speed/density approach to calculate fuel injection. The continuous flow of fuel from the injectors was introduced with the Bosch K-Jetronic system in 1974, followed by the L-Jetronic system, which used a pulsed flow and an air flow meter for fuel calculation. These advancements laid the foundation for modern electronic fuel injection (EFI) systems, which have become standard in automotive engines.
Sea Foam Treatment: Clogged Fuel Injectors or Smooth Sailing?
You may want to see also
Explore related products
![[Replacement] Fuel Injector Adapters Hat Fuel Nozzle Spacers Extenders Car Top Cap Accessories for B16 B18 D16Z D16Y](https://m.media-amazon.com/images/I/51YuIAGLjTL._AC_UY218_.jpg)
Fuel injection systems have evolved to meet emissions requirements
Fuel injection systems have evolved significantly over the years, reflecting different engineering philosophies and regulatory frameworks. The evolution of these systems has been driven by the need to meet emissions requirements and enhance engine performance.
The first mechanical fuel injectors were developed in the early 20th century, with the quest for improved internal combustion engines. Initially, carburetors dominated fuel delivery systems, using various mechanical methods to mix air and fuel. However, as vehicles evolved, carburetors became more complicated, trying to handle all the operating requirements. This led to the development of the first electronic fuel injection (EFI) systems in the 1960s.
EFI systems revolutionized automotive technology by utilizing electronic sensors and microprocessors to deliver precise fuel metering. These systems continuously monitored engine conditions and used sensors to provide real-time data, allowing the engine control unit (ECU) to adjust fuel flow based on factors such as temperature and load. As a result, EFI systems offered superior fuel economy and reduced emissions, becoming standard in many vehicles by the 1980s.
To meet stricter emissions requirements, catalytic converters were introduced, which required careful control of the air-to-fuel ratio for effective performance. Oxygen sensors were employed to monitor the amount of oxygen in the exhaust, enabling the ECU to adjust the air-to-fuel ratio in real-time through closed-loop control. This level of precision was not feasible with carburetors, further solidifying the shift towards fuel injection systems.
The evolution of fuel injection technology has been influenced by different regions, with countries like Germany and Japan pioneering early fuel injection advancements. In North America, the adoption of fuel injection systems gained momentum in the late 20th century, driven by regulatory mandates to reduce emissions and enhance performance. Similarly, emerging markets in Asia and South America have embraced fuel injection systems as part of their modernization strategies, focusing on environmental standards and fuel efficiency improvements.
Removing Fuel Injectors from Your 06 Town and Country
You may want to see also
Explore related products
![HiSport Fuel Injector Seal Kits Rebuild Set Include O-rings, Pintle Caps, Seal Spacers, Filter Baskets with 1pcs Filter Removal Tool [8 Set]](https://m.media-amazon.com/images/I/71D2r04zhLL._AC_UY218_.jpg)
Fuel injection was first used in the 1930s and 1940s
The history of fuel injection dates back to the early 20th century, with the first practical fuel injection system invented by German engineers Wilhelm Maybach and Gottlieb Daimler in 1902. However, it was in the 1930s and 1940s that fuel injection technology saw significant advancements and began to be utilised in a range of applications, marking a pivotal era in its development.
During the 1930s, companies like Robert Bosch GmbH played a pivotal role in the advancement of mechanical fuel injection systems. Their innovations laid the foundation for modern fuel injection technology. By the 1930s, fuel injection was being utilised in diesel engines, such as the Junkers Jumo aircraft engines developed by German engineers. This marked a shift towards the use of fuel injection in aviation, which offered improved performance and reliability under extreme conditions.
In the late 1930s and early 1940s, mass-produced diesel engines for passenger cars, like the Mercedes-Benz OM 138, became the first fuel-injected engines available for consumer use. This was a groundbreaking development, as it brought fuel injection technology directly to the masses. During World War II, Germany equipped some of its fighter aircraft with direct fuel injection, further showcasing its potential and advantages in high-performance scenarios.
The concept of injecting fuel directly into an engine's cylinders was also explored during this time. Swedish engineer Jonas Hesselman invented this concept in 1925, but it faced limitations due to the technology available then. Despite these challenges, the idea of direct fuel injection continued to evolve, and by the 1950s, fuel injection started to appear in production cars, marking the beginning of its mainstream adoption in the automotive industry.
The 1930s and 1940s were pivotal decades in the evolution of fuel injection technology, witnessing its advancement from early mechanical systems to the eventual adoption in consumer vehicles. This era laid the groundwork for the widespread use of fuel injection in the following decades, revolutionising automotive engineering and paving the way for more efficient and precise fuel delivery systems.
Fuel Injector Replacement: Cost and Considerations
You may want to see also
Explore related products
Mechanical fuel injection is used in automotive racing
Mechanical fuel injection is a common feature in automotive racing. It is a low-cost, powerful fuel system that can be adapted to different cylinder configurations, such as inline, V-style, opposing, or rotary engines. Mechanical fuel injection is relatively simple to set up and maintain, with parts readily available worldwide from multiple suppliers. This makes it an attractive option for racers looking to enhance their engine's performance and achieve maximum power.
One of the key advantages of mechanical fuel injection is its adaptability. It can be configured for small setups, such as 4-cylinder engines in midget racing, or scaled up for large power outputs, like the 10,000-plus horsepower engines used in NHRA's Top Fuel and Funny Car applications. The system's flexibility allows racers to easily exceed their performance goals by adding extra nozzles to control fuel distribution and increase fuel at the high end for ram air effects.
The history of mechanical fuel injection in automotive racing dates back to the early 20th century. In 1941, Lucas Industries began developing a fuel injection system, which was later used in Jaguar racing cars that dominated the 1957 24 Hours of Le Mans race. The 1954 Mercedes-Benz W196 Formula One racing car also utilised a Bosch mechanical direct-injection system. The first four-stroke direct-injection petrol engine for a passenger car was released by Mercedes-Benz in 1955, although it suffered from lubrication issues.
Today, mechanical fuel injection continues to be a popular choice in various forms of racing, including drag racing, circle track racing, and boat racing. Racers often use trial and error to set up their fuel system's jetting, aiming to find the optimum air/fuel ratio for maximum tuning. The stack type of mechanical fuel injection is particularly prevalent in short-course, tight dirt track, or pavement circle track racing, providing impressive performance while also showcasing the engine's visual appeal with multiple fuel lines, stacks, and large air inlets.
Checking Fuel Injector Pulse: DIY Guide and Tips
You may want to see also
Explore related products
Fuel injectors are supplied with pressurised fuel by the fuel pump
The basic components of a fuel injection system include the fuel pump, injector nozzles, and a barrel valve or metering valve. The fuel pump supplies pressurised fuel to the injector nozzles, which then inject the fuel into the air stream entering the engine. The barrel valve or metering valve controls the appropriate amount of fuel for different driving conditions, such as starting, part-throttle, driving, and stopping.
There are different types of fuel injection systems, including mechanical fuel injection (MFI) and electronic fuel injection (EFI). MFI has a long history in automotive racing and can handle various fuel types, including gas, ethanol blends, and methanol. EFI, on the other hand, works with an electrically controlled air valve and is commonly used in modern cars to meet stricter emissions requirements.
The fuel injection process can be achieved through different methods, such as direct injection and multi-point injection. Direct injection involves injecting fuel directly into the main combustion chamber of each cylinder, where air and fuel are mixed. Multi-point injection, on the other hand, injects fuel into the intake ports just upstream of each cylinder's intake valve, and it typically uses multiple fuel injectors.
The development of fuel injection systems has allowed for more precise control of the air-to-fuel ratio, which is crucial for the effectiveness of catalytic converters and meeting emissions requirements. As a result, fuel injection has largely replaced carburetors in modern automotive engines.
Fuel Injector Filters: Are They Universal?
You may want to see also
Frequently asked questions
A fuel injector is a component in engines that regulates the injection of fuel into an engine's internal combustion chamber where it is mixed with air and ignited.

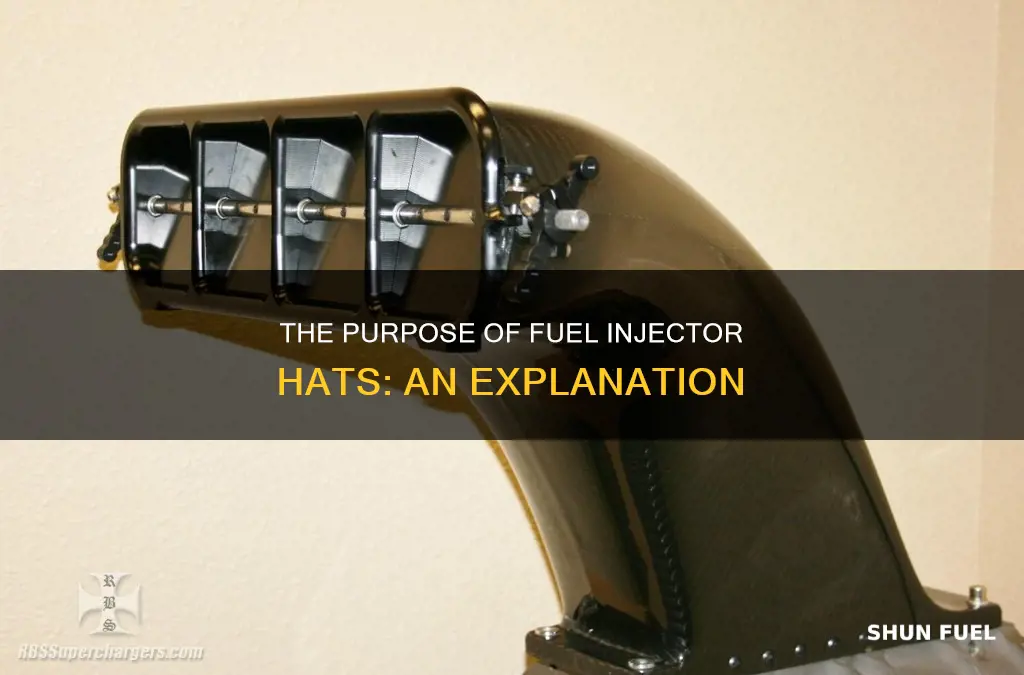

The hat on a fuel injector, also known as a throttle body, is used to throttle the air. Butterflies in the fuel injection hat or manifold control the amount of air that goes into the engine.
There are several types of fuel injection, including throttle body fuel injection, multi-port fuel injection, direct injection, and mechanical fuel injection.
