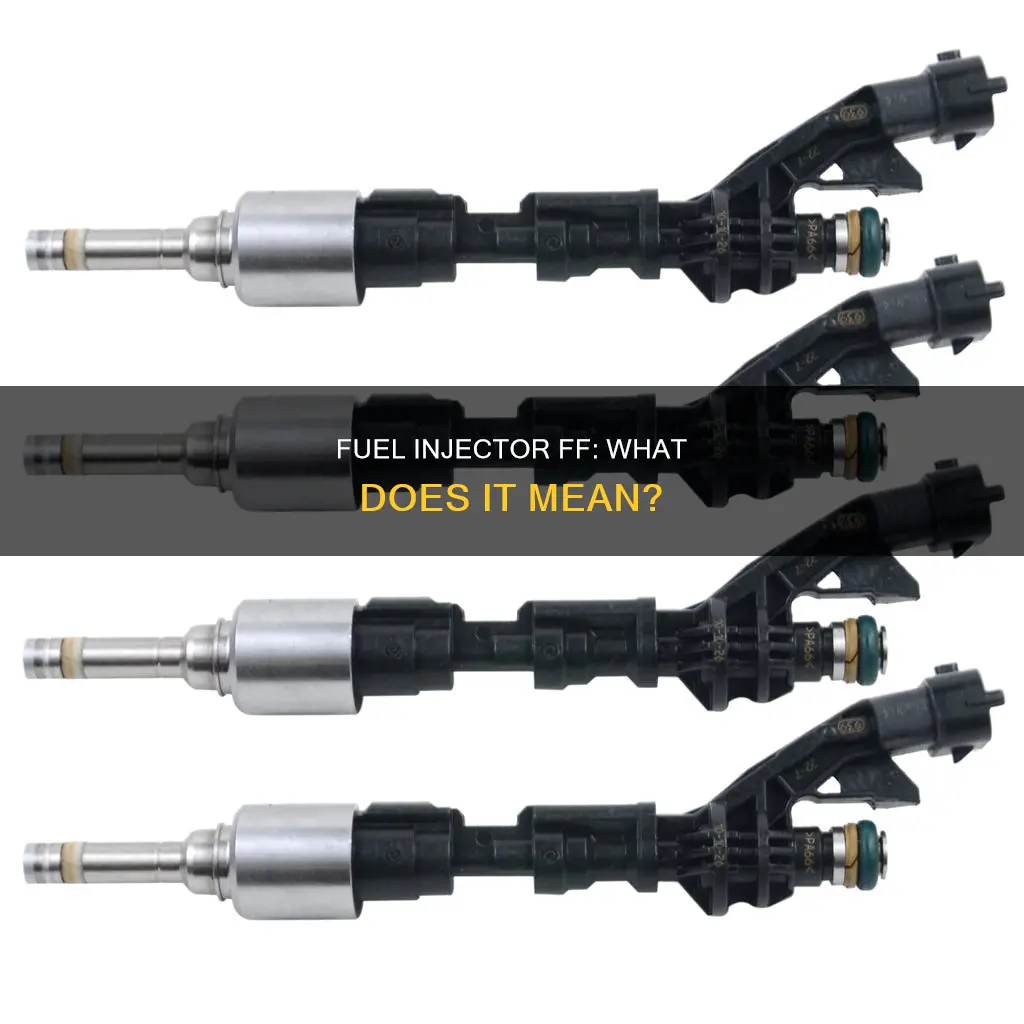

Fuel injectors are electronically controlled valves that deliver fuel into the engine's internal combustion chamber. The latest fuel injectors enable engines to generate maximum power while minimizing fuel consumption and reducing pollution. The abbreviation FF is not a commonly used acronym for fuel injectors. However, FI stands for fuel injection, and AFR stands for air-to-fuel ratio, which is an important factor in the operation of fuel injectors.
Explore related products
$84.08
What You'll Learn
Fuel Injector Function
Fuel injectors are a device for atomizing and injecting fuel into an internal combustion engine. The injector atomizes the fuel and forces it directly into the combustion chamber at the precise point in the combustion cycle. The fuel injector is effectively a spray nozzle that performs the final stage in the delivery of fuel into the engine. The injector is located in the combustion chamber, inlet manifold, or, less commonly, the throttle body.
The primary difference between carburetion and fuel injection is that fuel injection atomizes the fuel through a small nozzle under high pressure, while carburetion relies on suction created by intake air. The better the quality of the fuel-air mixture, the better the combustion, which provides higher engine efficiency and lower emissions.
There are two types of fuel metering: mechanical and electronic. Mechanical fuel injectors control the fuel speed, quantity, timing, and pressure mechanically with the use of springs and plungers. These parts take the input from the cam or fuel injection pump. Electronic fuel injectors are controlled by the electronic control module (ECM) of the vehicle, which dictates the fuel quantity, pressure, and timing.
In a diesel engine, a fuel injector can fire multiple pulses in a single power stroke, which can be used for noise mitigation and emissions control. The injector consists of a solenoid (a type of electromagnet), a nozzle, and a needle within the injector body. When an electrical signal is sent to the solenoid, the injector needle lifts, allowing high-pressure fuel to flow through the nozzle and into the combustion chamber to mix with air. The air-fuel mixture then auto-ignites, creating power and driving the engine's pistons.
In a gasoline engine, the injector sprays fuel directly (GDI) or through the intake manifold (multi-port) or throttle body into the combustion chamber for combustion, which is then ignited by a spark. Gasoline injectors may be mounted in the intake manifold, throttle body, or directly into the combustion chamber.
Marvel Mystery Oil: A Savior for Fuel Injectors?
You may want to see also
Explore related products
Fuel Injection History
Fuel injection is the introduction of fuel into an internal combustion engine, most commonly automotive engines, by a fuel injector. The injector is located in the combustion chamber, inlet manifold, or throttle body. The fundamental function of a fuel injection system is to spray pressurised fuel into the engine.
The first fuel-injected compression-ignition engine was constructed in 1902 and entered production in 1906. The engine was French and was called the Antoinette 8V. It was designed by aviation pioneer Léon Levavasseur and was the first production V8 in history. The first fuel injection system that resembled those of today was invented by British engineer Herbert Akroyd Stuart in 1885. The Hornsby-Akroyd engines were used in agriculture and shipping. In 1891, the British Herbert-Akroyd oil engine became the first engine to use a pressurised fuel injection system.
In 1912, Dr Archibald Low revealed details of his prototype engine, which was further developed by F. E. Baker Ltd. The engine was a high-compression four-stroke motorcycle engine, with the gasoline fuel separately pressurised to 1000 psi and admitted into the cylinder by a small rotary valve. In 1919, Prosper l'Orange invented the pre-combustion chamber to avoid the drawbacks of air-blast injection systems. The first direct-injected diesel engine for trucks was presented by MAN Truck & Bus in 1924. Higher-pressure diesel injection pumps were introduced by Bosch in 1927. In 1925, the Hesselman engine was introduced; it was the first direct-injected compression-ignition engine used in road-going vehicles. It was designed by Swedish engineer Jonas Hesselman and was used in buses and trucks from the late 1920s to the early 1940s. Mass-produced diesel engines for passenger cars became available in the late 1930s and early 1940s, being the first fuel-injected engines for passenger car use. In passenger car petrol engines, fuel injection was introduced in the early 1950s and gradually gained prevalence until it had largely replaced carburetors by the early 1990s.
During World War II, Germany began equipping some of its fighter aircraft with direct fuel injection to prevent engine stall-out during high-speed aerial maneuvers. In the 1980s, electronic systems began to be used to control the metering of fuel. In the 1990s, a high-pressure GDI system was developed by German company Ficht GmbH for marine engines. In 2005, the Toyota 2GR-FSE V6 engine was the first to combine both direct and indirect injection. In the 21st century, the use of direct injection in petrol engines has become increasingly common.
Unblocking Fuel Injectors: DIY Solutions for Quick Fixes
You may want to see also
Explore related products
Fuel Injector Types
Fuel injectors are a vital component of an engine's fuel injection system, which is the process of introducing fuel into an internal combustion engine. The injector is effectively a spray nozzle that performs the final stage of delivering fuel into the engine.
There are four main types of fuel injectors: single-point injection, multi-point injection, sequential fuel injection, and direct fuel injection. Single-point injection, also known as throttle-body injection (TBI), is the oldest and simplest type, replacing the carburettor with one or two fuel-injector nozzles in the throttle body. This type of injector is less precise than more modern systems but offers better control than a carburettor and is less expensive and easier to service.
Multi-point injection, also called port injection, is when each cylinder in the combustion chamber of the engine is given an injector at the front of its inlet valve (outside the intake port). Every injector sprays fuel at the same time, and each cylinder gets a more precise volume of fuel, reducing the possibility of fuel condensation outside the intake manifold.
Sequential fuel injection, also known as sequential port fuel injection (SPFI) or timed injection, is a type of multiport injection. While basic multi-port injection employs multiple injectors, they all spray their fuel at the same time or in groups. Sequential fuel injection triggers each injector nozzle independently, improving efficiency and emissions.
Direct fuel injection, also known as gasoline direct injection (GDI) in petrol engines, places the injector inside the cylinder to directly inject the fuel, bypassing the intake valve or manifold. This type of injection is more common in diesel engines but has been used in petrol engines since around World War II. GDI engines are relatively more powerful and convenient for better CNG fuel efficiency, but they produce more black carbon aerosols than traditional port fuel injection engines.
Other types of fuel injectors include unit injectors, which control the metering, and injection valves, which perform all three functions. Common-rail injection systems are the most common in modern automotive engines, where fuel from the tank is supplied to a common header (accumulator) and then sent through tubing to the injectors, which inject it into the combustion chambers.
Fuel Injectors: Part of a Rebuilt Engine?
You may want to see also
Explore related products
Fuel Injection in Different Engines
Fuel injection is the introduction of fuel into an internal combustion engine, most commonly automotive engines, via a fuel injector. The fuel injector is essentially a spray nozzle that performs the final stage of delivering fuel into the engine. The injector is located in the combustion chamber, inlet manifold, or throttle body.
The first engine to use a pressurised fuel injection system was the British Herbert-Akroyd oil engine in 1891. This engine, known as a hot-bulb engine, used a 'jerk pump' to dispense fuel oil at high pressure to an injector.
Single-Point Injection
Single-point injection, also known as throttle-body injection, replaces the carburettor with one or two fuel-injector nozzles in the throttle body, which is the throat of the engine's air intake manifold. It is a relatively low-cost method that provides better "driveability" than a carburettor. Single-point injection was a stepping stone for automakers to transition to more complex multipoint systems.
Multi-Point Injection
Multi-point injection, also called port injection, involves injecting fuel into the intake ports just upstream of each cylinder's intake valve. Multi-point injected systems typically use multiple fuel injectors, but some systems, such as GM's central port injection system, use tubes with poppet valves fed by a central injector instead of multiple injectors. Multi-point injection provides more accurate fuel metering and a quicker response compared to single-point injection.
Direct Injection
Direct injection involves injecting fuel directly into the main combustion chamber of each cylinder. This can be achieved with a conventional helix-controlled injection pump, unit injectors, or a common-rail injection system, which is the most common in modern automotive engines. The common-rail system supplies fuel from the tank to a common header (accumulator) and then through tubing to the injectors, which inject it into the combustion chambers. Direct injection is more common in diesel engines but is also starting to be used in gasoline engine designs.
Gasoline Direct Injection (GDI)
GDI engines inject fuel during the intake and compression phases, which becomes a limitation at high engine speeds (RPM) when the duration of each combustion cycle is shorter. GDI engines produce more black carbon aerosols than traditional port fuel injection engines, which has climate-warming effects. However, GDI technology is credited with boosting fuel efficiency and reducing CO2 emissions.
Fuel Injector Cleaners: Carb Cleaning Benefits?
You may want to see also
Explore related products
Fuel Injectors and Emissions
Fuel injection is the introduction of fuel into an internal combustion engine, most commonly an automotive engine, by means of a fuel injector. The injector is located in the combustion chamber, inlet manifold, or throttle body. The fuel injector is essentially a spray nozzle that performs the final stage in the delivery of fuel into the engine.
The introduction of fuel injection systems in modern cars has been driven by the need to keep up with emissions and fuel efficiency laws. Fuel injection has been around since the 1950s, but electronic fuel injectors were widely used on European cars starting around 1980. Now, all cars sold in the United States have fuel injection systems.
Single-point injection, also called throttle-body injection, was a relatively low-cost way for automakers to reduce exhaust emissions to comply with tightening regulations while providing better "driveability" (easy starting, smooth running, no engine stuttering) than could be obtained with a carburetor. Multi-point injection, or port injection, injects fuel into the intake ports just upstream of each cylinder's intake valve, rather than at a central point within an intake manifold. This system typically uses multiple fuel injectors, but some use tubes with poppet valves fed by a central injector instead of multiple injectors.
Gasoline direct injection (GDI) engines are limited to injecting fuel during the intake and compression phases, which can be a restriction at high engine speeds (RPM) when the duration of each combustion cycle is shorter. GDI engines are also credited with boosting fuel efficiency and reducing CO2 emissions. However, they produce more black carbon aerosols than traditional port fuel injection engines, which can have significant climate-warming properties.
Regular maintenance of fuel injectors can help to improve fuel efficiency and reduce emissions. Cleaning or replacing clogged or worn fuel injectors can improve the atomization of fuel, resulting in more complete combustion and lower emissions of harmful pollutants. Additionally, upgrading to more efficient fuel injectors can also help to improve fuel economy and reduce emissions.
