Fuel injectors are an essential component of a car's engine, spraying fuel into the cylinders, where it is mixed with air and then burned to generate power. A faulty fuel injector can cause the engine to run poorly or not run at all. While some issues may require a professional mechanic, there are several DIY methods to check fuel injector pulses at home. One way is to use a test light to check for power and pulse signals from the computer to the injector. Another method involves using a digital multimeter to check the resistance of the injector electrical terminals. Additionally, a pulse tester can be used to monitor pressure changes in the fuel rail when the injector is pulsed. For those with an OBDII scanner, errors in the vehicle's computer related to the cylinder or injector can be identified.
How to check fuel injector pulse
| Characteristics | Values |
|---|---|

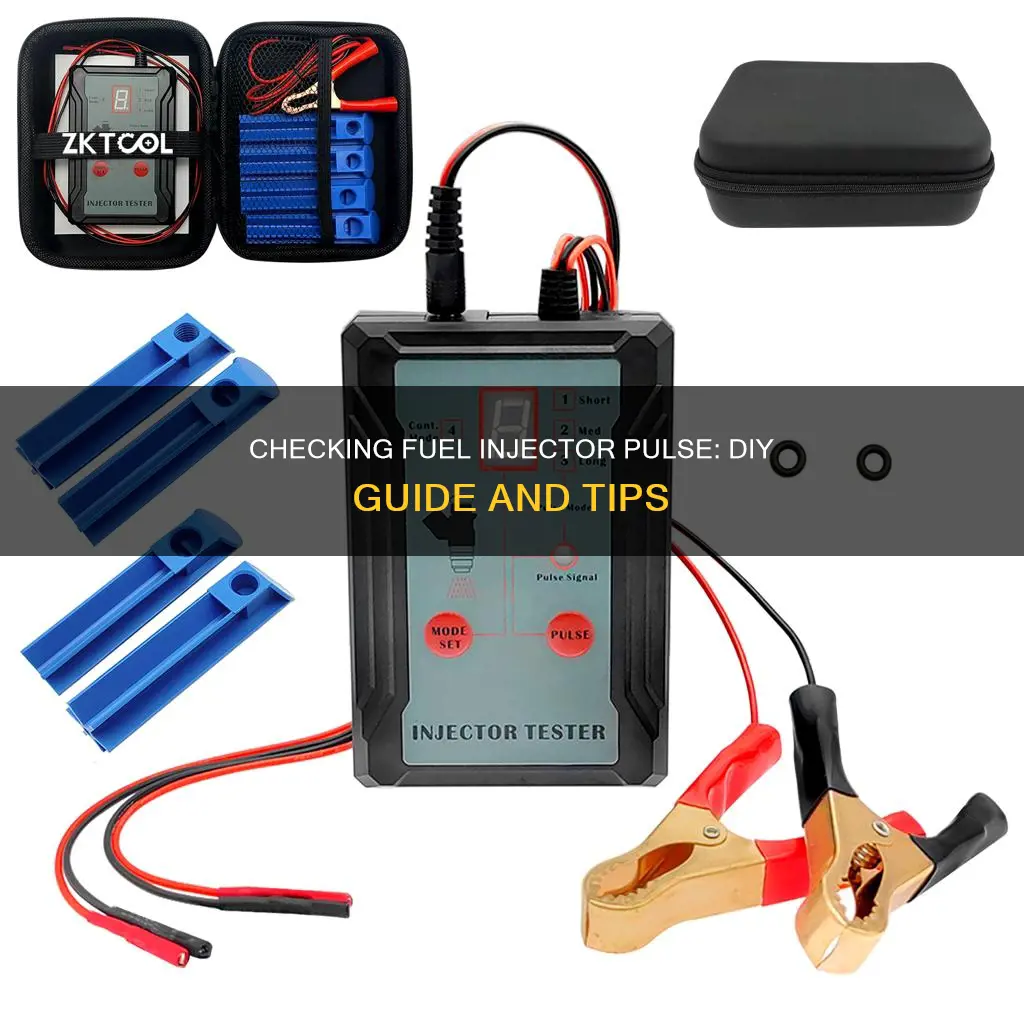

| Tools | LED bulb, small wattage bulb, stethoscope, screwdriver, NOID lights, digital multimeter, test light, OBDII scanner, voltmeter, pulse tester |
| Steps | Check if the +ve side of the LED goes to the +ve terminal on the injector, check if you have 12V getting to the injector +ve, check if the fuel pump primes for a few seconds when you switch the ignition on, listen for the injectors firing via a stethoscope or screwdriver, use a digital multimeter to check the resistance, use a test light to check for power and pulse signals, use an OBDII scanner to check for errors in the vehicle's computer, use a voltmeter to test rapid grounding, prime the fuel rail and watch the pressure drop, check the intake and cylinders |
| Issues | Fuse/relay/wiring problem, faulty injector, faulty circuit, faulty device driver in the computer, faulty ECU, failing injectors along the fuel rail |
Explore related products
What You'll Learn
Using a test light to check for power and pulse signals
To check the power and pulse signals of a fuel injector, you can use a test light or voltmeter. This can be done with the injector installed or uninstalled, but fuel may be present during testing, so it's important to take the usual fire precautions and wear protective gloves and eyewear.
Firstly, turn the key to the "on" position without starting the engine. Then, with the negative side of the battery, gently probe both sides of the injector wiring connector with the test light or voltmeter. One of the wires should react by registering around 12 volts on the meter or illuminating the test light. If neither wire reacts, test the fuel injector fuse in the PDC. If the fuse is fine, you will need a fuel injection wiring diagram to help trace the wire and repair the connection.
To observe the pulse produced by the PCM, attach the test light lead to the positive side of the battery and have an assistant start or crank the engine. Probe the opposite side of the injector connector from the power circuit, and you should see the test light flickering in response to the engine RPM/Load.
If the test light is failing to light up, the injector may be faulty, or there could be an issue with the vehicle's electronic control unit. To confirm this, disconnect the wiring clips to each injector and begin the test again. With none of the injectors connected, the flickering pulse should transmit through all of the wires without any issues.
You can also use a screwdriver to listen to the injector for a clicking sound. Place the end of the screwdriver on top of the injector and put your ear to the handle. If you don't hear a clicking sound, it could mean that the computer is not sending a pulse signal or that the solenoid has broken.
Tightening Fuel Injector Inlet Screws for Optimal Performance
You may want to see also
Explore related products
Using a digital multimeter to check resistance
To check the fuel injector pulse, you can use a digital multimeter to test for electrical resistance. This can be done with the engine off, and no power supply.
Firstly, locate the fuel injectors. They are usually found on the intake manifold, connected by a fuel rail. Once located, disconnect the electrical connector for the fuel injector. Now, use a multimeter to take a resistance reading. Set the multimeter to measure ohms, and ensure it is set to the right value on the Ohms scale according to the resistance specifications for your fuel injector. Most injectors should read between 10 and 18 ohms, but you can check the correct value in your vehicle's service manual or online.
When taking the reading, connect the multimeter leads to the injector electrical terminals. The polarity of the leads does not matter. A resistance reading other than that specified in your service manual means the injector needs to be replaced. For example, if the reading is jumping around, the coil is partially open. If the meter reads infinite resistance, the coil is open, and if you read zero resistance, the coil is shorted.
You can also test the injector's controlling circuit using a test light. This will check for power and pulse signals coming from the computer. If the test light remains lit, there is a problem with the circuit.
Fuel Injector Cleaner: Capless Gas Tank Maintenance
You may want to see also
Explore related products
Using a voltmeter to test rapid grounding
To check the fuel injector pulse, you can use a voltmeter to test rapid grounding. Here is a step-by-step guide:
Firstly, it is important to ensure safety. Fuel may be present during testing, so protective gloves and eyewear are recommended. Additionally, have an assistant help with the testing to prevent major engine damage. Before beginning, remove the fuel pump fuse to prevent the car from starting during the test.
Now, for the testing procedure. Start by unplugging the injector and inserting the positive voltmeter lead into one of the two connector slots from the injector wiring harness. Touch the other lead to the engine metal (not plastic) for a ground. Then, have your assistant turn the key on.
If there is no voltage, test the second connector slot. Normally, there should be a battery voltage of around 12 volts on one of the two slots. If there is no voltage, the voltage supply circuit may need repair.
Next, test the injector circuit for ground. If there is voltage present at the connector, insert the ground voltmeter lead into the open slot of the connector. Have your assistant crank the engine, and observe the voltmeter. The voltage reading should fluctuate as the ground signal is applied and then removed as the engine cranks.
If you are using a digital meter, you may find it challenging to determine the reading as the voltage drops to zero and back. In this case, a moving coil voltmeter or an oscilloscope may be more suitable.
Additionally, you can perform a simple test to check for the injector pulse without a voltmeter. Place a screwdriver on the injector and put the other end up to your ear. Listen for a rapid clicking sound. If you don't hear it, try swapping the wiring with another cylinder to see if the injector starts clicking, as it may be a wiring issue.
Fuel Injector Sizing: Calculating the Right Fit
You may want to see also
Explore related products
Using a stethoscope to listen for the injectors firing
To use this method, grab a stethoscope and fire up your vehicle's engine. Place the stethoscope on the fuel injector and listen for the distinct sound of the pintle shooting back and forth. The sound of the fuel injector operating is very distinct and clear.
Additionally, if you move the stethoscope up towards the fuel pump, you may also be able to hear the rushing of fuel. This method provides a quick and easy way to check for any issues with the fuel injector without the need for complex tools or equipment.
It is important to note that while this method can help identify some fuel injector issues, there may be cases where a more comprehensive inspection by a professional mechanic is required.
Fuel Injector Buying Guide: Choosing the Right Injectors
You may want to see also
Explore related products
Checking the fuel pump primes when the ignition is switched on
Checking that the fuel pump primes when the ignition is switched on is an important step in troubleshooting fuel injector issues. Here is a detailed guide on how to do it:
Firstly, locate the fuel pump in your vehicle. It is usually found inside the fuel tank. When you turn the ignition key to the "on" position, listen carefully for the sound of the fuel pump priming. This priming should last for around 2 to 4 seconds and then shut off. If you don't hear this priming sound, it could indicate an issue with the fuel pump or a related component.
To further diagnose the issue, you can use a test light or a multimeter to check for power at the fuel pump. Locate the power feed wire, which is usually grey, and probe it with the test light or multimeter when the ignition is on. If there is no power, move on to checking the ECM (Engine Control Module) signal, which is typically a dark green/white wire on the relay. If the ECM signal is present but the power feed wire is not lit, it may indicate a problem with the relay.
Additionally, you can check the fuel pressure by removing the cap from the Schrader valve behind the alternator and depressing the core. Be cautious, as fuel may squirt out, and always be mindful of fire hazards. If there is no fuel pressure, potential causes could be a tripped inertia switch, a faulty fuel pump power relay, a clogged fuel filter, or a failed fuel pump.
If you continue to experience issues with the fuel pump priming, it is recommended to consult a professional mechanic. They can perform more comprehensive diagnostics and provide advice on repairing or replacing any faulty components.
Identifying Fuel Injector Issues in a 2003 Honda Pilot
You may want to see also
Frequently asked questions
You can use a test light to check for power and pulse signals coming from the computer on each injector. If the test light remains lit, there is a problem in the circuit.
You can use a digital multimeter, a voltmeter, an oscilloscope, or a pulse tester.
If the pulsing light dims as you connect one of the injectors, that injector is faulty and needs to be replaced.
A faulty fuel injector can cause your engine to run poorly or even fail to run at all.
