A leaking fuel injector can be dangerous and lead to severe engine damage. It is important to identify the issue and address it as soon as possible. Some common symptoms of a leaking fuel injector include a strong gasoline odour, rough idling, engine misfires, and oil thinning. To identify a leaking fuel injector, one can check for fuel stains, wetness, or pooling of fuel around the injector rail. If you suspect a leak, it is best to consult a mechanic or a professional with the proper diagnostic equipment to test and clean the injectors.
Characteristics and Values of a Leaking Fuel Injector
| Characteristics | Values |
|---|---|
| Fuel injector leak testing | Should be done under operating pressure |
| Fuel injector cleaning | Should be done every 36 months or 45,000 to 100,000 miles |
| Symptoms | Rough idle, rough acceleration with a loss of power, vibrations, white smoke from the exhaust, fuel smell, hard starting when the engine is hot |
| Causes | Clogging due to carbon deposits, damaged seal or body, cracked fuel injector body, bad fuel injector O-rings, weak spring |
| Effects | Increased fuel consumption, car performance issues, severe engine damage, oil thinning, hydro-lock, engine bearing damage, scorched cylinder side walls, explosion inside the engine |
| Fuel leak signs | Visual signs of fuel stains, wetness, or pooling of fuel, gasoline smell around the engine bay or fuel injector area |
Explore related products
What You'll Learn
Testing for a leaking fuel injector
A leaking fuel injector can lead to severe engine damage and is a fire hazard. It is important to identify and fix the problem as soon as possible. Some common symptoms of a leaking fuel injector are:
- Rough idling
- Engine misfires
- Vibrations
- White smoke from the exhaust
- Fuel odour inside and around the car
- Hard starting when the engine is hot
- Increased fuel consumption
- Poor emissions
Using a Fuel Pressure Gauge
- Install a fuel pressure gauge on the fuel rail Schrader valve.
- Turn the key to "ON" to let the pump prime the fuel rail.
- Turn the key "OFF" and pinch the return line.
- Watch the fuel pressure gauge. If the pressure starts to drop rapidly (like 5 psi in a minute or so), your injectors are leaking.
- If the pressure remains steady, the regulator valve seat and disc are probably damaged.
- To confirm that the injectors are leaking, raise the fuel rail slightly out of the inlet manifold without disconnecting any fuel lines. Place a small napkin or piece of paper under each injector.
- Pressurize the system by turning the key "ON" for a few seconds, then turn it "OFF" and let it sit for about 10 minutes.
- If a leaking injector is indicated by one or more drops of fuel on any of the napkins, all injectors should be replaced.
Using a Fuel Injector Tester
- Buy a fuel injector tester to pulse the fuel injectors off the car using a can of carburetor cleaner as the spray.
- This will cause a check engine light.
- Test by unplugging the wiring harness injectors one at a time (with the engine off).
- With a scan tool that can do live data, the engine will tell you the fuel trim percentages, which gives you the air-fuel ratio.
- If the fuel trim shows that it is running massively rich, you can narrow down which fuel injector is the culprit.
Other Methods
- Turn the car on and let it idle. Look for a lit check engine light and inspect the fuel injector rail for visual signs of fuel stains, wetness, or pooling of fuel.
- Conduct a fuel pressure test and dye test to confirm the fuel leak.
- If you have a clogged injector, you will notice signs like rough idling, rough acceleration with a loss of power, and vibrations.
Kia Rio Fuel Injectors: What You Need to Know
You may want to see also
Explore related products
![HiSport Fuel Injector Seal Kits Rebuild Set Include O-rings, Pintle Caps, Seal Spacers, Filter Baskets with 1pcs Filter Removal Tool [8 Set]](https://m.media-amazon.com/images/I/71D2r04zhLL._AC_UY218_.jpg)
![HiSport Fuel Injector Seal Kits Compatible with Ford Mercury Lincoln Jeep V8 5.4L 4.6L Include O-Rings, Pintle Caps, Seal Spacers and Filter Baskets Universal Repair Set Replaces 0280150962 [8 Set]](https://m.media-amazon.com/images/I/71r8hDT8hoS._AC_UY218_.jpg)
Symptoms of a leaking fuel injector
A leaking fuel injector can cause serious issues with your car and even pose a fire risk, so it's important to be vigilant for any symptoms of a leak. One of the most common signs of a leaking fuel injector is a rough idle, where the engine misfires and loses power. You may also experience vibrations and a loss of power when accelerating.
Another symptom of a leaking fuel injector is the smell of fuel inside or around your car. This could be due to excess fuel in the cylinder, which can also cause the engine to stall. If you notice a strong gasoline odour, it's important to investigate further and get the issue addressed as soon as possible.
Leaking fuel injectors can also cause oil thinning, which occurs when fuel mixes with engine oil. This reduces the oil's ability to prevent engine wear and can lead to catastrophic engine failure. In some cases, oil thinning can even cause an explosion inside the engine. If you notice that your oil level is higher than usual or it smells like gasoline, it's likely that you have a leaking fuel injector.

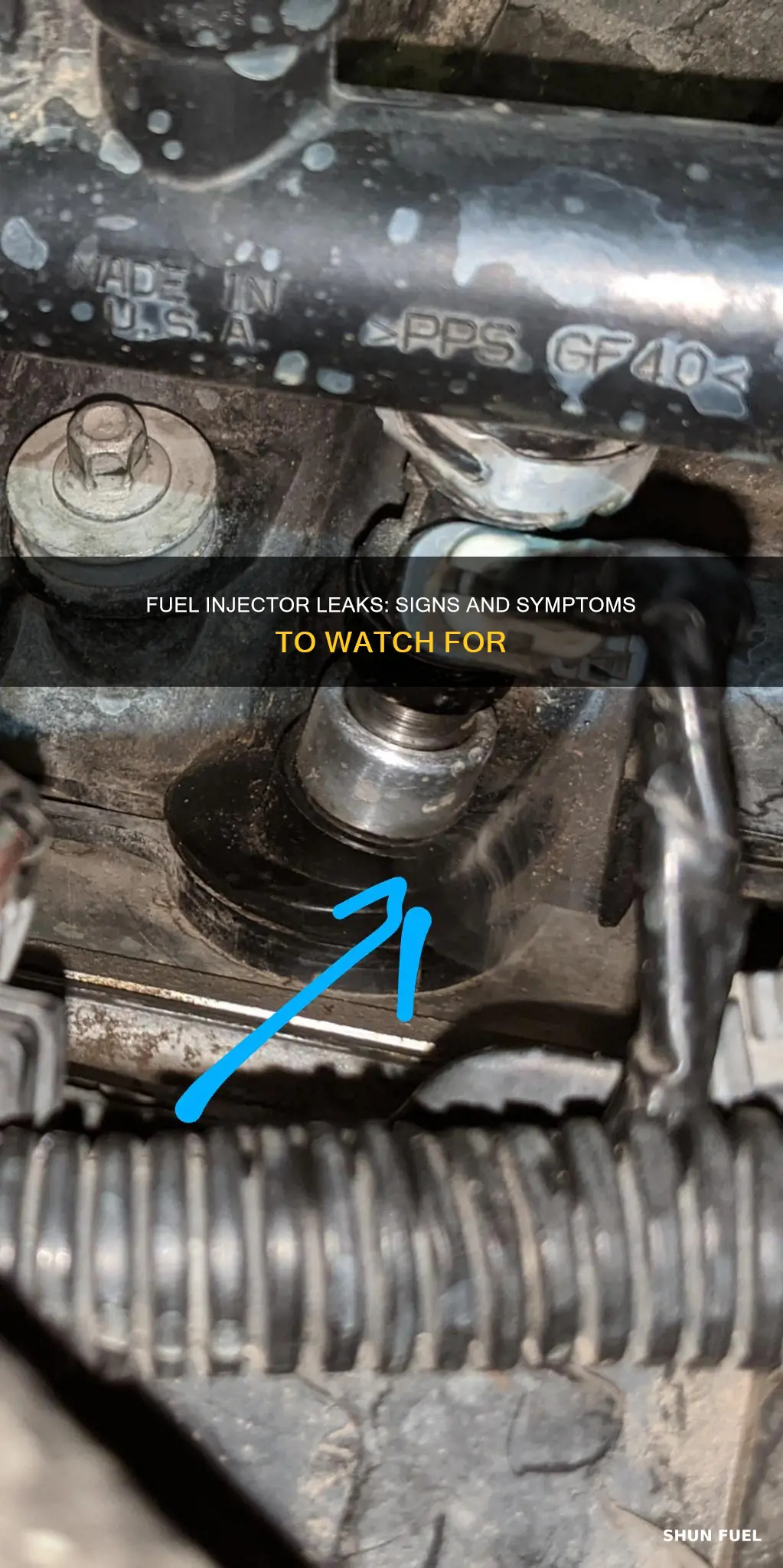

You may also notice visual signs of a fuel leak, such as fuel stains, wetness, or pooling of fuel around the fuel injector rail. If you suspect a leak, it's recommended to turn on the car and let it idle, then inspect the fuel injector rail for any signs of leakage. Additionally, you can check for a lit check engine light on the dashboard, which could indicate a problem with the fuel injector.
It's important to address a leaking fuel injector as soon as possible to prevent further damage and ensure the safe operation of your vehicle. While some minor leaks can be fixed with a thorough cleaning, it's generally best to consult a professional mechanic for proper diagnosis and repair.
Best Diesel Fuel Injector Cleaners: Top Recommendations
You may want to see also
Explore related products
Causes of a leaking fuel injector
A leaking fuel injector can cause serious issues and even be a fire hazard, so it is important to identify and fix the problem as soon as possible. There are several ways to identify a leaking fuel injector, such as looking for a lit check engine light, inspecting the fuel injector rail for fuel stains, wetness, or pooling of fuel, and checking for a gasoline smell.
There are several causes of a leaking fuel injector. One common cause is a damaged seal or body, which can lead to issues like rough idling, engine misfires, and oil thinning. A weak spring or a plunger that is not closing correctly can also cause a fuel injector to leak, as these issues can allow fuel to bypass the plunger and end up with excess fuel in the cylinder. Carbon deposits during combustion can also cause clogging, which in turn can lead to leaking.
In addition, external fuel injector leaks such as a cracked fuel injector body or bad fuel injector O-rings can cause an engine fire at any time. Fuel injector pintle, ball, or disc seat leaks, as well as the bottom O-ring leak on a side feed injector, will cause fuel to escape into the intake manifold. From there, the fuel will run down to the intake valves and, if open, enter the cylinder, eventually mixing with the engine oil.
It is important to note that fuel injector leak testing should be done under operating pressure. Most DIY fuel injector cleaning projects and automotive repair shops do not have the proper diagnostic equipment to test and clean leaking injectors properly. Therefore, it is recommended to send leaking fuel injectors to professionals for testing and cleaning.
Fuel Injector Maintenance: Identifying and Replacing Bad Injectors
You may want to see also
Explore related products
Fixing a leaking fuel injector
A leaking fuel injector can lead to severe and costly engine damage, so it is important to identify and fix the problem as soon as possible. Some common symptoms of a leaking fuel injector include:
- Rough idle
- Engine misfires
- Vibrations
- White smoke from the exhaust
- Gasoline odour
- Hard starting when the engine is hot
- Increased fuel consumption
- Poor emissions
If you suspect a fuel injector leak, it is best to call a mechanic immediately. However, if you have some knowledge of fuel system parts, you can try to fix it yourself. Here are the steps to fix a leaking fuel injector:
Step 1: Identify the Source of the Leak
Turn the car on and let it idle. Check for a lit check engine light and inspect the fuel injector rail for visual signs of fuel stains, wetness, or pooling of fuel. Conduct a fuel pressure test and dye test to confirm the fuel leak.
Step 2: Address the Leak
If the leak is due to a damaged seal or body, you may need to replace the injector. If the leak is coming from the top of the O-ring near the fuel injector rail or a clogged injector, you may be able to repair it by replacing the O-ring or cleaning the affected injector. Cleaning your dirty fuel injectors regularly can help prevent clogging and leaking.
Step 3: Reassemble and Test
Once you have addressed the leak, reassemble the fuel injector and test it to make sure it is functioning properly. Start the car and let it run until the engine stalls to relieve the fuel pressure within the rail.
It is important to note that fuel injector leak testing and cleaning should be done under operating pressure. Most automotive repair shops do not have the proper diagnostic equipment, so it is suggested that you send your leaking fuel injector to a specialised service for testing and cleaning.
Using Chevron Fuel Injector Cleaner: A Step-by-Step Guide
You may want to see also
Explore related products
Risks of a leaking fuel injector
A leaking fuel injector can pose several risks, both to the vehicle and the driver. Firstly, it is a fire hazard, with the potential to cause an engine fire at any time. This is due to the highly flammable nature of fuel, which, when leaked, can come into contact with hot engine components or electrical sparks, leading to a potential fire or explosion.
Secondly, a leaking fuel injector can cause severe and costly engine damage. The excess fuel from the leak can enter the engine, leading to issues such as oil thinning, hydrolocking, and engine bearing damage. Oil thinning occurs when fuel mixes with engine oil, reducing its ability to prevent engine wear and lubricate components. This can result in scorched cylinder sidewalls and, in extreme cases, an explosion within the engine. Hydrolocking happens when excess fuel enters the combustion chamber and cannot be compressed, causing the engine to lock up. This can lead to bent connecting rods, broken pistons, and blown head gaskets, resulting in expensive repairs.
Additionally, a leaking fuel injector can cause increased fuel consumption as the engine receives more fuel than it needs. This not only wastes fuel but can also lead to rough idling, engine misfires, and performance issues. The vehicle may experience rough acceleration, loss of power, and vibrations. In some cases, a leaking fuel injector can also cause white smoke from the exhaust, indicating that the fuel is not being burned efficiently and is escaping as white gas.
Furthermore, a leaking fuel injector can be challenging and dangerous to repair, especially for those without the proper knowledge or equipment. It is crucial to identify and address the problem promptly to prevent further damage and safety risks. While some minor clogs can be cleaned, a damaged fuel injector body or corroded parts may require replacement by a professional mechanic.
Fuel Injectors Failing to Spray: What Could Be Wrong?
You may want to see also
Frequently asked questions
If you have a leaking fuel injector, you may notice a strong smell of gasoline or fuel around your engine or fuel injector area. You may also experience rough idling, engine misfires, and oil thinning.
A leaking fuel injector can cause severe and costly engine damage. It can also lead to increased fuel consumption and car performance issues.
A leaking fuel injector can be caused by a damaged seal or body, clogged injector, or carbon deposits during combustion.
If you suspect a fuel injector leak, it is best to call a mechanic immediately. You may be able to clean the injector yourself using a carb cleaner, but it is important to have the proper diagnostic equipment and knowledge to do so safely and effectively.
Yes, leaking fuel injectors are a fire hazard. They can also cause engine bearing damage, scorched cylinder sidewalls, and even explosions in some cases.
