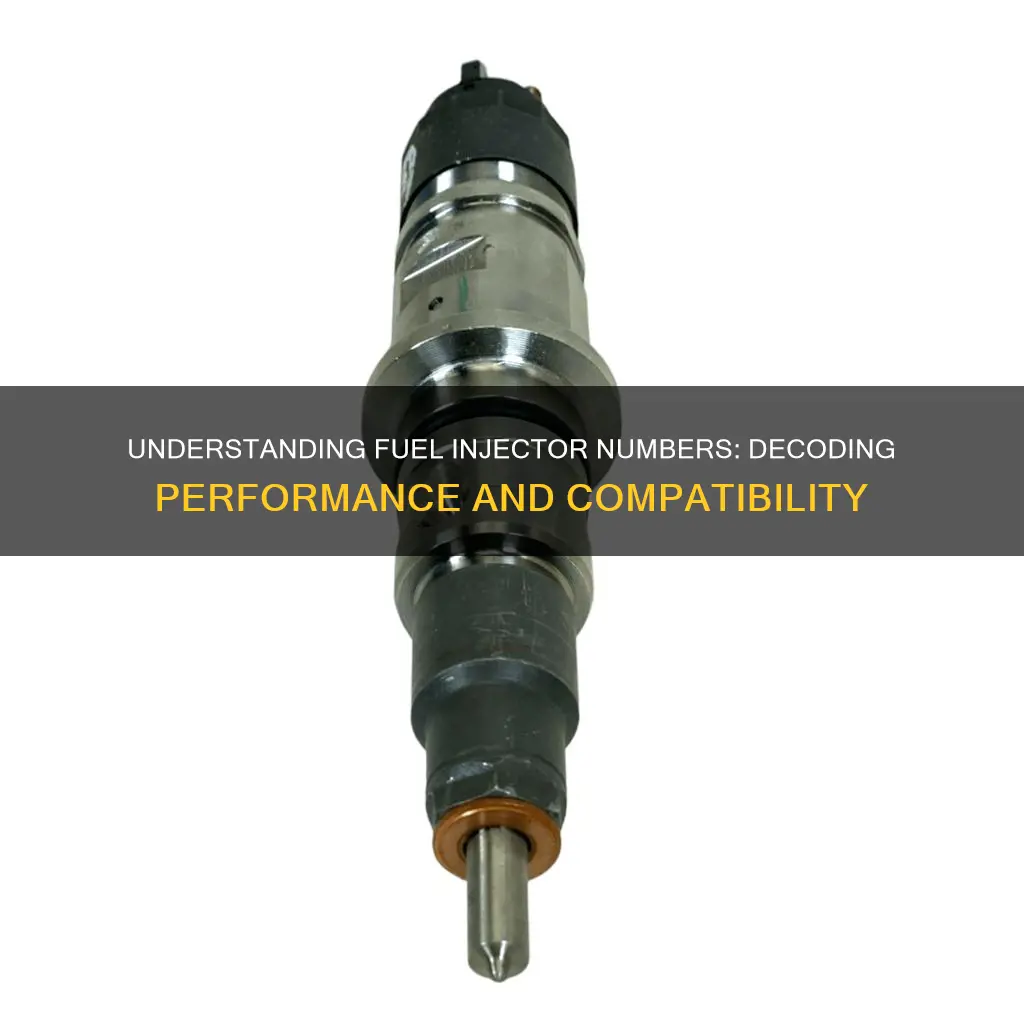

Fuel injectors are electromagnetic solenoids that control the flow of fuel into an engine. The numbers on a fuel injector refer to its flow rate, which is the amount of fuel the injector can supply and is measured in lbs/hr for domestic cars and cc/min for imports. Other factors that determine the amount of fuel delivered by the injector include pulse width, fuel line pressure, and injector tip cleanliness. Accurate injector data is crucial for optimal engine performance, and it is important to select the right size and style of injector for the specific engine.
| Characteristics | Values |
|---|---|
| Fuel injector size | Varies, with ratings ranging from 14 lbs/hr to 160 lbs/hr and more |
| Flow rate | Measured in lbs/hr for domestic cars and cc/hr for imports |
| Fuel line pressure | Varied and factored in at 43-44 psi when measuring flow rates |
| Injector tip cleanliness | A dirty injector can impede fuel delivery |
| Spray pattern | Wide angle, conical or diffused vs. narrow spray pattern |
| Dead time | Time lag between the injector being energised and fuel flowing |
| Pulse width | The amount of time the injector is open |
| Linear fuel delivery | Injector has a point where fuel flow becomes nonlinear |
| Fuel efficiency | Measured by BSFC (Brake Specific Fuel Consumption) |
Explore related products
What You'll Learn
Injector size and linear fuel delivery
The linearity of fuel delivery is also crucial. Every injector has a point in its operation at low pulse widths that will cause the fuel flow coming out of the injector to become nonlinear. Nonlinear fuel delivery means that the actual fuel flow may deviate from the theoretically expected amount. For example, if we expect the injector to deliver 40 cc/min at 1.0 ms (millisecond) pulse width, it may not deliver 35 cc/min at 0.8 ms. This nonlinearity can lead to a lean condition, resulting in a hunting idle or a lean misfire that causes the engine to run choppy and unstable.
To achieve linear fuel delivery, the injector's pulse width must be above a certain threshold, known as "the cliff." Below this point, the injector flow cannot be accurately controlled by the commanded output from the on-board computer. At idle, which typically operates at the lowest pulse width, a linear fuel delivery is desired to maintain a stable AFR ratio, ideally 14.7:1.
The injector's characteristics, such as the quality of the injector internals and spray pattern, also influence its linear response. Additionally, larger injectors should typically be run in sequential mode rather than batch fire mode to create a longer pulse width and improve linearity, especially at idle. Accurate injector data, including dead time and response characteristics, is crucial for the on-board computer to properly control the fuel injector and ensure optimal engine performance.
Removing Fuel Injectors: 2001 Toyota Tacoma Guide
You may want to see also
Explore related products
Dead time
The on-board computer relies on accurate injector data to manage the fuel injection process effectively. Without precise information on the injector's dead time and response characteristics, the computer may struggle to compensate for the lag, leading to suboptimal engine performance. This issue is particularly pronounced at very low pulse widths, which are common during idle and light throttle operation.
The injector's dead time is influenced by various factors, including the injector's design, the fuel pressure, and the cleanliness of the injector tip. Over time, the injector tip can become dirty, impeding fuel delivery and affecting the dead time. Therefore, regular maintenance and cleaning of the injector tip are essential to ensure optimal performance.
Additionally, the size of the injector plays a role in dead time. Larger injectors may require lower pulse widths to achieve the desired air/fuel ratio, and operating at lower pulse widths increases the likelihood of encountering nonlinear fuel delivery or "on the cliff" behaviour. This nonlinearity can result in unstable engine performance and increased wear and tear on engine components.
To summarize, dead time in fuel injectors refers to the lag between electrical energization and fuel flow. Accurate injector data, including dead time information, is crucial for the on-board computer to make precise fuelling decisions. The injector's design, size, and maintenance all influence dead time, and the impact of dead time is most noticeable during low pulse width operations. By understanding and managing dead time, engineers can optimize engine performance, fuel efficiency, and overall vehicle reliability.
Jasper's Comprehensive Coverage: Fuel Injectors Included
You may want to see also
Explore related products
Injector data accuracy
Fuel injector data accuracy is essential for optimal engine performance. The data provides valuable insights into the injector's characteristics, enabling technicians to fine-tune the engine for improved performance, fuel efficiency, and stability. While some injector data may be available from bench testing, it is crucial to recognize that this information is for general reference and may not be entirely accurate.
One of the critical aspects of injector data accuracy is the injector's flow rate, typically measured in cubic centimeters per minute (cc/min) or pounds per hour (lb/hr). This value indicates the volume of fuel the injector can deliver per unit of time. However, it is important to note that the flow rate depends on the fluid pressure utilized. Therefore, accurate injector data must consider the specific fluid pressure employed in the system.
Another crucial factor in injector data accuracy is the injector's duty cycle, which represents the ratio of time the injector is open compared to the total available time. This value is typically expressed as a percentage and is influenced by the engine's revolutions per minute (RPM). As the engine RPM increases, the injector has less time available to open before the next ignition event, impacting the duty cycle.
Additionally, injector data accuracy should include information about the injector's length, which is typically measured from the center of the upper seal (o-ring) to the center of the lower seal. This dimension is essential for ensuring proper installation and alignment within the engine. Moreover, details about the injector's impedance, or coil resistance, are vital for assessing the electrical characteristics of the injector.
In the context of modern fuel injection systems, such as electronic fuel injection (EFI), accurate injector data becomes even more critical. The on-board computer relies on precise injector data to control the injector effectively, especially during idle and light throttle driving situations. Without accurate data, the engine may experience issues such as unstable performance, increased fuel consumption, or even damage to internal components over time. Therefore, selecting a fuel injector from a manufacturer that provides reliable injector data, such as Injector Dynamics, can significantly aid in achieving optimal engine performance and fuel efficiency.
Motorcraft Fuel Injectors: Better Than Factory Injectors?
You may want to see also
Explore related products
Injector sizing formula
Fuel injectors play a critical role in the performance and tuning control of a fuel-injected engine. The sizing of a fuel injector is an important consideration, as larger injectors require lower pulse widths to achieve the same air-fuel ratio (AFR) as smaller injectors. This can lead to a "lean condition", where the oxygen sensor attempts to correct a significant drop in fuel delivery, resulting in a lean misfire that causes the engine to run erratically and inefficiently.
The FuelTech Fuel Injector Calculator is a valuable tool for selecting the appropriate fuel injector size. It allows users to input parameters such as the number of fuel injectors, estimated horsepower, and the type of induction (naturally aspirated or turbocharged). This information is crucial for achieving optimal engine performance and fuel efficiency.
Additionally, accurate injector data is essential for the on-board computer to effectively manage the fuel injector. This data includes the injector's dead time, which refers to the lag between the activation of the internal electrical circuit and the initiation of fuel flow. By providing this data, the on-board computer can compensate for the lag, ensuring precise fuel delivery, especially during idle and light throttle operation.
The injector size versus linear fuel delivery is another critical aspect. Each injector has a "cliff" point, where the fuel flow becomes nonlinear, deviating from the expected linear relationship between pulse width and fuel delivery. This nonlinear behaviour can negatively impact the engine's performance, leading to unstable idle and reduced fuel efficiency. Therefore, selecting the right injector size and providing accurate injector data are essential for achieving optimal engine performance and fuel efficiency.
Fuel Injector Power: Can It Make Your Car Faster?
You may want to see also
Explore related products
Injector flow rate
Fuel injector flow rate is a critical factor in engine performance and fuel economy. Each injector has a specific flow rate, which is the amount of fuel it delivers per unit of time, typically measured in cc/min (cubic centimetres per minute). The flow rate can vary depending on the pulse width, which is the duration for which the injector is open.
At low pulse widths, the fuel flow may become nonlinear, meaning that the actual fuel delivery deviates from the theoretically expected amount. This nonlinearity becomes more pronounced as the pulse width decreases, and it can lead to issues such as unstable engine performance and increased fuel consumption. Therefore, it is essential to have accurate injector data, including its flow rate and dead time (the time it takes for the injector to open and fuel to flow), to ensure proper engine operation, especially during idle and light throttle conditions.
The injector flow rate can be influenced by various factors, such as the injector size and pulse width. A larger injector will require a lower pulse width to achieve the same air-fuel ratio (AFR) as a smaller injector. Operating the injector at a low pulse width increases the likelihood of encountering nonlinear fuel delivery or reaching "the cliff," where the fuel flow becomes unpredictable.
To compensate for nonlinearity and ensure optimal engine performance, the pulse width should be adjusted to maintain the desired AFR ratio, typically around 14.7:1 at idle. This adjustment is crucial to prevent issues such as lean misfires, which can cause the engine to run choppy and accelerate piston ring wear. Accurate injector data, including flow rate information, is essential for tuners to make the necessary adjustments and optimise engine performance, fuel efficiency, and longevity.
Premium Gas: Cleaning Fuel Injectors Better?
You may want to see also
Frequently asked questions
The numbers on fuel injectors refer to their flow rate, which is measured in lbs/hr for domestic cars and cc/min for imports.
Fuel injectors are electromagnetic solenoids that are controlled by a vehicle's ECU. They prevent fuel from being constantly injected into the engine.
The standard formula for injector sizing takes into account horsepower, the number of injectors, Brake Specific Fuel Consumption (BSFC), and injector duty cycle.
Dead time is the time it takes for the pintle to open and fuel to flow after the internal electrical circuit is energised by the on-board computer.
A flow-matched set of fuel injectors have been tested and selected to ensure that their flow rates are within 1% of each other, ensuring optimal performance.
