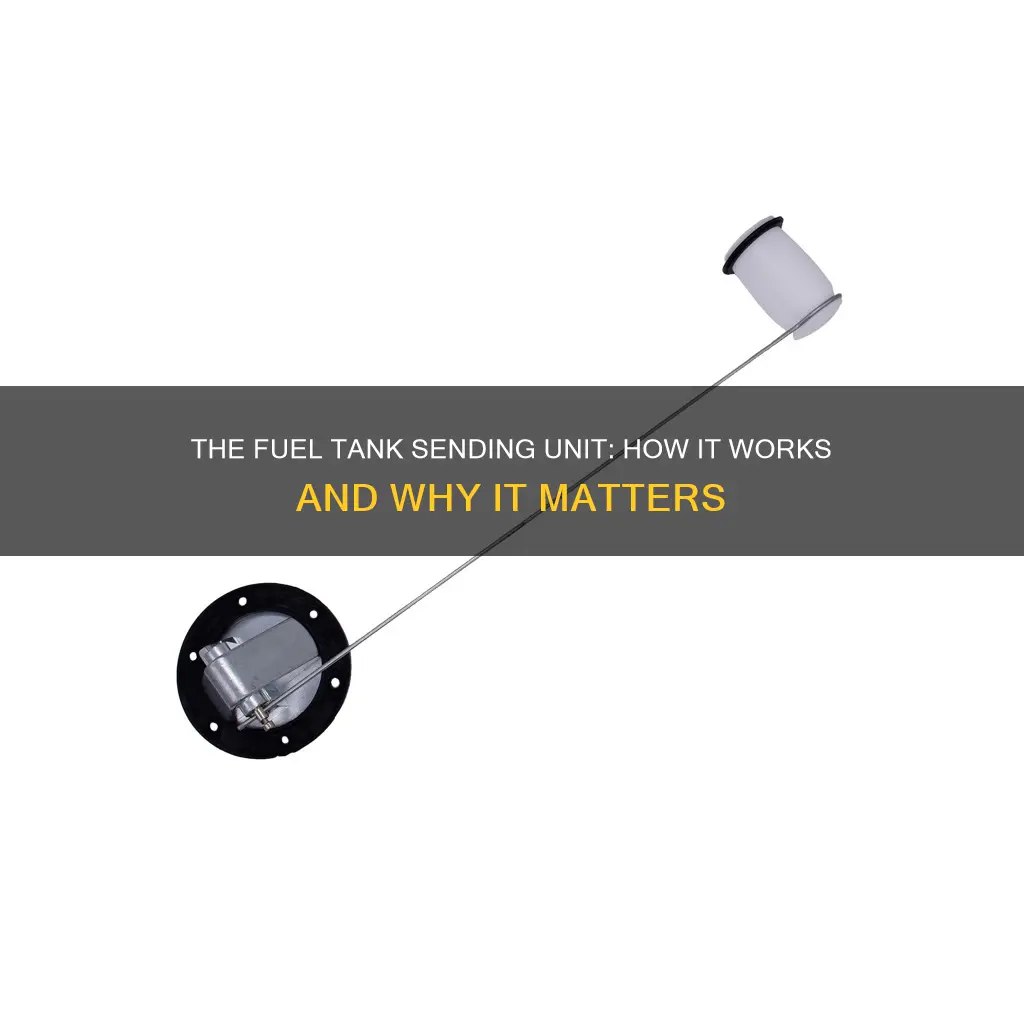

A fuel tank sending unit, also known as a fuel sensor, fuel sender, or fuel probe, is a device that measures the amount of fuel in a tank and relays this information to the fuel gauge. It is an essential component in vehicles and aircraft, providing accurate fuel level readings. The sending unit typically consists of a float connected to a variable resistor, which adjusts its resistance as the float moves with the changing fuel level. This resistance variation generates an electrical signal that the fuel gauge interprets to display the fuel level. Proper maintenance and calibration of the fuel sending unit are crucial to ensure accurate readings and prevent issues such as stuck or fluctuating fuel gauges.
| Characteristics | Values |
|---|---|
| Function | Measures the fuel level and relays this information to the fuel gauge |
| Other Names | Fuel sensor, fuel sender, fuel probe |
| Technologies Used | Resistive, capacitive, ultrasonic, radar, LiDAR, reed switch, magneto-resistive systems |
| Calibration | Needs to be calibrated to ensure accurate readings |
| Universal Compatibility | False. Different vehicles require specific types of sending units |
| Failure Indication | Fluctuating readings, inaccurate readings, stuck at empty or full |
Explore related products
What You'll Learn
The fuel-sending unit relays information to the fuel gauge
The fuel-sending unit is an essential component of a vehicle's fuel system, acting as the intermediary between the fuel tank and the fuel gauge on the dashboard. Its primary function is to measure the fuel level in the tank and relay this information accurately to the fuel gauge, enabling the driver to know the amount of fuel available at any given time.
The unit typically consists of a float connected to a variable resistor. As the fuel level in the tank changes, the float moves accordingly, resulting in a change in resistance within the unit. This variation in resistance generates an electrical signal that is transmitted to the fuel gauge. The fuel gauge, functioning as a voltmeter, interprets the voltage drop across the variable resistor, thereby indicating the fuel level.
The functionality of the fuel-sending unit is based on various technologies, including resistive, capacitive, ultrasonic, radar, LiDAR, reed switch, and magneto-resistive systems. Each system employs distinct principles to measure fuel levels accurately. For instance, capacitive systems rely on the ability of a capacitor to store an electric charge between its two conductive plates, while ultrasonic systems use sound waves to determine fuel levels.
The accuracy of the fuel-sending unit is crucial for the overall performance of the vehicle. A malfunctioning or faulty unit can lead to inaccurate fuel gauge readings, causing the gauge to get stuck at empty or full, or displaying fluctuating readings. In some cases, a faulty unit may even cause the engine to stall unexpectedly due to insufficient fuel supply. Therefore, regular maintenance and prompt addressing of any potential issues are vital to ensure the longevity and reliability of the fuel-sending unit and the vehicle's fuel system as a whole.
Repairing a Leaking Fuel Tank: Quick and Easy Solutions
You may want to see also
Explore related products
It measures fuel quantity remaining in the tank
A fuel-sending unit, also known as a fuel sensor, fuel sender, or fuel probe, is an essential component of a vehicle's fuel system. Its primary function is to measure the quantity of fuel remaining in the tank and relay this information to the fuel gauge on the dashboard. This allows drivers to monitor their fuel levels and refuel when necessary.
The fuel-sending unit acts as an intermediary between the fuel tank and the fuel gauge. It consists of a float connected to a variable resistor, which is designed to change resistance as the fuel level in the tank fluctuates. As the fuel level drops, the float moves accordingly, altering the resistance in the unit and generating an electrical signal that is sent to the fuel gauge. This mechanism ensures that the fuel gauge accurately reflects the amount of fuel in the tank.
The functionality of the fuel-sending unit is based on various technologies, including resistive, capacitive, ultrasonic, radar, LiDAR, reed switch, and magneto-resistive systems. Each system has its unique way of measuring fuel quantity. For example, the capacitive system relies on the principle of capacitance, where the ability of a capacitor to store an electric charge between two conductive plates separated by a dielectric is utilised to determine fuel levels.
In aircraft, the fuel-sending unit is particularly crucial. Aircraft fuel sending units employ modern technologies to ensure accurate fuel level readings. These systems may use capacitance, resistance, or ultrasonic principles to measure fuel quantity, providing essential information for flight planning and in-flight management.
Maintaining the fuel-sending unit is vital to ensure its accuracy and longevity. Regular calibration and replacement of faulty units are necessary to prevent issues such as inaccurate fuel gauge readings, fluctuating readings, or unexpected engine stalling due to insufficient fuel supply. Proper maintenance of the fuel-sending unit and other fuel system components, such as the fuel pump, filters, and injectors, ensures optimal performance and reliability of the vehicle's fuel system.
Removing Fuel Tank from John Deere X300: Step-by-Step Guide
You may want to see also
Explore related products
It uses technology like capacitance, resistance, and ultrasonic principles
A fuel sending unit, also known as a fuel sensor, fuel sender, or fuel probe, is a device that measures the fuel quantity remaining in a tank and relays this information to the fuel gauge. It acts as an intermediary between the vehicle's fuel tank and the fuel gauge on the dashboard. The unit comprises a float connected to a variable resistor, which measures the fuel level in the tank. As the fuel level changes, the float moves, altering the resistance in the unit and sending an electrical signal to the fuel gauge.
Now, let's delve into the specific technologies mentioned: capacitance, resistance, and ultrasonic principles.
Capacitance
Capacitance-based fuel sender probe systems rely on the ability of a capacitor to store an electric charge between its two conductive plates separated by a dielectric material (insulator). The fuel sender probe consists of a probe assembly inside the fuel tank and a control module located elsewhere. The probe assembly is a long, thin rod or strip made of a non-conductive material that extends into the fuel tank. As the level of fuel changes, the capacitance between the two conductive plates varies, and this change can be converted into a resistance value and displayed on a gauge.
Resistance
Resistive fuel sending units use a float that moves according to the fuel level in the tank. The float is connected to a variable resistor, and as the float moves, the resistance in the circuit changes. This variation in resistance is due to the changing length of the resistive path contacted by the wiper arm attached to the float. The fuel gauge measures the voltage drop across the variable resistor, indicating the fuel level.
Ultrasonic Principles
Ultrasonic fuel sending units employ an ultrasonic sensor located within the fuel tank. This sensor emits ultrasonic waves and receives the echoes that bounce back from the fuel surface. By measuring the time it takes for the waves to return, the system can calculate the fuel level. Ultrasonic systems offer a non-contact method of fuel level measurement, making them suitable for tanks where float-based or capacitance-based systems are impractical.
In summary, these three principles of capacitance, resistance, and ultrasonic sensing provide accurate and reliable ways to determine the fuel level in a tank and ensure that the vehicle's fuel gauge displays the correct information.
Removing Your F-Body Fuel Tank: A Step-by-Step Guide
You may want to see also
Explore related products
A faulty unit may cause the engine to stall
A fuel sending unit, also known as a fuel sensor, fuel sender, or fuel probe, is responsible for measuring the quantity of fuel remaining in a tank and relaying this information to the fuel gauge. This ensures that the driver is aware of the fuel level and can refuel when necessary.
A faulty sending unit will result in an inaccurate fuel gauge. Common signs of a faulty sending unit include the fuel gauge getting stuck on empty or full, and the gauge behaving erratically. This happens when the float, which is supposed to remain on the surface of the fuel, breaks off or becomes saturated with fuel. The arm of the float may also wear out or become loose, leading to false fuel level readings.
A malfunctioning fuel sender unit can cause the engine to stall unexpectedly due to an insufficient supply of gasoline. This occurs because the sender is not accurately detecting the fuel level in the tank and, therefore, not allowing enough gasoline through for proper combustion.
To verify if the fuel sending unit is faulty, you can use a multimeter and access the fuel tank. Alternatively, you can disconnect and reconnect the sending unit and observe the gauge. If the sending unit is faulty, it is important to consult a professional and have them replace the unit, unless you have the necessary experience and tools.
Cargo Ships: Why Divide Fuel Storage Tanks?
You may want to see also
Explore related products
Regular maintenance is key to ensuring longevity
A fuel-sending unit, also known as a fuel sensor, fuel sender, or fuel probe, is an essential component of a vehicle's fuel system. It measures the fuel level in the tank and relays this information to the fuel gauge on the dashboard, allowing drivers to know the amount of fuel available. The unit typically consists of a float connected to a variable resistor, which moves with the changing fuel level, altering the resistance and sending an electrical signal to the fuel gauge.
Regular maintenance is key to ensuring the longevity and optimal performance of a fuel-sending unit:
Calibration
The fuel sender system should be calibrated to ensure accurate fuel level readings. This involves setting a range of values corresponding to various fuel levels so that the fuel gauge displays the correct fuel amount. Proper calibration prevents issues such as a gauge stuck on empty or full, fluctuating readings, or erratic needle movement.
Cleaning and Inspection
Periodic cleaning of the fuel-sending unit and its connections can help prevent issues caused by dirt or corrosion. It is important to inspect the unit for any signs of wear, looseness, or saturation with fuel, which can lead to inaccurate readings. Regular inspections can identify potential problems early on, allowing for timely maintenance or replacement.
Compatibility and Replacement
It is crucial to use compatible sending units designed for specific tank sizes and configurations. Using incorrect or interchangeable units can lead to inaccurate measurements and further complications. If the fuel-sending unit fails or malfunctions, it should be replaced with a high-quality unit from a reputable supplier. This involves disconnecting electrical connectors, unscrewing the old unit, and carefully installing the new one.
Maintenance of Related Components
In addition to the fuel-sending unit, regular maintenance of other fuel system components, such as the fuel pump, filters, and injectors, is essential. These components work together to ensure the efficient delivery of fuel to the engine. By maintaining these parts, potential issues can be prevented, and the longevity of the entire fuel system can be enhanced.
By following these maintenance practices, vehicle owners can maximize the lifespan of their fuel-sending units, ensure accurate fuel readings, and avoid costly repairs caused by negligence or incorrect assumptions about the fuel level.
The Truth About DEF: Fuel Tank Facts
You may want to see also
Frequently asked questions
A fuel tank sending unit (also referred to as a fuel sensor, fuel sender, or fuel probe) measures the quantity of fuel remaining in the tank and relays this information to the fuel gauge.
Some common signs of a faulty fuel sending unit include inaccurate or fluctuating fuel gauge readings, or the gauge getting stuck on empty or full.
Fuel sending units use technologies such as resistive, capacitive, ultrasonic, radar, LiDAR, reed switch, and magneto-resistive systems to measure fuel levels. As the fuel level changes in the tank, a float moves accordingly, altering the resistance in the unit and sending an electrical signal to the fuel gauge.
