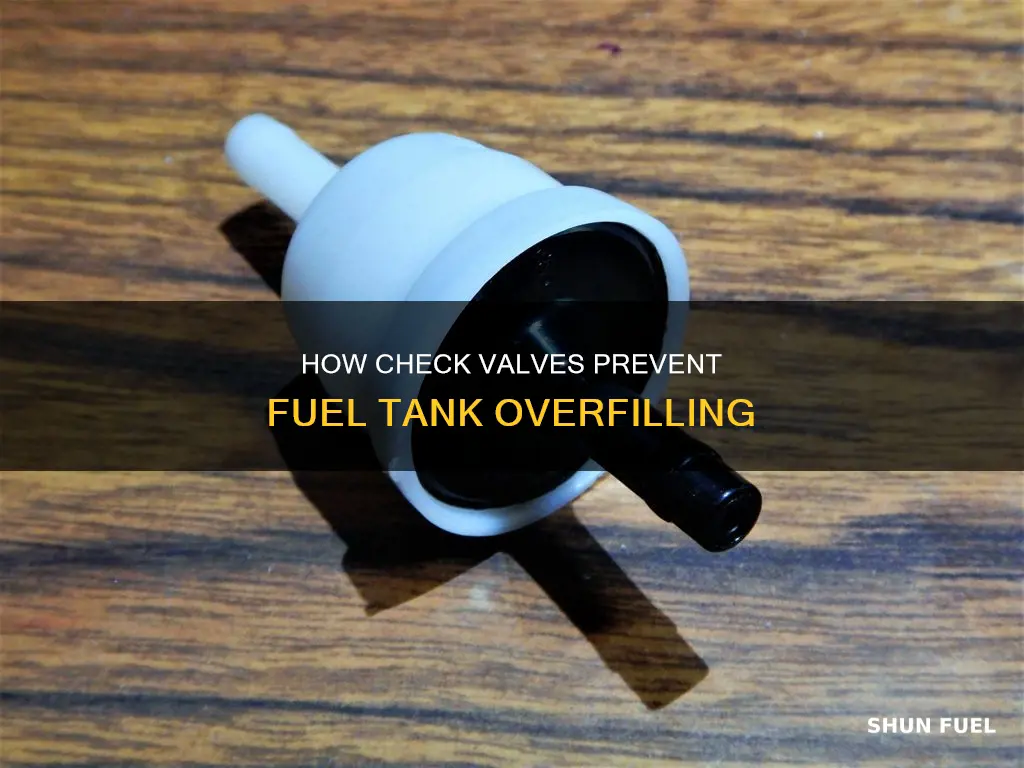

A fuel tank check valve, also known as a non-return or one-way valve, is a crucial component in fuel systems, ensuring the smooth and safe operation of vehicles. It serves as a mechanical device that allows fuel to flow freely in one direction while preventing reverse flow, providing essential control over the fuel's movement. By maintaining the desired flow direction, the check valve plays a vital role in preventing fuel leaks, siphoning, and pressure build-up within the tank, thereby safeguarding the vehicle's performance and protecting its critical components.
Explore related products
What You'll Learn
A fuel tank check valve prevents fuel leaks
A fuel tank check valve is a mechanical device that allows fuel to flow in one direction while preventing reverse flow in the opposite direction. This is particularly useful in preventing fuel leaks and tank damage.
Fuel tank check valves are designed to open and prevent pressure build-up in a system, while also preventing flow in the checked, or non-return, direction. This is important as the volume of gasoline in a fuel tank fluctuates, even when a car is parked. As the volume of gasoline increases, air must exit the tank to relieve the change in pressure. The check valve allows air to vent when pressure increases, preventing damage to the tank and connected components.
In the context of fuel tanks, check valves are often referred to as anti-siphon valves. These valves prevent fuel from being siphoned out of the tank in case the fuel line breaks or is damaged. This is especially important for boats, as they are required to have check valves to obtain coast guard certification.
Additionally, fuel tank check valves can help hold rail pressure, shorten pump priming time, and assist with hot starts. By holding rail pressure while the engine is cooling, the check valve prevents fuel from boiling off, reducing evaporative emissions. Proper placement of the check valve is crucial to achieve these benefits without causing unnecessary stress on the fuel pump.
Overall, a fuel tank check valve is an essential component in preventing fuel leaks, protecting the fuel system, and ensuring the efficient operation of the engine.
Unlocking the Mitsubishi Outlander's Fuel Tank Secrets
You may want to see also
Explore related products
It stops fuel from siphoning out of the tank
A check valve is a mechanical device that allows a gas or liquid to flow freely in one direction while preventing reverse flow in the opposite direction. In the context of a fuel tank, a check valve, also known as an anti-siphon valve, is used to prevent fuel from being siphoned out of the tank in the event of a broken or leaking fuel line. This is especially important when the fuel tank is located above the fuel pump, as it ensures that fuel cannot flow backwards out of the tank and creates a safety measure to prevent fuel theft or accidental siphoning.
The function of the check valve is to allow fuel to flow out of the tank and towards the engine while preventing it from flowing back into the tank. This is achieved through various internal designs, such as a ball bearing, poppet, or disc, that creates an internal seal to block the fuel flow in the checked direction. By preventing reverse fuel flow, the check valve helps maintain proper fuel pressure and ensures that the fuel lines do not run dry, which could lead to engine performance issues.
Additionally, the check valve plays a crucial role in managing pressure within the fuel system. As gasoline volume expands and contracts due to temperature changes, the check valve allows air to vent when pressure increases, preventing damage to the tank and connected components. This venting function also helps to alleviate pressure build-up, reducing the risk of fuel boiling off during engine cooling and minimizing evaporative emissions.
The placement of the check valve is also important for optimal performance. While it can be placed before the pump, doing so puts unnecessary stress on the fuel pump, leading to potential pump damage over time. It is generally recommended to have the check valve on the pressure side, typically on the outlet side of the fuel filter, to reduce inlet restriction and maintain efficient fuel system operation.
Overall, the check valve in a fuel tank plays a vital role in preventing fuel siphoning, maintaining fuel pressure, and ensuring the proper flow of fuel within the system. Its presence enhances the safety and performance of the vehicle's fuel system, making it an essential component in modern automotive engineering.
Westinghouse 7500: Understanding Its Fuel Tank Capacity
You may want to see also
Explore related products
Check valves prevent pressure build-up
Check valves are mechanical devices that allow fluid to flow in one direction while preventing reverse flow in the opposite direction. They are designed to open and prevent pressure build-up in a system. In the context of fuel tanks, check valves are crucial for several reasons. Firstly, they prevent fuel leaks and siphoning. If a fuel line breaks or leaks, a check valve stops fuel from flowing out and into places like the bilges of a boat. This is especially important for boats to obtain coast guard certification.
Secondly, check valves help manage pressure and temperature changes. Gasoline volume expands as it warms and contracts as it cools, leading to pressure fluctuations even when a vehicle is parked. Check valves vent air when pressure increases, preventing damage to the tank and connected components. They also ensure that the fuel pump doesn't have to work against a vacuum, which could lead to pump cavitation and damage.
Thirdly, check valves can aid in shortening pump priming time and improving hot starts. By holding rail pressure while the engine is cooling, the fuel is prevented from boiling off, reducing evaporative emissions. However, placing a check valve before the pump can create inlet restriction, leading to increased pump noise, temperature, and potential damage. Thus, it is recommended to have a check valve on the pressure side, after the pump.
Lastly, check valves can help prevent debris and moisture from entering the fuel tank, further protecting the system. In summary, check valves in fuel tanks play a vital role in maintaining system integrity, improving performance, and ensuring the safe and efficient operation of vehicles.
Taking Down the Fuel Tank: A Step-by-Step Guide
You may want to see also
Explore related products
They allow fuel to flow in one direction
A check valve is a mechanical device that allows fuel to flow in one direction while preventing reverse flow in the opposite direction. This is achieved through various configurations, such as a ball bearing, poppet, disc, or other seal held against a seat when pressure is exerted in the checked direction. In the context of fuel tank check valves, they ensure fuel only flows in one direction, preventing fuel tank and line leaks. This is particularly important when retrofitting vintage or classic cars.
Fuel tank check valves are crucial in preventing fuel leaks, which can occur if a line is severed or damaged. By allowing fuel to flow in one direction, these valves ensure that fuel does not siphon out of the tank and into other areas of the vehicle, such as the bilges in boats. This safety feature is essential to prevent fires or explosions caused by fuel leaks.
Additionally, fuel tank check valves play a vital role in maintaining pressure within the fuel system. They help hold rail pressure, especially when the engine is cooling down, preventing fuel from boiling off. This, in turn, reduces evaporative emissions, which is an increasingly important consideration in the automotive industry due to environmental regulations.
The placement of the check valve is also critical. While it is commonly placed on the pressure side, placing it before the pump can lead to unnecessary stress on the fuel pump, eventually causing damage. Therefore, it is recommended to have the check valve on the outlet side of the filter to maintain optimal system performance and prolong the life of the fuel pump.
In summary, fuel tank check valves are essential in allowing fuel to flow in one direction, preventing leaks, maintaining pressure, and ensuring the safe and efficient operation of the fuel system. Their design and placement are carefully considered to meet specific performance requirements and environmental standards.
How Sludge Forms in Diesel Fuel Tanks
You may want to see also
Explore related products
Check valves can hold rail pressure
Check valves, also known as non-return or one-way valves, are mechanical devices that allow fluids to flow in one direction while preventing reverse flow in the opposite direction. They are commonly used in fuel tanks to maintain pressure and prevent leaks.
In the context of fuel tanks, check valves play a crucial role in holding rail pressure. When an engine cools down, the check valve helps to maintain pressure in the fuel rail, preventing the fuel from boiling off. This, in turn, reduces evaporative emissions, which is an important consideration in meeting emissions standards.
The placement of the check valve is also essential for effective rail pressure management. While placing the check valve before the pump can achieve the goal of holding rail pressure, it can put unnecessary stress on the fuel pump, leading to potential damage. Instead, it is recommended to place the check valve on the pressure side, typically on the outlet side of the pump, to reduce inlet restriction and maintain optimal pump performance.
Check valves can also be used in fuel lines to prevent fuel tank and line leaks. These non-return valves allow fuel to flow in one direction, preventing lines from running dry and ensuring fuel only flows out of the tank when needed. This is particularly important when retrofitting vintage or classic cars, as it helps to maintain fuel efficiency and prevent fuel loss.
In summary, check valves are essential components in fuel tank systems, especially for holding rail pressure. Their ability to control the flow of fuel and maintain pressure contributes to both the efficient operation of the engine and the reduction of emissions. Proper placement of check valves ensures that fuel systems function optimally while also prolonging the lifespan of fuel pumps and other components.
Cleaning Fuel Tanks: Removing Gunk and Grime
You may want to see also
Frequently asked questions
A check valve is a mechanical device that allows a gas or liquid to flow in one direction while preventing reverse flow in the opposite direction.
A fuel tank check valve prevents fuel leaks and fuel from siphoning out of the tank in case the line breaks. It also helps hold rail pressure, shorten pump priming time, and assist with hot starts.
When there is a vacuum in the line caused by the primary pump, the ball moves away from the seat and allows fuel to flow. When the pump is off and no fuel is drawn, the spring pushes the ball against the seat and stops the fuel flow.
It is good to have a check valve in your fuel system. However, it is important to place it on the pressure side of things, ideally on the outlet side of the filter, to avoid putting unnecessary stress on the fuel pump.
