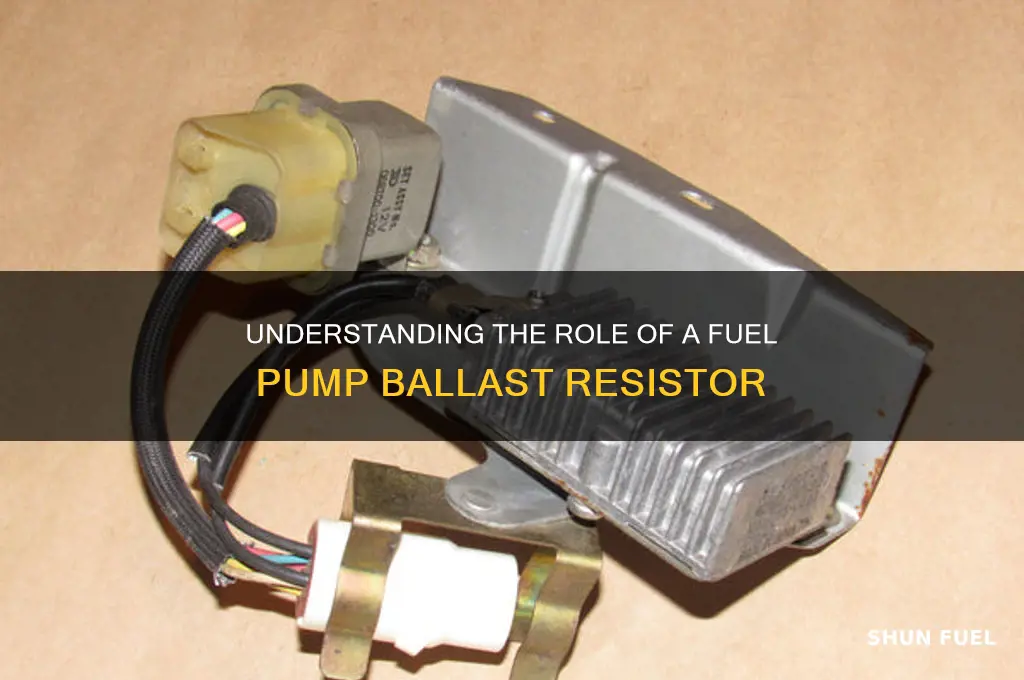

A fuel pump ballast resistor is a critical component in older carbureted vehicles, primarily designed to regulate the voltage supplied to the fuel pump. In these systems, the fuel pump operates at a lower voltage than the vehicle’s standard 12-volt electrical system to prevent overheating and extend the pump’s lifespan. The ballast resistor reduces the voltage delivered to the fuel pump when the engine is running, typically dropping it to around 6-9 volts. This voltage reduction ensures the fuel pump operates efficiently without drawing excessive current, which could otherwise cause premature wear or failure. Additionally, the ballast resistor helps maintain consistent fuel pump performance, especially during high-load conditions, by stabilizing the electrical circuit. Without it, the fuel pump could receive full battery voltage, leading to overheating, reduced efficiency, or even damage. Modern fuel-injected vehicles have largely eliminated the need for ballast resistors, as they use more advanced voltage regulation systems, but understanding its function remains essential for maintaining and troubleshooting older carbureted engines.
| Characteristics | Values |
|---|---|
| Purpose | Reduces voltage supplied to the fuel pump after engine start |
| Function | Limits current to the fuel pump to prevent overheating and prolong pump life |
| Operation | Initially provides full voltage during engine start, then drops voltage once engine is running |
| Voltage Drop | Typically reduces voltage from ~12V (battery voltage) to ~7-9V |
| Location | Usually installed in the fuel pump circuit between the pump and the power source |
| Types | Fixed resistor, variable resistor, or integrated into the fuel pump relay circuit |
| Symptoms of Failure | Hard starting, stalling, or rough idle due to insufficient fuel pump voltage |
| Compatibility | Commonly used in older carbureted vehicles; less common in modern fuel-injected systems |
| Material | Typically made of high-resistance wire or ceramic to handle heat dissipation |
| Maintenance | Periodic inspection for corrosion or damage; replacement if faulty |
Explore related products
What You'll Learn
- Resistance Regulation: Controls voltage to fuel pump, preventing overheating and ensuring optimal performance
- Voltage Reduction: Lowers voltage from ignition to protect the fuel pump
- Pump Longevity: Extends fuel pump life by preventing excessive electrical stress
- Circuit Protection: Safeguards wiring and components from high voltage damage
- Performance Stability: Maintains consistent fuel pump operation under varying electrical conditions
Resistance Regulation: Controls voltage to fuel pump, preventing overheating and ensuring optimal performance
In automotive systems, the fuel pump ballast resistor is a critical component that regulates voltage to the fuel pump, ensuring it operates within safe and efficient parameters. Without this regulation, the fuel pump could receive excessive voltage, leading to overheating, premature wear, or even failure. By introducing resistance into the circuit, the ballast resistor reduces the voltage supplied to the fuel pump from the vehicle’s full 12-volt system to a lower, more manageable level—typically around 6 to 9 volts. This deliberate voltage drop is essential for maintaining the pump’s longevity and performance, especially in older carbureted vehicles where fuel pumps are less robust.
Consider the analogy of a water hose: too much pressure can damage the hose or cause leaks, while controlled pressure ensures steady, efficient flow. Similarly, the ballast resistor acts as a voltage regulator, preventing the fuel pump from being overwhelmed by the electrical system’s full potential. This is particularly important during engine start-up, when the fuel pump draws maximum current. By limiting voltage, the resistor minimizes heat generation, which is a primary cause of component failure in high-current applications. For instance, a fuel pump operating at 12 volts may overheat within minutes, while one running at 8 volts can sustain operation for hours without issue.
Practical implementation of a ballast resistor requires careful consideration of the fuel pump’s specifications and the vehicle’s electrical system. For example, a resistor with a resistance value of 1.5 to 2 ohms is commonly used in older GM vehicles to drop voltage from 12 to 8 volts. To determine the correct resistor, calculate the required resistance using Ohm’s Law: *R = (Vsource − Vtarget) / I*, where *R* is resistance, *Vsource* is the battery voltage (12V), *Vtarget* is the desired pump voltage (e.g., 8V), and *I* is the pump’s current draw (typically 5–10 amps). Always consult the vehicle’s manual or a professional to ensure compatibility.
One common mistake is bypassing the ballast resistor, often done to increase fuel pump performance. While this may provide a temporary boost, it significantly shortens the pump’s lifespan due to overheating. For those seeking improved fuel delivery, upgrading to a modern, high-performance fuel pump designed for 12-volt operation is a safer alternative. Additionally, inspect the ballast resistor periodically for signs of corrosion or damage, as these can disrupt voltage regulation. A failing resistor may cause erratic fuel pump behavior, such as surging or weak fuel pressure, which can lead to engine performance issues.
In summary, resistance regulation via a ballast resistor is a simple yet vital mechanism for protecting the fuel pump and optimizing its performance. By controlling voltage, it prevents overheating, reduces wear, and ensures consistent fuel delivery. Whether maintaining a classic car or troubleshooting a modern vehicle, understanding and respecting the role of the ballast resistor is key to a reliable fuel system. Always prioritize proper voltage management over quick fixes to avoid costly repairs and maintain engine efficiency.
Does the 2003 GMC Duramax Have a Fuel Pump?
You may want to see also
Explore related products
Voltage Reduction: Lowers voltage from ignition to protect the fuel pump
In older vehicles, particularly those with points-style ignition systems, the fuel pump ballast resistor plays a critical role in voltage reduction. The ignition system in these cars typically operates at a higher voltage (around 12 volts) than what the fuel pump is designed to handle continuously. Without intervention, this full voltage could cause the fuel pump to overheat, wear prematurely, or even fail. The ballast resistor steps in as a safeguard, reducing the voltage supplied to the fuel pump during normal operation to a safer level, often around 6 to 9 volts. This deliberate voltage drop ensures the fuel pump operates within its optimal range, prolonging its lifespan and maintaining reliable performance.
Consider the fuel pump as a marathon runner, not a sprinter. It’s built for endurance, not short bursts of high-intensity work. The ballast resistor acts like a coach, pacing the runner to avoid burnout. When the engine starts, the ballast resistor is bypassed, allowing full voltage to reach the fuel pump momentarily to ensure a strong initial fuel delivery. Once the engine is running, the resistor re-engages, throttling back the voltage to protect the pump. This dynamic regulation is essential for balancing the need for robust startup performance with the requirement for long-term durability.
From a practical standpoint, understanding the ballast resistor’s role in voltage reduction is crucial for troubleshooting and maintenance. If your vehicle’s fuel pump is failing prematurely or running hot, a faulty ballast resistor could be the culprit. Symptoms of a failing resistor include hard starting, rough idling, or a fuel pump that runs continuously at high speed. To test the resistor, use a multimeter to check its resistance (typically 1.5 to 2 ohms) and voltage drop across it during operation. Replacement is straightforward but requires selecting a resistor with the correct specifications for your vehicle’s ignition system.
Comparing modern fuel systems to older ones highlights the ballast resistor’s significance. In newer vehicles with electronic fuel injection, the need for a ballast resistor is often eliminated by sophisticated engine control modules (ECMs) that regulate voltage electronically. However, in classic cars, the ballast resistor remains a vital component, bridging the gap between high-voltage ignition systems and low-voltage fuel pumps. Its simplicity and effectiveness make it a timeless solution, though one that requires awareness and occasional attention to keep the fuel system running smoothly.
For enthusiasts restoring or maintaining older vehicles, the ballast resistor is more than just a component—it’s a lesson in automotive engineering. Its design reflects an era when mechanical ingenuity solved complex problems with minimal parts. By lowering voltage to protect the fuel pump, the ballast resistor ensures that the heart of the fuel system beats steadily, mile after mile. Whether you’re diagnosing an issue or simply appreciating the mechanics under the hood, understanding this voltage reduction function is key to keeping your classic car on the road.
Fuel Pump Installation Time: Factors Affecting Replacement Duration and Efficiency
You may want to see also
Explore related products
Pump Longevity: Extends fuel pump life by preventing excessive electrical stress
A fuel pump ballast resistor acts as a guardian against electrical overload, a common yet often overlooked threat to fuel pump longevity. By introducing resistance into the circuit, it limits the voltage reaching the fuel pump, ensuring it operates within safe parameters. Without this protective measure, the pump would be subjected to the full system voltage, typically 12 volts, which can lead to excessive heat generation and premature wear. This simple yet effective component is particularly crucial in older vehicles where the fuel pump’s electrical system was not designed to handle modern demands.
Consider the analogy of a marathon runner. Just as a runner’s performance suffers if pushed beyond their endurance limits, a fuel pump’s efficiency and lifespan degrade under constant high-voltage stress. The ballast resistor acts like a pace-setter, ensuring the pump operates at an optimal voltage—often around 6 to 9 volts—rather than being forced to sprint at 12 volts. This reduced voltage not only minimizes heat but also decreases mechanical strain on the pump’s internal components, such as the armature and brushes. Over time, this translates to fewer failures and a longer operational life.
For those looking to retrofit a ballast resistor or troubleshoot an existing one, precision is key. A resistor with the wrong ohmic value can either underprotect or overstress the pump. For instance, a 1.5-ohm resistor is commonly used in many carbureted systems, but always consult the vehicle’s manual or a trusted mechanic for the correct specification. Installation should be done with care, ensuring the resistor is securely mounted away from heat sources and connected in series with the fuel pump’s power wire. Regular inspections for corrosion or damage are equally important, as a failing resistor negates its protective benefits.
The benefits of a ballast resistor extend beyond mere longevity. By maintaining the fuel pump’s efficiency, it indirectly contributes to better fuel economy and smoother engine performance. A pump operating under reduced electrical stress is less likely to overheat or malfunction, reducing the risk of fuel delivery issues that can lead to engine stalling or misfires. This makes the ballast resistor not just a component for extending pump life, but a critical element in overall vehicle reliability. For enthusiasts and everyday drivers alike, understanding and maintaining this small part can yield significant returns in both performance and peace of mind.
Understanding the Volvo Fuel Pump Relay's Essential Function and Purpose
You may want to see also
Explore related products
Circuit Protection: Safeguards wiring and components from high voltage damage
A fuel pump ballast resistor is a critical component in older vehicle ignition systems, designed to reduce the voltage supplied to the ignition coil once the engine starts. Without it, the coil could overheat and fail due to the full system voltage (typically 12V) being applied continuously. However, the role of the ballast resistor extends beyond voltage regulation—it serves as a vital safeguard for circuit protection, preventing high voltage damage to wiring and components.
Consider the electrical system as a network of delicate pathways. When the ignition is engaged, the initial high voltage surge is necessary to create a strong spark for starting. Once the engine is running, this voltage must be reduced to prevent excessive current flow, which can melt wires, damage the ignition coil, or fry sensitive electronic components. The ballast resistor acts as a buffer, dropping the voltage to a safer level (usually around 6-9V) while maintaining consistent ignition performance. This protective function is especially critical in older vehicles with less sophisticated wiring and components that are more susceptible to heat and voltage stress.
To illustrate, imagine a scenario where a ballast resistor fails or is bypassed. The ignition coil, designed to operate at a reduced voltage, would be exposed to the full 12V supply. Over time, this would lead to overheating, insulation breakdown, and eventual coil failure. Similarly, the wiring harness, often rated for lower amperage, could experience insulation melting or short circuits due to the increased current draw. In extreme cases, this could even lead to electrical fires, posing a significant safety hazard. Thus, the ballast resistor’s role in circuit protection is not just preventative—it’s essential for the longevity and safety of the vehicle’s electrical system.
Practical tips for maintaining this protective function include regular inspection of the ballast resistor for signs of corrosion, cracking, or overheating. If your vehicle exhibits symptoms like hard starting when warm, rough idling, or backfiring, the ballast resistor may be failing. Replacement should be done with a resistor of the correct resistance value (typically 1.5 to 2 ohms) to ensure proper voltage drop. Additionally, when upgrading ignition systems, ensure compatibility with the existing wiring to avoid overloading circuits. For DIY enthusiasts, using a multimeter to test voltage drop across the resistor can confirm its functionality before and after installation.
In modern vehicles, electronic control modules often handle voltage regulation, rendering ballast resistors obsolete. However, for classic car enthusiasts or owners of older models, understanding and maintaining this component is crucial. By safeguarding against high voltage damage, the ballast resistor not only protects the ignition system but also preserves the integrity of the entire electrical network. Its role is a testament to the importance of circuit protection in automotive design, ensuring reliability and safety in every drive.
Should You Prime a Mechanical Fuel Pump? Essential Tips and Insights
You may want to see also
Explore related products
Performance Stability: Maintains consistent fuel pump operation under varying electrical conditions
Electrical systems in vehicles are prone to voltage fluctuations, especially during high-demand scenarios like starting the engine or running accessories. These variations can cause the fuel pump to operate inconsistently, leading to erratic fuel delivery and potential engine performance issues. A fuel pump ballast resistor acts as a buffer, stabilizing the voltage supplied to the fuel pump regardless of the electrical system's current state. This ensures the pump maintains a steady flow rate, critical for smooth engine operation under all conditions.
Consider a scenario where a vehicle’s alternator output drops momentarily due to heavy electrical load. Without a ballast resistor, the fuel pump might slow down, starving the engine of fuel and causing hesitation or stalling. The resistor limits the voltage drop experienced by the pump, allowing it to continue operating at or near its optimal speed. This is particularly vital in older vehicles with less sophisticated electrical systems, where voltage regulation is less precise. For example, a ballast resistor in a classic carbureted engine might reduce voltage to the fuel pump from 14.4V to a consistent 9V, ensuring the pump doesn’t overspeed or slow down unpredictably.
In modern fuel-injected systems, ballast resistors are often integrated into the pump’s wiring harness or control module. Their role remains the same: to isolate the pump from electrical noise and fluctuations. For DIY enthusiasts working on custom builds or restorations, installing a standalone ballast resistor requires careful consideration of the pump’s voltage requirements. A resistor with too high a resistance value (e.g., 2 ohms) might underpower the pump, while too low (e.g., 0.5 ohms) could lead to overheating. Always consult the pump’s specifications and use a multimeter to verify voltage drop across the resistor before finalizing the installation.
The importance of performance stability extends beyond everyday driving. In racing or high-performance applications, where fuel demands are extreme and electrical systems are pushed to their limits, a ballast resistor ensures the pump delivers fuel consistently, even during rapid throttle changes or high-RPM operation. For instance, in a drag racing setup, a ballast resistor might be paired with a high-flow fuel pump to maintain pressure stability during a quarter-mile run, preventing lean conditions that could damage the engine.
In summary, the fuel pump ballast resistor is a critical yet often overlooked component in maintaining engine reliability and performance. By isolating the pump from electrical variability, it ensures consistent fuel delivery, whether in daily driving, racing, or off-road conditions. Proper selection and installation of this component are key to maximizing its benefits, making it an essential consideration for any vehicle’s fuel system.
Step-by-Step Guide: Mounting a Facet Fuel Pump Easily and Safely
You may want to see also
Frequently asked questions
A fuel pump ballast resistor is a component in older carbureted vehicles that reduces the voltage supplied to the fuel pump after engine start. It is used to prevent the fuel pump from running at full voltage, which could cause overheating and premature failure.
The ballast resistor works by introducing additional resistance into the fuel pump’s electrical circuit. During engine start, the fuel pump receives full voltage for maximum power. Once the engine is running, the ballast resistor reduces the voltage, allowing the fuel pump to operate at a lower, safer voltage.
If the ballast resistor fails, the fuel pump may receive full voltage continuously, leading to overheating, reduced fuel pump lifespan, or even failure. Symptoms of a failed ballast resistor include hard starting, stalling, or a fuel pump that runs loudly or inconsistently.
Yes, a ballast resistor can be bypassed or removed, but it’s important to replace it with a proper voltage regulator or relay to ensure the fuel pump operates at the correct voltage. Bypassing without proper regulation can damage the fuel pump or cause performance issues.
No, fuel pump ballast resistors are not used in modern vehicles. Most modern vehicles use electronic fuel injection systems with computerized controls and relays that regulate fuel pump voltage without the need for a ballast resistor.
