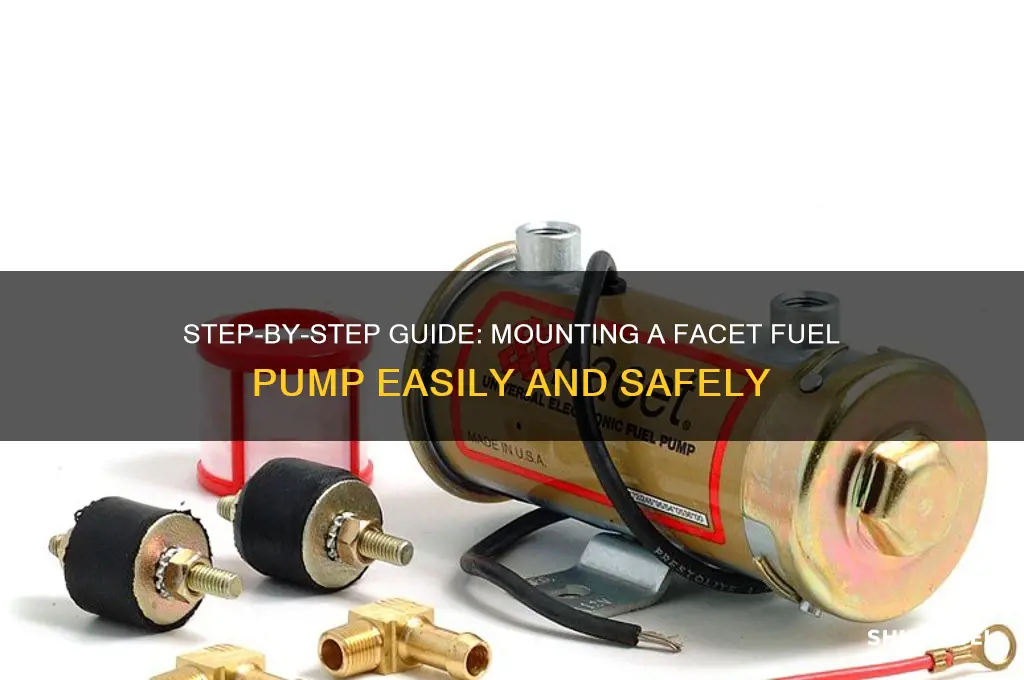

Mounting a facet fuel pump is a crucial step in ensuring a reliable and efficient fuel delivery system for your vehicle or equipment. This process involves securely installing the pump to the fuel tank or mounting surface, ensuring proper alignment and sealing to prevent leaks. Before beginning, gather the necessary tools and materials, including the fuel pump, mounting hardware, and any required gaskets or seals. Start by cleaning the mounting area to ensure a secure fit, then position the pump according to the manufacturer’s instructions, taking care to align it correctly with the fuel lines. Secure the pump using the provided hardware, tightening bolts evenly to avoid damage. Finally, double-check all connections and seals for tightness and test the system for leaks before operation. Proper installation is key to maximizing the pump’s performance and longevity.
| Characteristics | Values |
|---|---|
| Mounting Location | Typically mounted near the fuel tank or in-line with the fuel system. |
| Orientation | Must be mounted vertically or horizontally as per manufacturer guidelines. |
| Bracket Usage | Requires a mounting bracket for secure installation. |
| Hose Connections | Use fuel-resistant hoses for inlet and outlet connections. |
| Clamps | Secure hoses with stainless steel or fuel-resistant clamps. |
| Electrical Connections | Connect to a 12V power source with proper wiring and fuse protection. |
| Grounding | Ensure a solid ground connection to the vehicle chassis. |
| Clearance | Maintain adequate clearance from heat sources and moving parts. |
| Fuel Filter | Install a pre-filter if not integrated, ensuring clean fuel supply. |
| Testing | Test for leaks and proper operation before finalizing installation. |
| Manufacturer Guidelines | Follow specific instructions provided in the Facet fuel pump manual. |
| Compatibility | Ensure the pump is compatible with the fuel type (gasoline, diesel, etc.). |
| Pressure Regulation | Use a pressure regulator if required for the fuel system. |
| Safety Precautions | Work in a well-ventilated area and avoid sparks or open flames. |
| Maintenance | Regularly inspect for wear, leaks, and proper functioning. |
Explore related products
What You'll Learn
- Gather Tools and Materials: Collect wrenches, screwdrivers, new fuel pump, gloves, safety goggles, and a drain pan
- Disconnect Battery and Lines: Safely disconnect the battery and fuel lines to prevent accidents during installation
- Remove Old Fuel Pump: Unbolt and carefully remove the old fuel pump, ensuring no debris falls into the tank
- Install New Fuel Pump: Securely mount the new fuel pump, reconnect lines, and ensure all fittings are tight
- Test and Verify: Reconnect the battery, check for leaks, and test the fuel pump for proper operation
Gather Tools and Materials: Collect wrenches, screwdrivers, new fuel pump, gloves, safety goggles, and a drain pan
Before embarking on the task of mounting a Facet fuel pump, it's essential to gather the necessary tools and materials to ensure a smooth and safe installation process. The first step is to collect the required tools, including wrenches and screwdrivers, which will be used to remove the old fuel pump and secure the new one in place. A typical fuel pump replacement job requires a combination of open-end and box wrenches, ranging from 3/8 inch to 9/16 inch, to accommodate various bolt sizes.
From an analytical perspective, the selection of tools is critical to the success of the installation. Using the wrong size or type of wrench can result in stripped bolts, damaged components, or even personal injury. For instance, a 3/8-inch drive ratchet with a 3/8-inch socket is ideal for removing the fuel pump's mounting bolts, while a 1/4-inch drive ratchet with a 1/4-inch socket is suitable for disconnecting the fuel lines. Additionally, a flathead screwdriver is necessary for prying off the fuel pump's electrical connector, and a Phillips screwdriver is required for removing any screws that secure the pump to the mounting bracket.
When gathering materials, it's crucial to prioritize safety and preparedness. Gloves and safety goggles are essential personal protective equipment (PPE) that shield against fuel spills, debris, and potential eye injuries. Nitrile gloves, in particular, are recommended due to their resistance to chemicals and punctures, making them ideal for handling fuel and sharp components. Safety goggles with polycarbonate lenses provide impact resistance and protect against splashes, ensuring a safe working environment. A drain pan is also necessary to collect any residual fuel that may spill during the removal process, minimizing the risk of fire and environmental contamination.
In a comparative context, the choice of fuel pump is equally important. When selecting a new Facet fuel pump, consider factors such as flow rate, pressure, and compatibility with your vehicle's fuel system. For example, a Facet fuel pump with a flow rate of 30-35 gallons per hour (GPH) is suitable for most carbureted engines, while a pump with a flow rate of 40-50 GPH is recommended for fuel-injected engines. Ensure the pump's pressure rating matches your vehicle's requirements, typically ranging from 3-7 psi for carbureted systems and 40-60 psi for fuel-injected systems. Always refer to the manufacturer's specifications and consult a professional mechanic if unsure about the appropriate pump for your application.
To illustrate the practical aspects of gathering tools and materials, consider the following scenario: Imagine you're working on a 1967 Ford Mustang with a carbureted engine. You would need a 3/8-inch drive ratchet, a 3/8-inch socket, and a 9/16-inch open-end wrench to remove the fuel pump's mounting bolts. A flathead screwdriver would be used to disconnect the electrical connector, and a drain pan would collect any spilled fuel. Wearing nitrile gloves and safety goggles, you would carefully remove the old pump, clean the mounting surface, and install the new Facet fuel pump, ensuring a secure and leak-free connection. By following these steps and using the appropriate tools and materials, you can successfully mount a Facet fuel pump and restore your vehicle's fuel system to optimal performance.
Step-by-Step Guide: Installing a Float on Your Fuel Pump Easily
You may want to see also
Explore related products
Disconnect Battery and Lines: Safely disconnect the battery and fuel lines to prevent accidents during installation
Before embarking on the installation of a Facet fuel pump, a critical preliminary step involves disconnecting the battery and fuel lines. This process is not merely a precautionary measure but a fundamental safety protocol that safeguards both the installer and the vehicle. The battery, a powerhouse of electrical energy, poses a risk of short circuits or sparks, which could ignite fuel vapors. Similarly, fuel lines, under pressure or containing residual fuel, can leak or spray, creating a hazardous environment. By methodically disconnecting these components, you eliminate the primary sources of potential accidents, ensuring a secure workspace for the installation process.
The procedure begins with the battery. Locate the battery terminals, typically marked with a "+" for positive and "–" for negative. Using a wrench or socket, loosen the nut on the negative terminal first. This step is crucial as it breaks the electrical circuit, minimizing the risk of sparks. Once loosened, carefully lift the cable away from the terminal and secure it to prevent accidental contact. Some vehicles may have a battery disconnect switch or a fuse that can be removed instead, but physically detaching the negative terminal is the most reliable method. Ensure the battery is stable and cannot tip over during the installation, as this could cause acid spills or damage.
Next, address the fuel lines. Start by relieving the fuel system pressure, a step often overlooked but essential for safety. Consult your vehicle’s manual for the specific procedure, which may involve removing the fuel pump fuse or relay and running the engine until it stalls. Once pressure is relieved, locate the fuel lines connected to the pump. These are typically secured with clamps or quick-disconnect fittings. For clamps, use a flathead screwdriver to gently pry them open, then slide them away from the fuel line. For quick-disconnect fittings, depress the tab or collar while pulling the line apart. Place a drain pan or rag beneath the lines to catch any residual fuel, and consider using a fuel line disconnect tool to avoid damaging the fittings.
A comparative analysis of these steps highlights their interdependence. While disconnecting the battery mitigates electrical hazards, addressing the fuel lines eliminates the risk of leaks or spills. Together, these actions create a controlled environment where the installation of the Facet fuel pump can proceed without the looming threat of fire or explosion. It’s a proactive approach that transforms a potentially dangerous task into a manageable one, underscoring the importance of preparation in automotive work.
In conclusion, the act of disconnecting the battery and fuel lines is a cornerstone of safe fuel pump installation. It requires attention to detail, adherence to procedures, and an understanding of the underlying risks. By following these steps meticulously, you not only protect yourself and your vehicle but also set the stage for a successful and incident-free installation. This initial investment of time and care pays dividends in safety and peace of mind throughout the entire process.
Step-by-Step Guide to Replacing a Faulty Fuel Pump Relay Switch
You may want to see also
Explore related products
Remove Old Fuel Pump: Unbolt and carefully remove the old fuel pump, ensuring no debris falls into the tank
The first step in mounting a Facet fuel pump is to remove the old one, a task that demands precision and care. Begin by locating the fuel pump, typically found near the fuel tank or along the fuel line. Using the appropriate tools, such as a socket wrench or screwdriver, unbolt the old pump, taking note of the bolt sizes and torque specifications to avoid damage. As you loosen the bolts, be mindful of the pump’s position to prevent it from dropping suddenly, which could cause debris to fall into the tank. This debris, even in small amounts, can clog fuel lines or damage the new pump, leading to costly repairs.
Consider the environment in which you’re working. If the vehicle is older than 10 years, rust or corrosion around the mounting area may complicate removal. In such cases, apply a penetrating oil like WD-40 or PB Blaster 15–30 minutes prior to unbolting, allowing it to seep into threads and reduce friction. For vehicles with plastic fuel tanks, work slowly to avoid cracking the tank, especially in colder temperatures where plastic becomes more brittle. Always have a drain pan or cloth ready to catch residual fuel, and ensure proper ventilation to minimize fumes.
A comparative approach highlights the difference between removing an in-tank versus an external fuel pump. In-tank pumps often require dropping the tank, a labor-intensive process that involves disconnecting multiple lines and supports. External pumps, like those in older carbureted systems, are more accessible but still require careful handling to avoid contaminating the fuel system. Regardless of type, the principle remains: remove the old pump methodically, treating it as a delicate operation rather than a brute-force task.
Persuasively, investing time in this step pays dividends. Rushing increases the risk of dropping tools, pump components, or fasteners into the tank, which can necessitate tank removal—a job that can add hours and hundreds of dollars to the repair. For instance, a single metal shaving in the fuel line can cause a new pump to fail prematurely, voiding warranties and requiring repeat work. By prioritizing caution, you not only protect the new Facet pump but also ensure the longevity of the entire fuel system.
Finally, a descriptive takeaway: imagine the old pump as the last obstacle before upgrading to a more reliable Facet unit. Its removal is a bridge between the past and future of your vehicle’s performance. As you lift it free, inspect it for signs of wear—cracked housings, clogged filters, or burnt windings—that could indicate underlying issues. Lay it aside on a clean surface, away from debris, and take a moment to appreciate the precision required for this step. Done correctly, it sets the stage for a seamless installation, where the new pump can operate at peak efficiency, delivering consistent fuel flow for years to come.
Step-by-Step Guide to Installing a 1993 Eurovan Fuel Pump
You may want to see also
Explore related products
Install New Fuel Pump: Securely mount the new fuel pump, reconnect lines, and ensure all fittings are tight
Mounting a new Facet fuel pump requires precision and attention to detail to ensure optimal performance and safety. Begin by positioning the pump securely in its designated location, typically near the fuel tank or along the fuel line. Use the provided mounting bracket or fabricate a custom one if necessary, ensuring it aligns with the pump’s mounting holes. Secure the pump with stainless steel bolts and lock washers to prevent vibration-induced loosening, tightening them to the manufacturer’s torque specifications—usually 10-12 ft-lbs for small fuel pumps. Double-check that the pump is level and firmly attached to avoid fuel leaks or mechanical stress.
Reconnecting the fuel lines is a critical step that demands careful execution. Start by attaching the inlet and outlet lines, ensuring the barbs on the pump’s fittings are clean and free of debris. Use fuel-resistant hose clamps (such as stainless steel or worm-drive clamps) to secure the lines, tightening them just enough to create a seal without crushing the hose. For added safety, apply a thin layer of fuel-resistant sealant (like Loctite 565) to the threads of the fittings before reassembly. Avoid over-tightening, as this can damage the fittings or cause leaks over time.
Once the pump is mounted and the lines are connected, verify all fittings are tight and secure. Inspect each connection for signs of leakage by running the engine briefly and checking for fuel drips or odors. If using a Facet solid-state fuel pump, ensure the electrical connections are properly grounded and insulated to prevent shorts or malfunctions. Test the pump’s operation by priming the fuel system and listening for consistent, quiet operation, which indicates proper installation.
Practical tips can further streamline the process. Always work in a well-ventilated area and avoid open flames or sparks when handling fuel. If replacing an old pump, clean the mounting area thoroughly to remove residue or corrosion. For vehicles with high fuel demand, consider upgrading to a pump with a higher flow rate (e.g., Facet’s 4000 series) and ensure the fuel lines are sized appropriately to handle the increased volume. Finally, consult the pump’s manual for model-specific instructions, as Facet pumps may vary in design and installation requirements.
In conclusion, securely mounting a new Facet fuel pump, reconnecting the lines, and ensuring tight fittings are essential steps for a reliable fuel system. By following these detailed instructions and incorporating practical tips, you can achieve a professional-grade installation that enhances performance and longevity. Attention to detail at each stage—from mounting to final testing—guarantees a safe and efficient fuel delivery system for your vehicle.
Mastering Fuel Pump RPM Calculation: A Step-by-Step Guide
You may want to see also
Explore related products
Test and Verify: Reconnect the battery, check for leaks, and test the fuel pump for proper operation
Before firing up your engine, ensure the fuel pump installation is sound. Reconnect the battery, but don't start the vehicle yet. With the key in the "on" position, listen for the pump's priming hum – a crucial sign of life. This initial activation pressurizes the fuel system, preparing it for operation.
If you hear nothing, double-check connections and power supply. A faulty relay or blown fuse could be the culprit.
Next, conduct a visual inspection for leaks. Fuel leaks are dangerous and can lead to fires. Carefully examine all connections, hoses, and the pump itself for any signs of seepage. Even a small drip warrants immediate attention. Tighten connections if necessary, but avoid over-tightening, which can damage components. Remember, fuel is flammable, so ensure proper ventilation during this step.
For a more thorough check, use a spray bottle with soapy water. Any bubbles forming around connections indicate a leak.
With the pump primed and leak-free, it's time to test its performance. Start the engine and listen for unusual noises. A healthy pump operates quietly, while whining or grinding sounds signal potential issues. Monitor the fuel pressure gauge (if equipped) to ensure it reaches and maintains the specified operating pressure, typically around 30-60 psi depending on your vehicle.
Don't rely solely on sound and pressure. Observe the engine's behavior. A weak or failing pump can cause rough idling, hesitation during acceleration, or even stalling. If you experience any of these symptoms, further diagnosis is required.
This final verification step is crucial for safety and performance. A properly functioning fuel pump ensures your engine receives the necessary fuel for efficient combustion. By meticulously testing and verifying its operation, you can drive with confidence, knowing your fuel system is reliable and ready for the road.
Testing Your 2000 Pontiac Grand Prix Fuel Pump: A Step-by-Step Guide
You may want to see also
Frequently asked questions
You will need basic hand tools such as a wrench or socket set, screwdrivers, pliers, and possibly a drill with appropriate bits for mounting holes.
Mount the pump as close to the fuel tank as possible, ensuring it is in a secure, vibration-free location and below the fuel level to prevent airlocks.
Use the provided mounting bracket or create a sturdy bracket, then secure it with bolts, nuts, and lock washers to ensure the pump is firmly attached and does not move.
Ensure the pump is wired directly to the ignition switch or a switched power source, using appropriate gauge wire and an inline fuse for safety. Ground the pump securely to the vehicle’s chassis.
