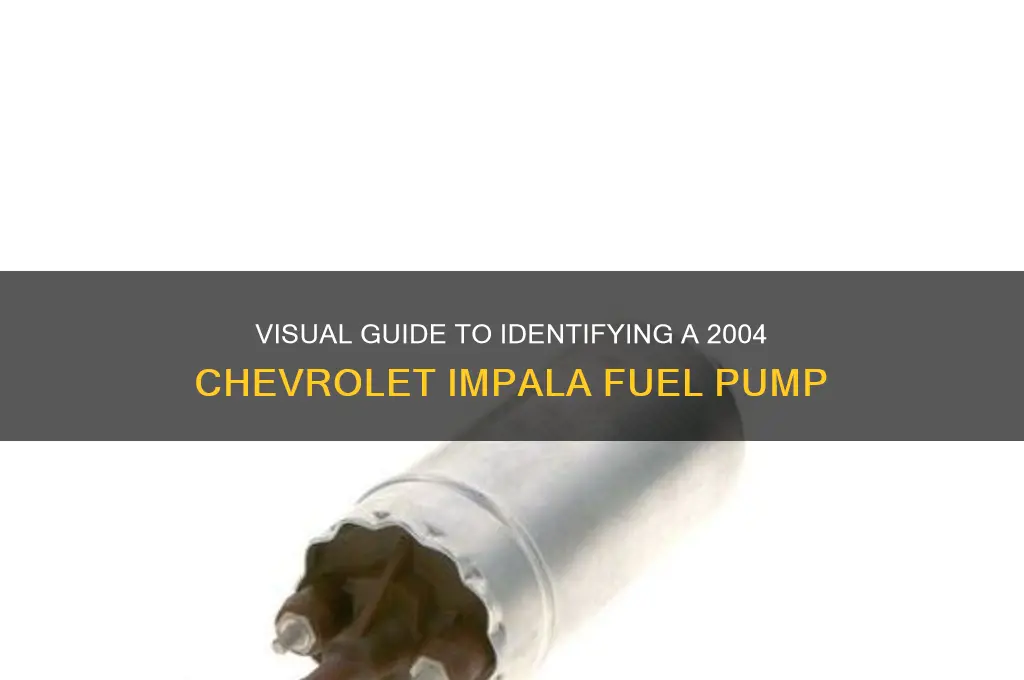

The 2004 Chevrolet Impala's fuel pump is a crucial component of its fuel system, responsible for delivering fuel from the tank to the engine. Located inside the fuel tank, this in-tank electric pump is typically cylindrical in shape and features an electric motor, a pressure regulator, and an inlet and outlet for fuel flow. It is often mounted on a module assembly that includes the fuel level sender and may be accessed by removing the fuel tank or a dedicated access panel, depending on the vehicle's configuration. Identifying the fuel pump's appearance is essential for maintenance, replacement, or troubleshooting, as it ensures compatibility with the correct parts and proper installation.
| Characteristics | Values |
|---|---|
| Location | Mounted inside the fuel tank |
| Type | Electric in-tank fuel pump |
| Material | Typically made of durable plastic and metal components |
| Color | Black or dark-colored housing |
| Shape | Cylindrical or rectangular with a modular design |
| Size | Approximately 4-6 inches in length and 2-3 inches in diameter |
| Connector | Electrical connector with multiple pins for wiring harness |
| Mounting | Secured to the fuel tank with a locking ring or bracket |
| Flow Rate | Designed to deliver fuel at a specific rate (e.g., 30-60 liters per hour) |
| Pressure | Maintains fuel pressure within the system (typically 40-60 PSI) |
| Compatibility | Specifically designed for 2004 Chevrolet Impala models |
| OEM Part Number | Varies (e.g., 19180963, 19181391, depending on engine type) |
| Additional Features | Includes a strainer or filter to prevent debris from entering the pump |
| Replacement Interval | Typically lasts 100,000-150,000 miles, but depends on usage and conditions |
Explore related products
What You'll Learn
Fuel pump location in 2004 Impala
The 2004 Chevrolet Impala's fuel pump is nestled within the fuel tank, a design choice that offers both protection and efficiency. This in-tank location is a common feature in modern vehicles, including the Impala, as it helps to maintain fuel pressure and reduce the risk of vapor lock, a condition where fuel vaporizes and disrupts the engine's fuel delivery system. By submerging the pump in the fuel, the 2004 Impala's engineers ensured that the pump remains cool and lubricated, thereby extending its lifespan and improving overall performance.
To access the fuel pump in a 2004 Impala, one must first relieve the fuel system pressure, a crucial safety step that prevents fuel from spraying or spilling during the process. This can be achieved by locating the fuel pressure relief valve, typically found near the fuel rail, and depressing the Schrader valve to release the pressure. Once the pressure is relieved, the fuel tank must be lowered to access the pump assembly. It is essential to exercise caution during this step, as the fuel tank is heavy and may require additional support to prevent damage to the vehicle or injury to the person performing the task.
A comparative analysis of the 2004 Impala's fuel pump location reveals that it shares similarities with other vehicles of its era, particularly those manufactured by General Motors. The in-tank design, for instance, is also found in the 2004 Chevrolet Monte Carlo and the 2004 Pontiac Grand Prix, both of which are built on the same W-body platform as the Impala. This consistency in design allows for easier maintenance and repair, as mechanics familiar with one vehicle can apply their knowledge to others with similar configurations. However, it is worth noting that the Impala's fuel pump is unique in terms of its mounting and electrical connections, requiring specific tools and techniques for removal and installation.
When replacing the fuel pump in a 2004 Impala, it is recommended to use a high-quality, OEM-approved replacement part to ensure compatibility and reliability. The pump assembly typically includes the pump, sending unit, and float, all of which work together to deliver fuel to the engine and provide accurate fuel level readings. Installation requires careful attention to detail, particularly when reconnecting the electrical harness and securing the pump assembly to the fuel tank. A helpful tip is to use a fuel pump module removal tool to simplify the process and minimize the risk of damage to the tank or surrounding components. By following these guidelines and exercising caution, even novice mechanics can successfully locate, remove, and replace the fuel pump in a 2004 Chevrolet Impala.
In terms of practical tips, it is advisable to inspect the fuel tank and surrounding components for signs of wear or damage before beginning the fuel pump replacement process. Look for cracks, corrosion, or leaks in the tank, as well as frayed or damaged wiring in the electrical harness. If any issues are found, address them before proceeding with the pump replacement to prevent further complications. Additionally, consider replacing the fuel filter at the same time as the pump, as this will ensure optimal fuel system performance and extend the life of the new pump. By taking a thorough and systematic approach to fuel pump replacement, 2004 Impala owners can maintain their vehicles' reliability and performance for years to come.
