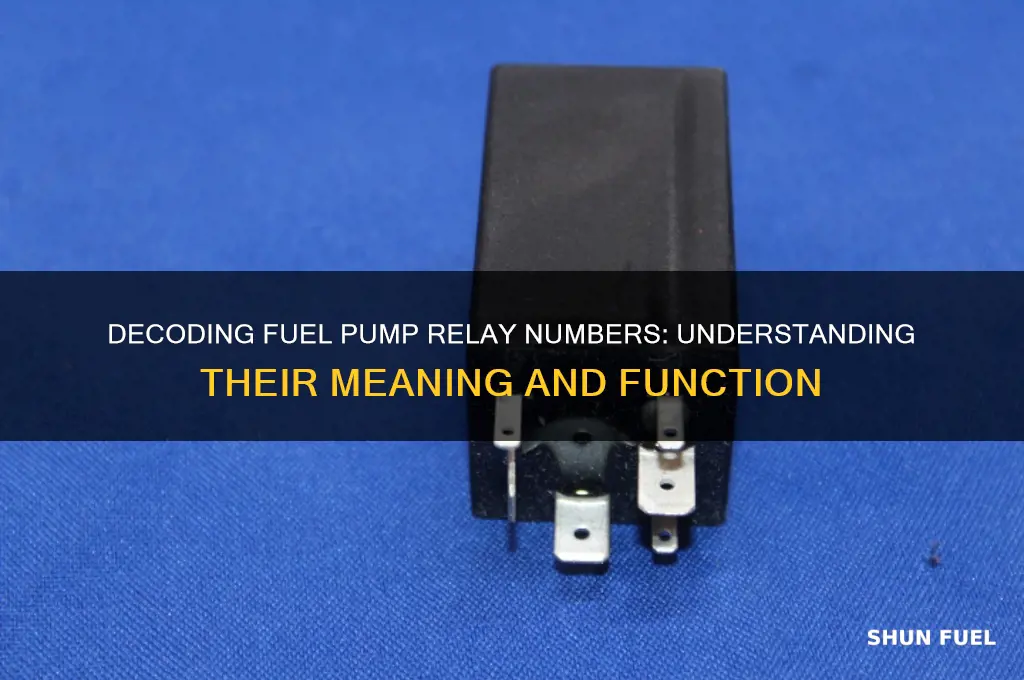

The numbers on a fuel pump relay typically correspond to its electrical specifications and terminal functions, providing essential information for proper installation and troubleshooting. These markings often include the relay’s pin configuration, such as 30, 87, 85, and 86, which align with standard ISO or Bosch relay numbering systems. For instance, 30 usually represents the power input, 87 the power output to the fuel pump, 85 the ground or control signal from the ECU, and 86 the activation signal. Additionally, numbers may indicate voltage ratings, current capacity, or resistance values, ensuring compatibility with the vehicle’s electrical system. Understanding these designations is crucial for diagnosing issues like a faulty fuel pump or relay malfunction, as incorrect connections can lead to system failures or damage.
| Characteristics | Values |
|---|---|
| Pin 1 (Control) | Typically connected to the ECU or PCM, receives signal to activate the fuel pump. |
| Pin 2 (Ground) | Provides ground connection for the relay coil, completing the circuit when energized. |
| Pin 3 (Battery) | Supplies constant power (12V) from the battery to the relay coil. |
| Pin 4 (Output) | Connects to the fuel pump, delivering power when the relay is activated. |
| Pin 5 (Optional) | May be used for additional functions like diagnostics or secondary circuits. |
| Relay Number (e.g., 30, 87, 85, 86) | Standardized numbering based on ISO 2824 or Bosch relay pinout conventions. |
| Amperage Rating | Typically 20-40 amps, depending on the vehicle's fuel pump requirements. |
| Voltage Rating | Usually 12V DC, matching the vehicle's electrical system. |
| Resistance (Coil) | Varies, typically 50-150 ohms, depending on the relay design. |
| Switch Type | SPST (Single Pole Single Throw) or SPDT (Single Pole Double Throw) for advanced relays. |
| Material | Plastic housing with metal contacts for durability and conductivity. |
| Operating Temperature | Typically -40°C to +85°C, suitable for automotive environments. |
| Size | Standardized dimensions (e.g., 1" x 1.5" x 1") for easy replacement. |
| Compatibility | Specific to vehicle make, model, and year; always check OEM specifications. |
Explore related products
What You'll Learn
- Relay Part Numbers: Understanding the manufacturer codes and specifications indicated on the relay's body
- Terminal Identification: Decoding the numbers assigned to each pin or terminal for proper wiring
- Amperage Rating: Interpreting the current capacity number to ensure compatibility with the fuel pump system
- Voltage Specifications: Identifying voltage limits (e.g., 12V/24V) marked on the relay for safe operation
- Resistance Values: Reading resistance numbers on the relay to diagnose functionality and potential faults
Relay Part Numbers: Understanding the manufacturer codes and specifications indicated on the relay's body
The numbers and codes on a fuel pump relay aren’t arbitrary—they’re a manufacturer’s shorthand for critical specifications. For instance, a part number like "TYCO 12V 30A SPST" breaks down into voltage (12V), current rating (30A), and contact configuration (SPST, or single-pole single-throw). These details ensure compatibility with your vehicle’s electrical system. Misinterpreting them can lead to overheating, failure, or even fire. Always cross-reference the relay’s markings with your vehicle’s manual or a trusted database to confirm the correct part.
Deciphering manufacturer codes requires familiarity with industry standards and brand-specific conventions. For example, Bosch relays often use a combination of letters and numbers (e.g., "0332 206 103") where the first segment indicates the series, and the following digits denote voltage, current, and pin configuration. In contrast, Standard Motor Products might use a simpler alphanumeric system (e.g., "RYS12") where "RYS" signifies the relay type and "12" indicates 12V operation. If you’re unsure, consult the manufacturer’s datasheet or contact their support team for clarification.
Beyond voltage and current, relays often include additional specifications like coil resistance, contact material, and operating temperature range. For instance, a relay marked "12V 40Ω" indicates a coil resistance of 40 ohms, which affects the control circuit’s design. Relays with "AgNi" contacts (silver-nickel alloy) offer better conductivity and durability than standard copper contacts. Ignoring these details can result in premature wear or system inefficiency. Use a multimeter to verify coil resistance and ensure it matches the relay’s markings.
Practical tip: When replacing a fuel pump relay, don’t rely solely on visual similarity. Even relays that look identical may differ in internal specifications. For example, a relay with a higher current rating (e.g., 40A vs. 30A) might physically fit but could overload the circuit if the control module isn’t designed for it. Always replace the relay with the exact part number specified by the manufacturer or a verified cross-reference. If in doubt, test the new relay’s continuity and resistance before installation to ensure compatibility.
Understanding relay part numbers isn’t just about decoding symbols—it’s about ensuring safety and performance. A mismatched relay can cause erratic fuel pump operation, leading to poor engine performance or stalling. For DIYers, investing time in researching part numbers pays off in reliability. Professionals should train technicians to recognize and interpret these codes to avoid costly mistakes. Whether you’re troubleshooting or upgrading, the numbers on a relay are your roadmap to the right part.
Breaking a Fuel Pump: Common Causes and Prevention Tips
You may want to see also
Explore related products
Terminal Identification: Decoding the numbers assigned to each pin or terminal for proper wiring
The numbers on a fuel pump relay's terminals are not arbitrary—they serve as a precise code for proper wiring and functionality. Each number corresponds to a specific function, such as power input, ground, control signal, or output to the fuel pump. For instance, Terminal 30 often represents the constant battery power supply, while Terminal 87 typically connects to the fuel pump. Understanding this coding system is essential for accurate installation and troubleshooting, as miswiring can lead to system failure or safety hazards.
Analyzing the terminal numbering system reveals a standardized approach across many automotive relays. Terminal 85 usually connects to the ground, ensuring a complete circuit, while Terminal 86 is often linked to the control signal from the engine control unit (ECU). This consistency allows mechanics and DIY enthusiasts to apply their knowledge across different vehicles. However, variations exist, particularly in older or specialized systems, so consulting the vehicle’s wiring diagram or relay datasheet is crucial for accuracy.
To decode terminal numbers effectively, follow these steps: First, identify the relay type and its corresponding terminal layout, often found in the vehicle’s service manual. Second, match each terminal number to its function using the standardized coding system. For example, if Terminal 87 is the output, ensure it connects directly to the fuel pump’s power input. Third, verify connections with a multimeter to confirm continuity and proper voltage levels. This systematic approach minimizes errors and ensures reliable performance.
A cautionary note: not all relays follow the same numbering convention. Some manufacturers use proprietary systems or omit certain terminals, such as a missing Terminal 86 in relays controlled by a separate module. In such cases, reliance on the vehicle’s specific wiring diagram becomes paramount. Ignoring these nuances can lead to short circuits, blown fuses, or even damage to the ECU, emphasizing the importance of thorough research before proceeding.
In conclusion, terminal identification is a critical skill for anyone working with fuel pump relays. By understanding the standardized numbering system and its exceptions, you can ensure proper wiring and system functionality. Always cross-reference with vehicle-specific documentation and use diagnostic tools to validate your work. This attention to detail not only prevents costly mistakes but also enhances the overall reliability and safety of the vehicle’s fuel system.
Diamond Star DA40 Fuel Pump Count: A Comprehensive Guide
You may want to see also
Explore related products
Amperage Rating: Interpreting the current capacity number to ensure compatibility with the fuel pump system
The amperage rating on a fuel pump relay is a critical specification that indicates the maximum current the relay can handle without failing. This number, often marked as "A" or "Amp," is not arbitrary—it directly correlates to the electrical demands of your fuel pump system. For instance, a relay rated at 30A can safely manage a fuel pump that draws up to 30 amperes of current during operation. Exceeding this limit risks overheating, melting internal components, or even causing a fire. Always cross-reference the fuel pump’s current draw (found in the vehicle’s manual or manufacturer specs) with the relay’s amperage rating to ensure compatibility.
Interpreting the amperage rating requires understanding the operational conditions of your fuel pump. Under normal circumstances, a fuel pump may draw less current than its maximum capacity, but during high-demand situations (e.g., hard acceleration or cold starts), the current spikes. A relay with a 20% higher amperage rating than the pump’s peak draw is a safe bet. For example, if your fuel pump draws 15A at peak, a 20A relay provides a buffer for unexpected surges. Conversely, using a relay with a lower amperage rating than the pump’s peak draw will lead to premature failure, leaving you stranded or worse.
To ensure compatibility, follow these steps: first, measure the fuel pump’s current draw using a multimeter under load conditions. Next, compare this value to the relay’s amperage rating, ensuring the relay exceeds the pump’s maximum draw. If replacing a relay, inspect the old unit for its rating and match or exceed it with the new one. For aftermarket upgrades, consult the pump manufacturer’s specifications or a professional mechanic. Ignoring these steps can void warranties or damage the electrical system, turning a simple replacement into a costly repair.
A common mistake is assuming all fuel pump relays are interchangeable. While some relays may physically fit, their amperage ratings differ widely. For example, a relay from a compact car (rated 20A) won’t handle the demands of a high-performance fuel pump in a sports car (drawing 40A). Always prioritize the amperage rating over physical compatibility. Additionally, environmental factors like temperature and vibration can affect a relay’s performance, so choose a relay with a higher rating if your vehicle operates in extreme conditions.
In summary, the amperage rating on a fuel pump relay is a non-negotiable factor in ensuring system reliability. It’s not just a number—it’s a safeguard against electrical failure. By accurately interpreting this rating and matching it to your fuel pump’s needs, you protect your vehicle’s performance and longevity. Treat this specification with the same attention you’d give to engine oil viscosity or tire pressure, as it’s equally vital to your vehicle’s health.
DIY Guide: Replacing Fuel Pump Assembly on a 2002 Impala
You may want to see also
Explore related products
Voltage Specifications: Identifying voltage limits (e.g., 12V/24V) marked on the relay for safe operation
The numbers on a fuel pump relay often include voltage specifications, typically marked as 12V or 24V, which are critical for ensuring the relay operates safely and efficiently. These markings indicate the electrical system’s nominal voltage the relay is designed to handle. Ignoring these limits can lead to overheating, component failure, or even fire hazards. For instance, a 12V relay in a 24V system will likely burn out due to excessive current, while a 24V relay in a 12V system may not activate reliably. Always verify the vehicle’s electrical system voltage before selecting or installing a relay.
Analyzing the voltage specifications requires understanding the relay’s role in the fuel system. The fuel pump relay acts as a switch, controlling high-current flow to the pump while isolating the low-current control circuit. Voltage limits ensure the relay’s internal components, such as the coil and contacts, are matched to the system’s electrical demands. For example, a 12V relay is common in passenger cars, while 24V relays are standard in heavy-duty trucks or commercial vehicles. Mismatched voltages can cause the relay to fail prematurely, leaving the vehicle without fuel delivery and potentially stranding the driver.
To identify voltage limits, inspect the relay’s body for markings like "12V DC" or "24V DC." These labels are often near the terminal pins or on the side of the casing. If the markings are unclear or missing, consult the vehicle’s manual or a service guide. For DIY enthusiasts, a multimeter can test the system voltage directly, ensuring compatibility. Remember, voltage specifications are not interchangeable—a relay must match the system voltage precisely. Using a 12V relay in a 24V system, even temporarily, can cause irreversible damage.
Practical tips for safe operation include double-checking voltage compatibility during installation or replacement. If upgrading a vehicle’s electrical system, ensure all components, including the relay, are rated for the new voltage. For dual-voltage relays (e.g., 12V/24V), verify the correct wiring configuration to avoid overloading. In fleet management, standardize relays based on vehicle voltage to prevent mix-ups. Lastly, store spare relays in a labeled, organized manner to avoid confusion during emergencies. Adhering to voltage specifications is a small but crucial step in maintaining vehicle reliability and safety.
Diagnosing Fuel Pump Issues in Your 1998 Jaguar Vanden Plas
You may want to see also
Explore related products
Resistance Values: Reading resistance numbers on the relay to diagnose functionality and potential faults
The numbers etched onto a fuel pump relay aren't arbitrary. They often represent resistance values, crucial for diagnosing functionality and pinpointing potential faults. These values, measured in ohms (Ω), indicate the opposition to electrical current flow within the relay's coil. A healthy relay will exhibit resistance within a specific range, typically printed on the relay itself or found in the vehicle's service manual.
Deviations from this range signal trouble.
Understanding these resistance values empowers you to troubleshoot effectively. A multimeter becomes your diagnostic tool. Set it to the resistance (ohms) setting and touch the probes to the relay's terminals. Compare the reading to the specified range. A significantly lower resistance reading suggests a short circuit within the coil, potentially caused by damaged wiring or a faulty internal component. Conversely, a much higher reading indicates an open circuit, possibly due to a broken wire or a failed coil.
In both cases, the relay's ability to control the fuel pump is compromised, leading to starting difficulties or complete engine failure.
Let's illustrate with an example. Imagine a fuel pump relay with a specified resistance range of 40-60 ohms. A reading of 10 ohms points to a short circuit, while 200 ohms indicates an open circuit. These readings provide valuable clues for further investigation.
While resistance testing is a powerful diagnostic tool, it's not foolproof. Other factors, like voltage drops or intermittent faults, can also contribute to relay malfunctions. Therefore, resistance readings should be considered alongside other symptoms and diagnostic tests for a comprehensive diagnosis. Remember, safety is paramount when working with electrical systems. Always disconnect the battery before performing any tests on the relay.
Choosing the Right GPH Fuel Pump for Your 454 Engine
You may want to see also
Frequently asked questions
The numbers on a fuel pump relay typically represent the pin configuration, which indicates the function of each terminal, such as power input, ground, control signal, and output to the fuel pump.
Different numbers reflect variations in design, manufacturer specifications, and vehicle models. Each relay is tailored to the specific electrical system and requirements of the vehicle it’s intended for.
Refer to your vehicle’s service manual or consult the relay’s datasheet. The numbers should match the wiring diagram for your car’s fuel pump circuit to ensure compatibility.
No, using a relay with different numbers can cause improper functioning or damage to the fuel system. Always replace the relay with one that matches the original pin configuration and specifications.
