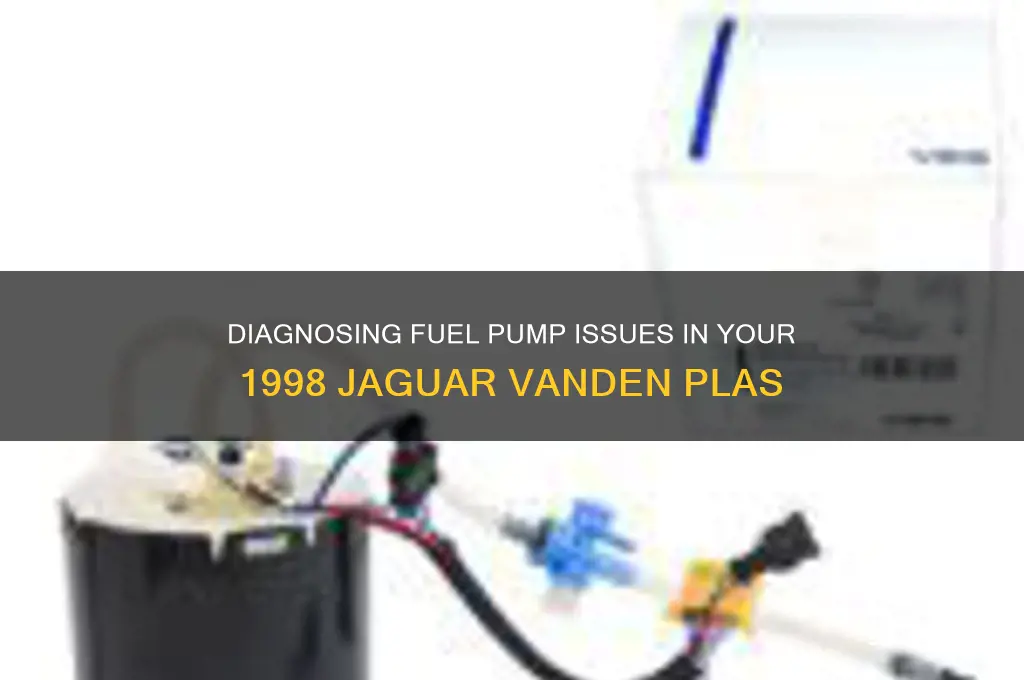

Checking the fuel pump in a 1998 Jaguar Vanden Plas is a critical diagnostic step to ensure proper engine performance and fuel delivery. The fuel pump, located in the fuel tank, is responsible for supplying fuel to the engine under the correct pressure. To inspect it, start by listening for the pump's priming sound when turning the ignition to the on position without starting the engine. If no sound is heard, the issue could be a faulty pump, relay, or fuse. Next, use a fuel pressure gauge to test the pump's output at the fuel rail, comparing the reading to the manufacturer's specifications. Additionally, inspect the fuel pump relay and fuses for any signs of damage or corrosion. If the pump is inaccessible or suspected to be faulty, removing the fuel tank may be necessary for a thorough inspection or replacement. Always ensure safety by relieving fuel system pressure before working on the vehicle.
| Characteristics | Values |
|---|---|
| Vehicle Model | Jaguar 1998 Vanden Plas |
| Fuel Pump Location | Inside the fuel tank (access via rear seat or trunk) |
| Tools Required | Screwdriver, multimeter, fuel pressure gauge, safety gloves |
| Safety Precautions | Work in a well-ventilated area, disconnect battery, relieve fuel pressure |
| Fuel Pump Relay Location | Typically in the engine bay fuse box or under the dashboard |
| Fuel Pump Fuse Location | Check the vehicle's manual for the specific fuse number and location |
| Fuel Pressure Specification | Typically 30-60 PSI (check the vehicle's manual for exact value) |
| Testing Method | Use a multimeter to check for power and ground at the fuel pump connector |
| Listening Test | Turn the ignition to "ON" and listen for the fuel pump humming sound |
| Fuel Pressure Test | Connect a fuel pressure gauge to the fuel rail and check pressure |
| Common Symptoms of Failure | Engine cranks but won't start, stalling, loss of power |
| Replacement Procedure | Drain fuel tank, remove rear seat or trunk panel, replace fuel pump |
| Estimated Repair Time | 2-4 hours depending on experience and tools |
| Estimated Repair Cost | $300-$800 (parts and labor, varies by location and mechanic) |
| Diagnostic Codes | P0087, P0088, P0190, P0191, P0192, P0193 (related to fuel pressure issues) |
| Additional Tips | Always refer to the vehicle's manual for model-specific details |
Explore related products
What You'll Learn
- Locate Fuel Pump: Identify fuel pump location in the fuel tank for access
- Check Fuel Pressure: Use gauge to test pressure at fuel rail for accuracy
- Inspect Relay and Fuse: Verify fuel pump relay and fuse functionality in the fuse box
- Listen for Operation: Turn key to ON and listen for pump hum in the tank
- Test for Power: Use multimeter to check power supply at pump connector
Locate Fuel Pump: Identify fuel pump location in the fuel tank for access
The fuel pump in a 1998 Jaguar Vanden Plas is nestled within the fuel tank, a design choice that protects the pump from external damage and maintains fuel system integrity. Locating it requires understanding the vehicle’s layout and the tools needed for access. Unlike external pumps, this in-tank design demands a methodical approach to avoid unnecessary disassembly or damage to surrounding components.
To identify the fuel pump’s location, start by consulting the vehicle’s service manual for a diagram of the fuel tank assembly. The pump is typically mounted near the center or rear of the tank, connected to a sender unit that monitors fuel levels. In the Vanden Plas, the fuel tank is situated beneath the rear seat, requiring removal of the seat cushion and insulation to expose the tank’s access panel. This panel houses the pump and sender assembly, secured by a locking ring or bolts.
Accessing the fuel pump involves several steps. First, relieve fuel system pressure by disconnecting the negative battery terminal and removing the fuel pump fuse or relay. Next, remove the rear seat by releasing the retaining clips or bolts, then lift the cushion to expose the tank’s access area. Use a suitable tool, such as a trim panel removal tool, to avoid damaging the interior. Once the insulation is removed, locate the access panel and mark its orientation before loosening the locking ring or bolts.
Caution is critical during this process. Working on a fuel system carries risks, including fuel spillage and exposure to flammable vapors. Ensure the vehicle is on a level surface, and use a drain pan to catch any residual fuel when the tank is accessed. Avoid open flames or sparks, and wear safety goggles and gloves to protect against fuel contact. If unsure, consult a professional to prevent accidents or further damage.
In summary, locating the fuel pump in a 1998 Jaguar Vanden Plas involves identifying its position within the fuel tank, accessing the tank via the rear seat, and carefully removing the access panel. This process requires precision, safety precautions, and adherence to the vehicle’s specific design. By following these steps, you can successfully access the fuel pump for inspection, testing, or replacement.
