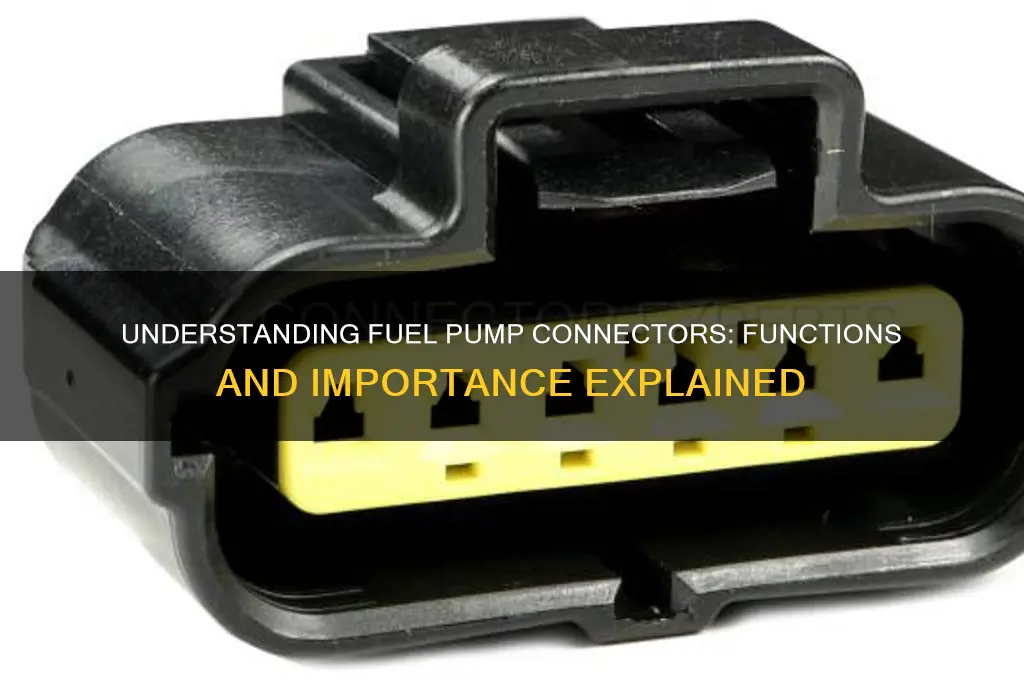

The connectors on a fuel pump play a critical role in ensuring the proper functioning of a vehicle's fuel system. These connectors serve as the interface between the fuel pump and the vehicle's electrical system, transmitting power and signals necessary for the pump to operate efficiently. They are designed to securely link the fuel pump to the wiring harness, enabling the delivery of fuel from the tank to the engine. Understanding the function and importance of these connectors is essential for diagnosing and resolving issues related to fuel delivery, as faulty or damaged connectors can lead to poor engine performance, stalling, or even complete fuel system failure. Proper maintenance and inspection of these components are crucial to maintaining the overall reliability and safety of the vehicle.
| Characteristics | Values |
|---|---|
| Function | Connect the fuel pump to the vehicle's electrical system and fuel lines |
| Types | Electrical connectors (e.g., 2-pin, 3-pin) and fuel line connectors (e.g., quick-connect, threaded) |
| Electrical Connectors Purpose | Supply power to the fuel pump motor and transmit signals (e.g., fuel pressure sensor data) |
| Fuel Line Connectors Purpose | Ensure secure and leak-free connection between the fuel pump and fuel lines |
| Common Pin Configurations | 2-pin (power and ground), 3-pin (power, ground, and signal) |
| Materials | Typically made of durable plastics, rubber, or metal for corrosion resistance |
| Sealing Mechanism | O-rings, gaskets, or integrated seals to prevent fuel leaks |
| Locking Mechanism | Clips, tabs, or snap-fit designs to ensure secure connections |
| Compatibility | Specific to the vehicle make, model, and fuel pump type |
| Maintenance | Regular inspection for damage, corrosion, or loose connections |
| Replacement | Often replaced when damaged, corroded, or during fuel pump replacement |
| Diagnostic Role | Faulty connectors can cause issues like no-start, poor performance, or check engine light |
Explore related products
What You'll Learn
- Electrical Connection: Transmits power from the battery to the fuel pump motor for operation
- Fuel Line Attachment: Connects the pump to the fuel tank and engine for delivery
- Grounding Purpose: Ensures proper electrical grounding to prevent shorts or malfunctions
- Pressure Regulation: Links to the pressure regulator for consistent fuel flow control
- Sensor Integration: Connects sensors to monitor fuel pressure, flow, and pump performance
Electrical Connection: Transmits power from the battery to the fuel pump motor for operation
The electrical connection in a fuel pump system is the lifeline that ensures your vehicle's engine receives the necessary fuel for combustion. This critical link transmits power from the battery, the heart of your car's electrical system, directly to the fuel pump motor, enabling it to draw fuel from the tank and deliver it to the engine. Without this connection, the fuel pump would remain dormant, leaving your vehicle stranded.
Understanding the Circuit
The electrical connection typically consists of a wiring harness with connectors that plug into the fuel pump assembly. These connectors are designed to handle high-current loads, as the fuel pump motor requires significant power to operate efficiently. The circuit is often protected by a fuse or relay, which safeguards the system from overloads or short circuits. For instance, in most modern vehicles, a 10- to 20-amp fuse is used to protect the fuel pump circuit, ensuring that any electrical fault does not damage the pump or the wiring.
Practical Tips for Maintenance
When inspecting or replacing the electrical connection to the fuel pump, start by disconnecting the battery to prevent accidental short circuits. Use a multimeter to test for continuity in the wiring harness, ensuring there are no breaks or corrosion that could disrupt power transmission. If the connectors show signs of wear, such as melted plastic or loose pins, replace them immediately. Always use connectors rated for the specific amperage of your fuel pump to avoid overheating or failure.
Comparative Analysis: In-Tank vs. External Pumps
In vehicles with in-tank fuel pumps, the electrical connection is often integrated into the pump module, which is submerged in the fuel. This design helps dissipate heat and reduces the risk of electrical arcing. Conversely, external fuel pumps, commonly found in older or carbureted vehicles, have exposed connectors that require regular inspection for corrosion or damage. Understanding the placement of your fuel pump can guide your maintenance approach, ensuring the electrical connection remains reliable.
The Role of Grounding
A often overlooked aspect of the electrical connection is proper grounding. The fuel pump relies on a solid ground connection to complete the circuit and ensure efficient operation. Poor grounding can lead to intermittent pump operation or complete failure. Check the ground wire for corrosion or loose connections, especially in vehicles exposed to harsh weather conditions. Cleaning the ground point with a wire brush and applying dielectric grease can significantly improve conductivity and longevity.
By focusing on the electrical connection, you ensure the fuel pump receives the power it needs to keep your vehicle running smoothly. Regular inspection, proper maintenance, and understanding the unique aspects of your fuel pump system are key to preventing costly breakdowns and ensuring reliable performance.
Starting Your Mercedes with a Faulty Fuel Pump: Quick Fixes
You may want to see also
Explore related products
Fuel Line Attachment: Connects the pump to the fuel tank and engine for delivery
The fuel line attachment is the unsung hero of your vehicle's fuel system, a critical component that ensures the seamless delivery of fuel from the tank to the engine. This connection is not merely a simple hose but a sophisticated interface designed to handle the pressures, temperatures, and chemical properties of modern fuels. Without it, the fuel pump's efficiency would be compromised, leading to poor engine performance or even failure.
Consider the fuel line attachment as the lifeline of your vehicle’s fuel system. It must withstand constant vibration, temperature fluctuations, and exposure to corrosive fuels. Modern attachments often feature quick-connect fittings, which simplify installation and reduce the risk of leaks. These fittings are typically made from durable materials like nylon or metal, ensuring longevity and reliability. For DIY enthusiasts, understanding the correct torque specifications for these connectors is crucial; overtightening can damage the fittings, while undertightening can cause leaks.
When replacing a fuel line attachment, compatibility is key. Ensure the new connector matches the fuel type (gasoline, diesel, or ethanol blends) and the vehicle’s make and model. For instance, ethanol-blended fuels require materials resistant to corrosion, such as stainless steel or ethanol-compatible plastics. Additionally, always use manufacturer-recommended tools and follow safety protocols, like relieving fuel system pressure before disconnecting lines.
A comparative analysis reveals the evolution of fuel line attachments. Older vehicles often used clamp-style connectors, which were prone to leaks and required frequent maintenance. In contrast, modern quick-connect systems offer a more secure and user-friendly solution. However, even these advanced connectors can fail if exposed to extreme conditions or improper handling. Regular inspection for cracks, swelling, or looseness can prevent unexpected breakdowns.
In conclusion, the fuel line attachment is a small yet vital component that bridges the gap between the fuel pump, tank, and engine. Its design and material must align with the demands of contemporary fuels and vehicle systems. Whether you’re a professional mechanic or a DIY enthusiast, understanding its function, proper installation, and maintenance ensures your vehicle runs smoothly and efficiently. Treat this connector with the care it deserves, and it will serve you reliably for years to come.
Understanding Fuel Pump Pressure Relief Valve Activation and Functionality
You may want to see also
Explore related products
Grounding Purpose: Ensures proper electrical grounding to prevent shorts or malfunctions
Electrical grounding is a critical yet often overlooked aspect of fuel pump connectors. Without proper grounding, the electrical system can experience shorts, malfunctions, or even fires. The grounding purpose of fuel pump connectors ensures that excess electrical charge has a safe path to dissipate, protecting both the vehicle and its occupants. This function is particularly vital in fuel systems, where sparks or electrical arcs could ignite fuel vapors, leading to catastrophic consequences.
Consider the fuel pump connector as a bridge between the vehicle’s electrical system and the fuel pump. One of its primary roles is to establish a reliable ground connection, typically through a dedicated terminal or wire. This ground acts as a return path for the electrical current, completing the circuit and allowing the fuel pump to operate efficiently. Without this grounding, voltage fluctuations or electrical noise can interfere with the pump’s performance, leading to inconsistent fuel delivery or complete failure. For instance, a loose or corroded ground connection might cause the fuel pump to run intermittently, resulting in engine stalling or poor acceleration.
To ensure proper grounding, inspect the fuel pump connector regularly for signs of corrosion, damage, or loose connections. Clean the terminals with a wire brush and apply dielectric grease to prevent moisture buildup. If the connector shows signs of wear, replace it immediately to avoid grounding issues. Additionally, verify that the ground wire is securely attached to a clean, unpainted metal surface on the vehicle’s chassis. A weak ground connection can be diagnosed using a multimeter to check for continuity between the connector’s ground terminal and the vehicle’s battery negative terminal.
Comparing grounding in fuel pump connectors to other automotive systems highlights its unique importance. While grounding in lighting or audio systems primarily prevents malfunctions, grounding in fuel systems is a safety-critical function. Unlike other components, a failure here doesn’t just mean inconvenience—it poses a direct risk of fire or explosion. This distinction underscores the need for meticulous maintenance and high-quality components in fuel pump grounding systems.
In practice, grounding issues often manifest as subtle symptoms before escalating into major problems. For example, a vehicle might exhibit erratic fuel gauge readings, difficulty starting, or a check engine light due to poor grounding. Addressing these early warning signs can prevent costly repairs and ensure the longevity of the fuel system. By understanding the grounding purpose of fuel pump connectors and taking proactive steps to maintain them, vehicle owners can safeguard both performance and safety.
Locate the Fuel Pump Relay in Your 1987 Nissan Sentra
You may want to see also
Explore related products
Pressure Regulation: Links to the pressure regulator for consistent fuel flow control
The fuel pump's connectors are vital for maintaining the intricate balance of pressure within the fuel system, ensuring your engine receives the precise amount of fuel it needs. Among these connectors, the link to the pressure regulator is a critical component, acting as the gatekeeper for consistent fuel flow. This regulator is a small yet powerful device, typically located near the fuel pump or on the fuel rail, and its role is to maintain the optimal fuel pressure required for efficient combustion.
Imagine a scenario where fuel pressure is unregulated: the engine might receive an excessive amount of fuel, leading to rich air-fuel mixtures, increased emissions, and potential damage to catalytic converters. Conversely, insufficient pressure could result in lean mixtures, causing engine misfires and reduced performance. The pressure regulator steps in to prevent these issues by monitoring and adjusting the fuel pressure in real-time. It achieves this by diverting excess fuel back to the tank when pressure rises above the desired level, usually around 30-60 psi (pounds per square inch) for most modern vehicles.
In practice, this regulation process involves a delicate dance of mechanical and electronic components. The pressure regulator often consists of a diaphragm, a spring, and a valve. As fuel pressure increases, it acts on the diaphragm, compressing the spring until the valve opens, allowing surplus fuel to return to the tank. This feedback mechanism ensures that the fuel pressure remains within a narrow, predefined range, regardless of engine load or speed. For instance, during acceleration, when the engine demands more fuel, the regulator adjusts to maintain the correct pressure, enabling a seamless increase in fuel flow.
The precision of this system is remarkable. Modern electronic fuel injection systems can adjust fuel pressure with millisecond accuracy, ensuring that the engine's fuel requirements are met instantaneously. This level of control is essential for meeting stringent emissions standards and optimizing fuel efficiency. For enthusiasts and mechanics, understanding this process is crucial when diagnosing fuel-related issues. A faulty pressure regulator might exhibit symptoms like hard starting, rough idling, or a check engine light, often accompanied by error codes related to fuel system pressure.
In summary, the pressure regulator's connection to the fuel pump is a critical link in the chain of events that ensures your vehicle's engine runs smoothly. Its role in maintaining consistent fuel flow pressure is a testament to the sophistication of modern automotive engineering, where even the smallest components play a significant part in overall performance and efficiency. By regulating fuel pressure, this unassuming device contributes to the reliability and drivability of vehicles, making it an essential topic for anyone delving into the intricacies of fuel pump functionality.
Does an Inline Fuel Pump Create Vacuum? Exploring the Mechanics
You may want to see also
Explore related products
Sensor Integration: Connects sensors to monitor fuel pressure, flow, and pump performance
Modern fuel pumps are no longer isolated components; they are integral parts of a sophisticated network designed to optimize engine performance and efficiency. Sensor integration plays a pivotal role in this transformation, connecting various sensors to monitor critical parameters such as fuel pressure, flow, and pump performance. These sensors act as the eyes and ears of the fuel system, providing real-time data that ensures the engine receives the precise amount of fuel it needs under all operating conditions. Without this integration, the fuel pump would operate blindly, leading to inefficiencies, potential damage, and reduced vehicle reliability.
Consider the fuel pressure sensor, a key component in this setup. It measures the pressure within the fuel lines, ensuring it remains within the optimal range for combustion. For instance, in a typical gasoline direct injection (GDI) system, the fuel pressure must be maintained between 20 and 60 bar to achieve efficient atomization and combustion. If the pressure drops below this range, the engine may run lean, causing misfires and reduced power. Conversely, excessive pressure can lead to fuel leaks or injector damage. By integrating this sensor, the fuel pump control module (FPCM) can adjust the pump speed or duty cycle to maintain the desired pressure, ensuring consistent engine performance.
Another critical aspect is fuel flow monitoring, which ensures the engine receives the correct volume of fuel based on demand. This is particularly important during high-load conditions, such as acceleration or towing, when fuel consumption spikes. A fuel flow sensor measures the rate at which fuel is delivered to the engine, allowing the FPCM to modulate the pump’s output accordingly. For example, in a turbocharged engine, the fuel flow must increase proportionally with the boost pressure to prevent knock and maintain power. Without this sensor, the fuel pump would either over-deliver or under-deliver fuel, leading to inefficiency or engine damage.
Pump performance monitoring is equally vital, as it ensures the fuel pump itself is functioning optimally. Sensors track parameters such as pump speed, current draw, and temperature, providing early warnings of potential failures. For instance, a sudden increase in current draw could indicate a failing pump motor, while elevated temperatures might suggest a blocked fuel filter or inadequate cooling. By integrating these sensors, the system can alert the driver via a dashboard warning light, allowing for proactive maintenance before a complete failure occurs. This not only extends the pump’s lifespan but also prevents costly roadside breakdowns.
In practice, sensor integration requires precise calibration and compatibility to function effectively. Modern vehicles use standardized communication protocols like CAN (Controller Area Network) to ensure seamless data exchange between sensors and the FPCM. Technicians must follow manufacturer guidelines when replacing or upgrading these components, as even minor discrepancies can disrupt the system. For DIY enthusiasts, investing in a diagnostic scanner can help verify sensor readings and troubleshoot issues before they escalate. By understanding the role of sensor integration, vehicle owners can appreciate the complexity of their fuel system and take informed steps to maintain it.
Efficient Fuel Oil Pumping: A Step-by-Step Guide for Safe Extraction
You may want to see also
Frequently asked questions
The connectors on a fuel pump serve as the electrical interface between the fuel pump and the vehicle’s wiring harness, supplying power and control signals to operate the pump.
Yes, a faulty connector can cause intermittent power supply, poor grounding, or signal loss, leading to issues like engine stalling, reduced fuel pressure, or failure to start.
Inspect connectors for corrosion, loose pins, or damage. If replacement is needed, disconnect the battery, remove the old connector, and install a new one, ensuring proper alignment and secure attachment.
