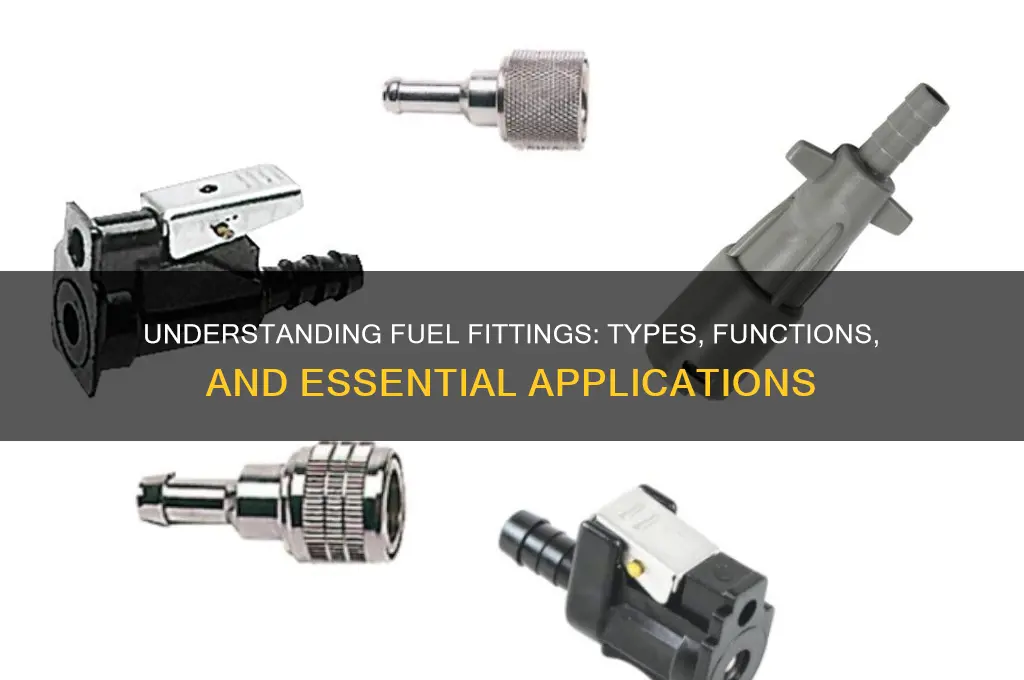

Fuel fittings are essential components in fuel systems, designed to connect, regulate, and control the flow of fuel in vehicles, machinery, and other equipment. These fittings ensure a secure and leak-free connection between fuel lines, filters, pumps, and injectors, maintaining the integrity and efficiency of the fuel delivery system. Made from durable materials like stainless steel, aluminum, or brass, they are engineered to withstand high pressures, temperature fluctuations, and corrosive fuels. Common types include hose barbs, quick-connect fittings, and compression fittings, each tailored to specific applications. Properly installed and maintained fuel fittings are critical for safety, performance, and preventing fuel leaks, making them a vital part of any fuel-powered system.
| Characteristics | Values |
|---|---|
| Definition | Components used to connect, control, or regulate fuel flow in a system. |
| Materials | Stainless steel, aluminum, brass, nylon, or PTFE (Polytetrafluoroethylene). |
| Types | Hose barbs, quick disconnects, compression fittings, AN fittings, banjo fittings. |
| Sizes | Standard sizes (e.g., AN sizes: -2, -4, -6, -8, -10, -12, etc.). |
| Pressure Rating | Varies by type and material (e.g., 1,000 to 5,000 PSI for AN fittings). |
| Temperature Resistance | Typically -40°F to 350°F (-40°C to 177°C), depending on material. |
| Compatibility | Designed for specific fuels (e.g., gasoline, diesel, ethanol, methanol). |
| Sealing Mechanism | O-rings, compression seals, or threaded connections. |
| Applications | Automotive, aviation, marine, industrial, and racing fuel systems. |
| Standards | Meets industry standards (e.g., SAE, AN, JIC, ORB). |
| Corrosion Resistance | High, especially with stainless steel or PTFE-coated fittings. |
| Ease of Installation | Varies; quick disconnects are easy, while compression fittings require tools. |
| Cost | Ranges from $1 to $50+ per fitting, depending on type and material. |
Explore related products
What You'll Learn
- Types of Fuel Fittings: Overview of various fittings like hose barbs, compression, and push-lock fittings
- Material Composition: Common materials include stainless steel, aluminum, and nylon for durability
- Size and Compatibility: Importance of matching fitting sizes to fuel lines and systems
- Installation Techniques: Proper methods for securing fittings to prevent leaks and ensure safety
- Maintenance and Inspection: Regular checks for corrosion, wear, and damage to maintain efficiency
Types of Fuel Fittings: Overview of various fittings like hose barbs, compression, and push-lock fittings
Fuel fittings are the unsung heroes of any fuel system, ensuring secure connections and preventing leaks in high-pressure, high-stakes environments. Among the most common types are hose barbs, compression fittings, and push-lock fittings, each designed for specific applications and performance requirements. Hose barbs, for instance, are simple yet effective, featuring a barbed end that grips the inside of a hose to create a tight seal. They are ideal for low-pressure systems and are often used in automotive and small engine applications. However, they rely heavily on the hose material and clamping mechanism for reliability, making them less suitable for high-vibration or high-pressure environments.
Compression fittings, on the other hand, offer a more robust solution for demanding fuel systems. These fittings use a nut and ferrule to compress the hose or tubing against a fitting body, creating a leak-proof seal. They are commonly used in aerospace, marine, and industrial applications where durability and resistance to vibration are critical. For example, AN (Army-Navy) compression fittings are a standard in high-performance automotive and aviation fuel systems, with sizes ranging from -2 to -16 AN, corresponding to specific hose diameters and pressure ratings. Proper installation is key—overtightening can damage the ferrule, while undertightening can lead to leaks.
Push-lock fittings represent the pinnacle of convenience and ease of use in fuel systems. These fittings utilize an O-ring and a locking mechanism to secure the hose, allowing for quick assembly and disassembly without tools. They are particularly popular in racing and performance applications where frequent maintenance or adjustments are necessary. For instance, push-lock fittings are often used in ethanol-compatible fuel systems, where their compatibility with specialty hoses and resistance to corrosion make them a preferred choice. However, they are generally rated for lower pressures compared to compression fittings, typically up to 200 psi, so their application must align with system requirements.
When selecting a fuel fitting, consider the specific demands of your system, including pressure, temperature, and compatibility with the fuel type. Hose barbs are cost-effective and easy to install but require careful attention to clamping. Compression fittings provide superior reliability but demand precision during installation. Push-lock fittings offer unmatched convenience but may not suit high-pressure applications. For example, in a methanol-fueled drag racing engine, push-lock fittings paired with nylon-reinforced hoses could simplify maintenance, while a turbine engine might require AN compression fittings for their proven durability under extreme conditions.
In practice, combining these fittings in a single system can optimize performance. For instance, a fuel cell might use compression fittings for high-pressure lines and push-lock fittings for secondary connections, balancing reliability and accessibility. Always consult manufacturer specifications and industry standards, such as SAE J343 for compression fittings, to ensure compatibility and safety. Proper selection and installation of fuel fittings not only prevent leaks but also contribute to the overall efficiency and longevity of the fuel system.
