Oxy-fuel welding, commonly known as gas welding, is a thermal welding process that uses a combination of oxygen and a fuel gas, such as acetylene, propane, or hydrogen, to produce a high-temperature flame capable of melting and joining metals. The process involves a torch that mixes the fuel gas with oxygen, creating a flame that can reach temperatures up to 3,500°C (6,330°F), sufficient to melt most metals. Oxy-fuel welding is versatile and can be used on a variety of materials, including steel, stainless steel, cast iron, and copper alloys. It is particularly useful for applications requiring portability, such as construction and repair work, due to its self-contained nature and ability to operate without electricity. Despite the rise of more modern welding techniques, oxy-fuel welding remains a valuable skill for its simplicity, cost-effectiveness, and effectiveness in specific scenarios.
| Characteristics | Values |
|---|---|
| Definition | A thermal welding process that uses oxygen and fuel gas (e.g., acetylene, propane, or natural gas) to generate a high-temperature flame for melting and joining metals. |
| Temperature | Up to 3,500°C (6,332°F) with acetylene, lower with other fuel gases. |
| Fuel Gases | Acetylene (most common), Propane, Natural Gas, Hydrogen, MAPP Gas. |
| Oxygen Source | Compressed oxygen from cylinders. |
| Applications | Welding, cutting, brazing, soldering, metal fabrication, repair work. |
| Materials Welded | Carbon steel, stainless steel, cast iron, copper, aluminum (with flux). |
| Equipment | Oxygen and fuel gas cylinders, regulators, hoses, torches, welding rods, goggles, gloves. |
| Advantages | Portable, no electricity required, versatile for various metals, low equipment cost. |
| Disadvantages | Slower than electric welding, requires skilled operation, flammable gases pose safety risks. |
| Safety Precautions | Proper ventilation, leak checks, flame-resistant clothing, eye and skin protection. |
| Flame Types | Neutral (balanced), Oxidizing (excess oxygen), Carburizing (excess fuel). |
| Cutting Ability | Effective for cutting thick metals by oxidizing the material with the flame. |
| Environmental Impact | Produces fumes and requires proper ventilation to avoid health hazards. |
| Cost | Relatively low initial investment but ongoing gas costs. |
| Skill Requirement | Moderate to high; requires training for precise control and safety. |
Explore related products
What You'll Learn
- Oxy-fuel welding basics: Process using oxygen and fuel gas to melt metals for joining
- Equipment needed: Torch, hoses, regulators, fuel cylinder, oxygen cylinder, and safety gear
- Fuel gases used: Acetylene, propane, or hydrogen as common fuel sources for welding
- Flame types: Neutral, oxidizing, and carburizing flames for different welding applications
- Safety precautions: Proper ventilation, flame-resistant clothing, and avoiding backfire risks
Oxy-fuel welding basics: Process using oxygen and fuel gas to melt metals for joining
Oxy-fuel welding harnesses the power of a focused flame, reaching temperatures up to 3,500°C (6,332°F), to melt and fuse metals. This process relies on a carefully controlled mixture of oxygen and a fuel gas, typically acetylene, propane, or hydrogen. The oxygen accelerates combustion, enabling the flame to cut through or join materials with precision. Unlike MIG or TIG welding, oxy-fuel welding doesn’t require electricity, making it ideal for remote locations or environments without power access.
To begin, assemble the equipment: an oxygen cylinder, a fuel gas cylinder, hoses, regulators, and a torch with a mixing chamber. Adjust the regulators to deliver the correct gas pressures—typically 5 to 15 psi for acetylene and 30 to 70 psi for oxygen, depending on the application. Light the torch and fine-tune the flame by adjusting the oxygen and fuel valves. A neutral flame, characterized by a bright inner cone and faint blue outer cone, is optimal for most welding tasks. For cutting, increase the oxygen flow to create an oxidizing flame, which burns hotter and supports the cutting action.
Mastering the technique requires practice. Hold the torch at a 45-degree angle to the workpiece, maintaining a consistent distance of 1 to 2 inches. Move the flame steadily along the joint, ensuring the metal melts evenly without overheating. For thicker materials, preheat the area to reduce thermal stress and improve fusion. Always wear protective gear, including welding goggles, flame-resistant clothing, and gloves, as the intense heat and UV radiation pose significant risks.
Compared to modern arc welding methods, oxy-fuel welding offers versatility in joining ferrous and non-ferrous metals, including steel, copper, and aluminum. However, it’s less efficient for high-volume production due to slower setup and cooling times. Its simplicity and portability make it a go-to choice for repair work, fabrication in remote areas, and artistic metalworking. With proper technique and safety precautions, oxy-fuel welding remains a reliable, cost-effective method for joining metals in diverse applications.
Does Worship Fuel God? Exploring the Divine-Human Connection
You may want to see also
Explore related products

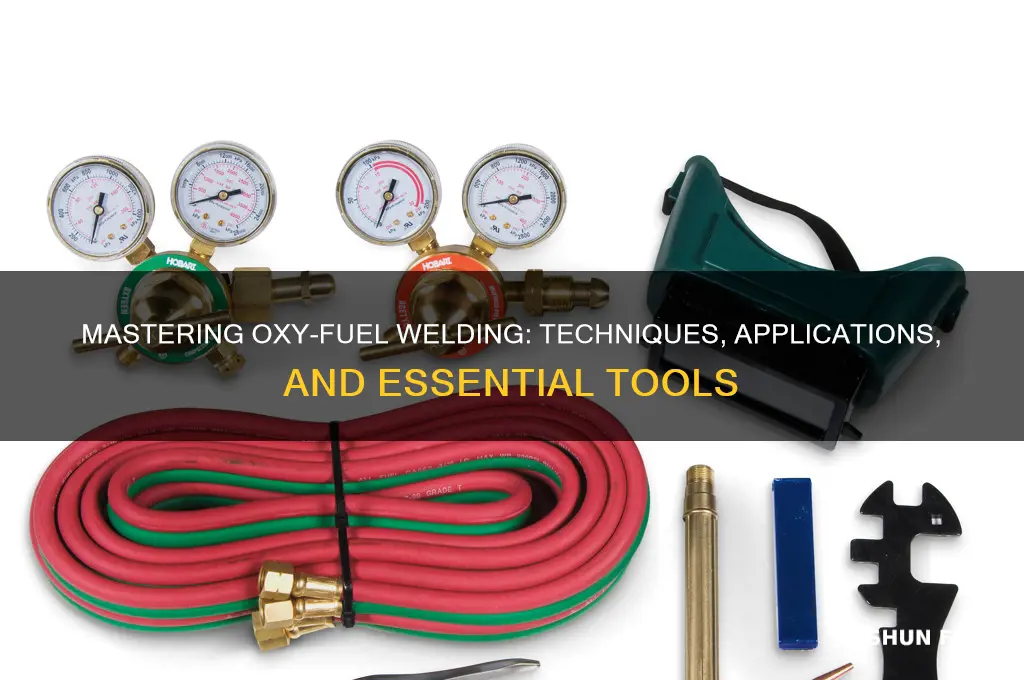

Equipment needed: Torch, hoses, regulators, fuel cylinder, oxygen cylinder, and safety gear
Oxy-fuel welding, a time-honored technique, demands precision and the right tools. At its core, the torch is the star of the show—a handheld device where fuel gas and oxygen mix, ignited to produce a flame hot enough to melt metal. Modern torches are designed with durability in mind, often featuring brass or copper bodies to withstand high temperatures. The tip size varies depending on the application; for instance, a #5 tip is ideal for welding 1/8-inch steel, while a #2 tip suits thinner materials like sheet metal. Selecting the right torch is the first step in mastering this craft.
Connected to the torch are hoses, the lifelines of the operation. These must be flexible yet robust, capable of withstanding the high pressures of both fuel and oxygen. Hoses are typically color-coded for safety: red for fuel and green or black for oxygen. Inspect hoses regularly for cracks or leaks, as even a small defect can compromise safety. For optimal performance, use hoses with a working pressure of at least 300 psi, ensuring they meet industry standards like those set by the Compressed Gas Association.
Regulators are the unsung heroes, controlling the flow of gases from cylinders to the torch. They reduce high-pressure gas to a usable range, typically 5–60 psi for fuel and 40–70 psi for oxygen. A quality regulator features dual gauges: one for cylinder pressure and one for working pressure. When setting up, always open the cylinder valve slowly to prevent damage to the regulator. Fine-tuning the regulator ensures a stable flame, critical for clean welds.
The fuel cylinder and oxygen cylinder are the power sources of oxy-fuel welding. Acetylene, stored in a porous mass within its cylinder, is the most common fuel gas, though propane or natural gas can also be used. Oxygen cylinders contain compressed oxygen at up to 2,200 psi. Always secure cylinders upright and chain them to a fixed object to prevent tipping. Store fuel cylinders away from heat sources, as acetylene is highly flammable. Regularly inspect cylinders for corrosion or damage, and never exceed the recommended fill levels.
Lastly, safety gear is non-negotiable. Welding goggles with shade #3 or #4 lenses protect eyes from intense light and UV radiation. Leather gloves and a flame-resistant apron shield skin from sparks and heat. Ensure proper ventilation to avoid inhaling fumes, and keep a fire extinguisher nearby. For added safety, use a flashback arrestor on both fuel and oxygen lines to prevent reverse gas flow and potential explosions. Investing in high-quality safety gear is not just a precaution—it’s a necessity.
In oxy-fuel welding, each piece of equipment plays a critical role, from the torch’s precision to the regulator’s control and the safety gear’s protection. Mastering these tools ensures not only successful welds but also a safe working environment. Whether you’re a novice or a seasoned professional, understanding and maintaining your equipment is key to unlocking the full potential of this versatile welding method.
Can Hydrogen Fuel Cells Reverse the Energy Conversion Process?
You may want to see also
Explore related products
Fuel gases used: Acetylene, propane, or hydrogen as common fuel sources for welding
Oxy-fuel welding relies on a precise balance of fuel gas and oxygen to generate the intense heat required for joining metals. Among the most common fuel gases are acetylene, propane, and hydrogen, each offering distinct advantages and limitations. Acetylene, with its flame temperature of approximately 3,300°C (6,000°F) when mixed with oxygen, remains the traditional choice for oxy-fuel welding due to its ability to produce a concentrated, high-temperature flame ideal for cutting and welding steel. However, its volatility necessitates careful handling, often requiring specialized acetone-filled cylinders to maintain stability under pressure.
Propane, a more stable and cost-effective alternative, delivers a flame temperature of around 2,800°C (5,072°F) when combined with oxygen. While it lacks the heat intensity of acetylene, propane is favored for its ease of use and lower flammability range, making it safer for general welding tasks, particularly in outdoor environments. Its portability and availability in larger cylinders also make it a practical choice for extended operations. However, propane’s broader flame profile requires careful control to avoid overheating or warping thinner materials.
Hydrogen, though less commonly used, offers a unique set of benefits, including a flame temperature of up to 3,400°C (6,152°F) when mixed with oxygen. Its high heat output and clean-burning properties make it ideal for specialized applications, such as welding tungsten or high-alloy steels. However, hydrogen’s low density and high flammability demand stringent safety measures, including leak detection systems and proper ventilation. Its use is typically reserved for industrial settings where precision and material purity are paramount.
Selecting the appropriate fuel gas depends on the specific welding requirements and environmental conditions. For instance, acetylene is preferred for tasks demanding rapid heating and precise control, while propane suits longer, less critical operations. Hydrogen, despite its advantages, remains a niche choice due to its complexity and cost. Understanding the characteristics of each gas enables welders to optimize their work, balancing efficiency, safety, and material integrity.
Practical tips for fuel gas selection include assessing the thickness and type of metal, as well as the desired weld quality. For example, acetylene’s focused flame is ideal for thin sheets, whereas propane’s broader heat distribution works better for thicker sections. Always adhere to manufacturer guidelines for gas-to-oxygen ratios, typically 1:1 for acetylene and 1:4 for propane, to ensure optimal combustion. Proper storage, handling, and ventilation are critical across all fuel gases to mitigate risks and ensure consistent performance.
Reverse Parking vs. Fuel Efficiency: Uncovering the Truth Behind the Myth
You may want to see also
Explore related products
Flame types: Neutral, oxidizing, and carburizing flames for different welding applications
Oxy-fuel welding relies on precise flame control to achieve optimal results across various applications. The flame type—neutral, oxidizing, or carburizing—dictates the chemical composition of the weld and its suitability for specific materials. Each flame type is characterized by the ratio of oxygen to fuel gas, typically acetylene, and produces distinct effects on the workpiece.
Neutral flames, achieved with a balanced oxygen-to-fuel ratio (approximately 1:1), are the most versatile. Here, the flame’s inner cone is distinct and colorless, with a well-defined outer cone. This flame neither adds nor removes oxygen from the weld pool, making it ideal for welding low-carbon steels, stainless steels, and non-ferrous metals like copper and aluminum. For instance, when welding a 3/16-inch steel plate, a neutral flame ensures minimal oxidation and maintains the material’s integrity. To achieve this, adjust the oxygen and acetylene valves until the flame burns with a feathered, bushy outer cone and a sharp, defined inner cone.
In contrast, oxidizing flames result from an excess of oxygen (oxygen-to-fuel ratio >1.1:1). The inner cone becomes shorter and brighter, with a hissing sound indicating the flame’s harsher nature. This flame type is primarily used for welding high-carbon steels and cast iron, as the excess oxygen helps burn off impurities like carbon and sulfur. However, it can also lead to increased oxidation and brittleness in the weld if not carefully controlled. For example, when welding cast iron, an oxidizing flame with a 1.2:1 ratio can improve the weld’s cleanliness but requires preheating the workpiece to prevent cracking.
Carburizing flames, produced by an excess of acetylene (oxygen-to-fuel ratio <1:1), are less common but essential for specific applications. The inner cone elongates and appears sooty due to unburned carbon, which is deposited into the weld. This flame is used for hard-facing applications, such as coating cutting tools or repairing worn machinery parts. For instance, when hard-facing a plowshare, a carburizing flame with a 0.85:1 ratio introduces carbon into the weld, increasing its hardness and wear resistance. However, excessive use can lead to brittle welds, so it’s crucial to limit its application to surface treatments.
Selecting the correct flame type requires understanding the material’s properties and the desired weld characteristics. Neutral flames offer a safe, all-purpose option, while oxidizing and carburizing flames address specific challenges like impurity removal or surface hardening. Always test the flame on scrap material before beginning the weld, and monitor the flame’s appearance and sound to ensure consistency. Proper flame control not only enhances weld quality but also extends the life of the welding equipment by reducing nozzle fouling and backfire risks.
Understanding Fuel Injection: How Modern Engines Optimize Performance and Efficiency
You may want to see also
Explore related products
$185.99
Safety precautions: Proper ventilation, flame-resistant clothing, and avoiding backfire risks
Oxy-fuel welding, a process that relies on the combustion of oxygen and a fuel gas to produce high-temperature flames, demands meticulous attention to safety. Among the critical precautions, proper ventilation stands paramount. Welding fumes, often laden with toxic metals like manganese and chromium, can accumulate in enclosed spaces, posing severe health risks. The Occupational Safety and Health Administration (OSHA) recommends a minimum air exchange rate of 20 cubic feet per minute (CFM) per welder to maintain safe air quality. For optimal safety, use mechanical ventilation systems such as fume extractors or ensure natural airflow by opening windows and doors. Portable fans can supplement but should not replace primary ventilation methods. Ignoring this precaution can lead to acute respiratory issues or long-term lung damage, underscoring the necessity of a well-ventilated workspace.
Equally vital is the use of flame-resistant clothing, which acts as a barrier against sparks, spatter, and accidental flame exposure. Standard cotton or synthetic fabrics can ignite or melt onto the skin, exacerbating burn injuries. Instead, opt for garments made from materials like leather, wool, or specialized flame-resistant (FR) fabrics that meet industry standards such as NFPA 2112. These materials self-extinguish when exposed to flames, reducing the risk of severe burns. Additionally, ensure clothing fits snugly to prevent catching on equipment, and avoid loose sleeves or pant legs that could come into contact with the welding zone. Gloves and aprons should also be FR-rated, providing comprehensive protection for hands and torso. Investing in high-quality protective gear is not just a precaution—it’s a non-negotiable safeguard for personal safety.
Avoiding backfire risks is another critical aspect of oxy-fuel welding safety, as backfires occur when the flame travels back into the torch or hose, potentially causing explosions or equipment damage. This hazard is often triggered by improper gas mixing ratios, contaminated regulators, or damaged hoses. To mitigate this, always check the integrity of hoses and connections before use, ensuring they are free from cracks or leaks. Maintain a precise oxygen-to-fuel ratio, typically 1:1 for neutral flames, and avoid over-pressurizing the system. Regularly inspect and clean regulators to prevent debris from obstructing gas flow. If a backfire occurs, immediately shut off the gas supply and allow the system to depressurize before investigating the cause. Proactive maintenance and adherence to operational guidelines are key to preventing this dangerous phenomenon.
In practice, integrating these safety measures requires a systematic approach. Begin by assessing the workspace for ventilation adequacy, ensuring fume extractors are operational or windows are open. Next, inspect all personal protective equipment (PPE) for wear and tear, replacing any compromised items. Before igniting the torch, verify gas pressures and hose connections, and always keep a fire extinguisher within arm’s reach. By treating these precautions as interconnected steps rather than isolated tasks, welders can create a safer environment that minimizes risks without compromising productivity. Safety in oxy-fuel welding is not optional—it’s the foundation of every successful weld.
Ethanol's Impact: Does It Accelerate Fuel Decay in Vehicles?
You may want to see also
Frequently asked questions
Oxy-fuel welding, also known as oxyacetylene welding or gas welding, is a process that uses a combination of oxygen and a fuel gas (typically acetylene) to produce a high-temperature flame for melting and joining metals.
Oxy-fuel welding works by mixing oxygen and a fuel gas in a torch, which produces a high-temperature flame (up to 3,500°C or 6,330°F) that melts the base metal and a filler rod, allowing them to fuse together and form a strong weld.
Oxy-fuel welding is suitable for welding a wide range of metals, including carbon steel, stainless steel, cast iron, aluminum, copper, and brass. However, it is most commonly used for welding mild steel and other ferrous metals.
Oxy-fuel welding offers several advantages, including its portability, low equipment cost, and ability to weld in remote locations without requiring electricity. It is also versatile, allowing for welding, cutting, heating, and brazing operations with a single setup. However, it requires skilled operators and can be slower compared to other methods like MIG or TIG welding.
